Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

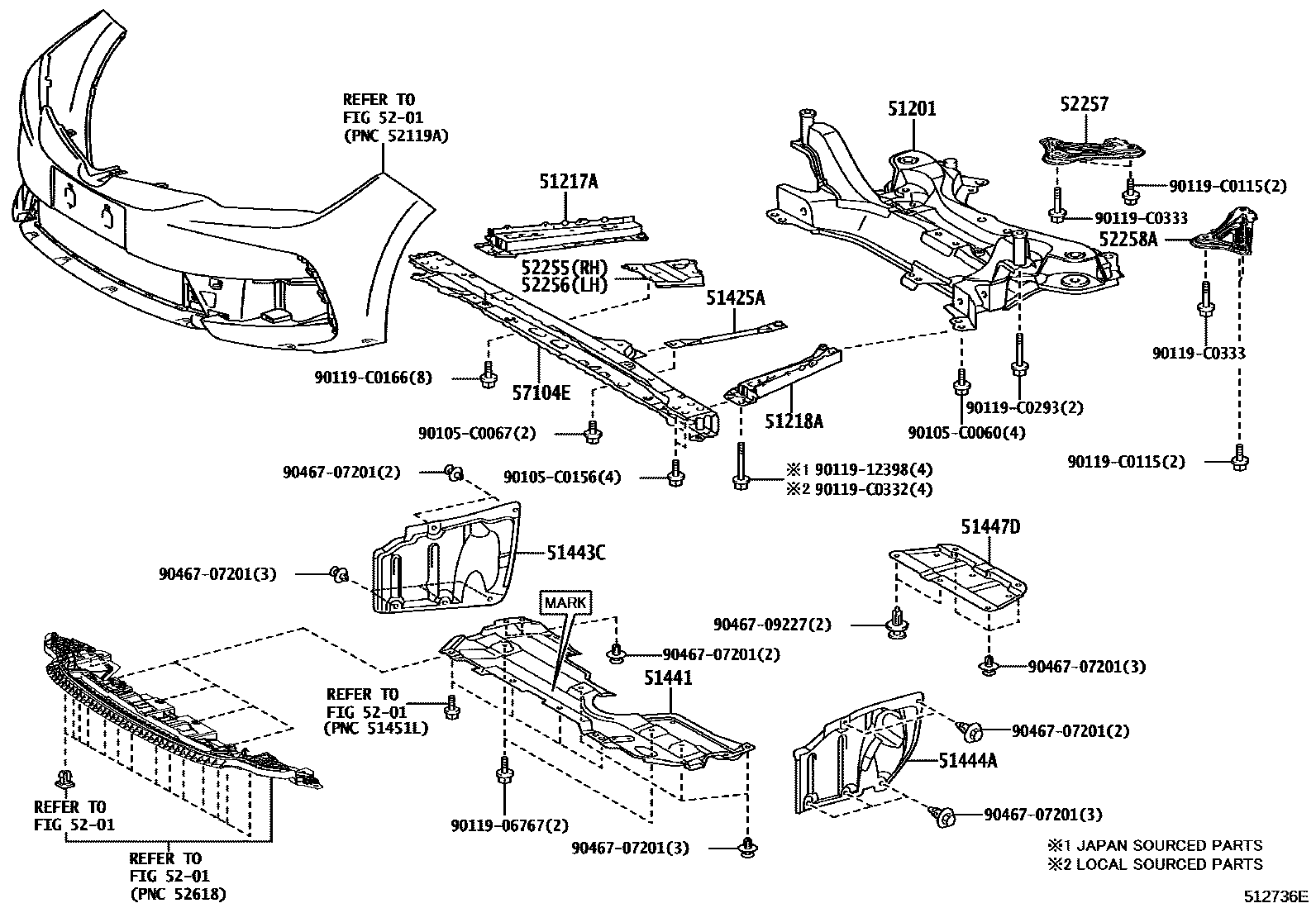

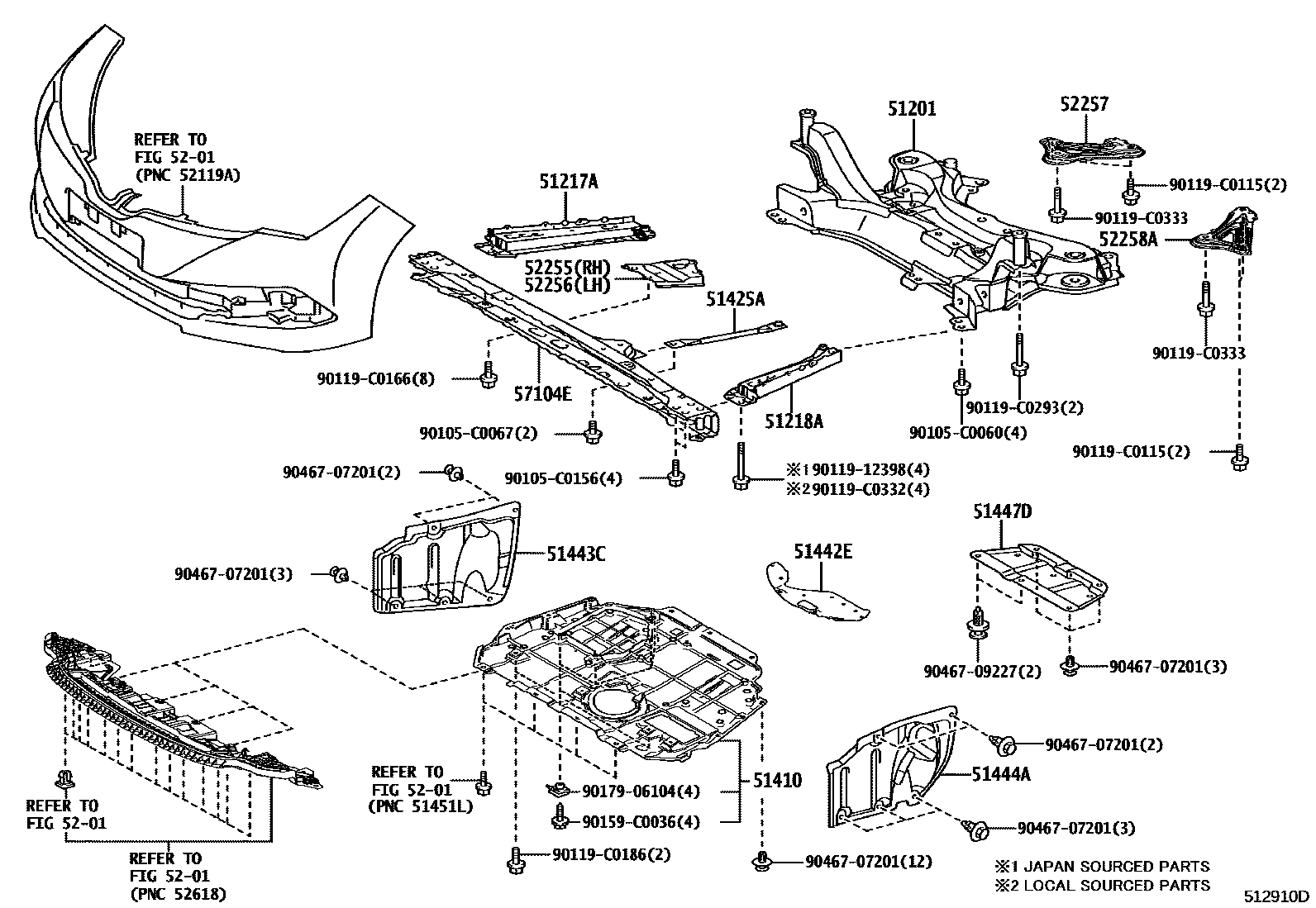

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02132 |
| 51217A | Right front suspension cross member reinforcement | 51107-02030 |
| 51218A | Left front suspension cross member reinforcement | 51108-02030 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-02250 · 51410-02330 |
| 51425A | Engine front mounting bracket lower reinforcement | 51425-02040 |
| 51441 | No. 1 engine bottom cover | 51441-02470 · 51441-02520 |
| 51442E | No. 2 engine bottom cover | 51442-02460 |
| 51443C | Engine right rear bottom cover | 51443-02070 |
| 51444A | Engine left rear bottom cover | 51444-02060 |
| 51447D | No. 4 engine center bottom cover | 51447-02030 |
| 52255 | Right front suspension cross member front bracket | 52255-02030 |
| 52256 | Left front suspension cross member front bracket | 52256-02030 |
| 52257 | Right front suspension cross member rear bracket | 52257-02080 |
| 52258A | Left front suspension cross member rear bracket | 52258-02080 |
| 57104E | Front cross member sub-assembly | 57104-02380 |
