Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

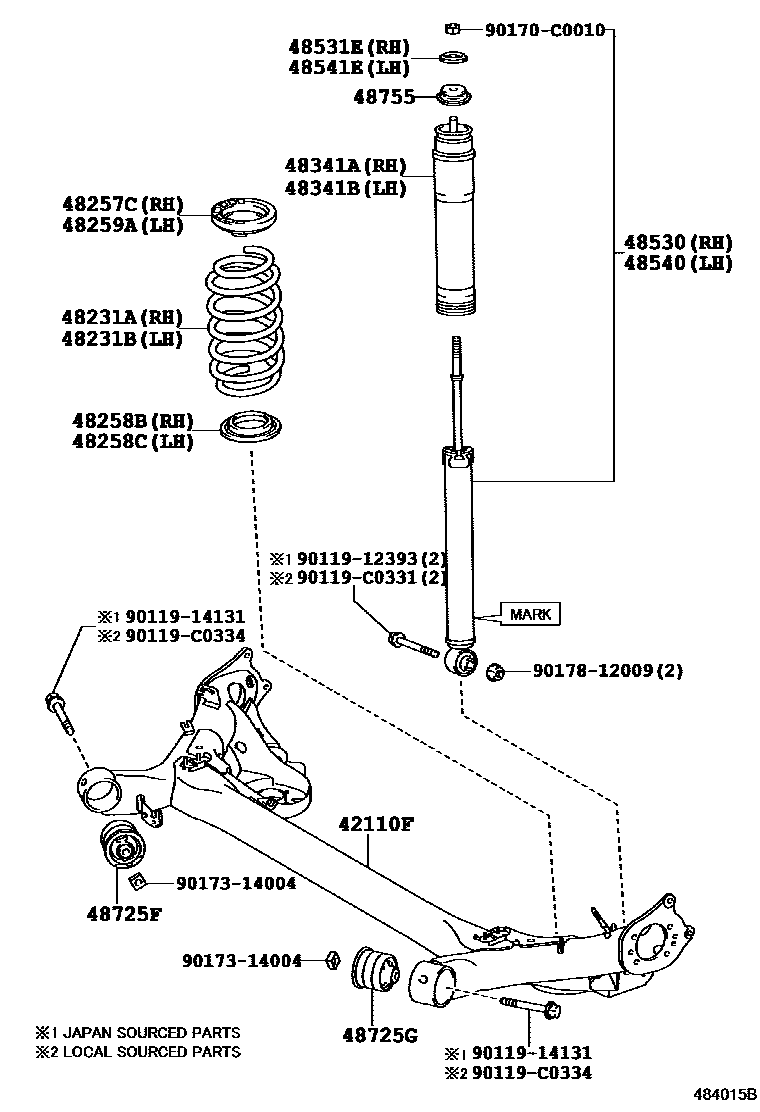

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-02370 · 42101-12171 |
| 48231A | Right rear coil spring | 48231-02B00 · 48231-02B01 · 48231-02J20 · 48231-02J21 |
| 48231B | Left rear coil spring | 48231-02B00 · 48231-02B01 · 48231-02J20 · 48231-02J21 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-02070 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-02050 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-02050 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-02070 |
| 48341A | No. 1 right rear spring buffer block | 48341-02071 |
| 48341B | No. 1 left rear spring buffer block | 48341-02071 |
| 48530 | Right rear shock absorber assembly | 48530-8Z011 · 48530-8Z041 · 48530-8Z042 · 48530-8Z043 · 48530-8Z050 · 48530-8Z051 · 48530-8Z052 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90948-02159 · 90948-C2006 |
| 48540 | Left rear shock absorber assembly | 48530-8Z011 · 48530-8Z041 · 48530-8Z042 · 48530-8Z043 · 48530-8Z050 · 48530-8Z051 · 48530-8Z052 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90948-02159 · 90948-C2006 |
| 48725F | Right rear axle bracket bushing | 48725-02210 |
| 48725G | Left rear axle bracket bushing | 48725-02210 |
| 48755 | rear suspension mount | 48755-02101 |
