Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

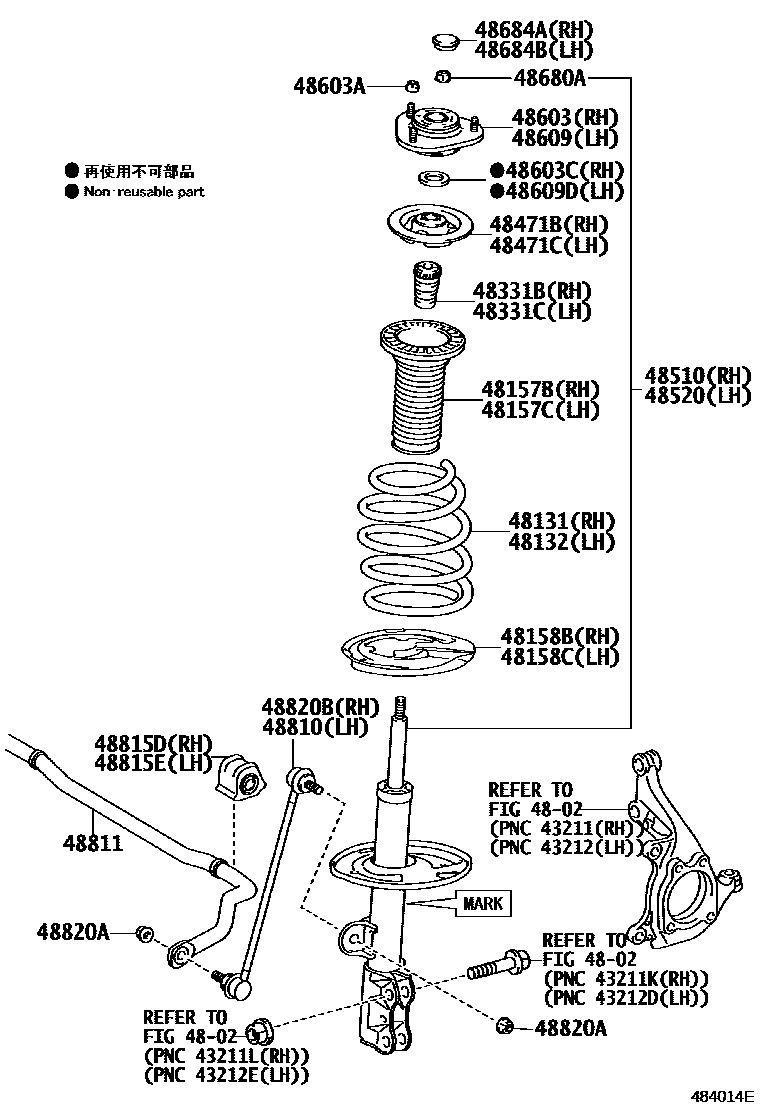

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02L00 · 48131-02L01 · 48131-02L70 · 48131-02X50 · 48131-02X80 |
| 48132 | Left front coil spring | 48131-02L00 · 48131-02L01 · 48131-02L70 · 48131-02X50 · 48131-02X80 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02210 · 48157-02290 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02210 · 48157-02290 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02210 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02210 |
| 48331B | Right front spring buffer block | 48331-02140 · 48331-12220 |
| 48331C | Left front spring buffer block | 48331-02140 · 48331-12220 |
| 48471B | Front coil spring upper right seat | 48044-02180 |
| 48471C | Front coil spring upper left seat | 48044-02180 |
| 48510 | Right front shock absorber assembly | 48510-8Z145 · 48510-8Z287 · 48510-8Z288 · 48510-8Z289 · 48510-8Z317 · 48510-8Z318 · 48510-8Z319 |
| 48520 | Left front shock absorber assembly | 48520-8Z033 · 48520-8Z145 · 48520-8Z146 · 48520-8Z147 · 48520-8Z178 · 48520-8Z179 · 48520-8Z180 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02270 |
| 48603A | Nut (for front suspension mount) | 90178-C0061 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 · 90303-C0001 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02270 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 · 90303-C0001 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-C0007 |
| 48684A | Right front suspension support dust cover | 48684-0R020 |
| 48684B | Left front suspension support dust cover | 48684-0R020 |
| 48810 | Left front stabilizer bar link assembly | 48820-02080 |
| 48811 | front stabilizer bar | 48811-02320 |
| 48815D | Right front stabilizer bar bushing | 48815-02190 · 48815-02191 |
| 48815E | Left front stabilizer bar bushing | 48815-02160 · 48815-02161 |
| 48820A | Nut (for front stabilizer bar link) | 90178-C0027 |
| 48820B | Right front stabilizer bar link assembly | 48820-02080 |
