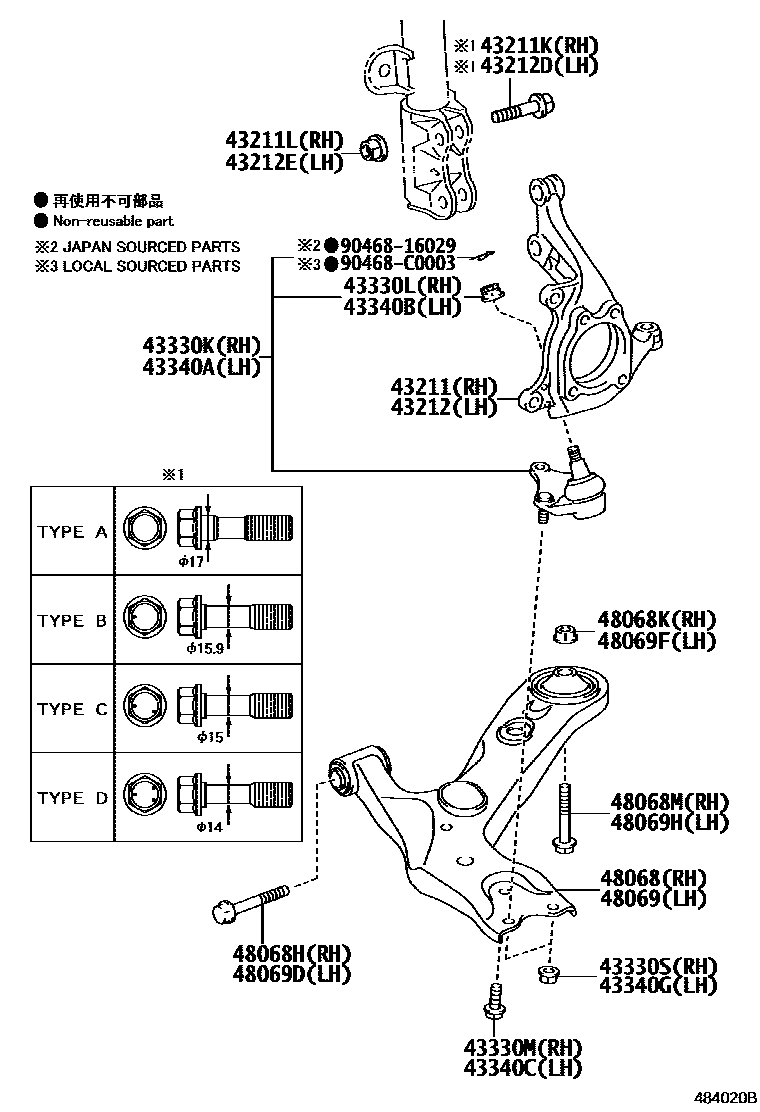

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-02200 |
| 43211K | Bolt (for right steering knuckle) | 90105-17009 · 90105-17010 · 90105-17011 · 90105-C0246 |
| 43211L | Nut (for right steering knuckle) | 90178-C0084 |
| 43212 | left steering knuckle | 43212-02200 |
| 43212D | Bolt (for left steering knuckle) | 90105-17009 · 90105-17010 · 90105-17011 · 90105-C0246 |
| 43212E | Nut (for left steering knuckle) | 90178-C0084 |
| 43330K | Right front lower ball joint assembly | 43330-09652 · 43330-09A60 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14011 · 90171-C0003 |
| 43330M | Bolt (for right front lower ball joint) | 90105-C0059 |
| 43330S | Nut (for right front lower ball joint) | 90178-C0062 |
| 43340A | Left front lower ball joint assembly | 43330-09652 · 43330-09A60 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14011 · 90171-C0003 |
| 43340C | Bolt (for left front lower ball joint) | 90105-C0059 |
| 43340G | Nut (for left front lower ball joint) | 90178-C0062 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-02180 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90105-C0066 |
| 48068K | Nut (for right front suspension No. 2 lower arm) | 90178-C0016 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90105-C0066 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-02180 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90105-C0066 |
| 48069F | Nut (for left front suspension No. 2 lower arm) | 90178-C0016 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90105-C0066 |
