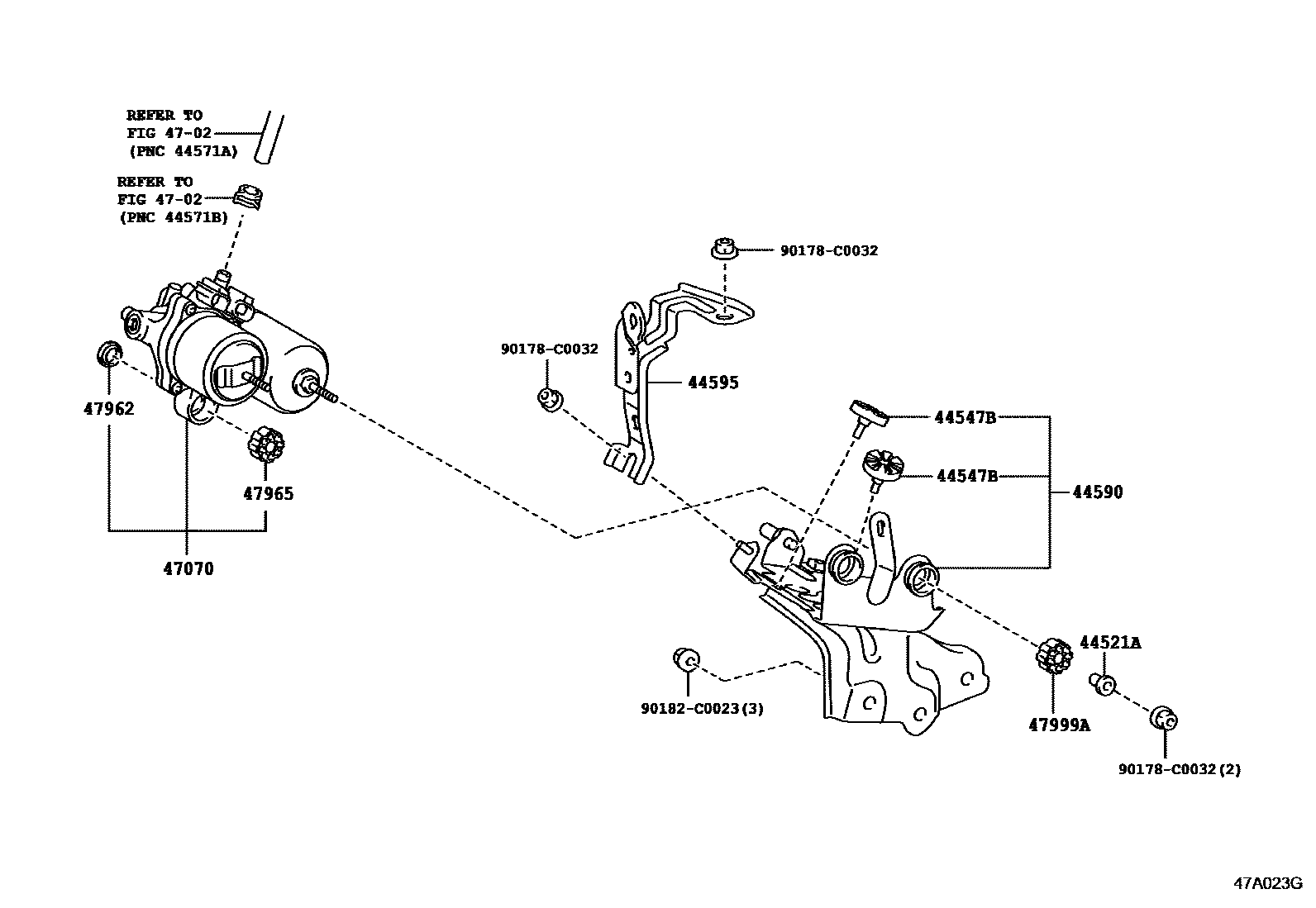

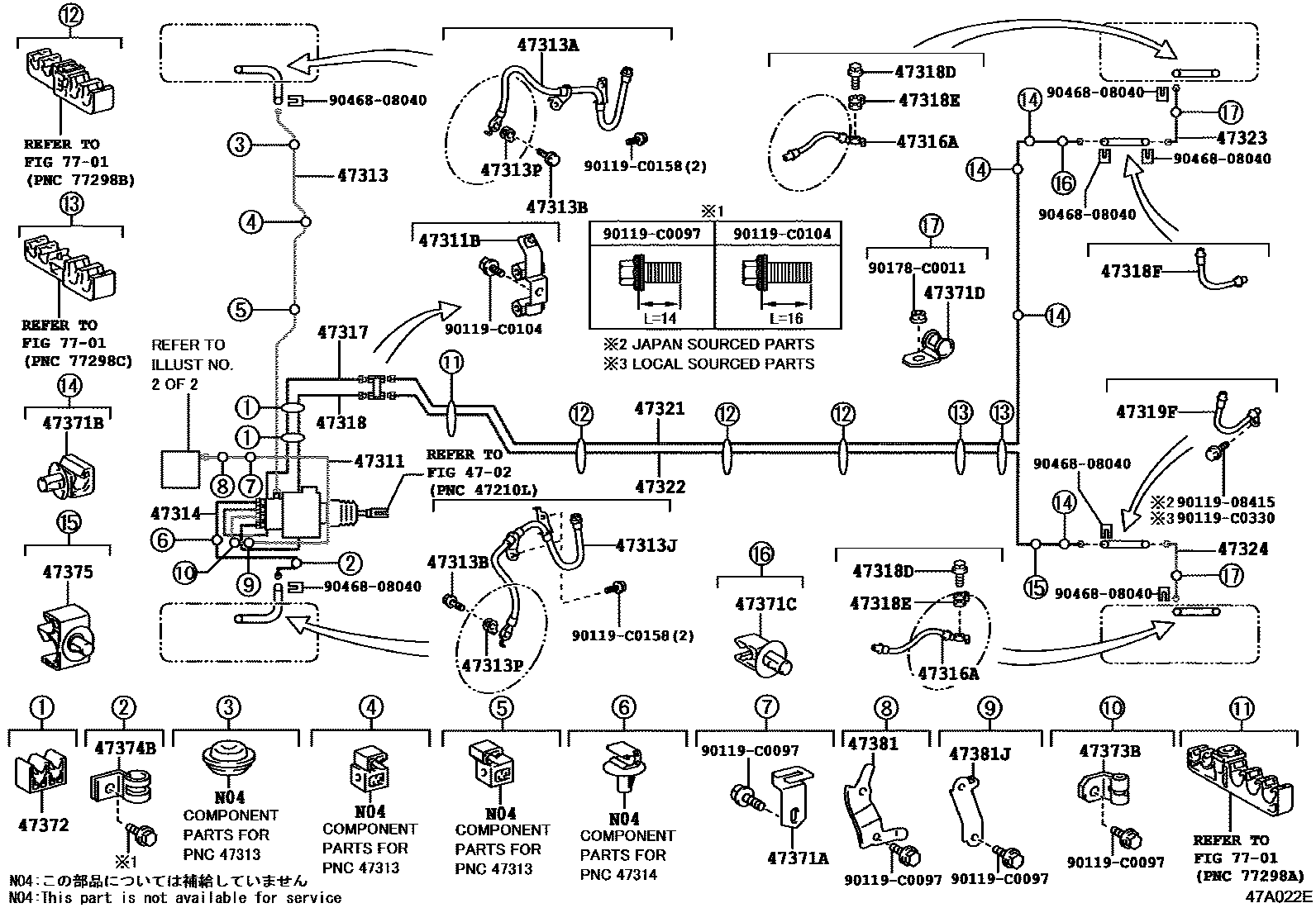

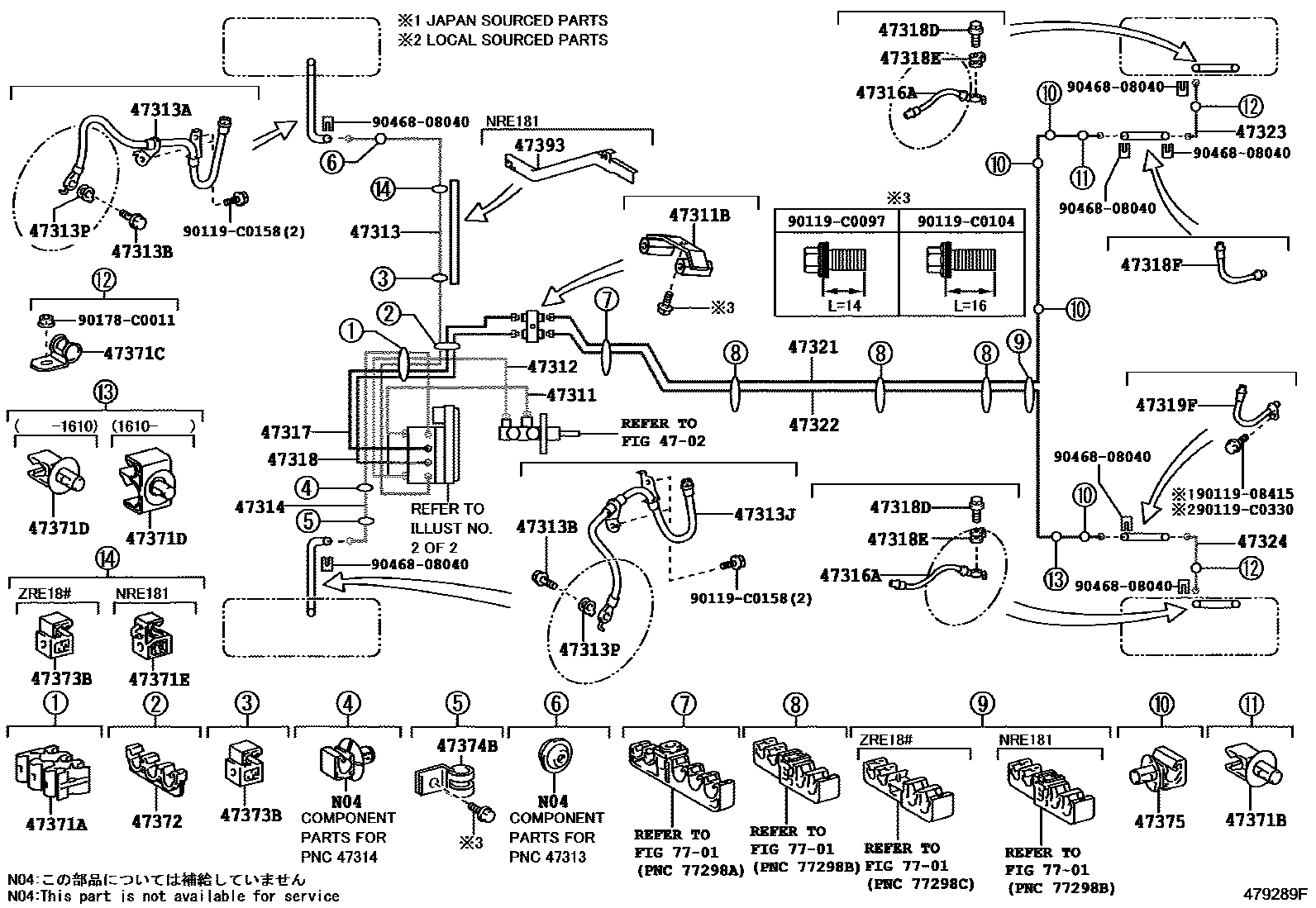

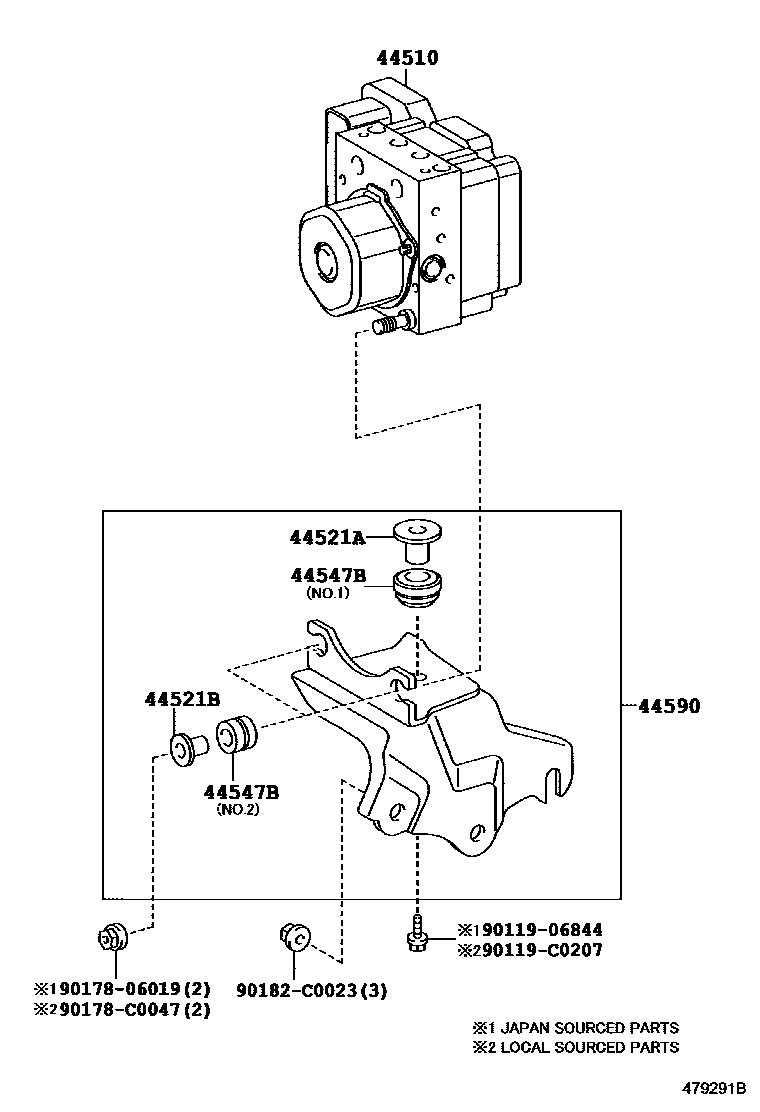

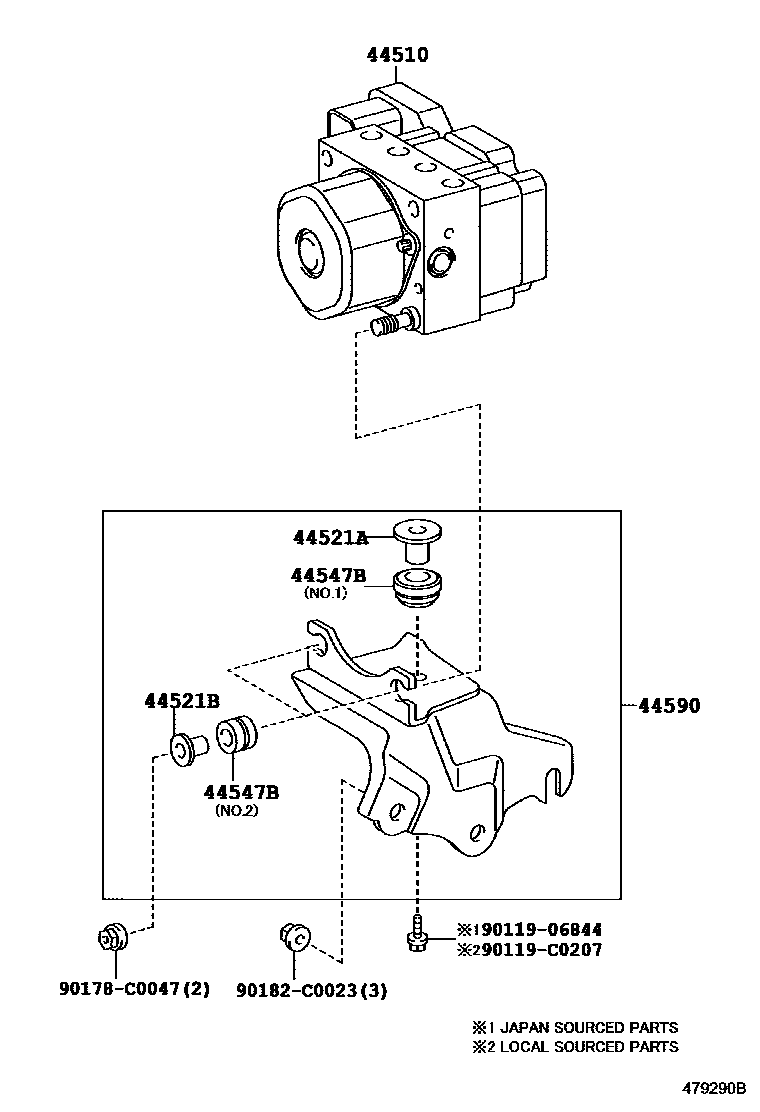

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02810 · 44050-02820 · 44050-02830 |
| 44521A | No. 1 brake actuator housing collar | 44521-02030 · 44521-02060 |
| 44521B | No. 2 brake actuator housing collar | 44521-02070 |
| 44547B | brake actuator bracket cushion | 44547-02020 · 44547-02060 · 47131-47070 |
| 44590 | Brake actuator bracket assembly | 44590-02380 · 44590-02390 · 44590-02440 |
| 44595 | No. 5 brake actuator bracket | 44595-02020 |
| 47070 | Brake booster pump assembly | 47070-12020 |
| 47311 | No. 1 front brake pipe | 47311-02C00 · 47311-02C10 · 47311-02C11 · 47311-02C20 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-C0001 |
| 47312 | No. 2 front brake pipe | 47312-02A70 · 47312-02A80 · 47312-02A81 |
| 47313 | No. 3 front brake pipe | 47313-02C30 · 47313-02C40 · 47313-02C41 · 47313-02C70 |
| 47313A | No. 1 front flexible hose | 90947-C2049 |
| 47313B | Connector bolt (for front flex hose) | 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2050 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-02B60 · 47314-02B70 · 47314-02B71 · 47314-02C20 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-C2052 |
| 47317 | No. 7 front brake pipe | 47317-02B00 · 47317-02B10 · 47317-02B11 · 47317-02B60 |
| 47318 | No. 8 front brake pipe | 47318-02B20 · 47318-02B30 · 47318-02B31 · 47318-02B80 |
| 47318D | Connector bolt (for rear flex hose) | 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2051 |
| 47319F | Left rear flexible hose | 90947-C2053 |
| 47321 | No. 1 rear brake pipe | 47321-02530 · 47321-02531 · 47321-02560 |
| 47322 | No. 2 rear brake pipe | 47322-02530 · 47322-02531 · 47322-02560 |
| 47323 | No. 3 rear brake pipe | 47323-02130 · 47323-02150 |
| 47324 | No. 4 rear brake pipe | 47324-02140 · 47324-02200 |
| 47371A | No. 1 brake pipe clamp | 47371-02040 · 47371-47060 · 90464-00933 · 90949-01969 · 90949-01E44 |
| 47371B | No. 6 brake pipe clamp | 90949-01D17 · 90949-01D29 |
| 47371C | No. 7 brake pipe clamp | 90461-C0002 · 90949-01D29 |
| 47371D | No. 8 brake pipe clamp | 77286-75020 · 90461-C0002 · 90949-01D29 |
| 47371E | No. 9 brake pipe clamp | 90949-01E18 |
| 47372 | No. 2 brake pipe clamp | 90464-00868 · 90464-00904 · 90949-01D92 |
| 47373B | No. 3 brake pipe clamp | 90461-10840 · 90949-01C82 · 90949-01E19 |
| 47374B | No. 4 brake pipe clamp | 90461-10781 |
| 47375 | No. 5 brake pipe clamp | 77286-75020 · 90949-01D17 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-02200 · 47381-75010 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-75020 |
| 47393 | brake pipe heat shield | 47393-02050 · 47393-12040 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47999A | Bushing (for brake pull actuator bracket) | 47965-30010 |
