Toyota COROLLA 制动助力器和真空管 — Figure 4703

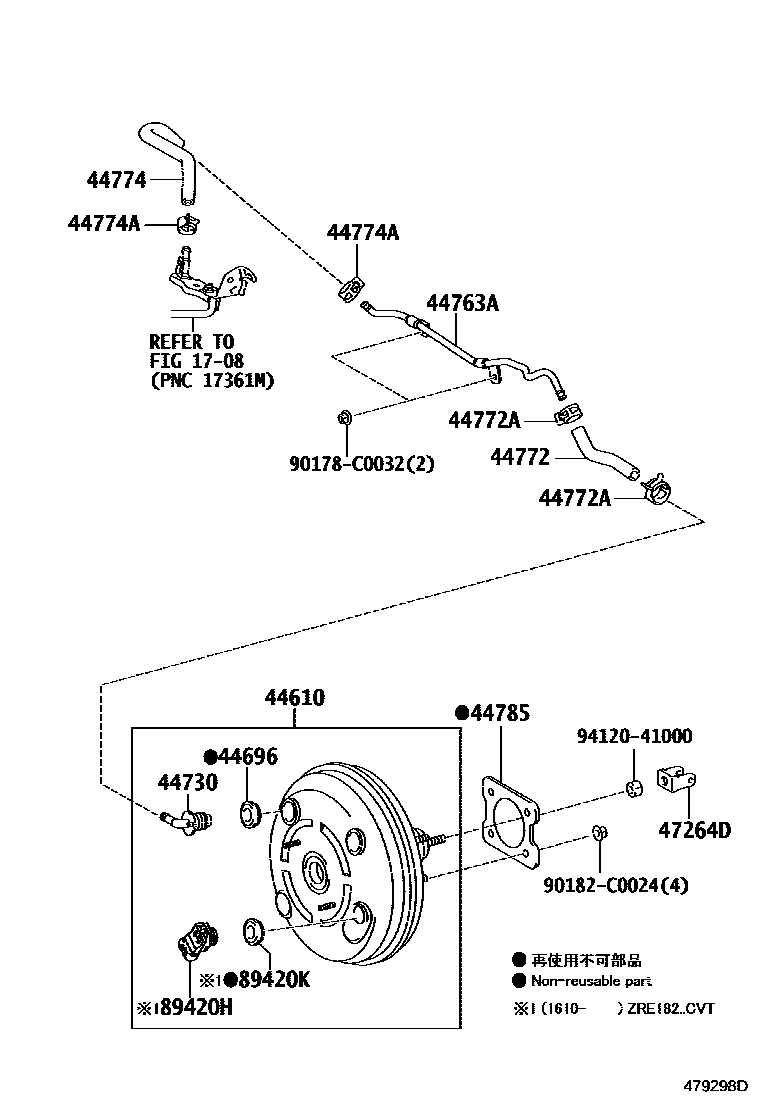

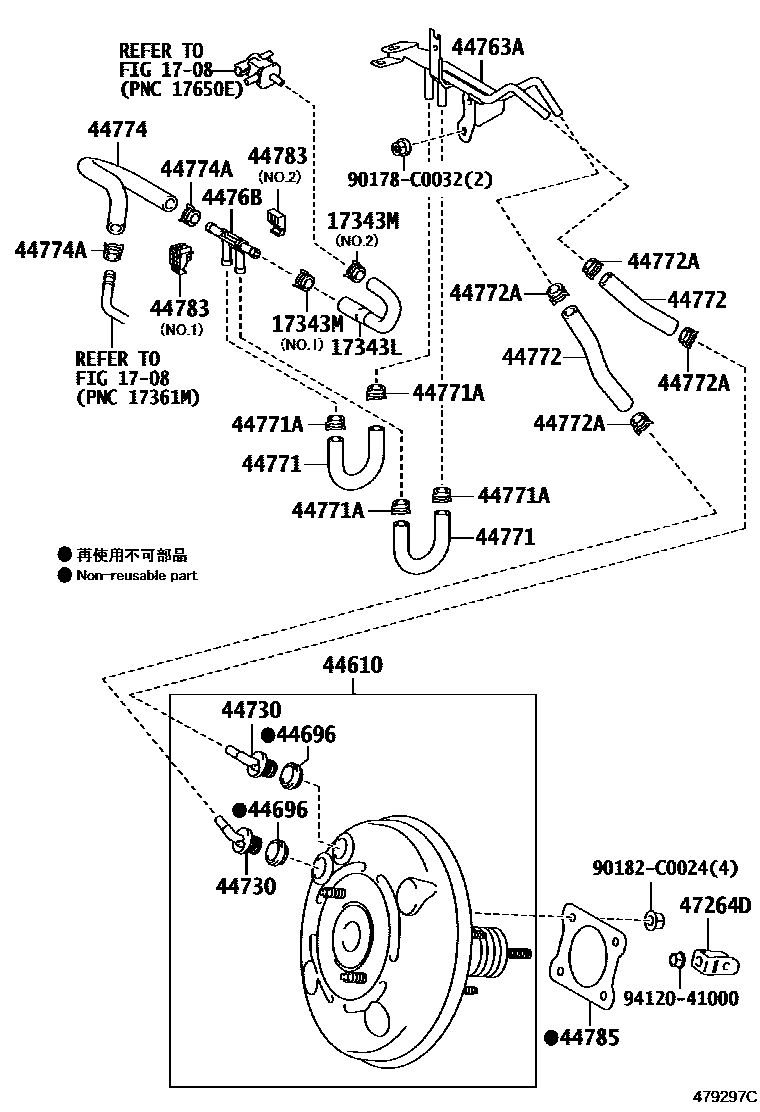

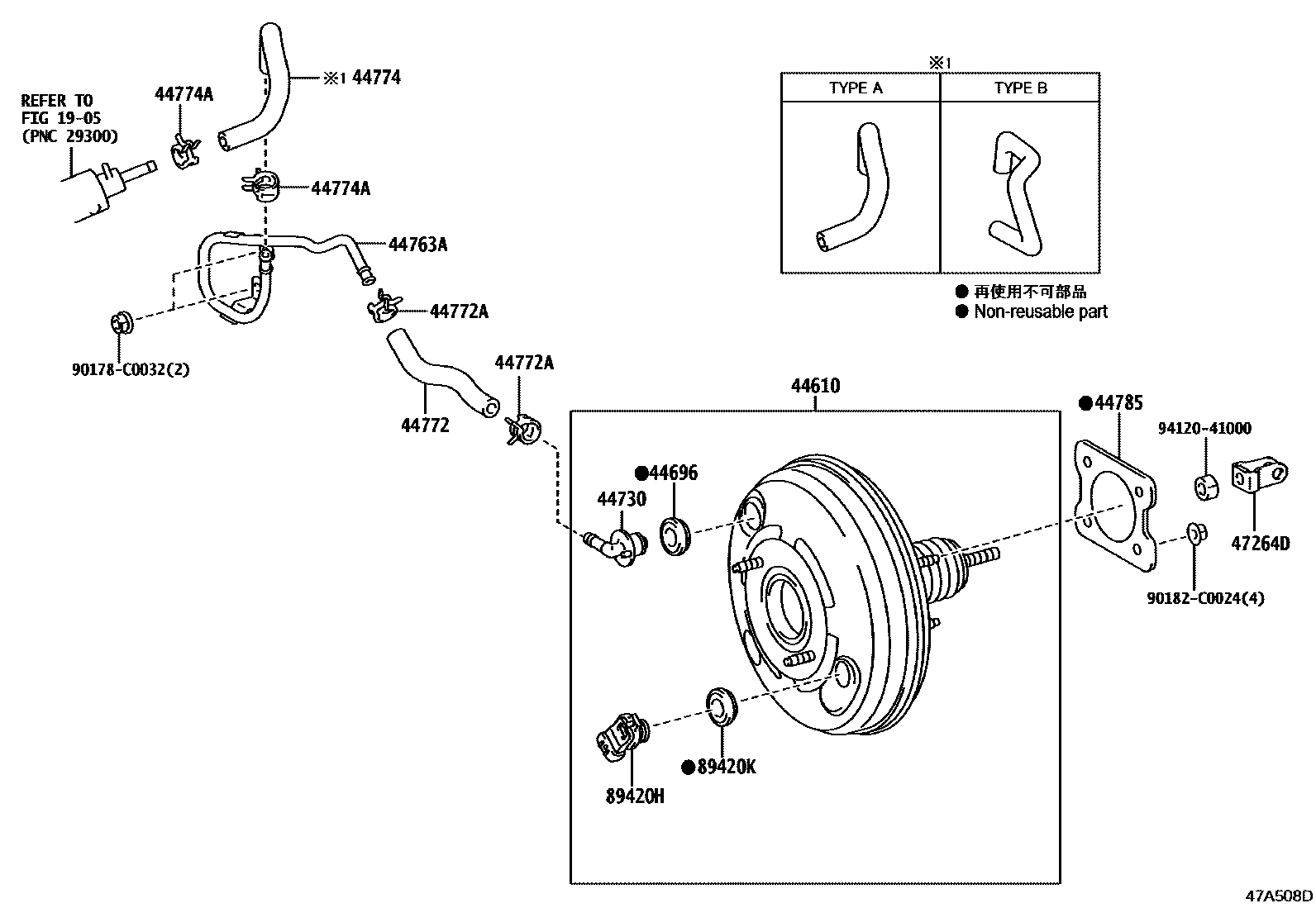

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17343L | No. 3 air hose | 17342-0T010 |
| 17343M | Clip (for No. 3 air hose) | 96132-41500 · 96133-41500 |
| 44610 | brake booster assembly | 44610-02C10 · 44610-02C20 · 44610-02C60 · 44610-02D70 · 44610-02D80 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-14050 · 44730-20170 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-02070 · 44763-02230 · 44763-02280 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-02040 |
| 44771A | Clip (for vacuum tube connector hose) | 96133-41500 |
| 44772 | Hoses (check valve to connector tube) | 44772-02060 · 90445-C0009 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02240 · 44774-02280 · 44774-02310 · 44774-02450 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 |
| 44783 | Vacuum hose clamp | 44783-02040 · 44783-02050 |
| 44785 | brake booster pad | 44785-02050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0P010 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
| 89420K | Vacuum sensor seal | 90080-48071 |
