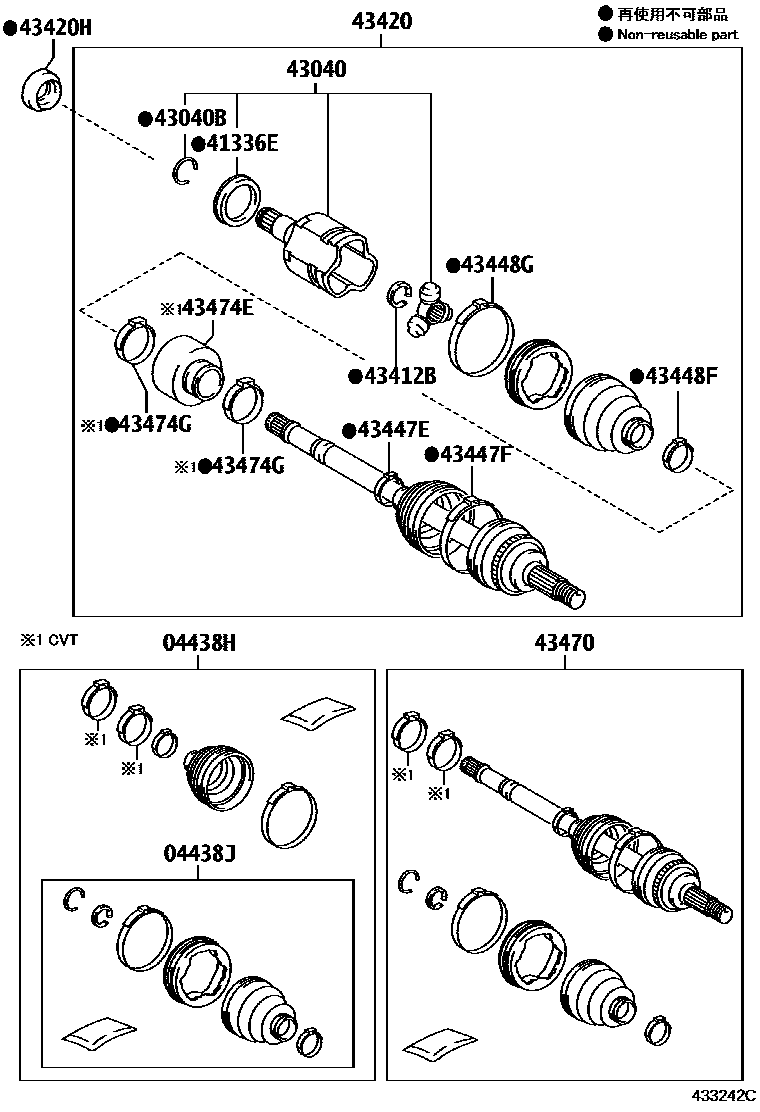

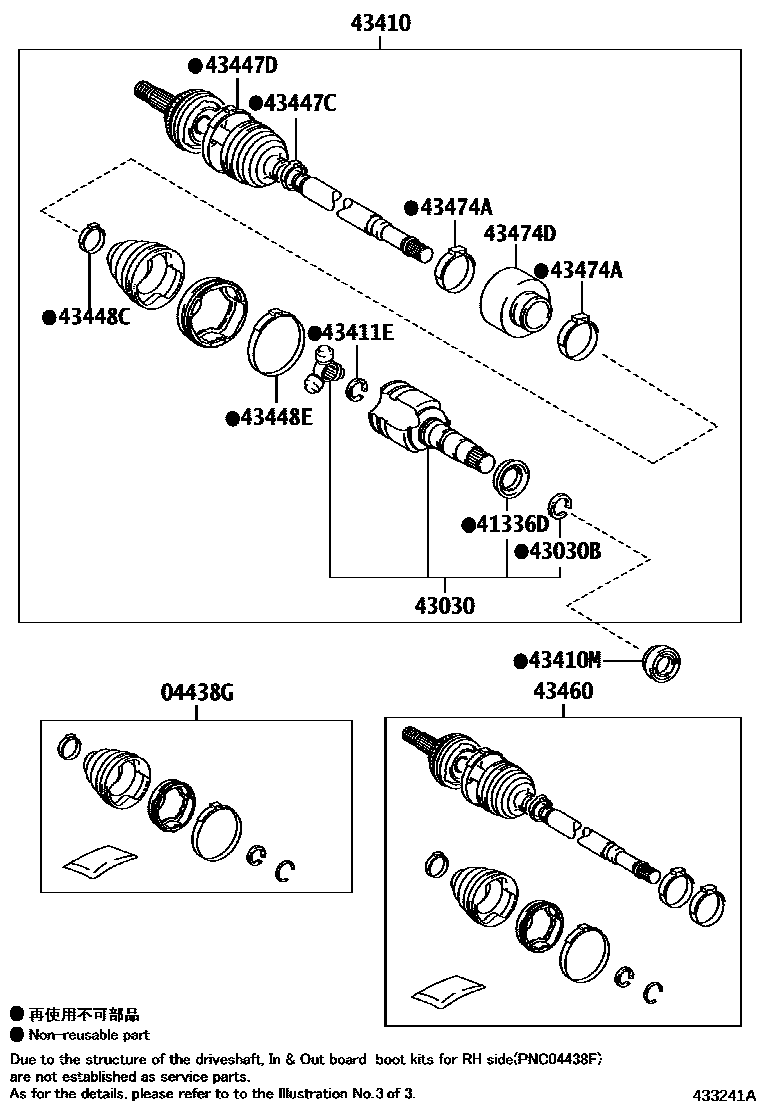

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02310 · 04437-02311 · 04437-02320 · 04437-02321 · 04437-02541 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02460 · 04428-02461 · 04428-02462 · 04428-02470 · 04428-02471 · 04428-02472 · 04428-02473 · 04428-02474 · 04428-02475 · 04428-02842 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02310 · 04437-02311 · 04437-02320 · 04437-02321 · 04437-02541 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12020 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-02110 · 43040-02120 · 43040-02350 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 · 90521-33002 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02110 · 43040-02120 · 43040-02360 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 · 90521-33002 |
| 43410 | Right front driveshaft assembly | 43410-02620 · 43410-02630 · 43410-02B90 · 43410-02B91 |
| 43410M | Front drive shaft right oil seal | 90311-35055 · 90311-35065 · 90311-35069 · 90311-35076 · 90311-C0005 · 90311-C0031 · 90311-C0037 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 90520-C0029 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 90520-C0029 |
| 43420 | Left front drive shaft assembly | 43420-02660 · 43420-02670 · 43420-02D90 · 43420-02E10 · 43420-02E11 |
| 43420H | Front drive shaft left oil seal | 90311-35066 · 90311-35068 · 90311-35075 · 90311-35080 · 90311-C0006 · 90311-C0030 · 90311-C0038 · 90311-C0050 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12230 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12240 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12230 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12240 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-12230 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12180 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12180 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09S10 · 43460-09S11 · 43460-09S20 · 43460-09S21 · 43460-09Y21 · 43460-09Y22 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09U30 · 43470-09U31 · 43470-09U40 · 43470-09U41 · 43470-09U42 · 43470-09U43 · 43470-8Z271 · 43470-8Z839 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02310 |
| 43474D | Right front driveshaft shock absorber | 43474-02540 · 43474-02570 |
| 43474E | Left front driveshaft shock absorber | 43474-02550 · 43474-02580 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 · 42345-12090 |
