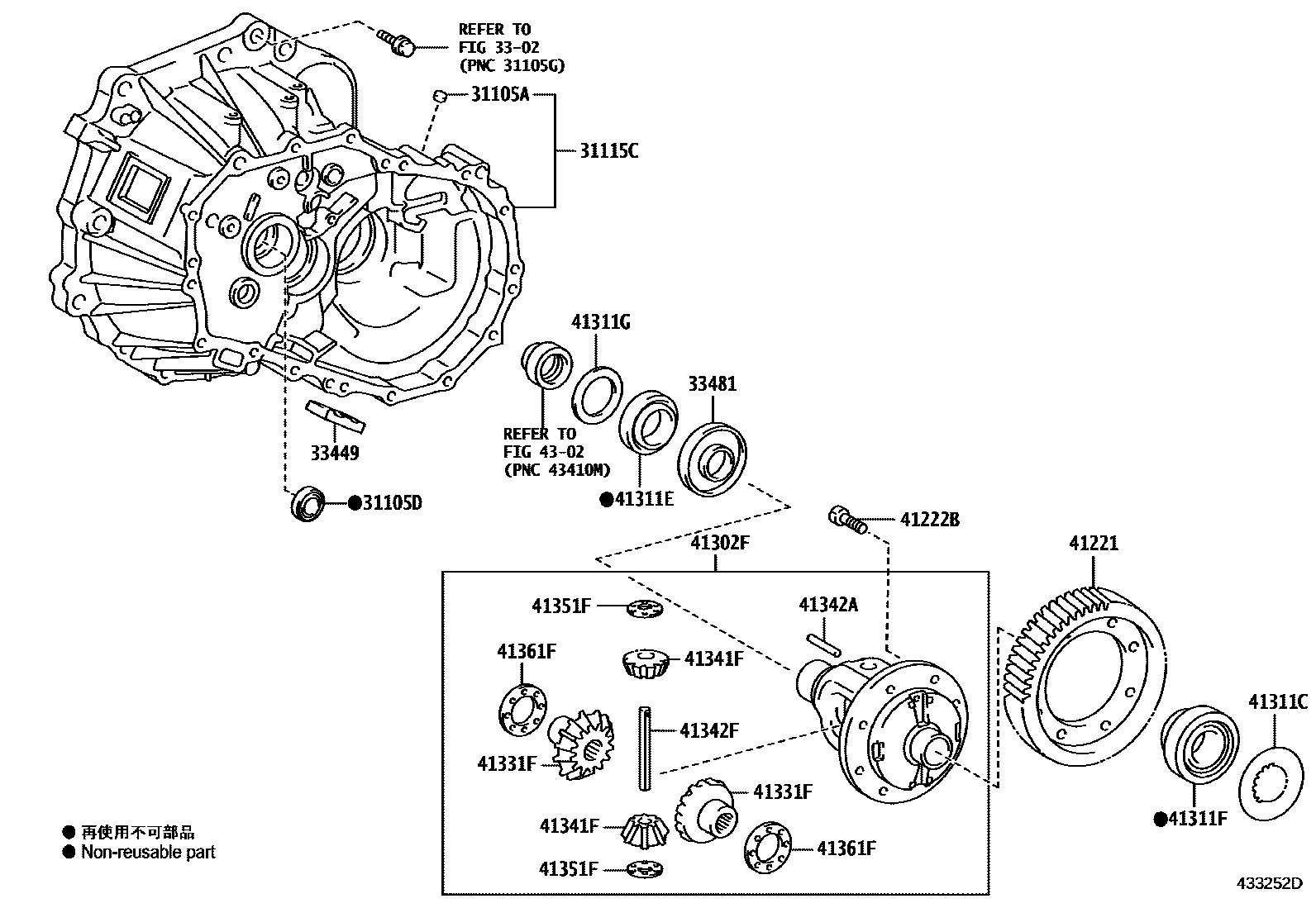

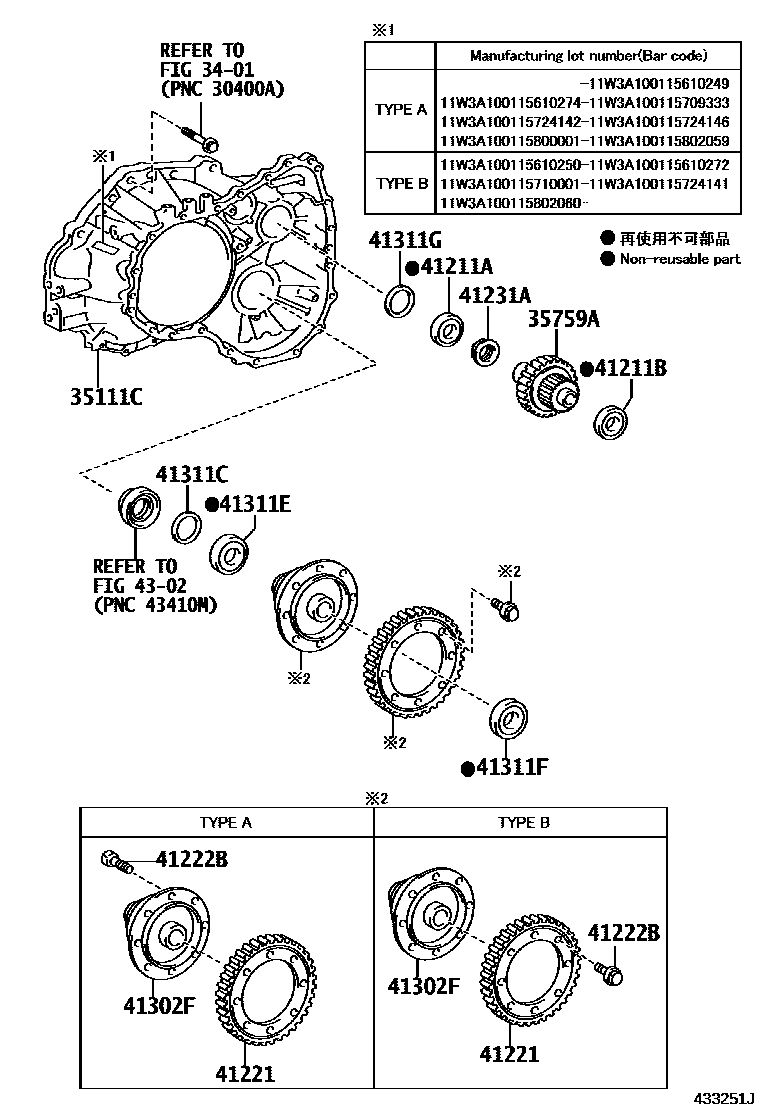

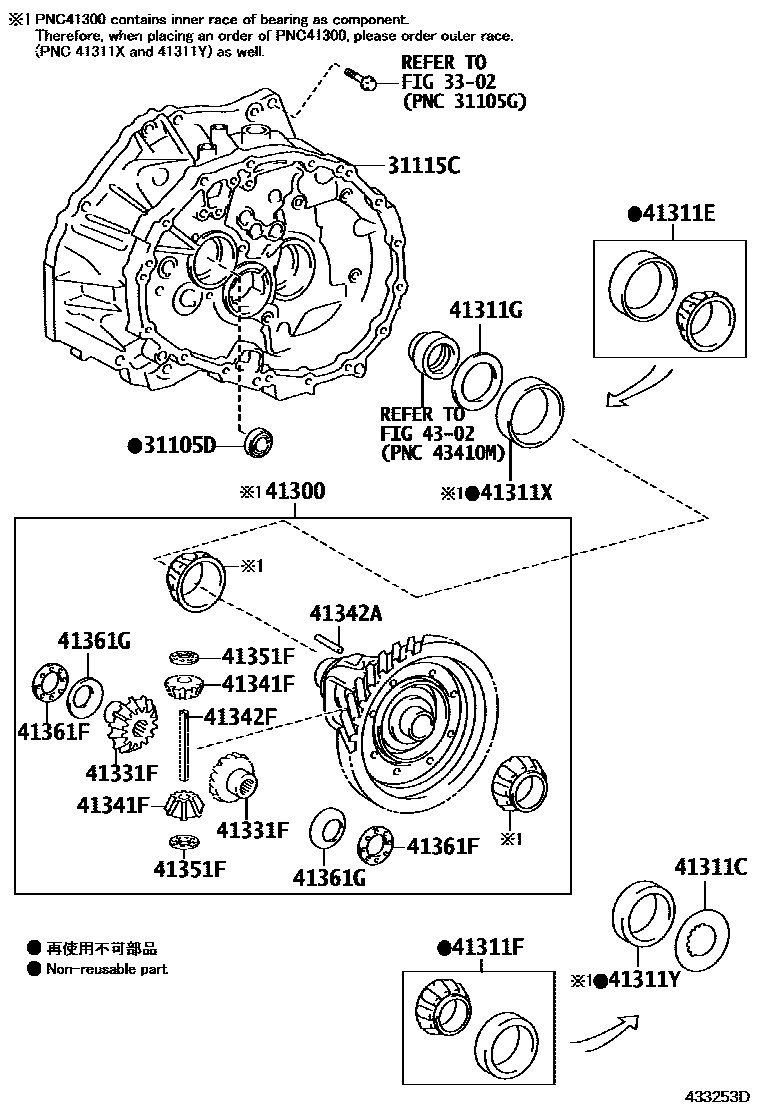

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 · 90311-C0009 |
| 31115C | Front transmission axle housing (MTM) | 31105-02080 · 31105-02081 · 31115-12201 |
| 33449 | derailleur magnet | 33449-0D030 |
| 33481 | Speedometer driving gear (MTM) | 33481-0D050 · 33481-0D051 · 33481-12040 |
| 35111C | Transmission axle housing | 35105-02040 · 35105-12091 |
| 35759A | Reduction driven gear | 35705-02010 · 35705-02020 · 35705-12030 · 35705-12080 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-25021 · 90366-C0045 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29010 · 90366-C0048 |
| 41221 | Front differential ring gear | 41221-02150 · 41221-02170 · 41221-02190 · 41221-12441 · 41221-12610 · 41221-12620 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12379 · 90105-C0221 · 90105-C0301 |
| 41231A | Drive pinion lock nut | 90179-32006 · 90179-C0012 |
| 41300 | Front differential case assembly with ring gear | 41300-12040 · 41300-12050 |
| 41302F | Front differential housing sub-assembly | 41301-02050 · 41301-02080 · 41301-02081 · 41301-0D030 · 41301-12280 · 41301-12281 · 41301-12340 · 41301-12341 |
| 41311C | Rear gasket (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 · 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-40117 · 90366-40129 · 90366-C0013 · 90366-C0051 · 90366-C0090 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-42009 · 90366-44007 · 90366-C0016 · 90366-C0054 · 90366-C0093 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90560-C0008 · 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 |
| 41331F | Front differential side gear | 41331-0D040 · 41331-12190 |
| 41341F | Front differential planetary gear | 41341-0D040 · 41341-12130 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D020 · 41342-32020 · 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-48010 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
