Toyota COROLLA 变矩器、前油泵(CVT) — Figure 3402

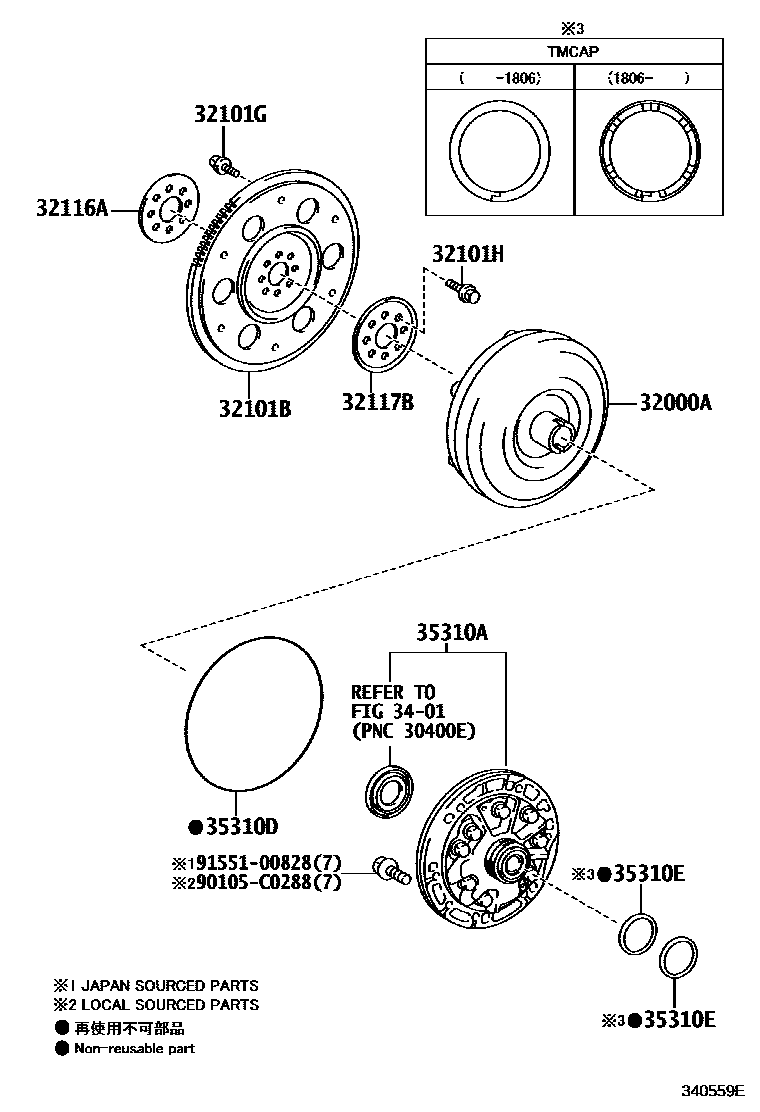

Toyota COROLLA EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-02030 · 32000-02040 · 32000-02041 · 32000-12450 · 32000-12451 · 32000-12500 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-0D030 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116A | Front transmission plate spacer | 32116-02020 |
| 32117B | Rear transmission plate spacer | 32117-02020 |
| 35310A | Front oil pump assembly | 35310-02020 · 35310-12170 |
| 35310D | O-ring (for front oil pump) | 90301-99133 · 90301-99202 · 90301-C0067 |
| 35310E | T-type oil seal (for front oil pump) | 35617-02020 · 35617-02030 · 35617-12030 · 35617-12031 |
