Toyota COROLLA Shift Lever & Retainer — Figure 3312

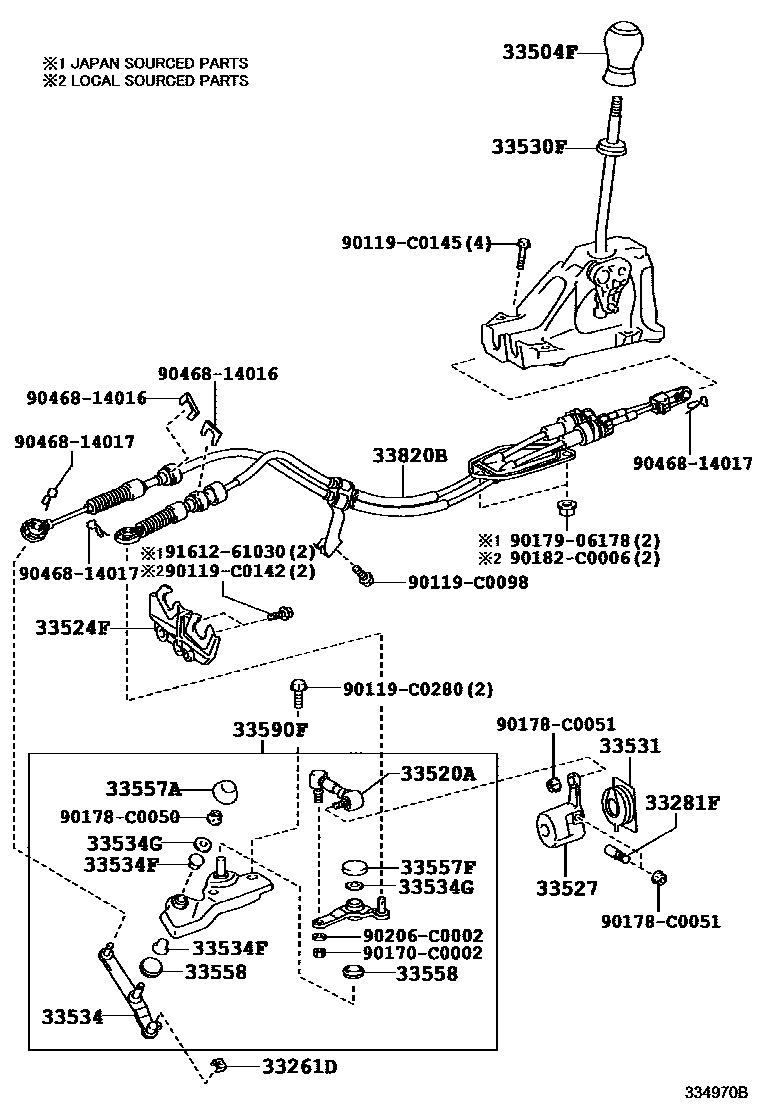

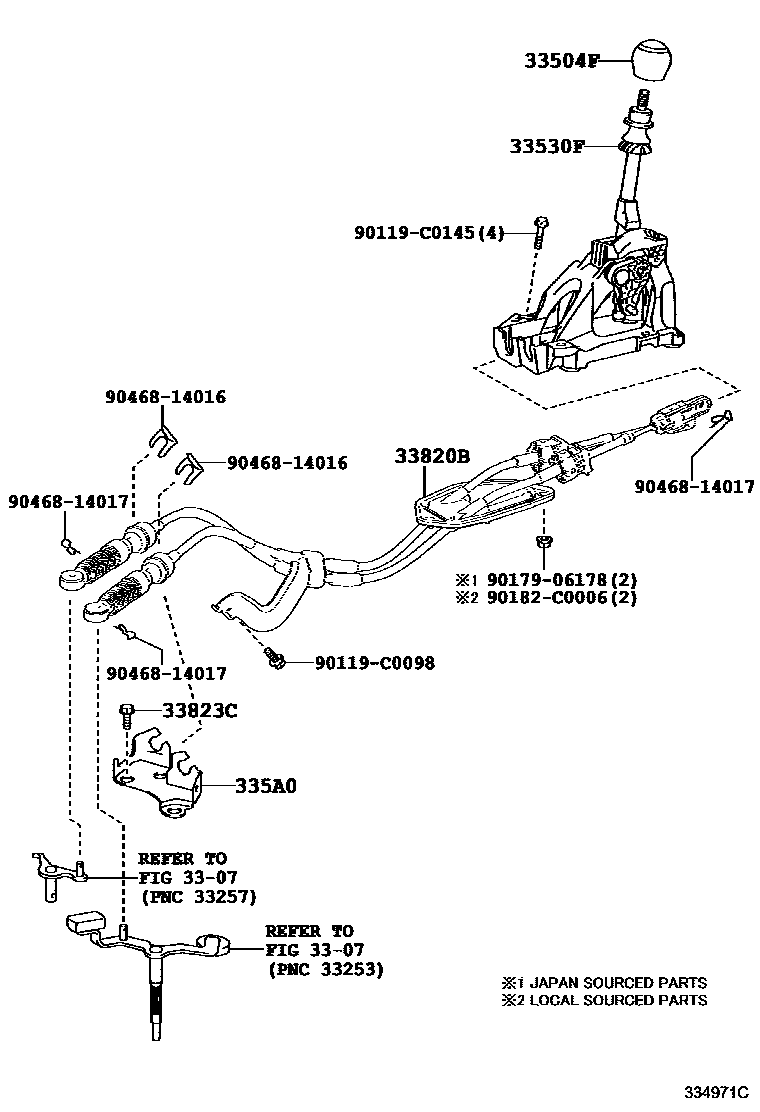

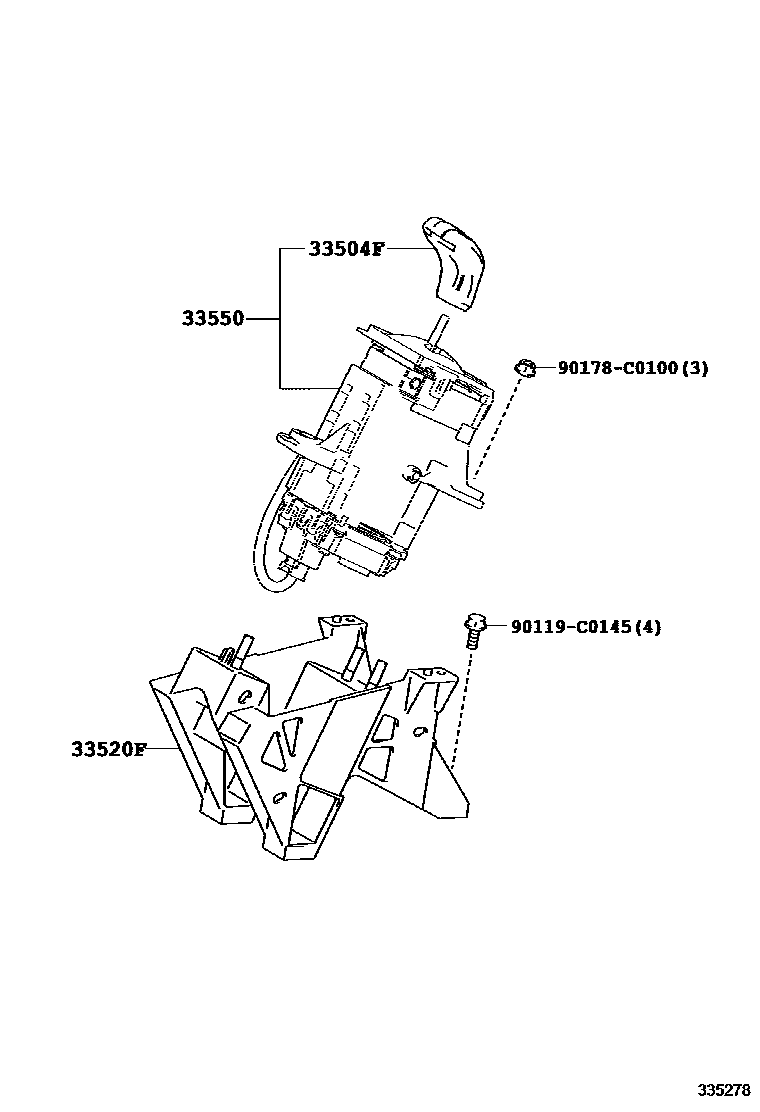

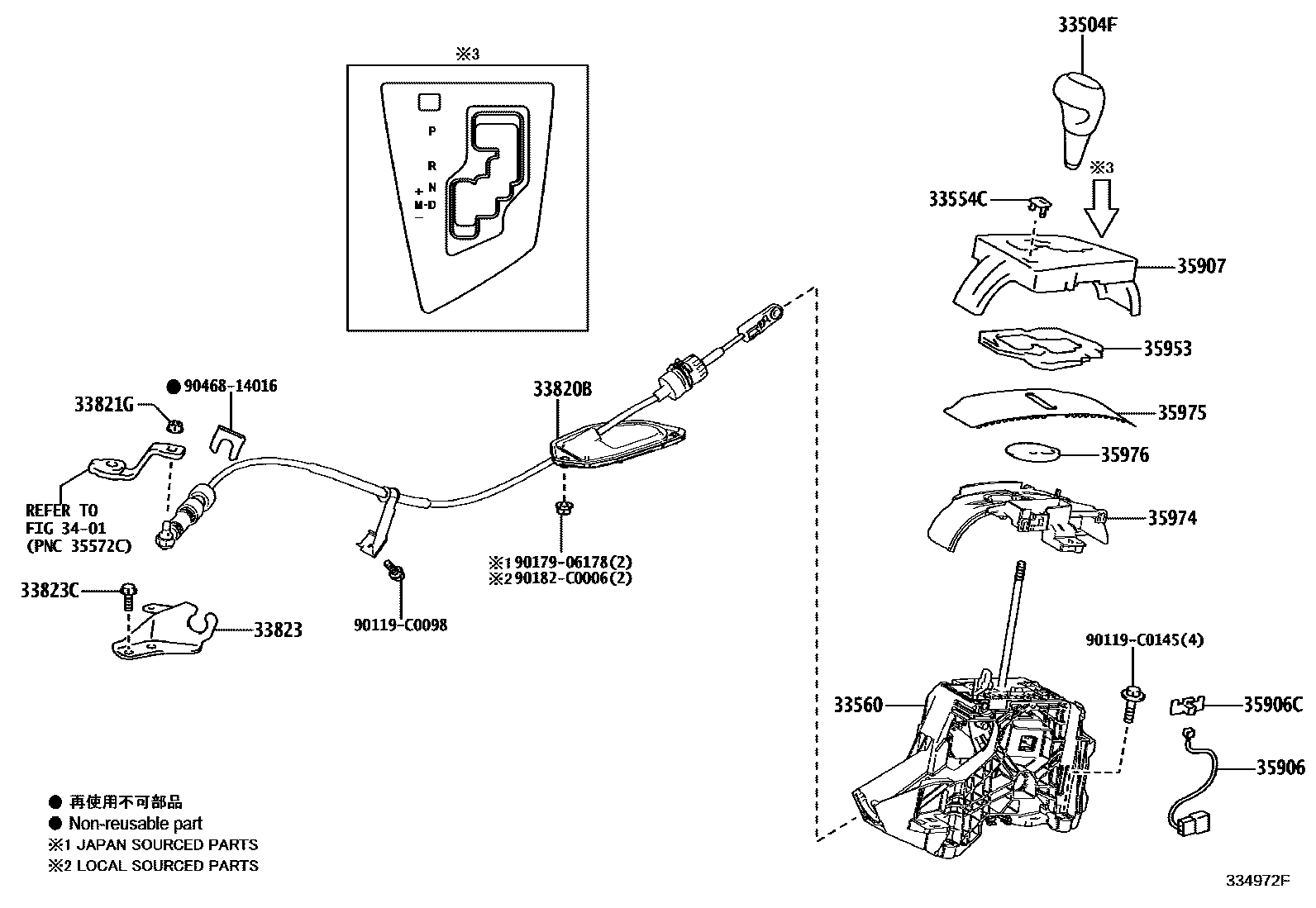

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-0D040 · 33557-0D041 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33504F | Shift lever handle sub-assembly | 33504-19035 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33520F | Shift lever base plate | 33521-02100 |
| 33524F | Lever housing bracket (for floor shift) | 33524-02030 |
| 33527 | Gear shift lever (for floor shift) | 33527-0D010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02320 · 33530-12C40 |
| 33531 | Dust boot (for shift lever) | 33531-0D030 |
| 33534 | Gear selection right angle lever | 33534-02010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-C0002 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550 | Transmission floor shift assembly | 33550-02640 |
| 33554C | Shift lock release button cover | 33554-02150 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-0D030 · 33557-0D031 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-0D020 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-0D010 · 33558-0D011 |
| 33560 | Shift lock control unit assembly | 33560-02330 · 33560-02340 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-02040 · 33590-02041 |
| 335A0 | Control cable bracket assembly | 335A0-20010 |
| 33820B | Transmission control cable assembly | 33820-02500 · 33820-02710 · 33820-02870 |
| 33821G | Nut (for transmission control cable) | 90178-C0014 |
| 33823 | No. 1 transmission control cable bracket | 33823-02250 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-08C60 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02210 |
| 35906C | Indicator chip | 35906-49005 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-02350 |
| 35953 | Position indicator light guide | 35953-02130 |
| 35974 | Position indicator light lower shell | 35974-02180 |
| 35975 | Slide cover (for position indicator light) | 35975-02150 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-02130 |
