Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

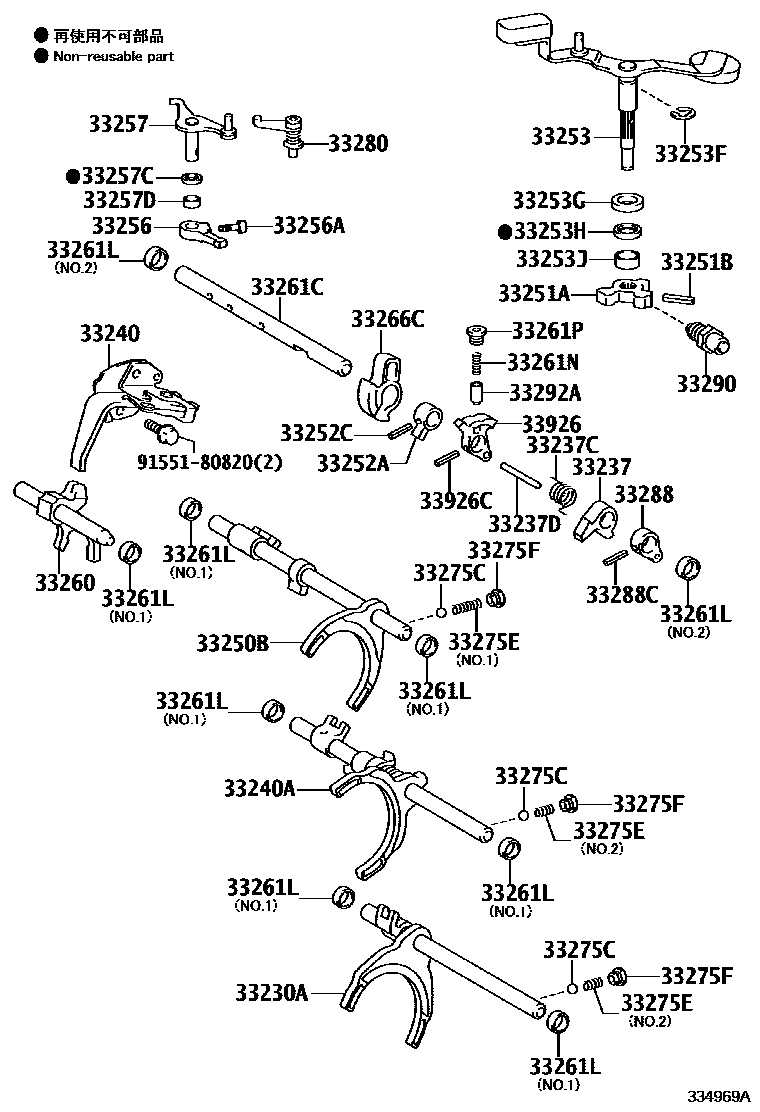

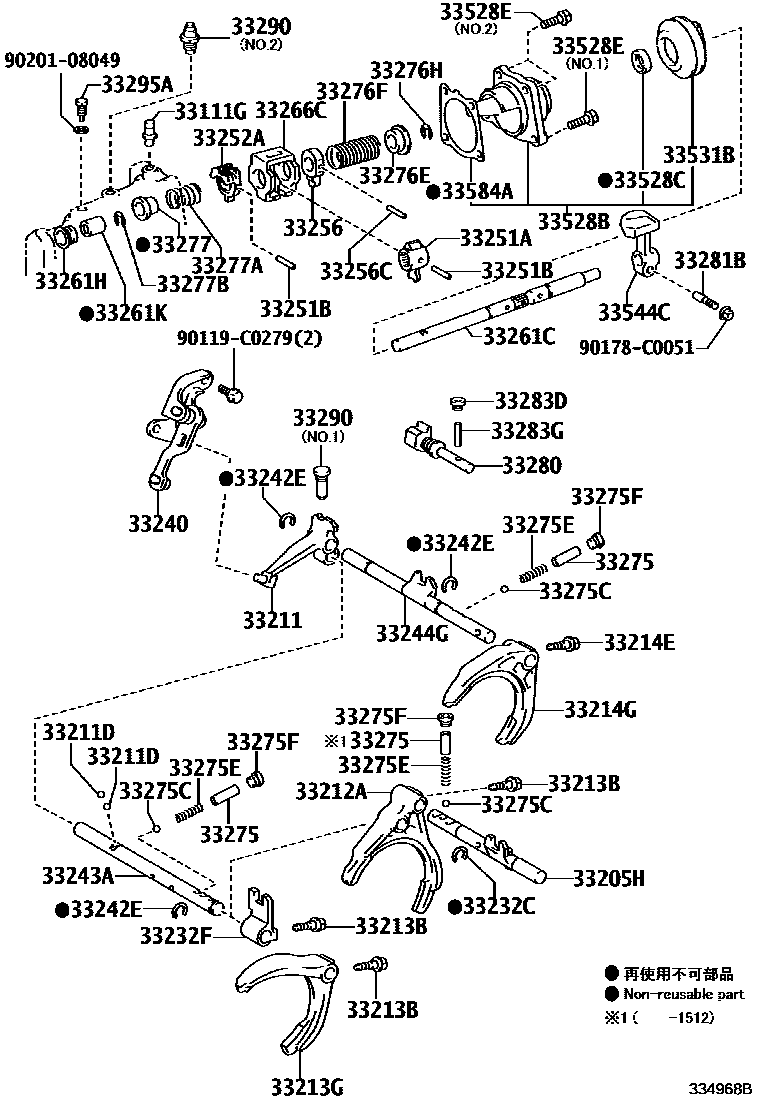

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-C3017 |
| 33205H | No. 1 shift fork shaft sub-assembly | 33205-0D020 |
| 33211 | Reverse Shift Fork | 33211-0D050 |
| 33211D | Steel ball (for reverse shift fork) | 90360-C0005 |
| 33212A | No. 1 shift fork | 33212-10013 |
| 33213B | Bolt (for securing shift fork) | 90109-C0009 |
| 33213G | No. 2 shift fork | 33213-20050 |
| 33214E | Bolt (for shift fork lock) | 90109-C0009 |
| 33214G | No. 3 shift fork | 33214-20050 |
| 33230A | No. 1 shift fork shaft assembly | 33230-20051 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232F | No. 1 transmission guide block | 33232-0D020 |
| 33237 | Separate guide block | 33237-20030 |
| 33237C | Torsion spring (for separating guide block) | 90508-27001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33240 | Reverse shift arm bracket assembly | 33240-0D040 · 33240-20041 · 33240-20042 |
| 33240A | No. 2 shift fork shaft assembly | 33240-20072 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-0D060 |
| 33244G | No. 3 shift fork shaft | 33244-0D050 |
| 33250B | No. 3 shift fork shaft assembly | 33250-20130 |
| 33251A | Internal shift lever No. 1 | 33251-02010 · 33251-12120 · 33251-20120 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 · 90254-C0001 |
| 33252A | Internal shift lever No. 2 | 33252-0D011 · 33252-20060 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-20070 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253G | Spacer (for outer shift lever) | 90560-18017 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-18018 |
| 33256 | Internal gear selector | 33256-0D020 · 33256-20030 |
| 33256A | Fixing bolt (for interior gear selector) | 90110-08041 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-C0001 |
| 33257 | External gear selector | 33257-20041 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-15002 |
| 33260 | Reverse shift fork shaft assembly (MTM) | 33260-20010 |
| 33261C | shift lever shaft | 33261-02030 · 33261-02031 · 33261-20120 |
| 33261H | Oil seal (for shift lever shaft) | 90310-C0002 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-C0008 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-14008 · 90384-16005 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-02020 · 33266-20061 · 33266-20062 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 · 90360-C0007 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11110 · 90501-13088 · 90501-13089 · 90501-C0022 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-0D010 · 33276-0D030 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-C0013 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-C0003 · 90520-C0034 |
| 33277 | No. 2 gear selector spring seat | 33277-0D020 · 33277-0D050 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-C0012 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-C0001 |
| 33280 | Reverse gear positioning pin assembly | 33280-0D020 · 33280-20050 |
| 33281B | Shift lever lock pin (for outer shift lever) | 33281-02010 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-C0004 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33288 | Gear selector stop | 33288-20020 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-0D010 · 33290-0D020 · 33290-12020 · 33290-12040 · 33290-52040 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33295A | Reverse gear positioning shaft | 33295-0D010 |
| 33528B | control shaft cover | 33506-02020 |
| 33528C | Oil seal (for control shaft cover) | 90310-C0001 |
| 33528E | Bolt (for control shaft cover) | 90119-C0281 · 90119-C0282 |
| 33531B | Dust boot (for shift lever shaft) | 33531-0D020 |
| 33544C | Gear shifter damper | 33544-02021 |
| 33584A | Shift lever stopper gasket | 33584-0D010 |
| 33926 | Front inner shift lever | 33926-20011 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
