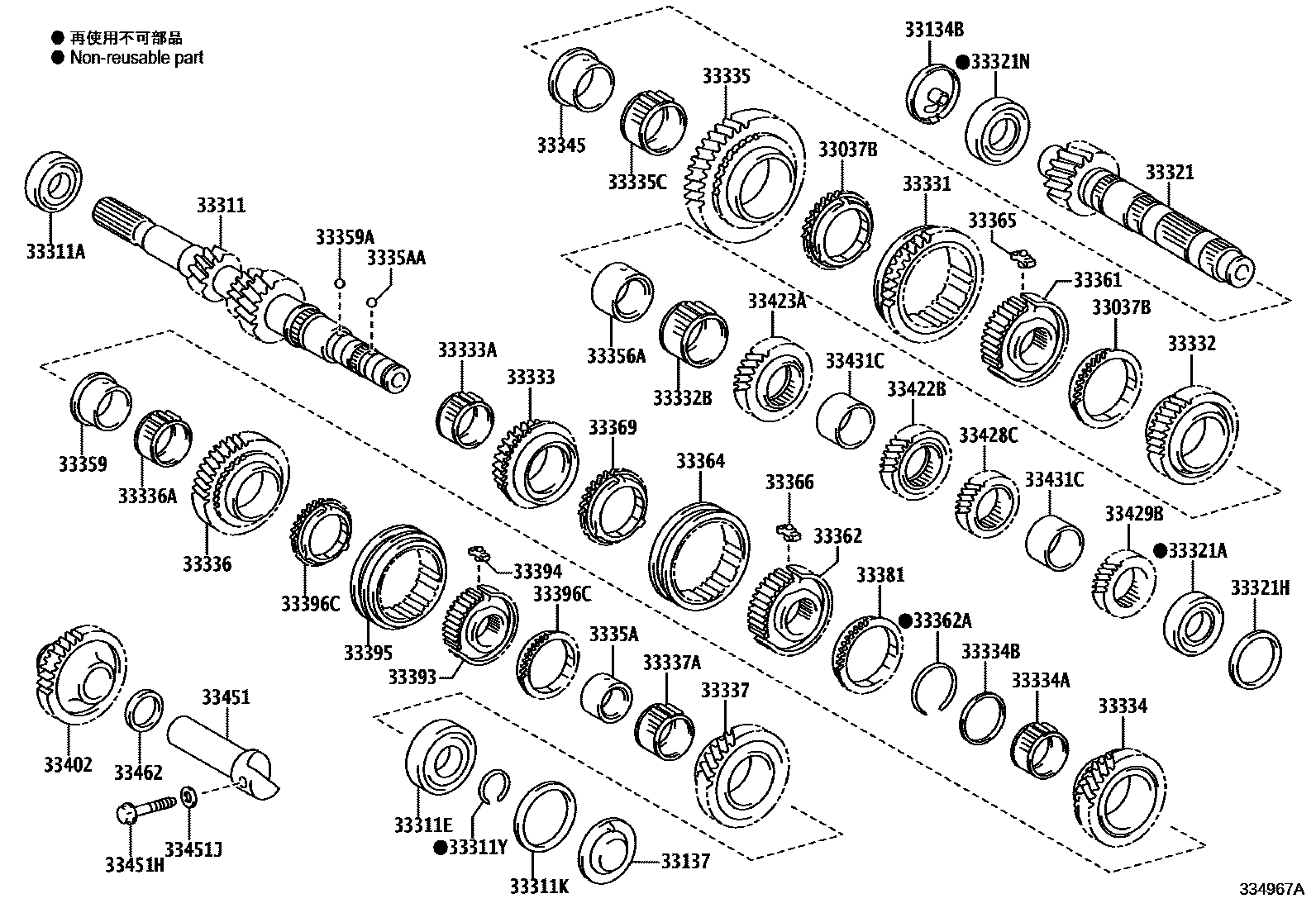

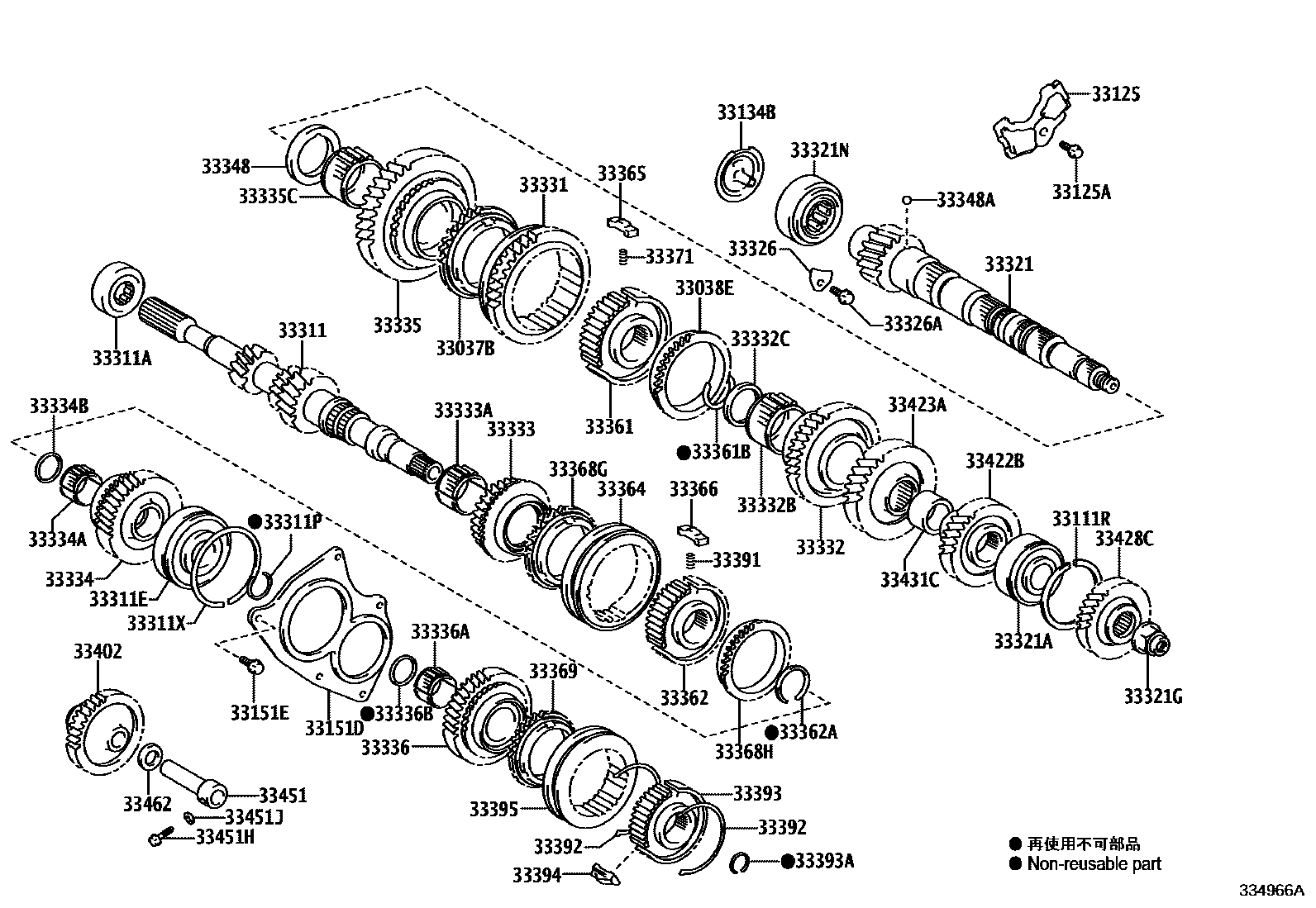

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-02020 · 33037-12070 · 33037-20100 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-02010 |
| 33111R | Hole snap ring (for output shaft rear bearing) | 90520-57002 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-0D010 · 33125-12011 |
| 33125A | Bolt (for transaxle housing oil sump) | 90119-C0274 |
| 33134B | Output shaft cover (MTM) | 33134-0D070 · 33134-20040 |
| 33137 | Input shaft cover (MTM) | 33137-20020 |
| 33151D | Rear bearing retainer (MTM) | 33151-0D010 |
| 33151E | Bolt (for rear bearing retainer) | 90119-C0276 |
| 33311 | input shaft | 33311-0D070 · 33311-0D071 · 33311-12280 · 33311-12281 · 33311-52050 |
| 33311A | Bearing (for front input shaft) | 90363-25081 · 90365-C0001 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-28016 · 90363-28020 · 90363-C0004 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-54103 · 90564-54104 · 90564-54105 · 90564-54106 · 90564-54107 · 90564-54108 · 90564-54109 · 90564-54110 · 90564-54111 · 90564-54112 · 90564-54113 · 90564-54114 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-22006 · 90520-22007 · 90520-22008 · 90520-22009 · 90520-22010 · 90520-22011 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90520-64002 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-25059 · 90520-25062 · 90520-25063 · 90520-25064 · 90520-25065 · 90520-25066 · 90520-25067 · 90520-25068 · 90520-25069 · 90520-25070 · 90520-25071 · 90520-25072 · 90520-25074 · 90520-25075 |
| 33321 | output shaft | 33321-02100 · 33321-12301 · 33321-52251 |
| 33321A | Bearings (for rear output shaft) | 90363-C0005 · 90366-30096 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-C0001 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-45153 · 90564-45154 · 90564-45155 · 90564-45156 · 90564-45157 · 90564-45158 · 90564-45159 · 90564-45160 · 90564-45161 · 90564-45162 · 90564-45163 · 90564-45164 · 90564-45165 · 90564-45166 · 90564-45167 · 90564-45168 · 90564-45169 · 90564-45170 · 90564-45171 · 90564-45172 · 90564-45173 · 90564-45174 · 90564-45175 · 90564-45176 · 90564-45177 · 90564-45178 · 90564-45179 · 90564-45180 · 90564-45181 · 90564-45182 · 90564-45183 · 90564-45184 · 90564-45185 · 90564-45186 · 90564-45187 · 90564-45188 · 90564-45189 · 90564-45190 · 90564-45191 · 90564-45192 · 90564-45193 · 90564-45194 · 90564-45195 |
| 33321N | Bearing (for front output shaft) | 90365-C0007 · 90366-28019 |
| 33326 | Bearing locking plate | 33326-0D010 |
| 33326A | Bolt (for bearing locking plate) | 90119-C0274 |
| 33331 | reverse gear | 33331-02030 · 33331-20090 |
| 33332 | Second gear | 33332-02030 · 33332-12130 · 33332-12170 · 33332-52030 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-47011 · 90364-C0002 |
| 33332C | Spacer (for second gear bearing) | 90560-C0007 |
| 33333 | Third gear | 33034-0D060 · 33034-12220 |
| 33333A | Needle roller bearing (for third gear) | 90364-37015 · 90364-C0003 |
| 33334 | fourth gear | 33035-0D040 · 33035-12160 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-37015 · 90364-C0004 |
| 33334B | Spacer (for fourth gear bearing) | 90560-37004 · 90560-C0005 |
| 33335 | first gear | 33335-02050 · 33335-12170 · 33335-12190 · 33335-52060 |
| 33335C | Needle roller bearing (for first gear) | 90364-47010 · 90364-C0001 |
| 33336 | fifth gear | 33036-02050 · 33036-12210 · 33036-12230 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-37015 · 90364-C0014 |
| 33336B | Spacer (for fifth gear bearing) | 90560-C0006 |
| 33337 | Sixth speed gear sub-assembly | 33037-12050 · 33037-12060 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-35011 |
| 33345 | First gear bushing | 33345-20030 |
| 33348 | First gear thrust washer | 33348-12010 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90360-C0006 |
| 33356A | Second gear gear bearing inner race | 33356-20050 |
| 33359 | Fifth gear gear bearing inner race | 33359-20010 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20010 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-0D040 · 33361-20070 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29018 · 90520-29019 · 90520-29020 · 90520-29021 · 90520-29022 · 90520-29023 |
| 33362 | No. 2 transmission clutch hub | 33362-0D040 · 33362-20040 · 33362-20041 |
| 33362A | Shaft snap ring (used to secure the No. 2 clutch hub) | 90520-27046 · 90520-27047 · 90520-27048 · 90520-27049 · 90520-27050 · 90520-27051 · 90520-35034 · 90520-35035 · 90520-35036 · 90520-35037 · 90520-35038 · 90520-35039 · 90520-35040 · 90520-35041 |
| 33364 | No. 2 transmission hub sleeve | 33364-0D040 · 33364-12060 |
| 33365 | No. 1 synchromesh shift key | 33365-0D020 · 33365-20080 |
| 33366 | No. 2 synchromesh shift key | 33365-20080 · 33366-0D020 |
| 33368G | Synchronizer locking ring (for third gear) | 33368-20090 |
| 33368H | Synchronizer ring (for fourth gear) | 33368-52050 |
| 33369 | No. 3 synchronizer lock ring | 33369-0D050 · 33369-20050 |
| 33371 | No. 1 synchromesh shift key spring | 33371-52030 |
| 33381 | Second gear synchronizer outer locking ring | 33381-20020 |
| 33391 | No. 2 synchromesh shift key spring | 33391-0D020 |
| 33392 | No. 3 synchromesh shift key spring | 33391-12030 |
| 33393 | No. 3 transmission clutch hub | 33393-0D040 · 33393-20040 · 33393-20041 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-18002 · 90520-18003 · 90520-18004 · 90520-18006 · 90520-18007 · 90520-18008 · 90520-18009 |
| 33394 | No. 3 synchromesh shift key | 33365-20080 · 33394-0D020 |
| 33395 | No. 3 transmission hub sleeve | 33395-0D040 · 33395-12040 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-20010 |
| 33402 | Reverse idler gear sub-assembly | 33402-0D050 · 33402-20080 |
| 33422B | Fourth gear driven gear | 33422-0D040 · 33422-12110 |
| 33423A | Third gear driven gear | 33423-0D060 · 33423-12070 |
| 33428C | fifth speed driven gear | 33428-02050 · 33428-12150 · 33428-12170 |
| 33429B | Sixth speed driven gear | 33429-12030 · 33429-12040 |
| 33431C | Output gear spacer | 33431-0D020 · 33431-20090 |
| 33451 | Reverse gear idler shaft | 33451-0D040 · 33451-20060 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 · 90105-C0220 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 · 90430-C0010 |
| 33462 | Reverse idler thrust washer | 33462-12010 · 33462-20070 · 33462-20090 |
