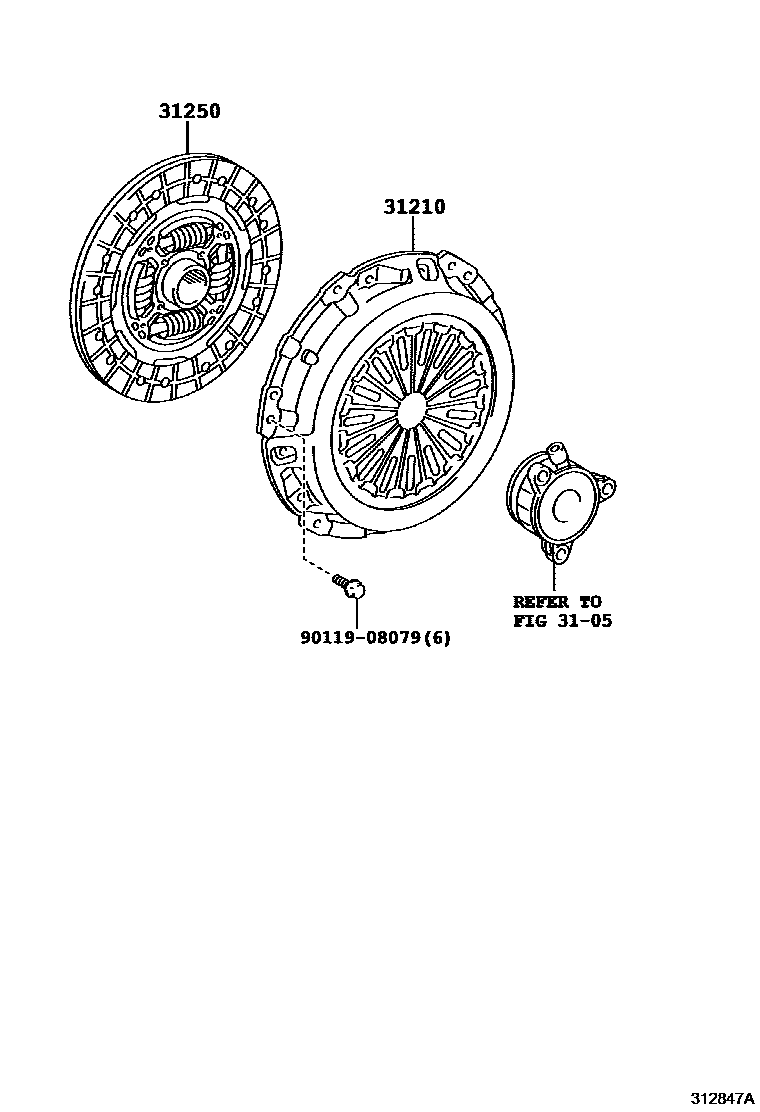

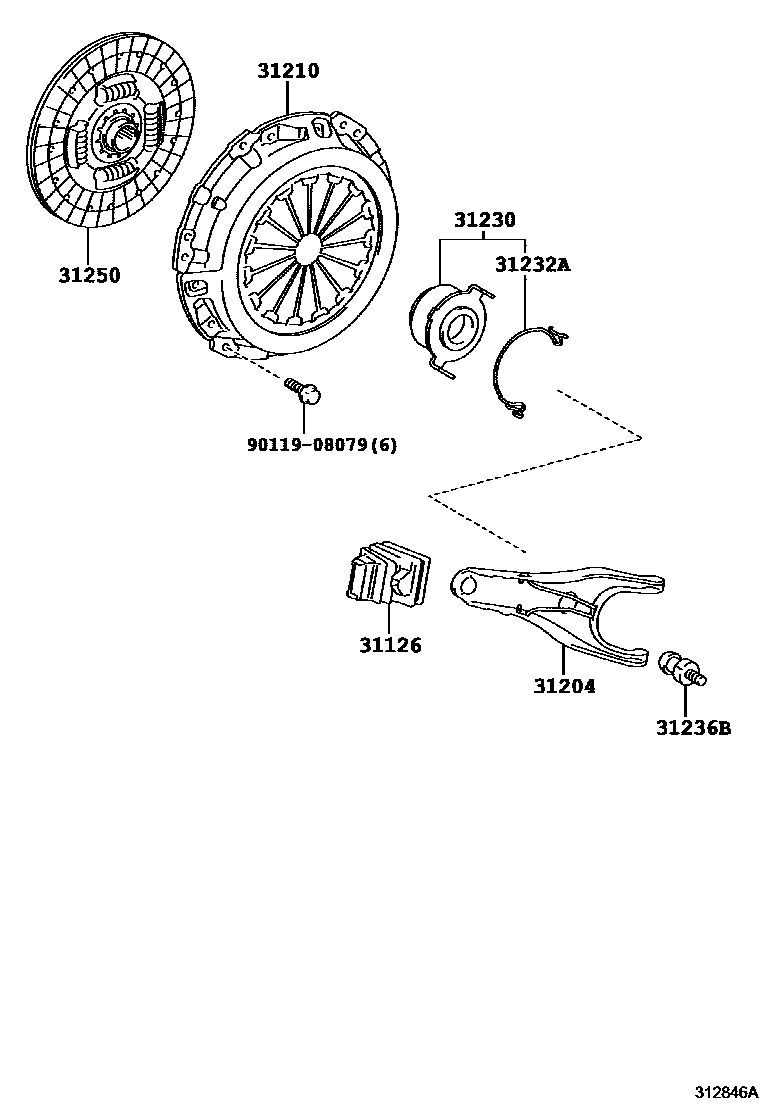

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-0D040 |
| 31204 | Clutch release fork assembly | 31204-0D030 |
| 31210 | Clutch cover assembly | 31210-02290 · 31210-02320 · 31210-02340 |
| 31230 | Clutch release bearing assembly | 31230-0D010 · 31230-0D011 · 31230-0D012 |
| 31232A | Release bearing hub clip | 31232-0D010 · 31232-12070 |
| 31236B | Split fork bracket | 31236-0D010 |
| 31250 | Clutch disc assembly | 31250-02270 · 31250-02290 · 31250-02300 |
