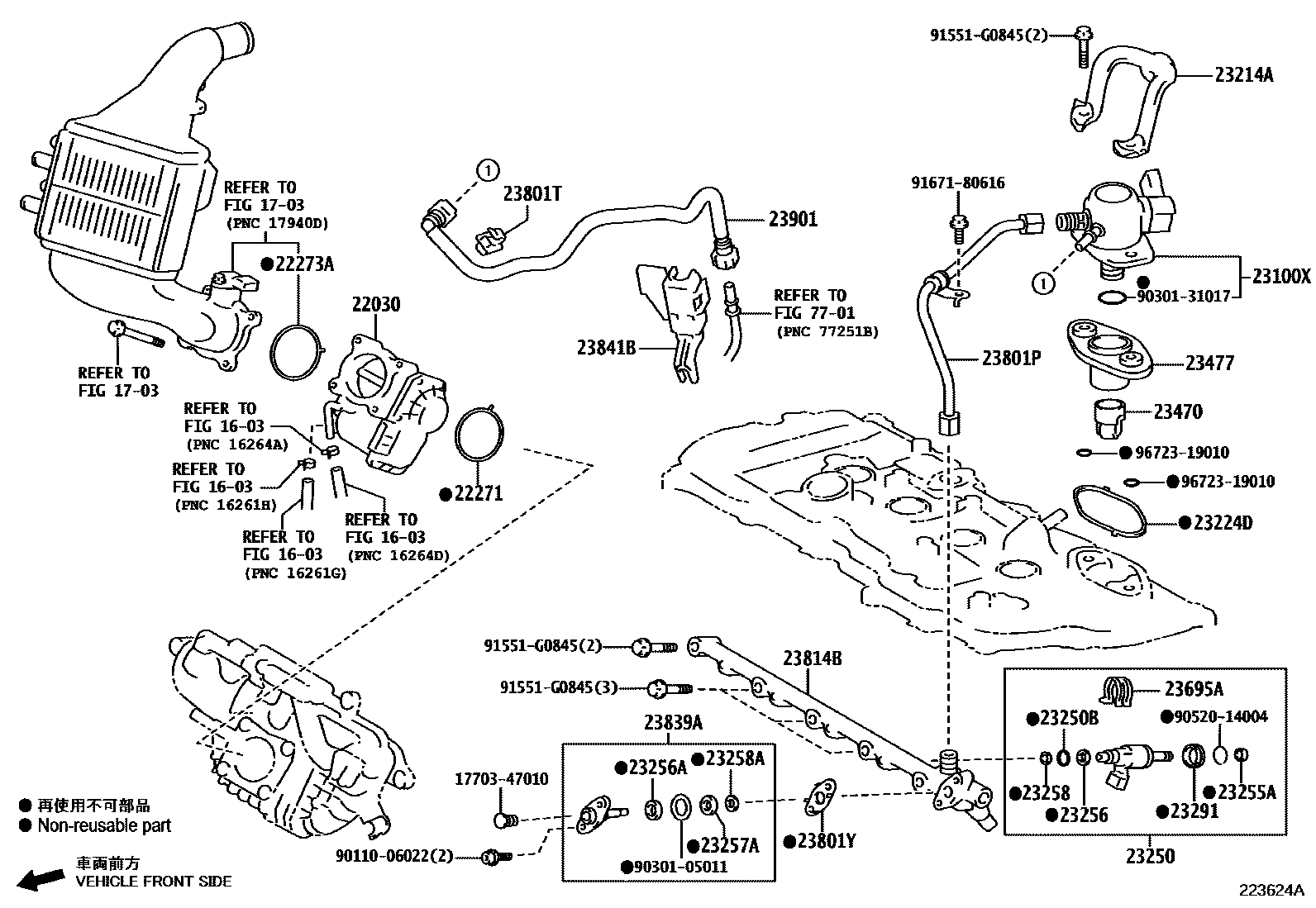

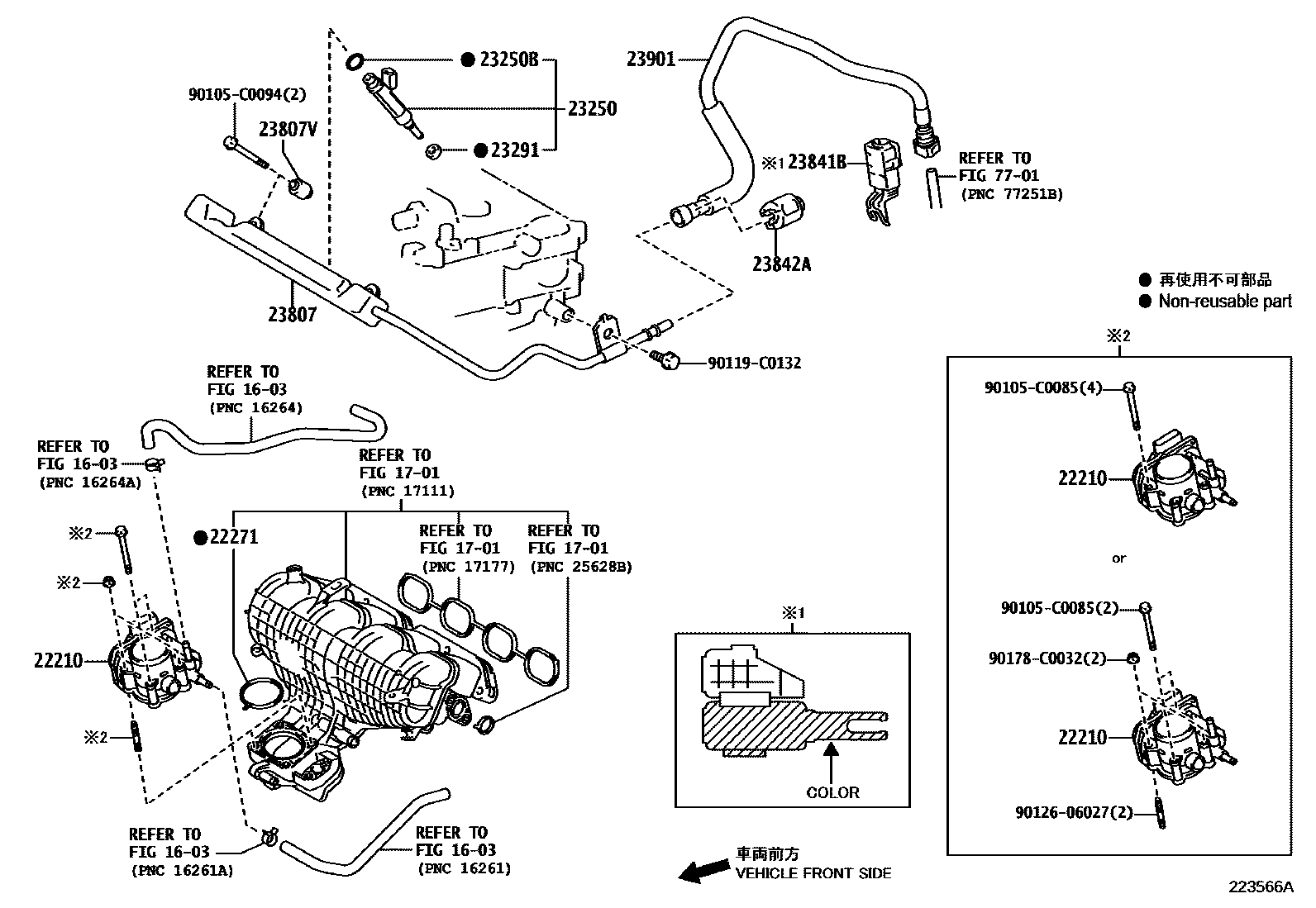

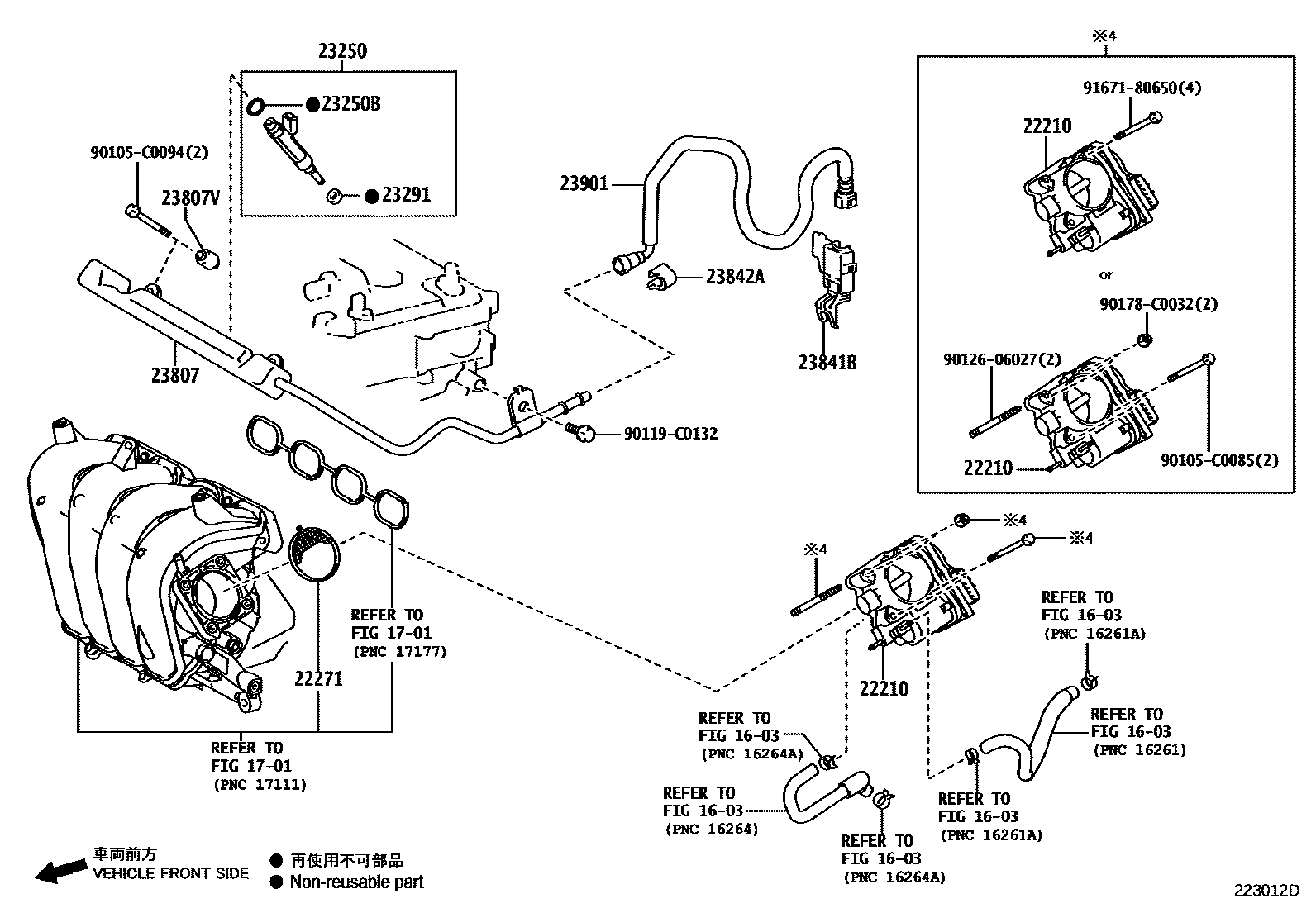

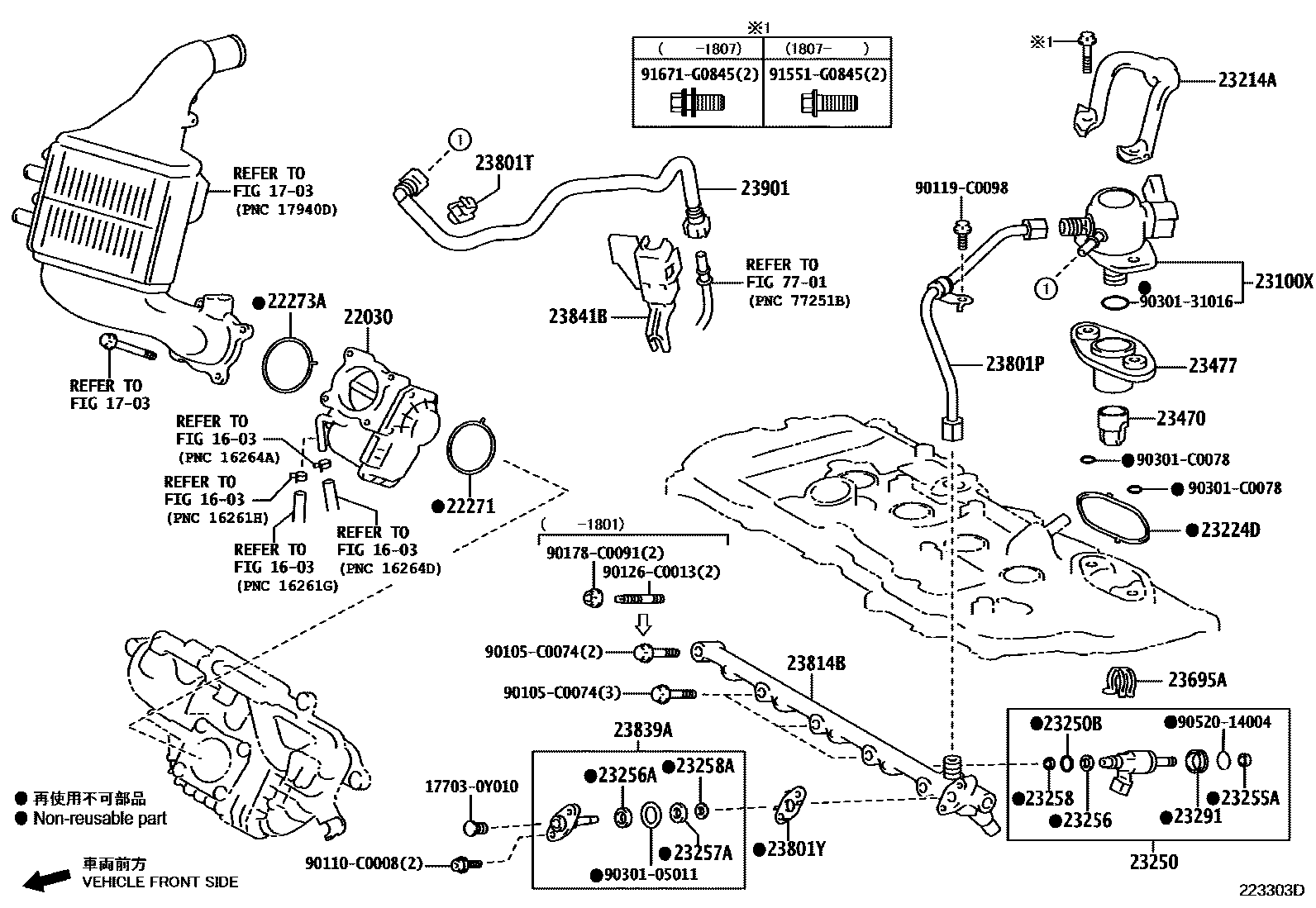

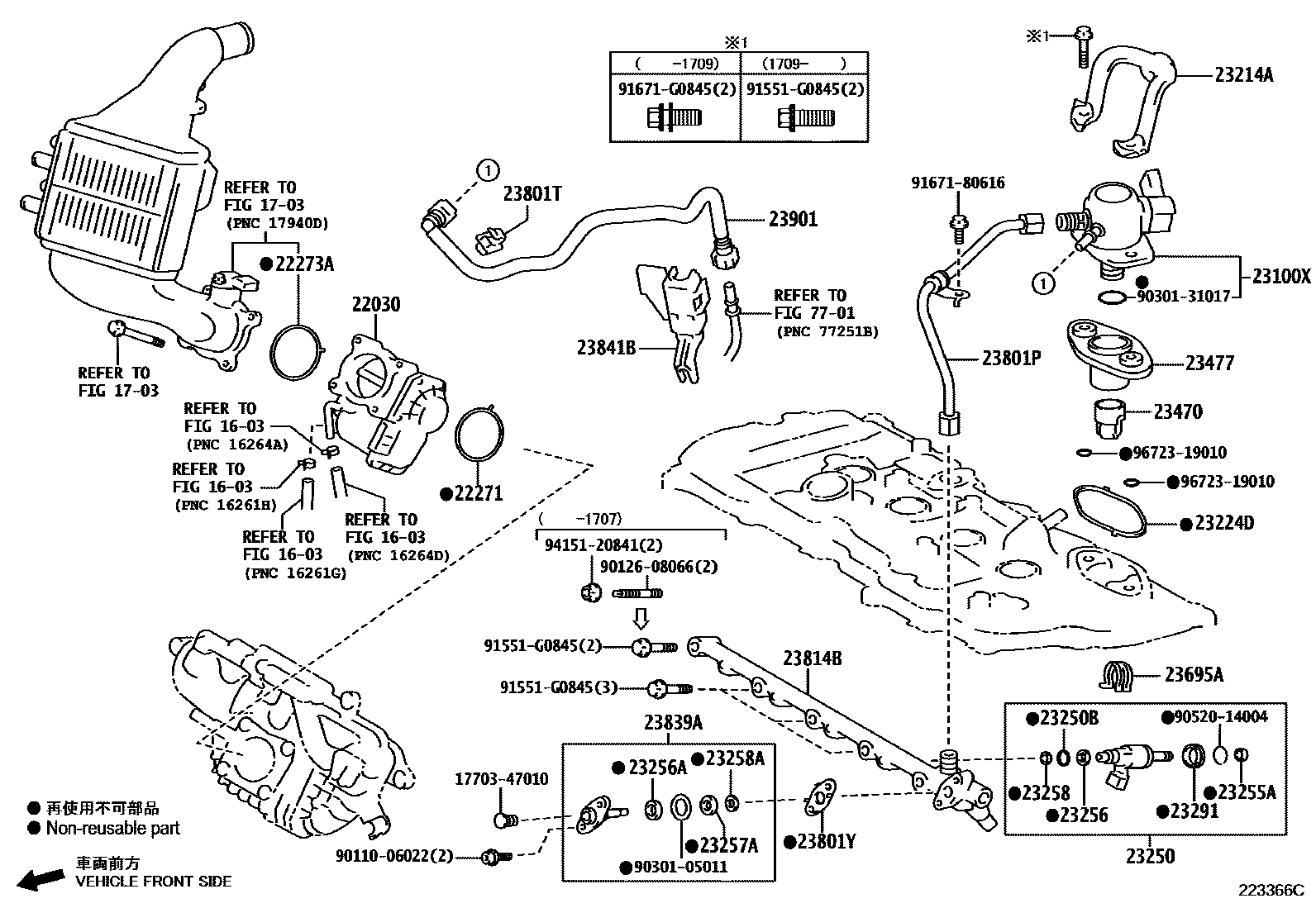

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0Y070 · 22030-47080 |
| 22210 | Throttle body assembly | 22030-0T060 · 22030-0T100 |
| 22271 | Throttle body gasket | 22271-0T010 · 22271-0Y050 · 22271-37010 · 22271-47060 · 22271-75031 |
| 22273A | No. 2 throttle body gasket | 22271-0Y050 · 22271-47060 |
| 23100X | Fuel pump assembly (engine room side) | 23101-0Y010 · 23101-0Y020 · 23101-47010 |
| 23214A | Fuel pump protection device | 23214-0Y010 · 23214-47010 |
| 23224D | fuel pump septum gasket | 23224-0Y010 · 23224-47010 |
| 23250 | Fuel injector assembly | 23209-09120 · 23209-39145 |
| 23250B | O-ring (for fuel injector) | 90301-05011 · 90301-05013 · 90301-07037 · 90301-C0072 |
| 23255A | Injector seal | 23255-31020 · 23255-31030 |
| 23256 | No. 1 injector retaining ring | 23256-25010 · 23256-31010 |
| 23256A | No. 1 fuel pipe ring | 23256-31010 |
| 23257A | No. 2 fuel pipe ring | 23257-47010 |
| 23258 | No. 3 injector retaining ring | 23258-47010 · 23258-47030 · 23258-47040 |
| 23258A | No. 3 fuel pipe ring | 23258-31010 |
| 23291 | Injector vibration isolation pad | 23291-0P020 · 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-0Y010 · 23470-36020 |
| 23477 | fuel pump tappet guide | 23477-0Y010 · 23477-47010 |
| 23695A | Injector body clamp | 23695-0Y010 · 23695-31020 · 23695-70010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-0Y010 · 23801-47030 |
| 23801T | Fuel hose clamp or clip (for EFI) | 23841-47020 |
| 23801Y | padding | 23893-0Y010 · 23893-47010 |
| 23807 | Oil pipe sub-assembly | 23814-0T010 · 23814-0T020 · 23814-37051 · 23814-37061 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23814B | oil pipeline | 23800-0Y010 · 23800-0Y020 · 23800-47020 |
| 23839A | No. 1 fuel pipe plug | 23809-47010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0Y110 · 23841-37090 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0D020 · 23842-28010 |
| 23901 | Fuel pipe sub-assembly | 23901-0T010 · 23901-0T180 · 23901-0T250 · 23901-0T251 · 23901-0Y220 · 23901-0Y330 · 23901-0Y331 · 23901-0Y340 · 23901-0Y341 |
