Toyota COROLLA 起动机 — Figure 1904

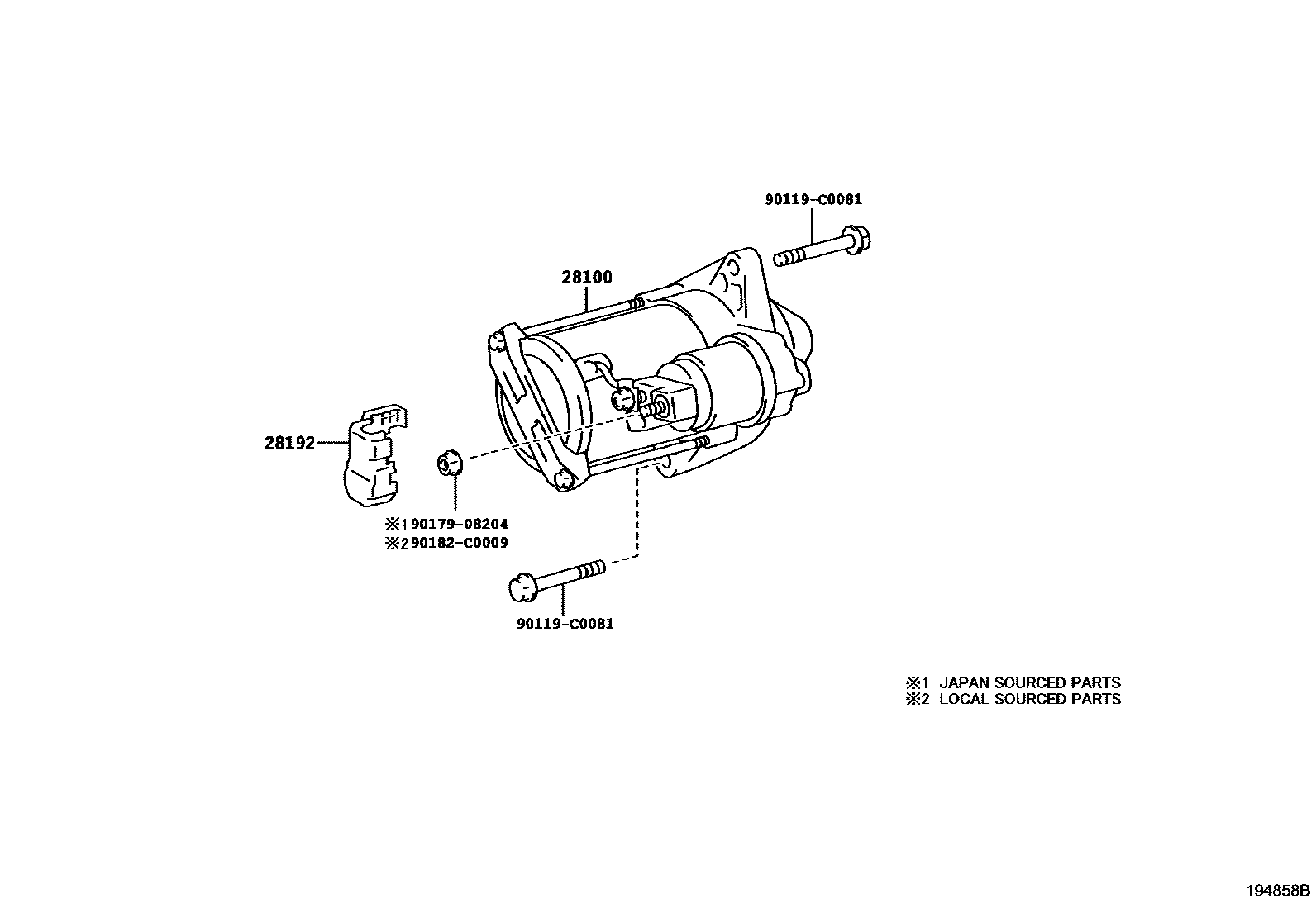

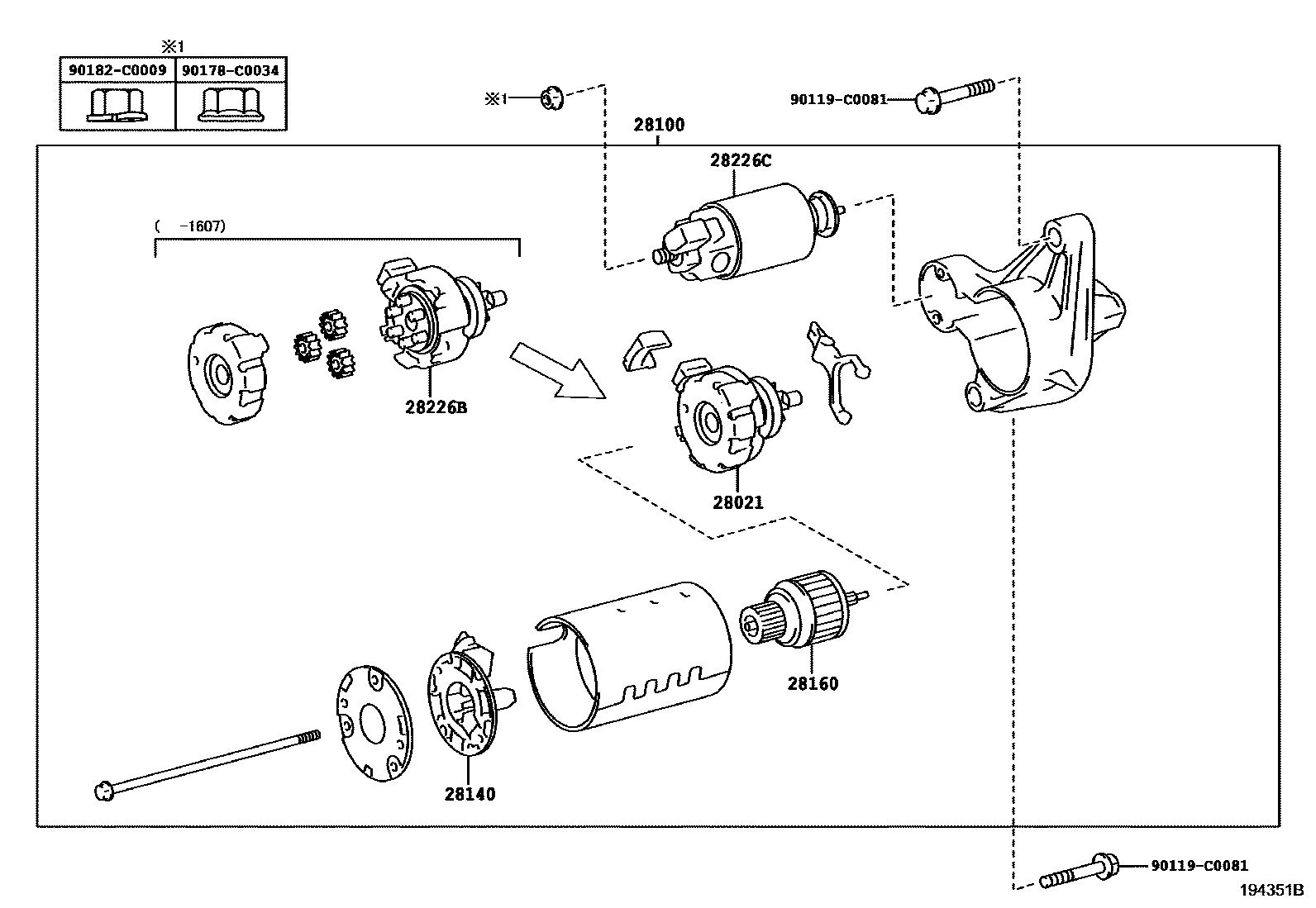

Toyota COROLLA EPC diagram 1904, 起动机, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0T330 · 28021-0T360 · 28021-0Y400 |
| 28100 | Starter assembly | 28100-0T220 · 28100-0T330 · 28100-0Y400 · 28100-0Y401 · 28100-0Y420 |
| 28120 | Starter yoke assembly | 28120-0T360 |
| 28140 | Starter brush holder assembly | 28140-0T330 · 28140-0T340 · 28140-0V040 · 28140-21070 |
| 28160 | Starter armature assembly | 28160-0N110 · 28160-0S050 · 28160-0T330 · 28160-21080 |
| 28192 | starter cover | 28192-47010 |
| 28226B | starter magnetic switch | 28226-0T300 · 28226-37100 · 28226-47170 |
| 28226C | No. 2 starter magnetic switch | 28226-0T330 · 28226-0T340 · 28226-37130 |
| 28249 | Starter starting current deceleration relay | 28249-37100 |
