Toyota COROLLA vacuum tube — Figure 1708

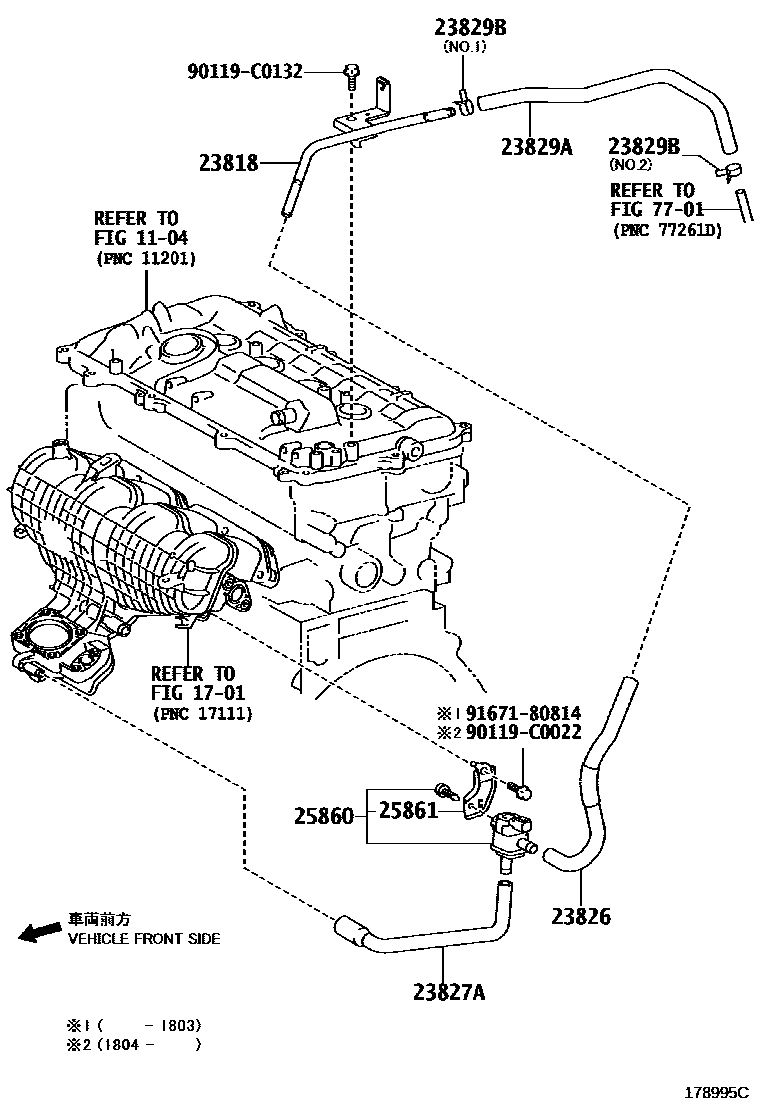

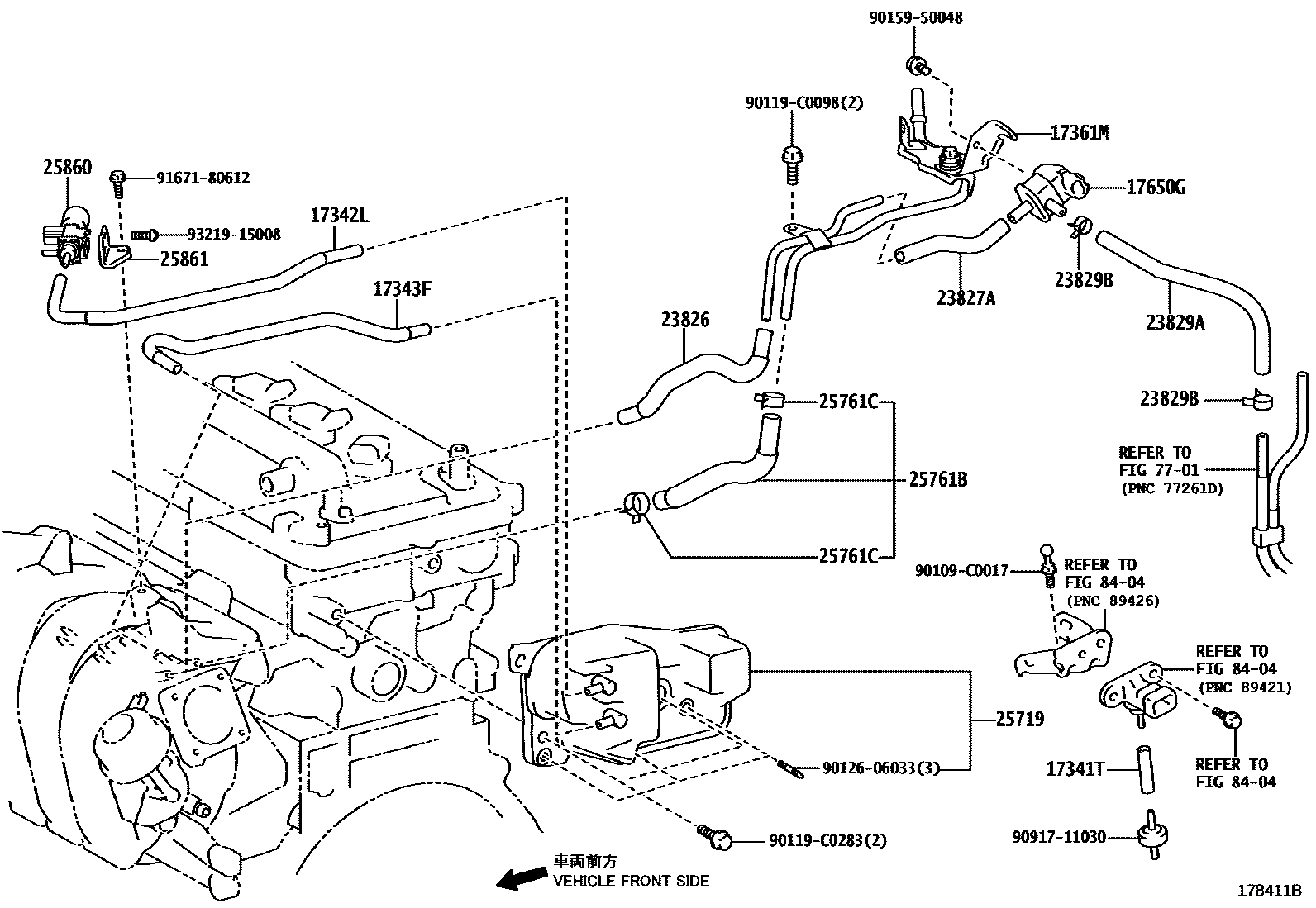

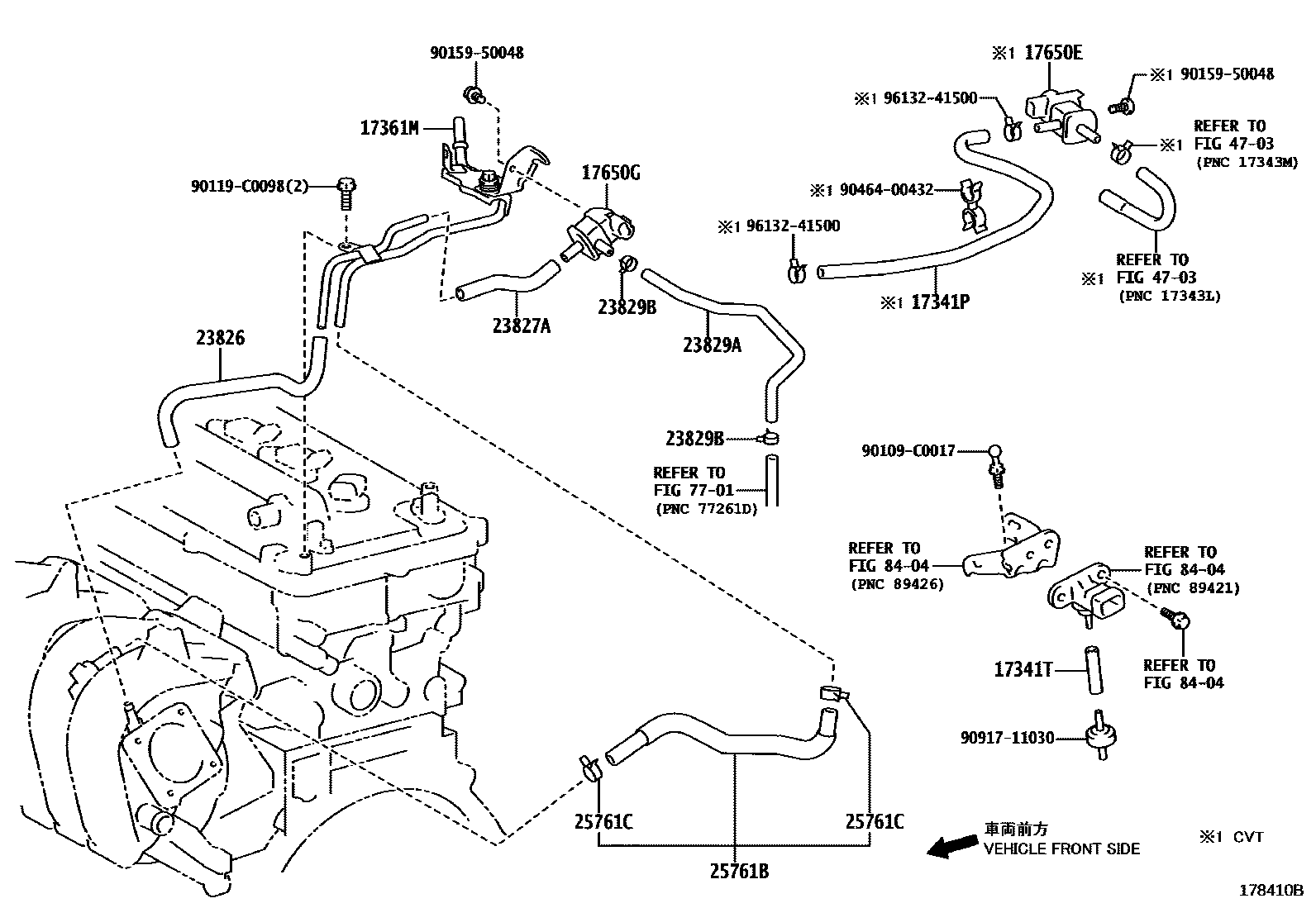

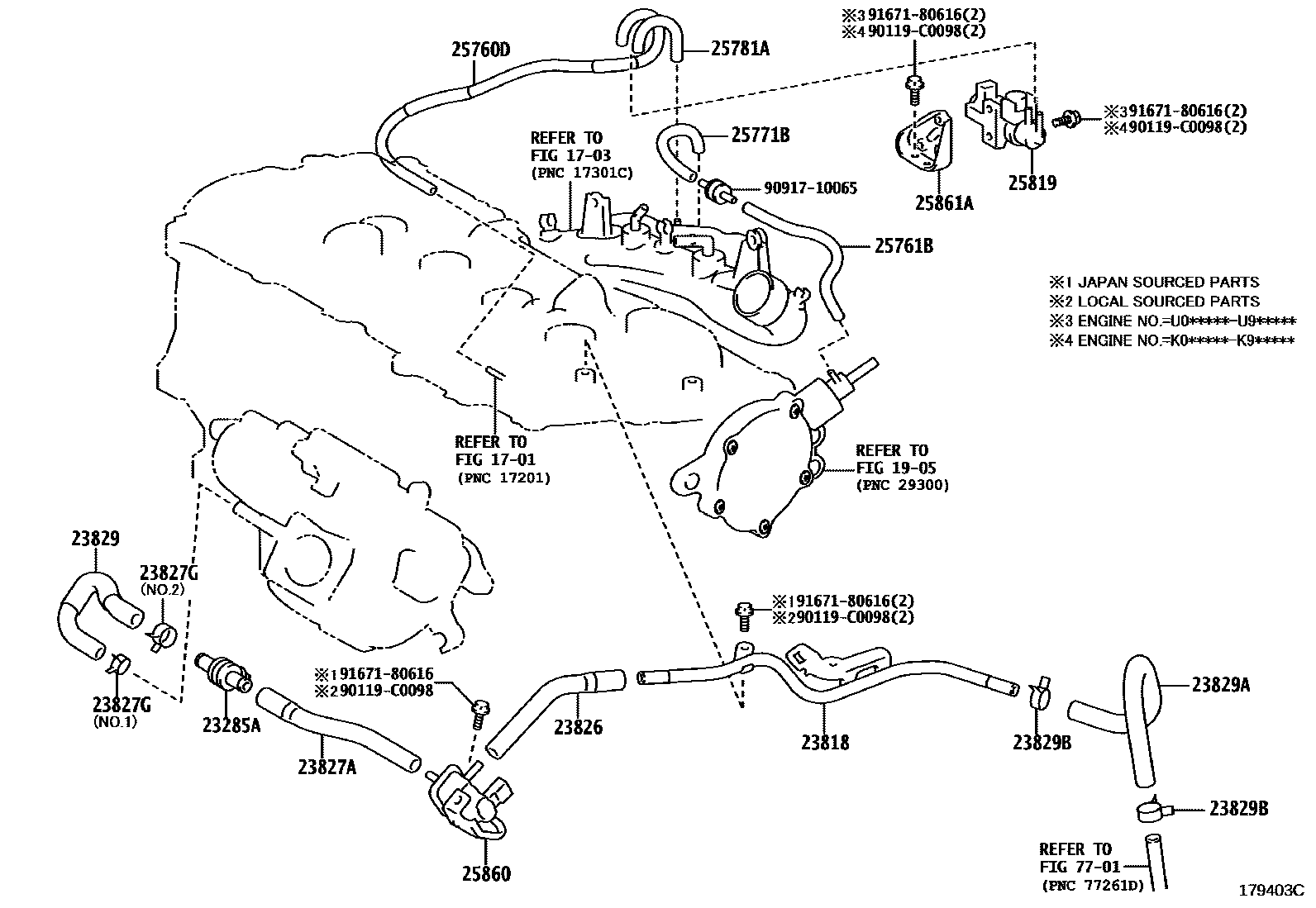

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341P | air hose | 17341-0T040 |
| 17341T | Air hose No. 1 | 17341-0T020 |
| 17342L | Air hose No. 2 | 17342-37060 |
| 17343F | No. 3 air hose | 17343-37040 |
| 17361M | air tube | 17361-37011 · 17361-37070 |
| 17650E | Vacuum switch valve | 90910-12276 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-TC001 |
| 23285A | No. 1 one-way valve | 25748-0Y010 · 25748-36010 |
| 23818 | Fuel vapor supply pipe | 23818-0Y010 · 23818-37010 · 23818-37020 · 23818-47020 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T041 · 23826-0T110 · 23826-0T220 · 23826-0T380 · 23826-0Y190 · 23826-0Y260 · 23826-47090 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0T020 · 23827-0Y190 · 23827-0Y220 · 23827-37020 · 23827-37040 · 23827-37060 · 23827-47130 |
| 23827G | Clamp (for No. 3 fuel vapor supply hose) | 90466-C0031 · 90466-C0039 · 96136-41901 · 96136-42201 |
| 23829 | No. 3 fuel vapor supply hose | 23829-0Y010 · 23829-47010 |
| 23829A | Fuel vapor supply hose | 23826-0T080 · 23826-0T210 · 23826-0T330 · 23826-0Y200 · 23826-0Y360 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-C0002 · 90466-C0037 · 90466-C0039 · 96132-51100 · 96132-51300 · 96136-41901 |
| 25719 | Vacuum pressure tank | 25719-0T010 |
| 25760D | No. 4 vacuum transmission hose assembly | 25781-47010 · 25781-47020 · 25781-47040 · 25781-47050 · 25791-0Y010 · 25791-0Y040 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0T010 · 25761-0T020 · 25761-0Y010 · 25761-0Y011 · 25761-47010 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25771B | No. 2 vacuum transfer hose | 25771-0Y010 · 25771-47010 |
| 25781A | No. 3 vacuum transfer hose | 25781-0Y010 · 25781-0Y020 · 25791-47010 · 25791-47020 |
| 25819 | Vacuum regulating valve assembly | 25819-0W010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0Y100 · 25860-37020 · 25860-37040 · 25860-47050 · 25860-47080 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 · 25861-37020 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-0Y010 · 25862-47010 |
