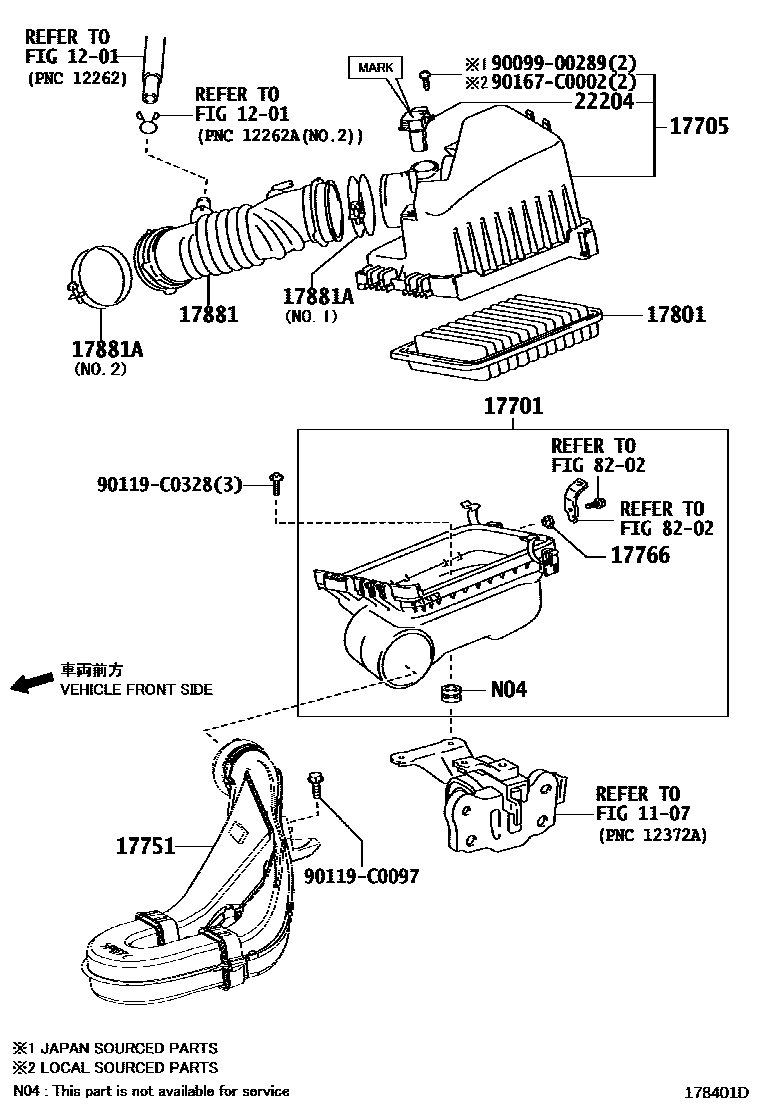

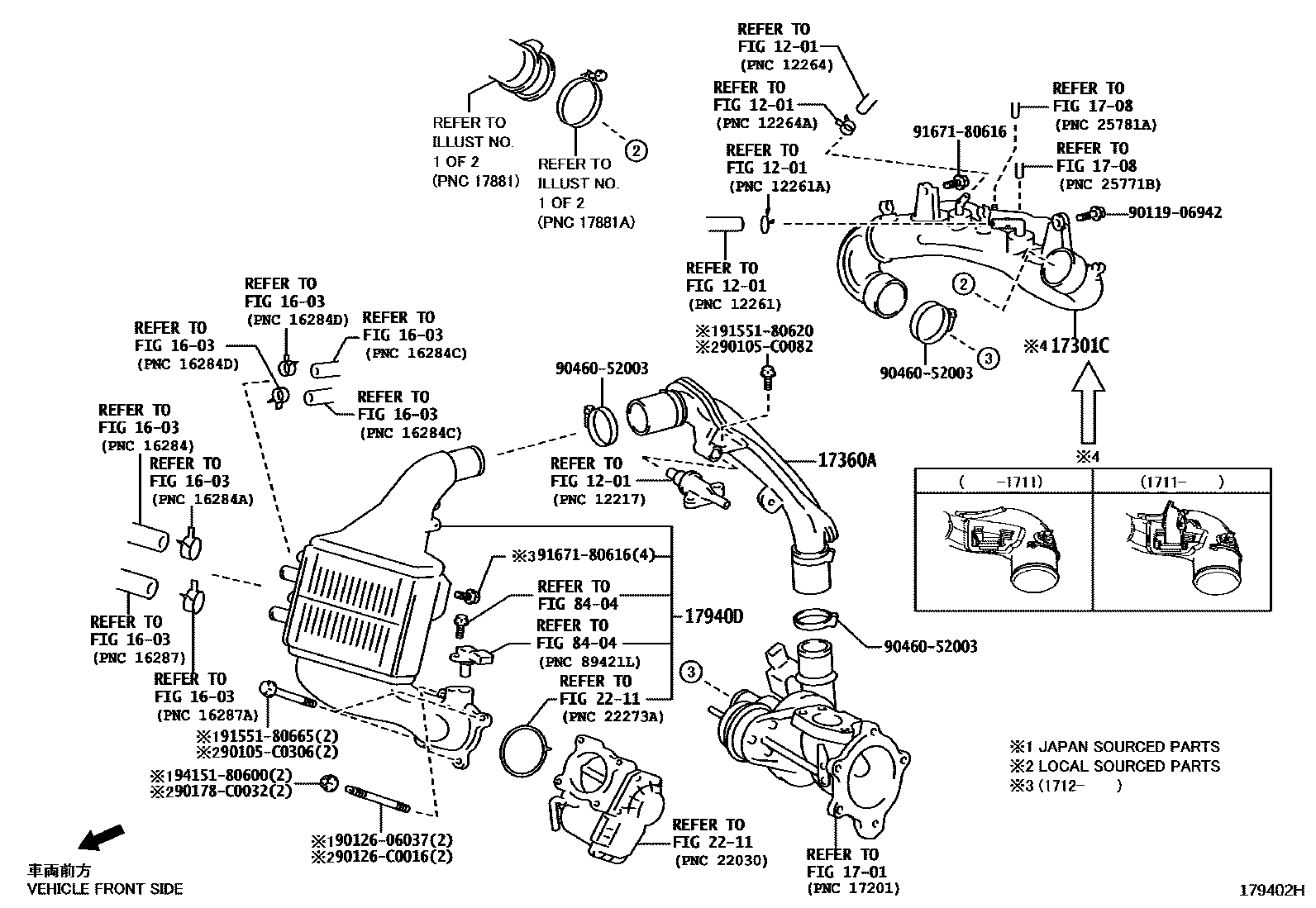

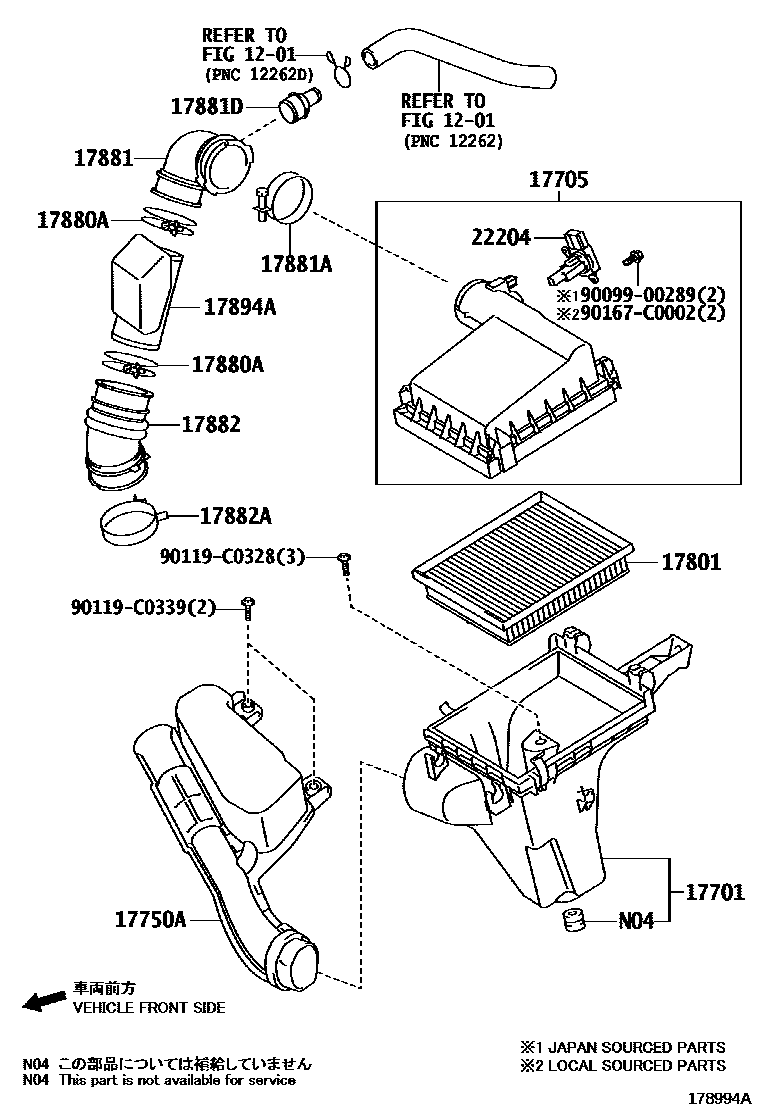

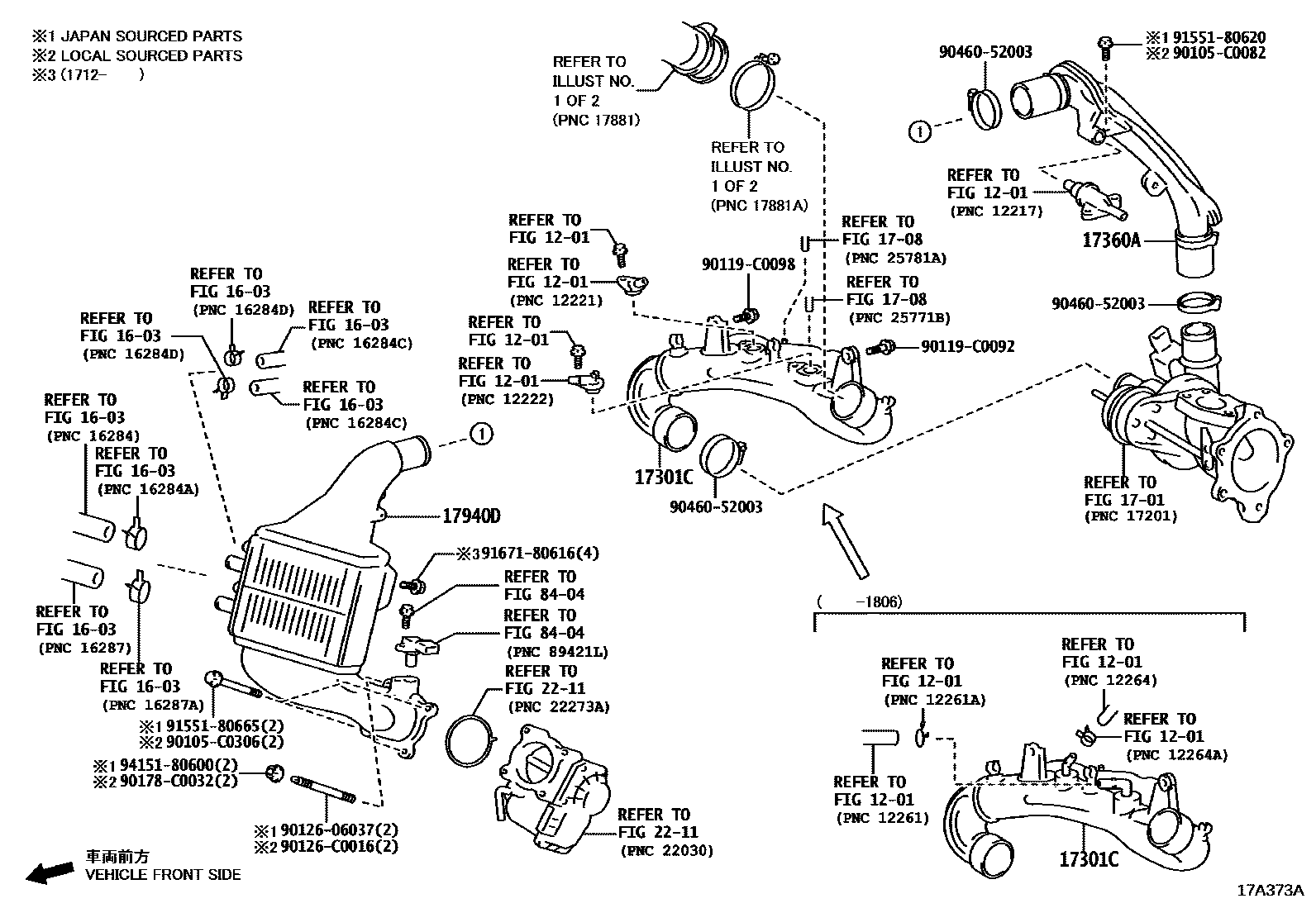

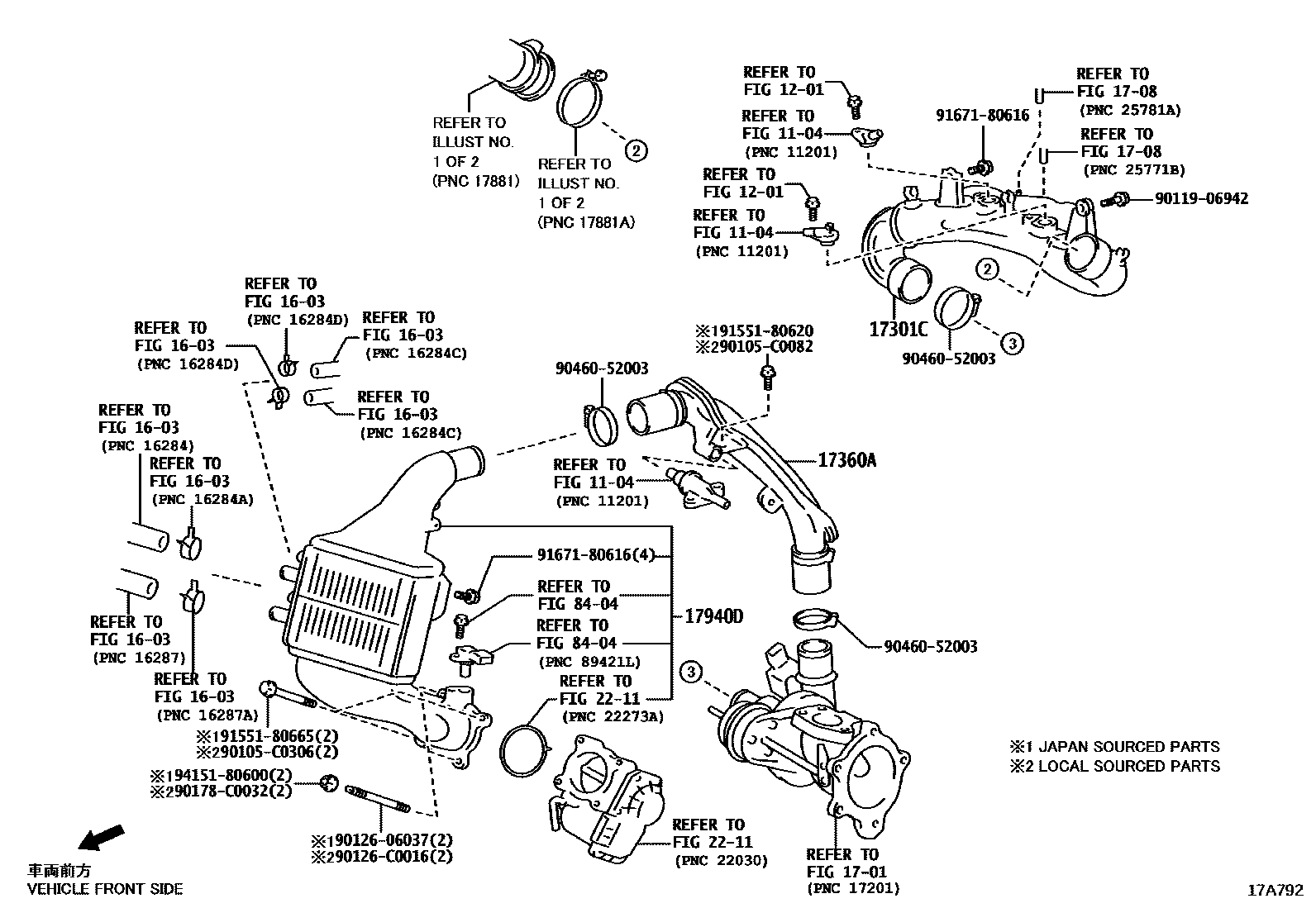

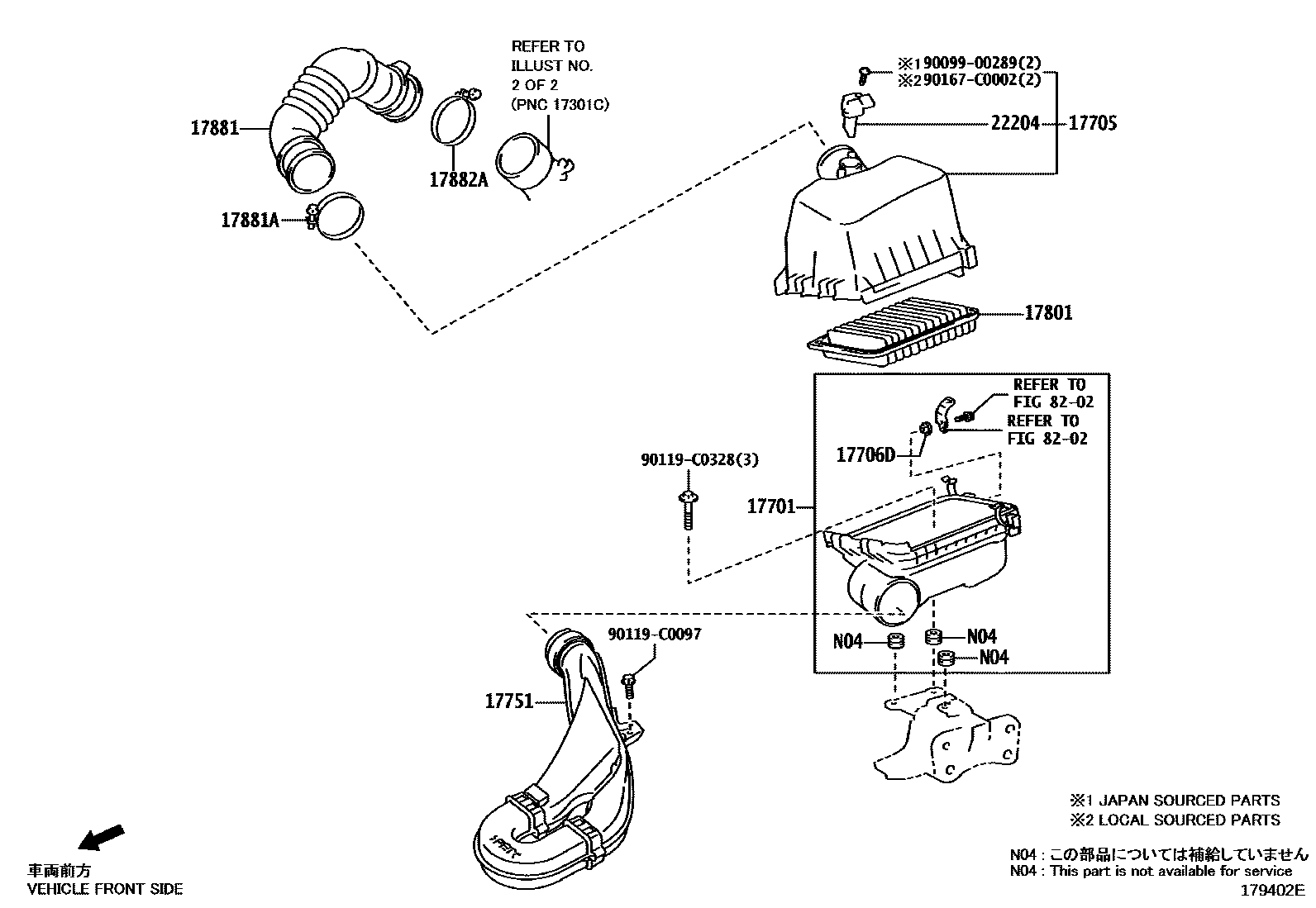

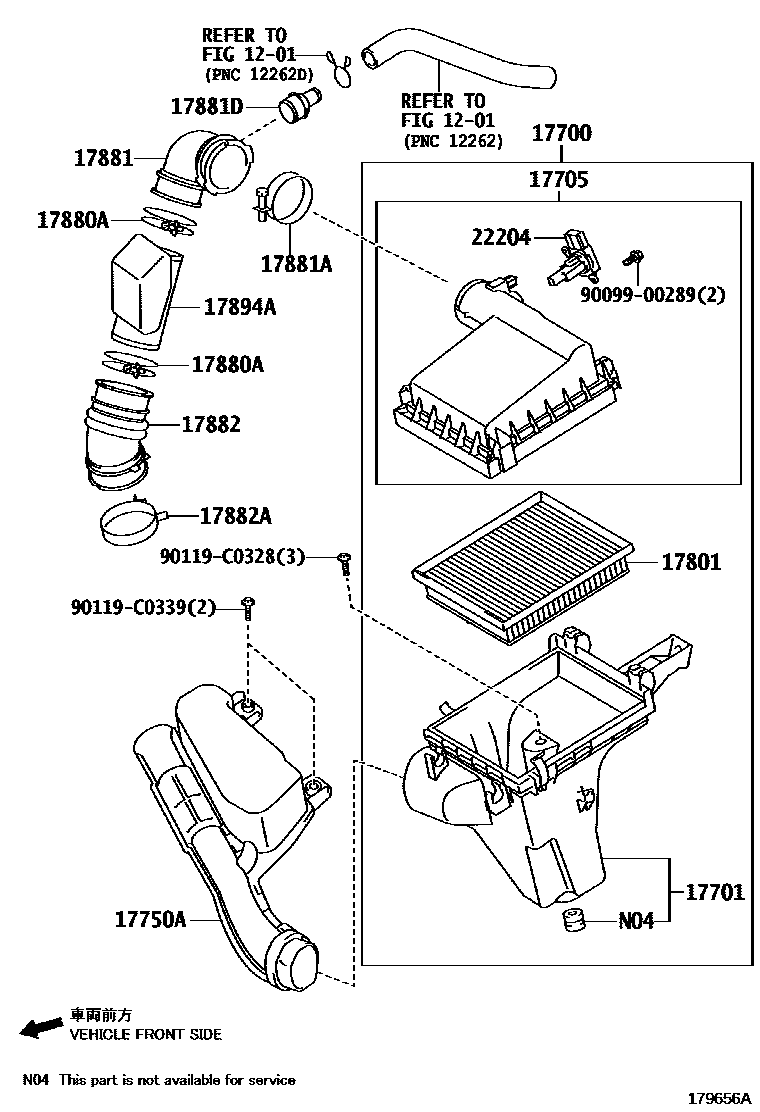

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17301C | No. 1 air inlet duct sub-assembly | 17301-0Y010 · 17301-0Y011 · 17301-0Y021 · 17301-47010 · 17301-47020 |
| 17360A | air pipe assembly | 17360-0Y010 · 17360-0Y020 · 17360-47010 · 17360-47011 |
| 17700 | air filter assembly | 17700-37261 |
| 17701 | Air filter housing sub-assembly | 17701-0T100 · 17701-0T160 · 17701-37170 |
| 17705 | Air filter cover sub-assembly | 17705-0T131 · 17705-0T200 · 17705-0Y240 · 17705-0Y280 · 17705-37131 |
| 17706D | Air filter stay sub-assembly | 17706-0T010 · 17706-22010 |
| 17750A | Air filter air inlet assembly | 17750-0T020 |
| 17751 | No. 1 air filter air inlet | 17751-0T180 · 17751-0T181 |
| 17766 | No. 2 air filter stay | 17706-0T010 |
| 17801 | Air filter element sub-assembly | 17801-0T020 · 17801-0T070 · 17801-37021 |
| 17880A | hose clamp | 96111-10750 |
| 17881 | No. 1 air cleaner hose | 17880-0T160 · 17880-0T360 · 17880-0T400 · 17881-0T420 · 17881-0Y220 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10750 · 96111-10780 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882 | No. 2 air cleaner hose | 17882-0T020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-C0019 · 96111-10670 |
| 17894A | No. 2 intake resonator | 17894-0T020 |
| 17940D | Intercooler assembly | 17940-0Y010 · 17940-47021 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-75030 |
