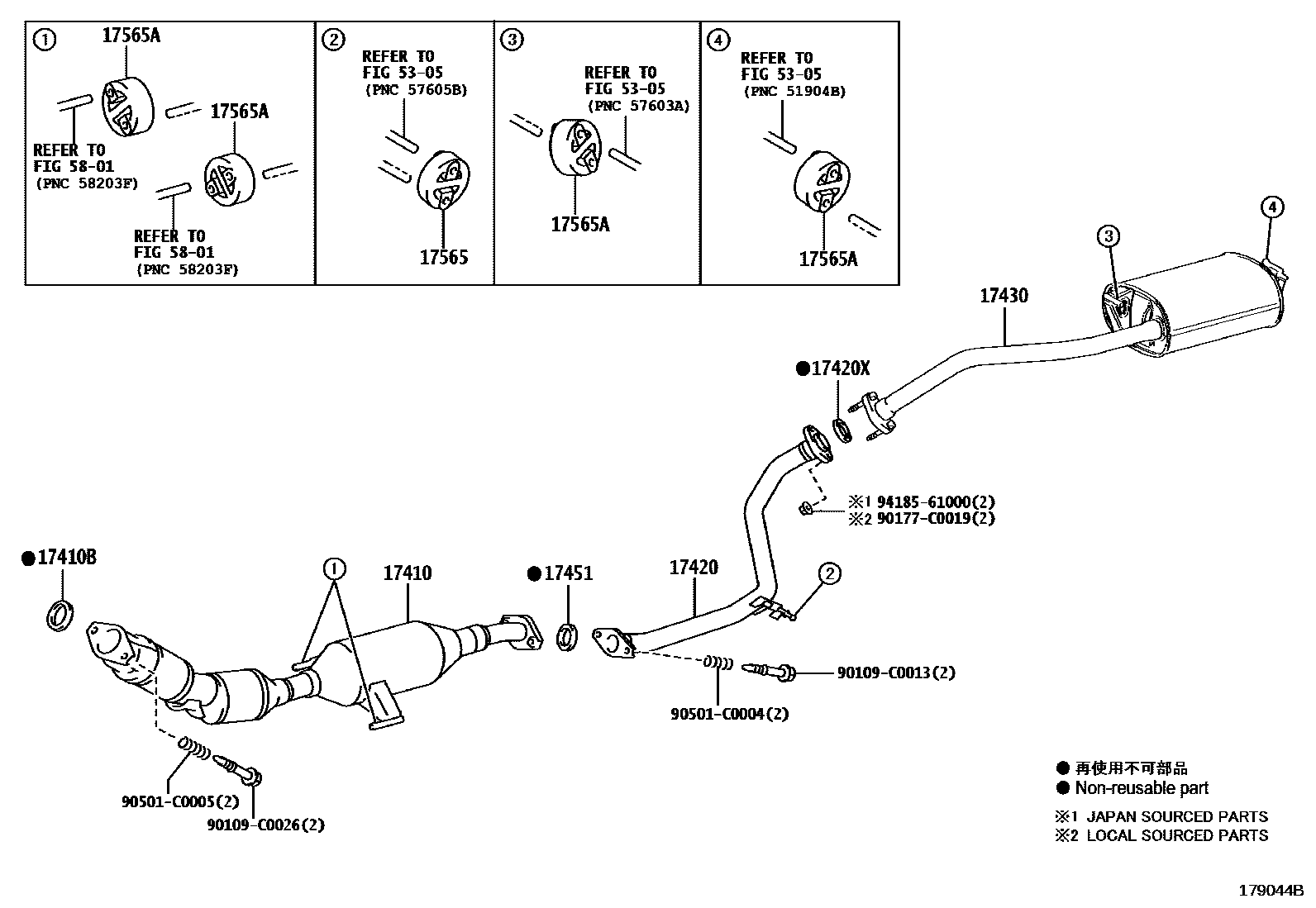

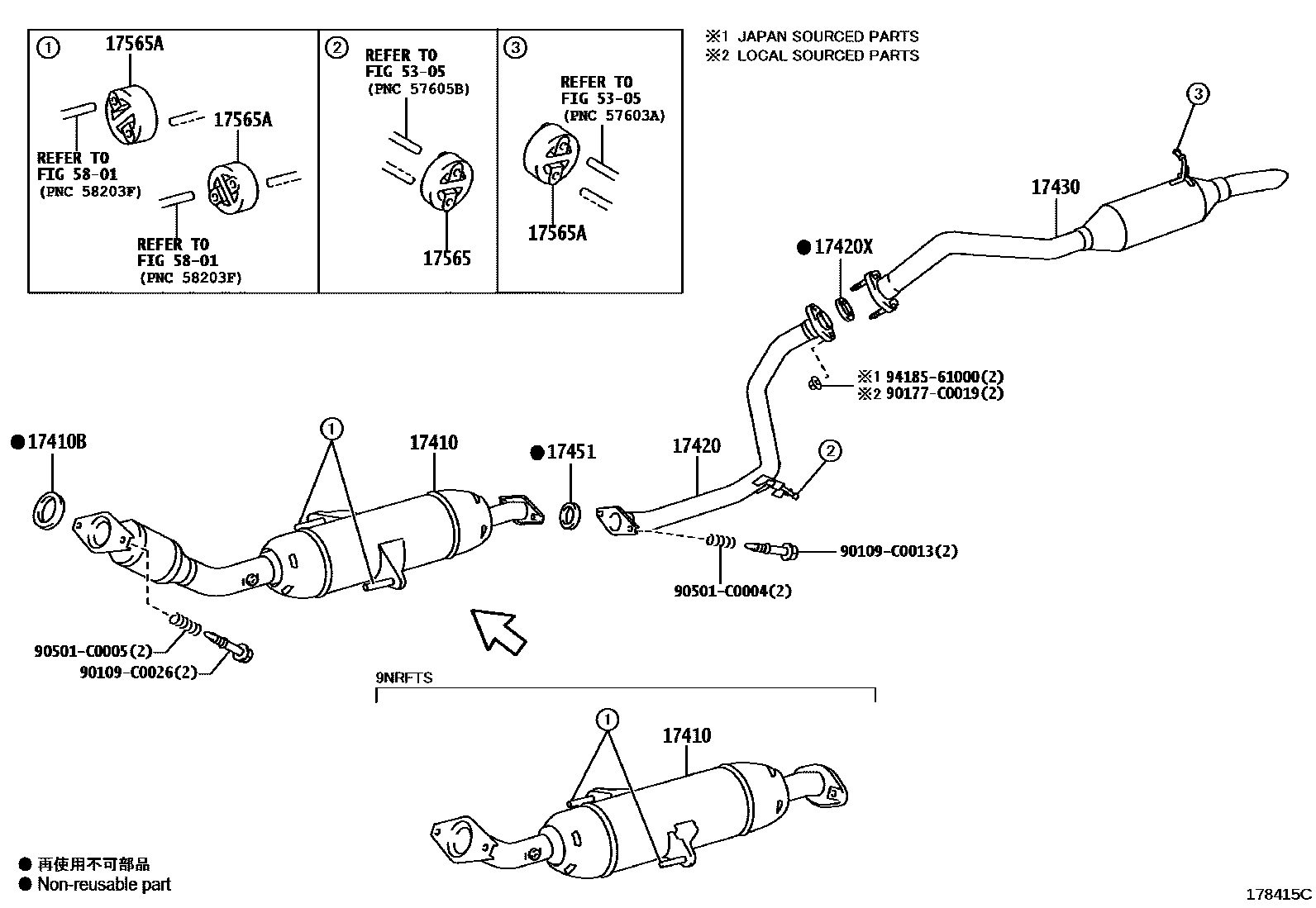

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0T290 · 17410-0T720 · 17410-0TA30 · 17410-0Y720 · 17410-0Y721 |
| 17410B | Exhaust pipe gasket | 17451-0T010 |
| 17420 | Central exhaust pipe assembly | 17420-0T060 · 17420-0T080 |
| 17420X | Center exhaust pipe liner | 90917-06089 · 90917-T6003 |
| 17430 | Exhaust tailpipe assembly | 17430-0T150 · 17430-0T430 |
| 17451 | Exhaust pipe gasket | 17451-0T022 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0D070 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0T010 · 17565-0T011 · 17565-0T090 |
