Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 5 images and 27 PNC and OE references.

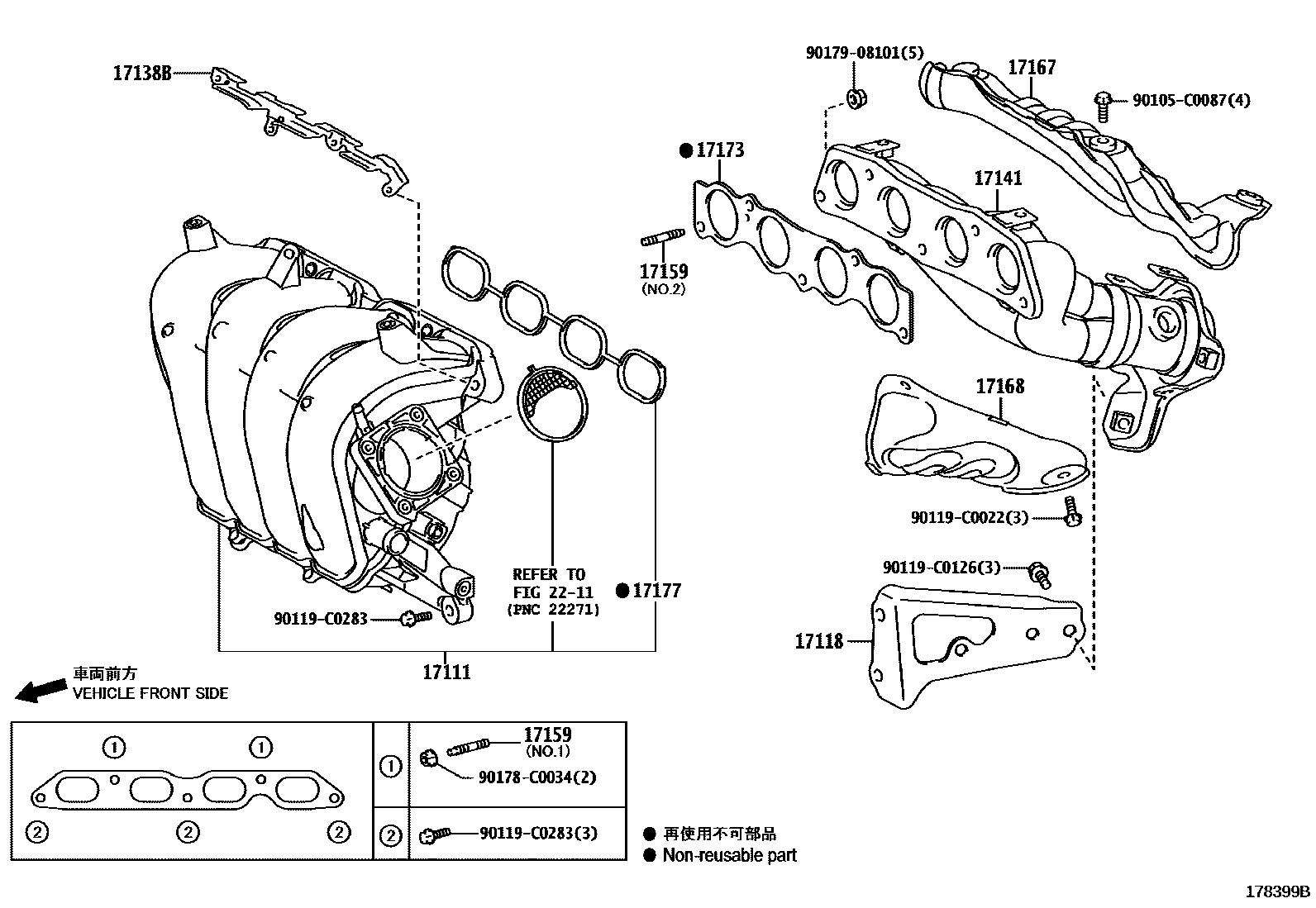

Toyota COROLLA Manifold EPC diagram — 178399B — Manifold — 178399B (201406 – 999999)

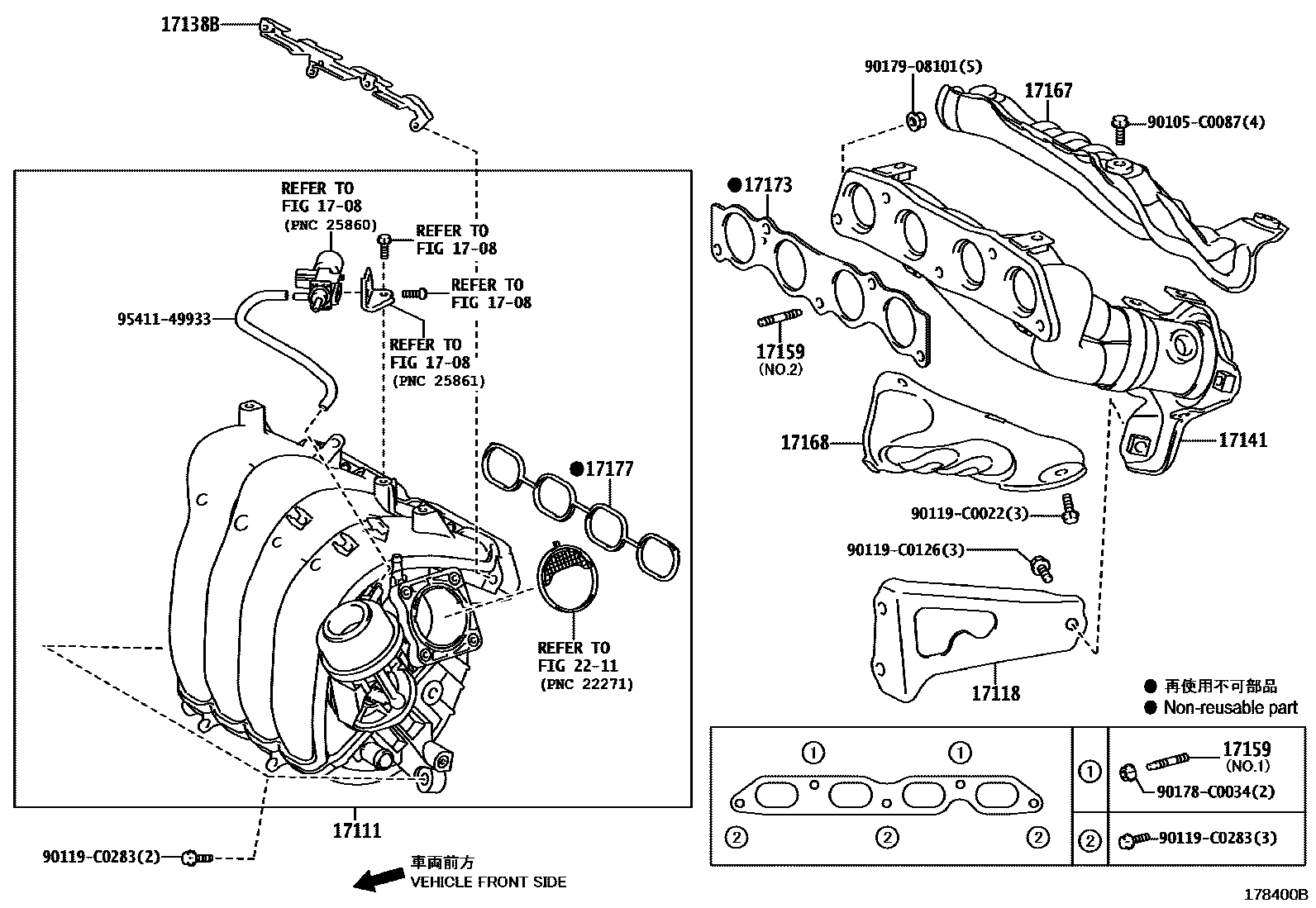

Toyota COROLLA Manifold EPC diagram — 178400B — Manifold — 178400B (201406 – 999999)

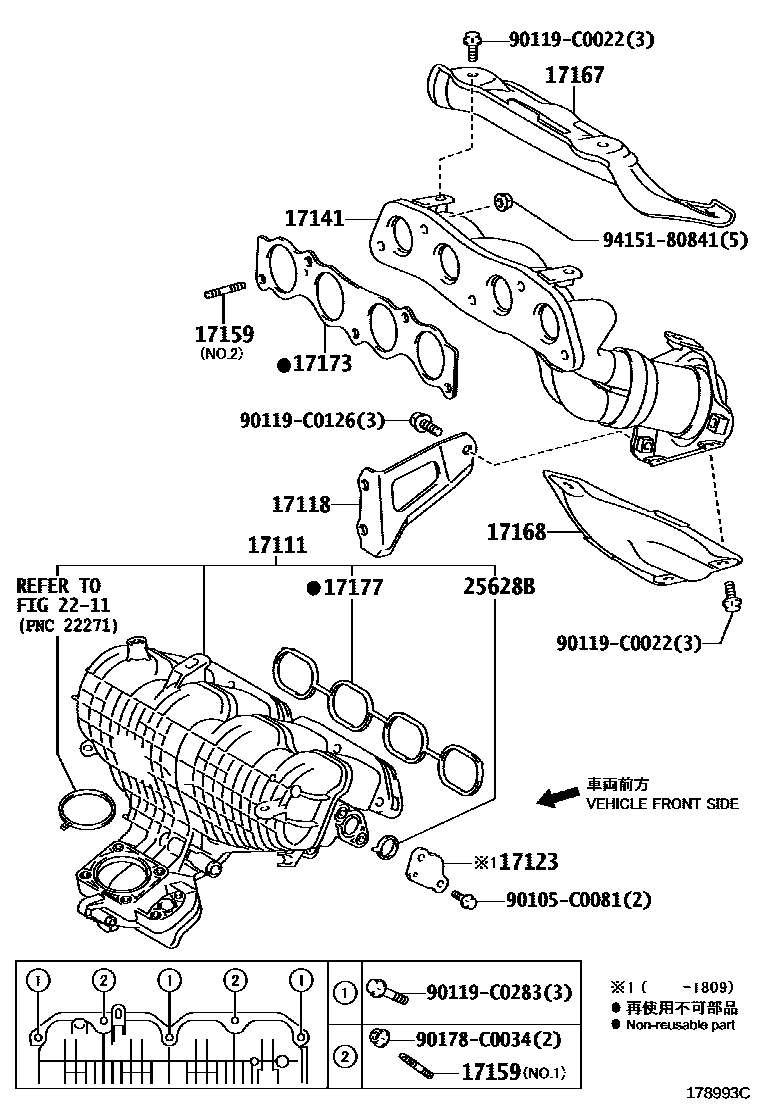

Toyota COROLLA Manifold EPC diagram — 178993C — Manifold — 178993C (201512 – 999999)

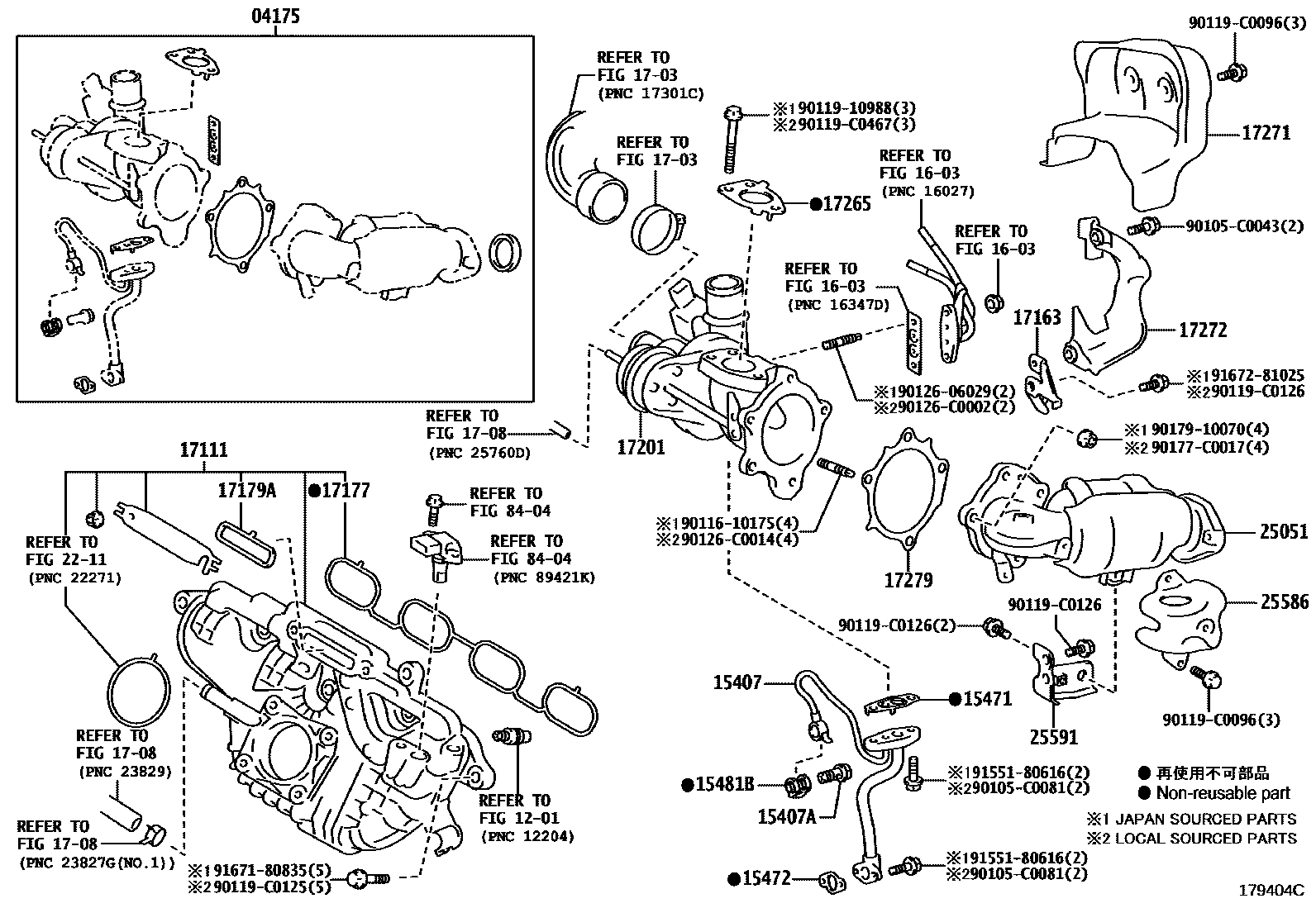

Toyota COROLLA Manifold EPC diagram — 179404C — Manifold — 179404C (201610 – 201905)

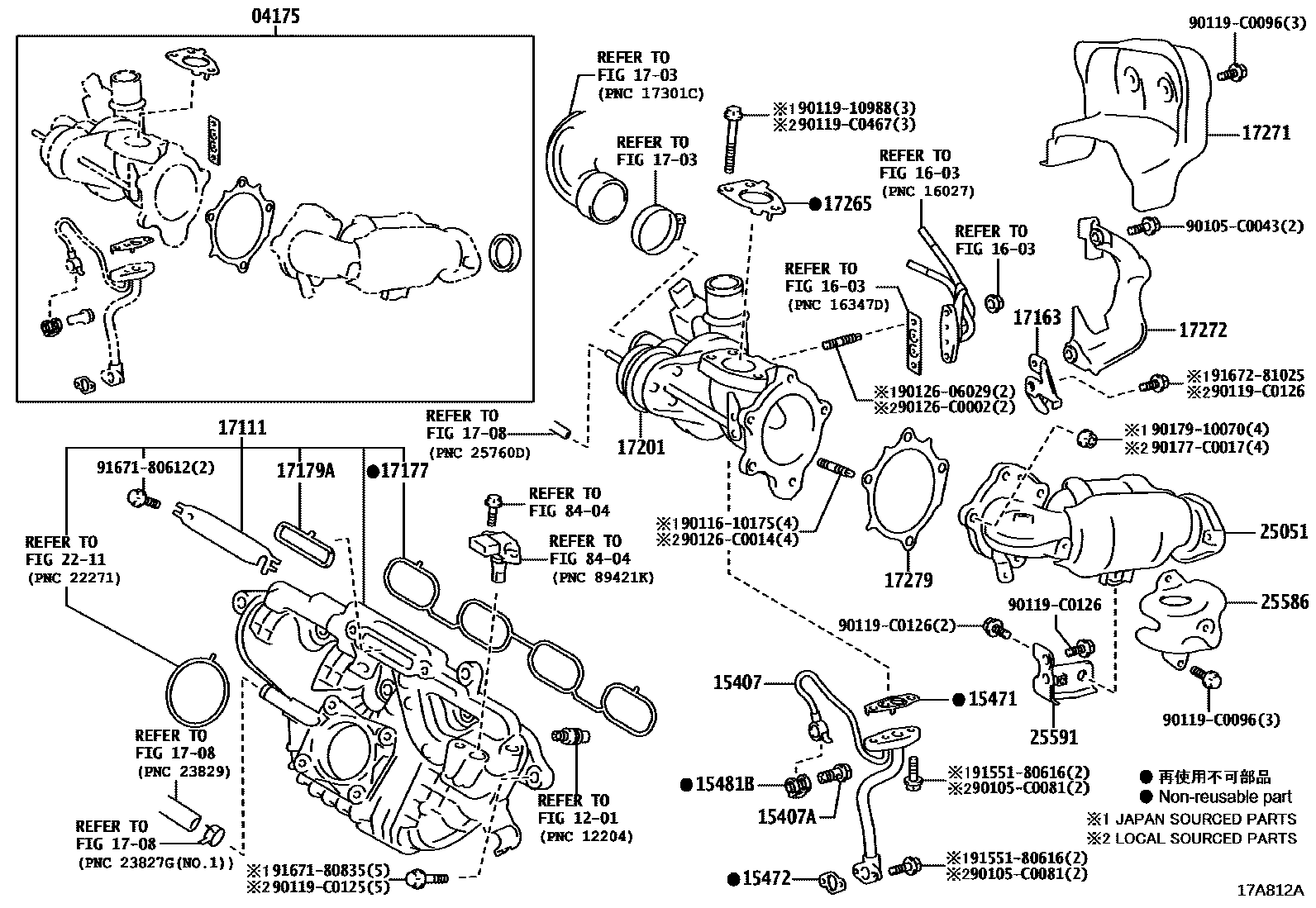

Toyota COROLLA Manifold EPC diagram — 17A812A — Manifold — 17A812A (201905 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04175	Turbocharger gasket assembly	04175-0Y010 · 04175-47010
15407	Turbine oil inlet pipe sub-assembly	15407-0Y010 · 15407-47011
15407A	Connector bolt (for turbine oil inlet pipe)	96341-11200
15471	Turbine oil inlet pipe gasket	15471-0Y010 · 15471-47010
15472	No. 1 turbine oil outlet pipe gasket	15472-0Y010 · 15472-47010
15481B	Gasket (for No. 1 joint bolt)	90430-12037
17111	Intake Manifold	17120-0T022 · 17120-0T070 · 17120-0T160 · 17120-0Y090 · 17120-37054 · 17120-47100
17118	Manifold stays	17118-0T010 · 17118-0T070
17123	Pressure tank cover	17123-37010
17138B	Intake manifold stay	17138-0T021
17141	exhaust manifold	17141-0T070 · 17141-0T110
17159	Studs (for manifold to cylinder head)	90126-08026 · 90126-08052
17163	No. 1 insulation pad bracket	17586-0Y010 · 17586-0Y011 · 17586-47010 · 17586-47011
17167	Exhaust manifold No. 1 heat shield	17167-0T070 · 17167-0T110
17168	Exhaust manifold No.2 insulation pad	17168-0T060 · 17168-0T100
17173	Gasket (exhaust manifold to cylinder head)	17173-0T010
17177	No. 1 gasket (intake manifold to cylinder head)	17177-0T010 · 17177-0Y070 · 17177-37030 · 17177-47050
17179A	No. 2 intake manifold gasket	17179-0Y010 · 17179-47010
17201	Turbocharger sub-assembly	17201-0Y010 · 17201-47011
17265	Turbocharger gasket	17265-0Y010 · 17265-47010
17271	No. 1 turbine vibration isolation pad	17271-0Y010
17272	No. 2 turbine vibration isolation pad	17272-0Y020
17279	Turbine outlet elbow gasket	17279-0Y010
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-0Y120 · 25051-0Y170
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-0Y010
25591	Manifold bracket	25591-0Y010
25628B	EGR air intake gasket	25628-28010
