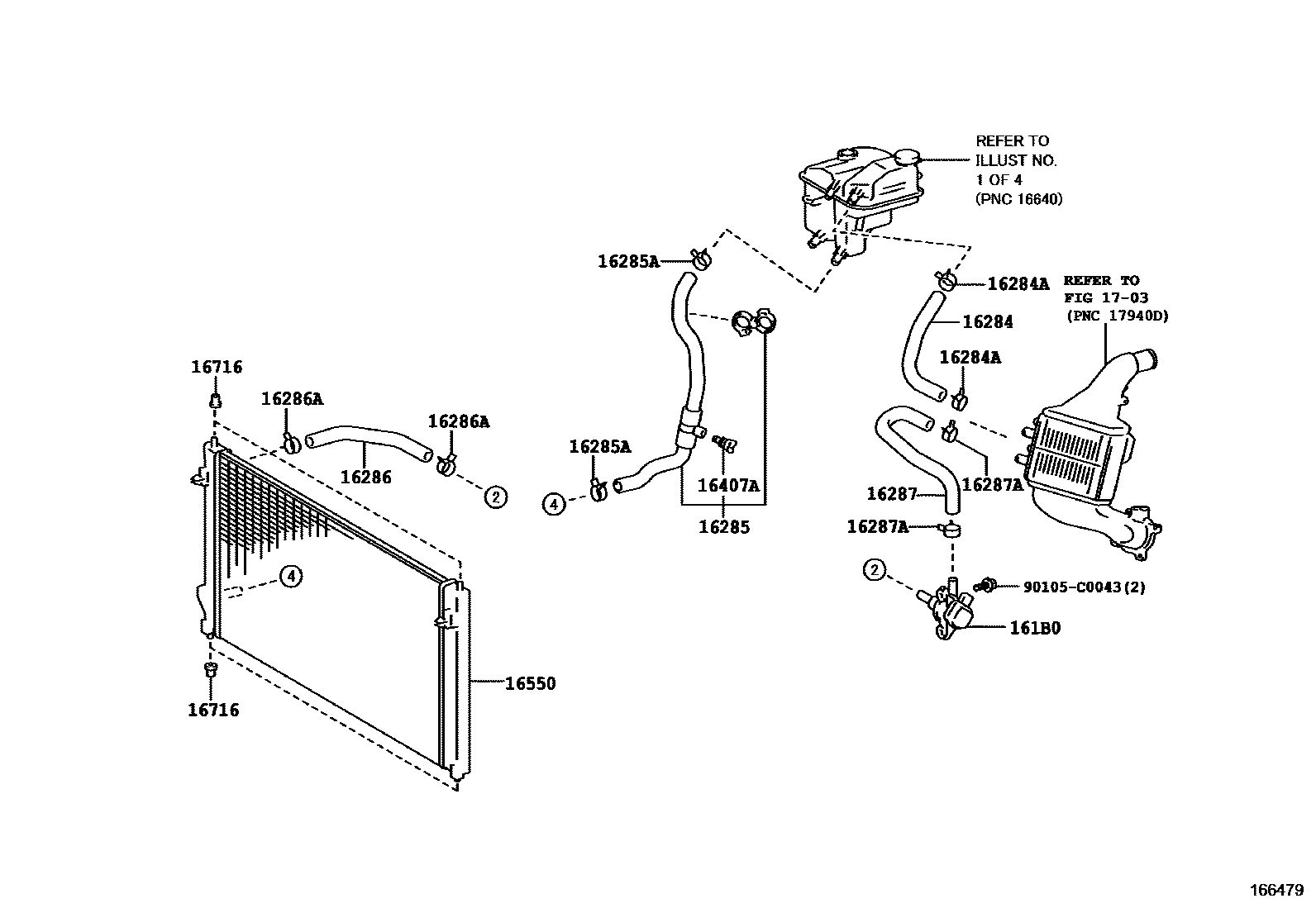

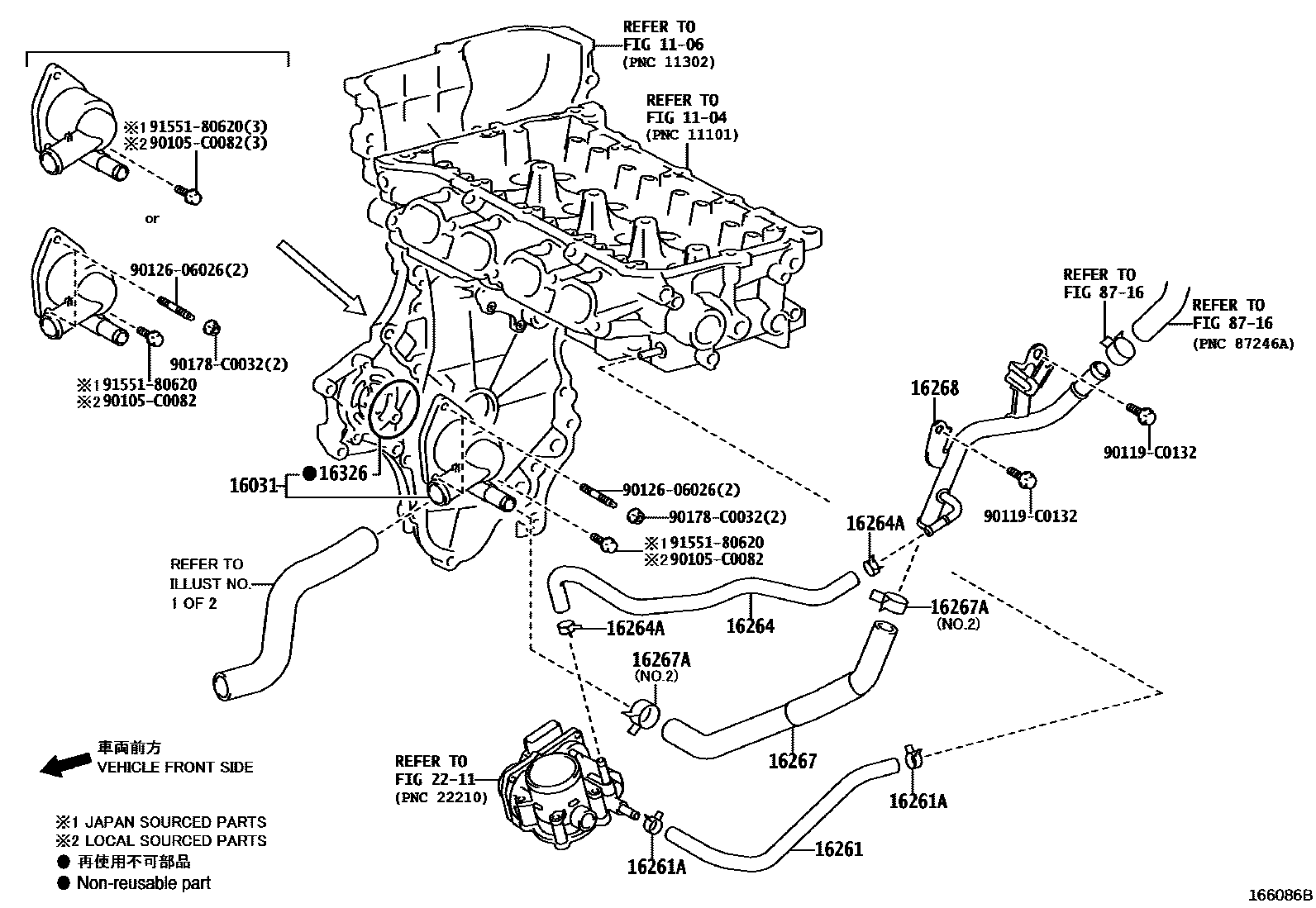

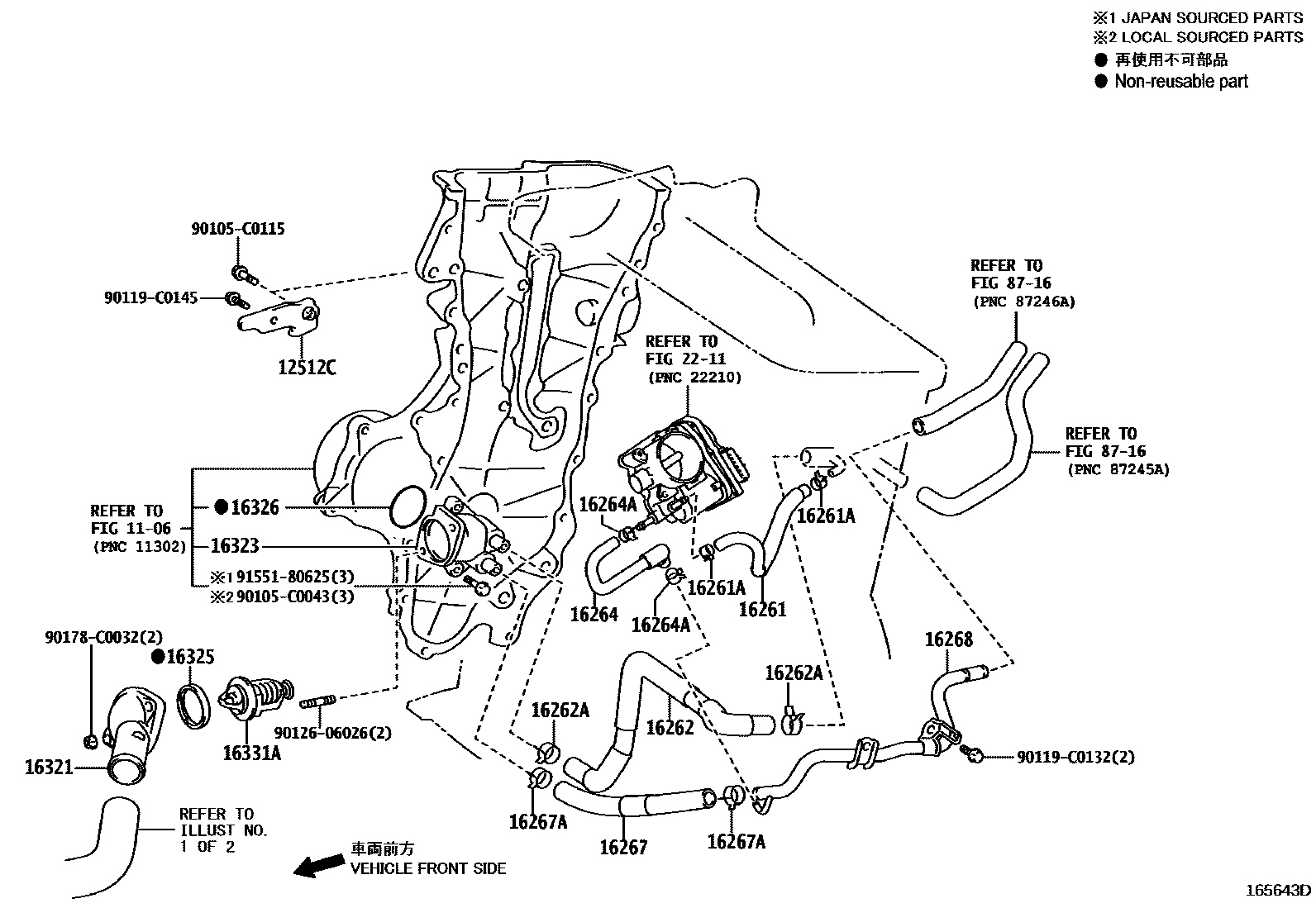

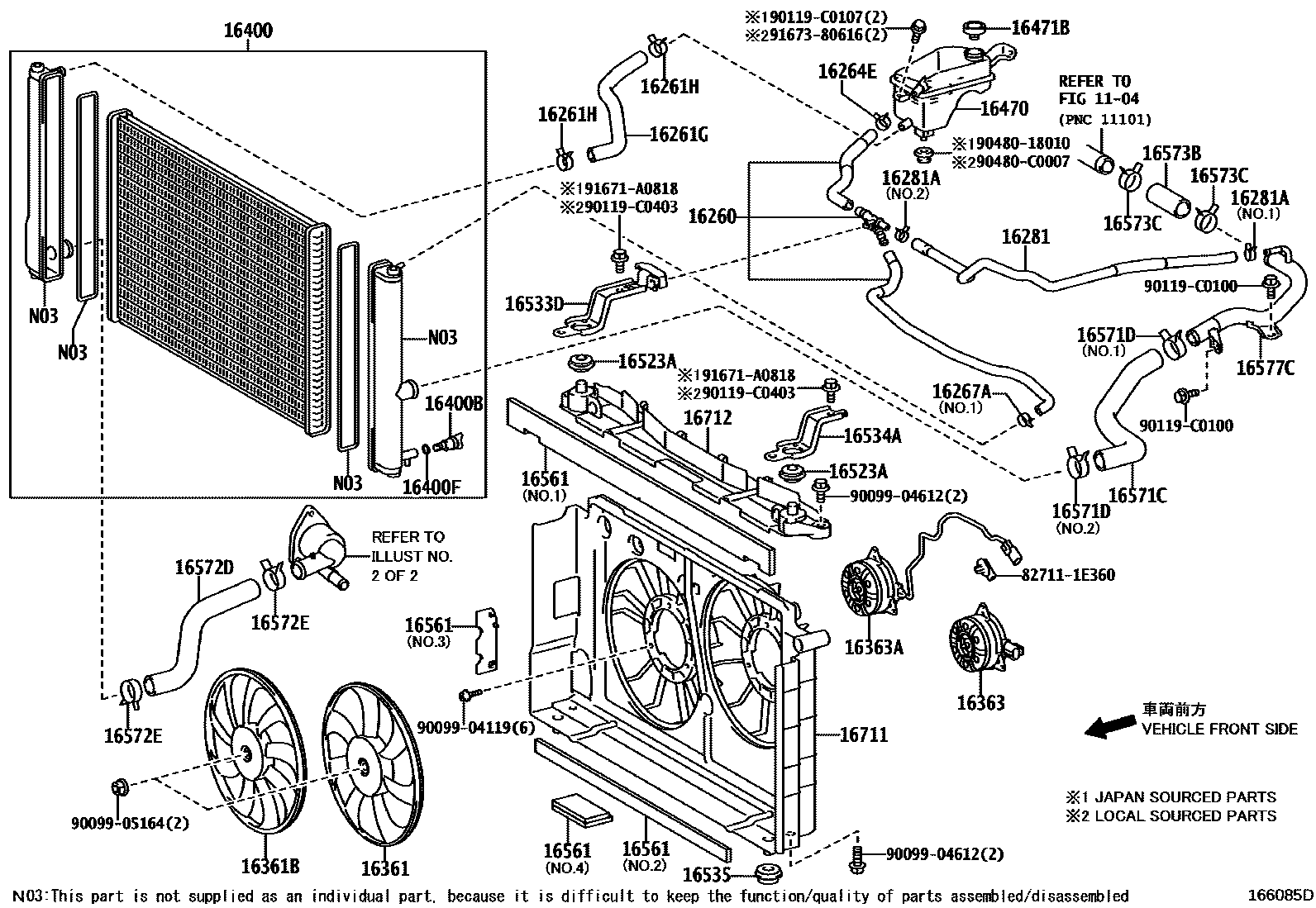

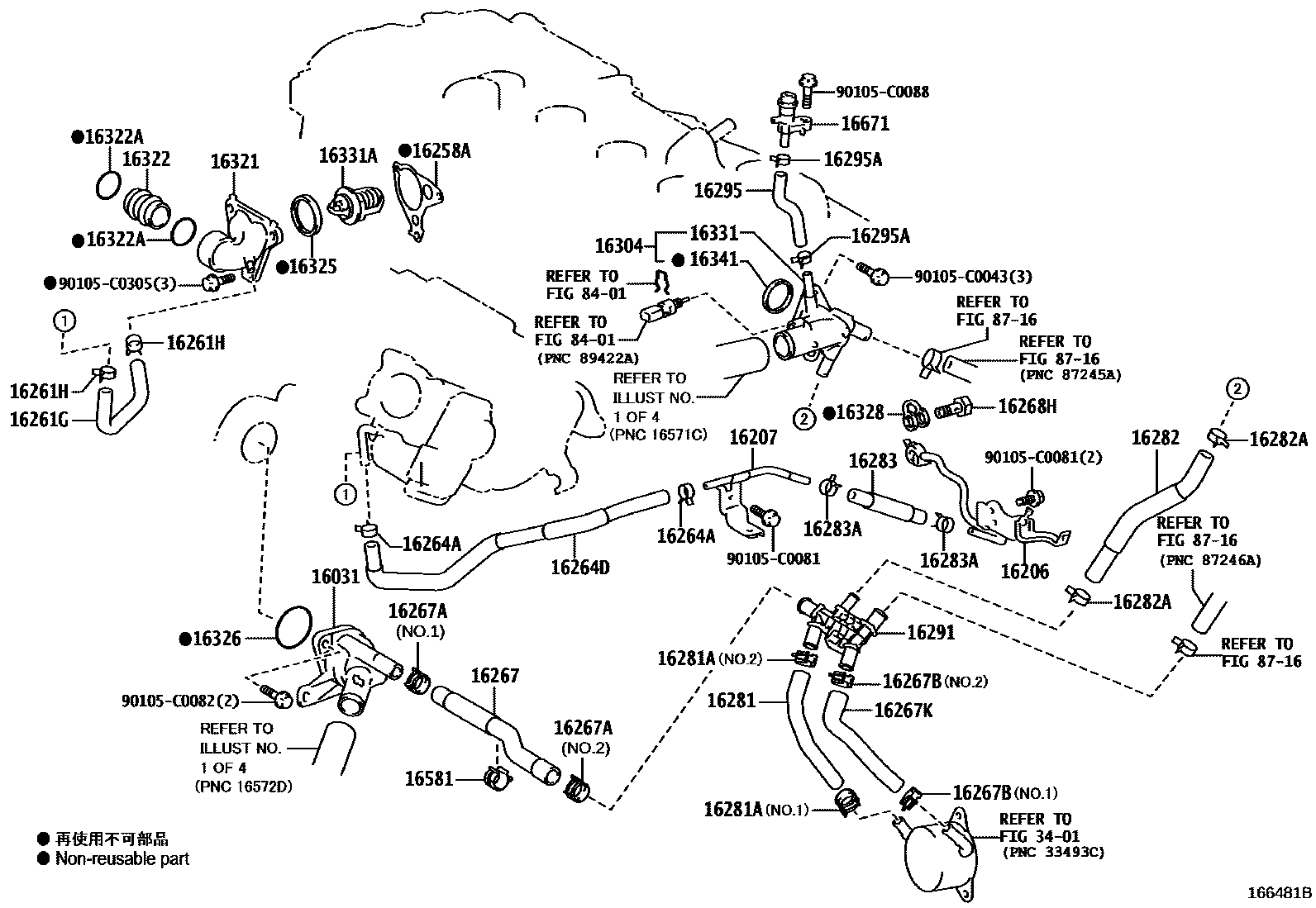

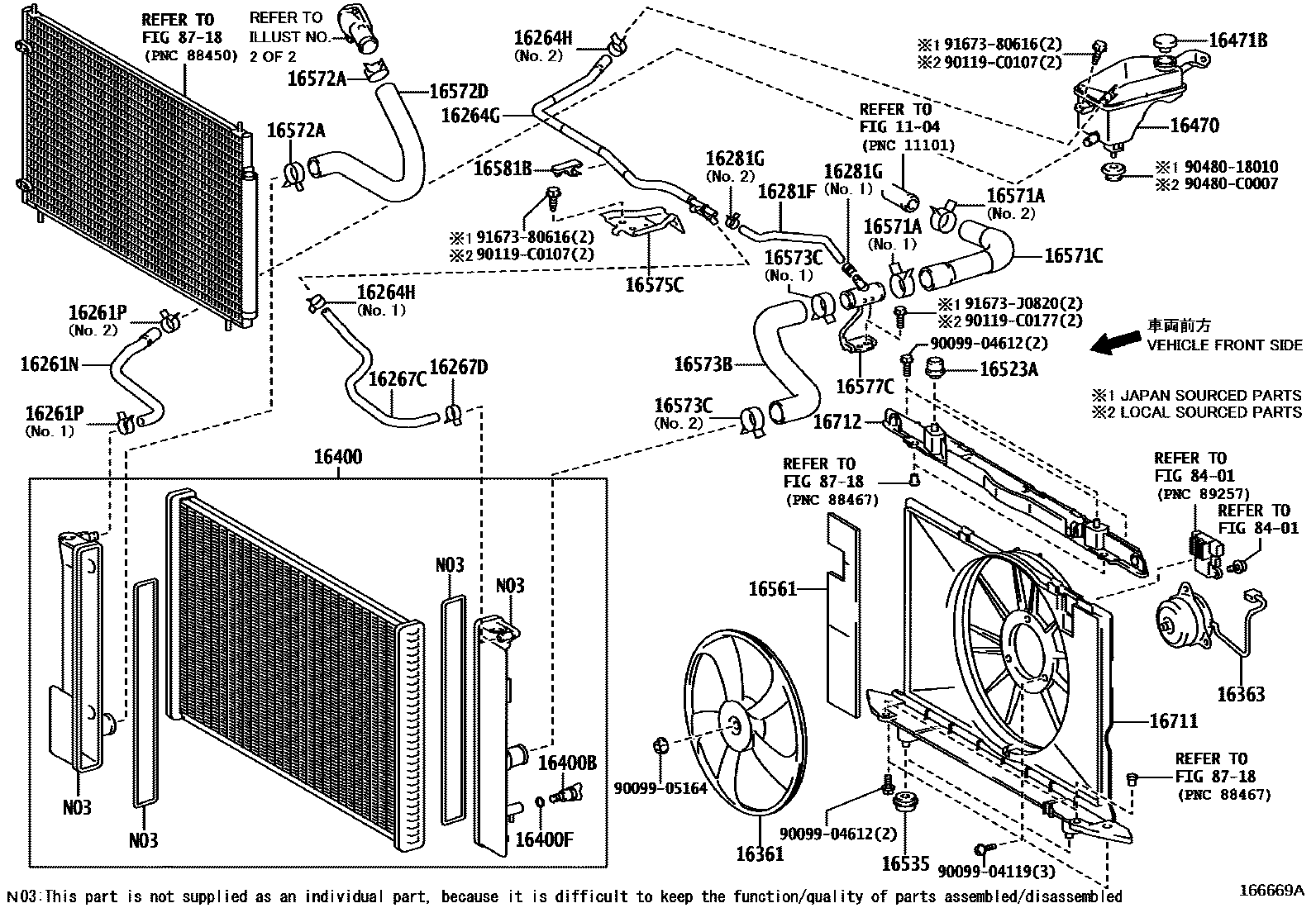

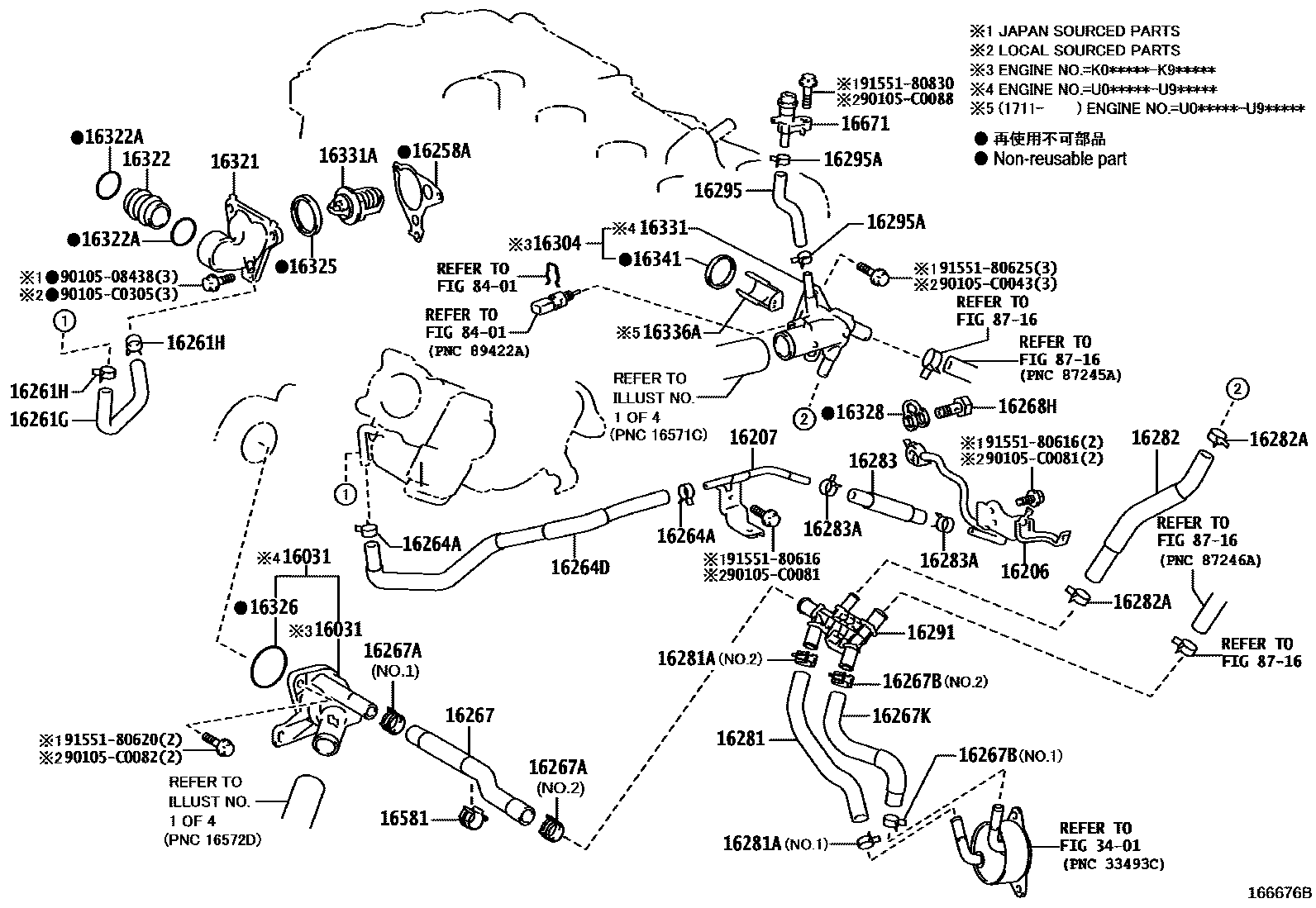

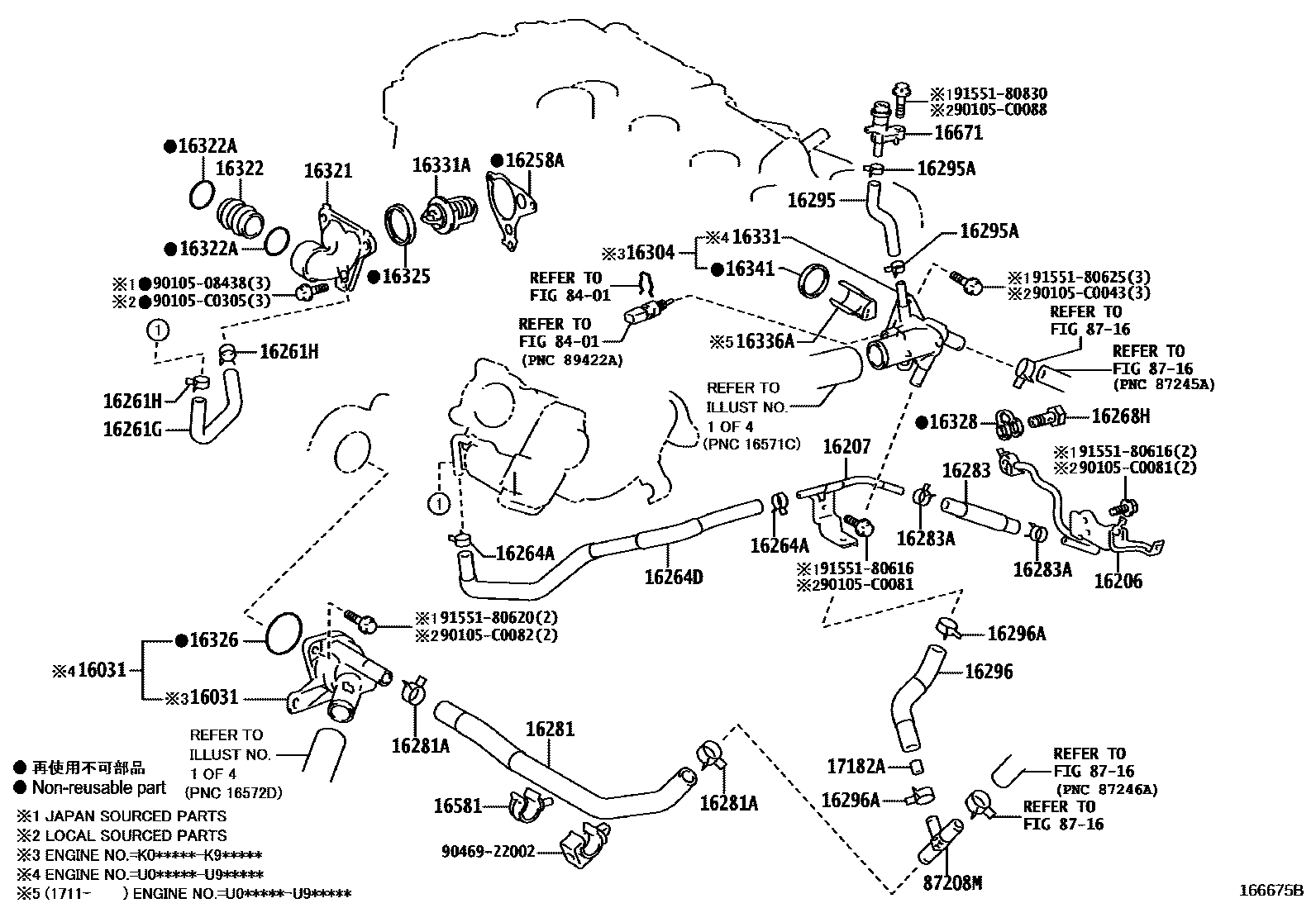

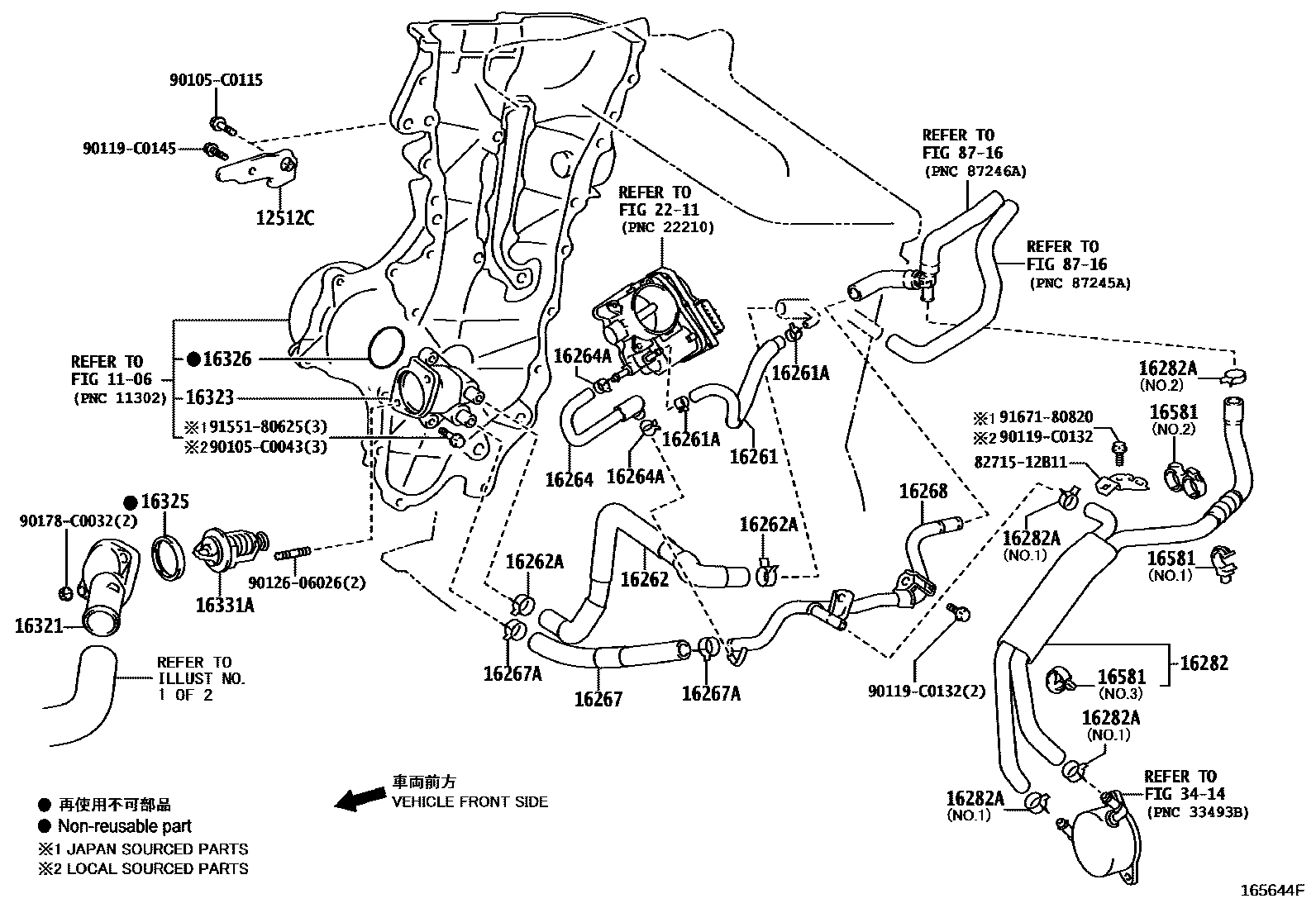

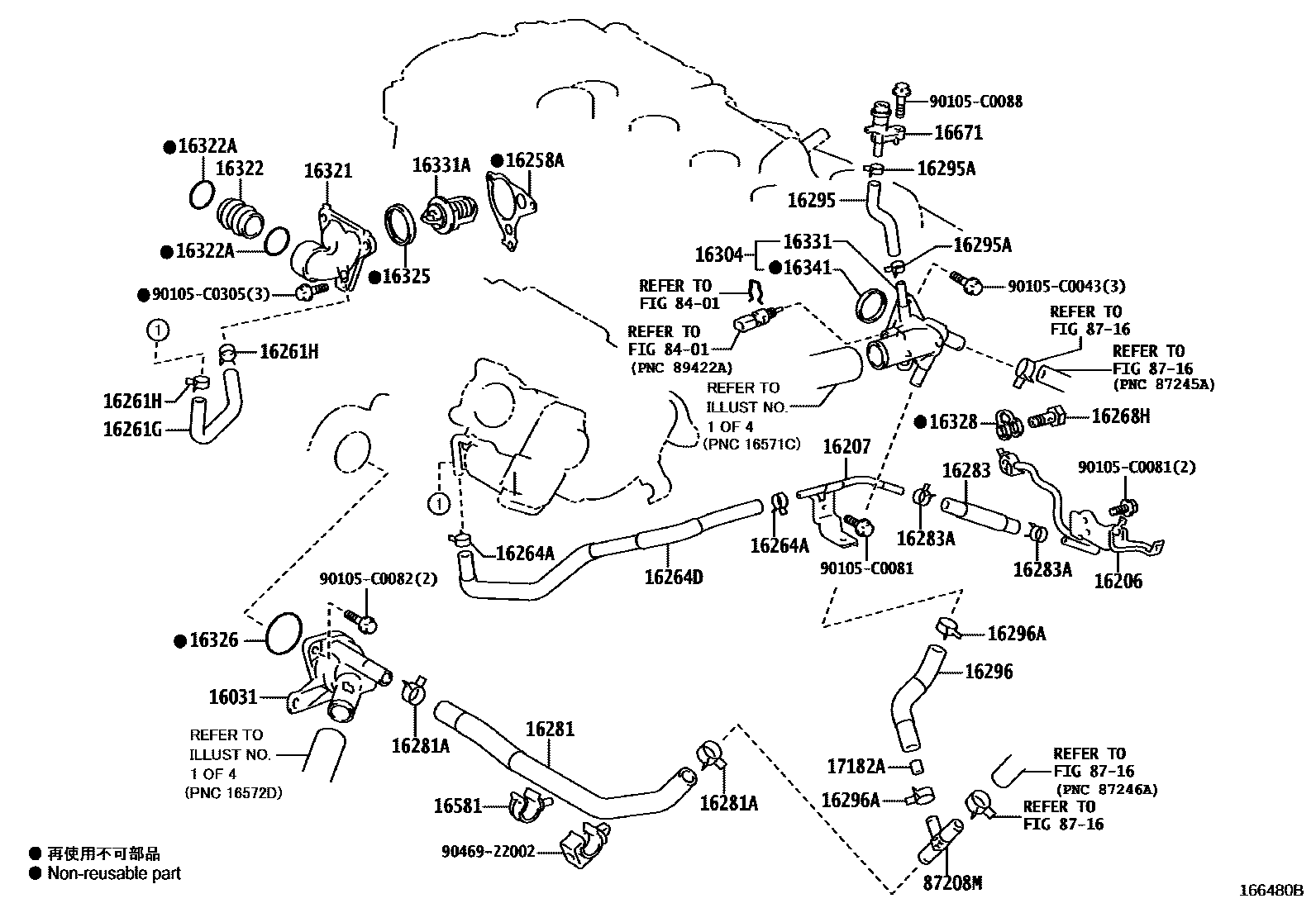

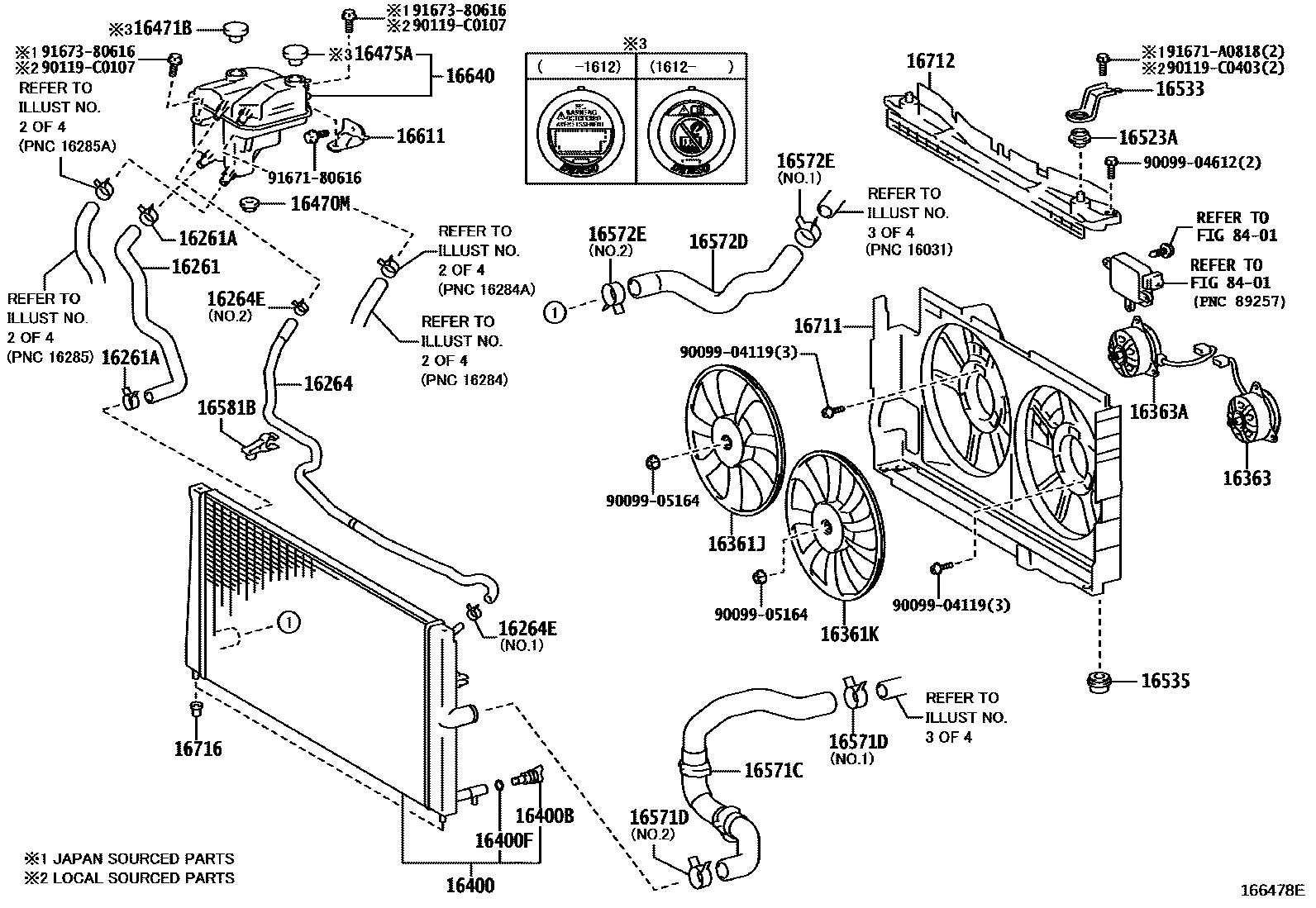

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 13 images and 113 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12512C | No. 2 generator bracket | 12512-0T020 |
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-0Y010 · 16027-47010 |
| 16028 | No. 2 turbocharger water pipe sub-assembly | 16028-0Y010 · 16028-47010 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-0T010 · 16031-0Y020 · 16031-47030 |
| 161B0 | Electronic water pump assembly | 161B0-0Y010 · 161B0-47010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-0Y010 · 16206-47010 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0Y010 · 16207-47010 |
| 16258A | Pad (for heater return) | 16258-0Y020 · 16258-47010 |
| 16260 | Water bypass hose assembly | 16260-0T080 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T041 · 16261-0T101 · 16261-0T230 · 16261-0Y150 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0014 · 90466-C0026 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T180 · 16261-0Y130 · 16261-47140 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0014 · 90466-C0044 · 96136-41501 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0T080 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0006 · 90466-C0007 |
| 16262 | water inlet hose | 16262-0T010 |
| 16262A | Clamp (for water inlet hose) | 90466-C0014 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T031 · 16264-0T061 · 16264-0T180 · 16264-0Y170 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 90466-C0044 · 96136-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0Y150 · 16264-47060 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0004 · 90466-C0013 · 90466-C0039 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-0T120 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90466-C0003 · 90466-C0004 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T020 · 16267-0T150 · 16267-0Y110 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0005 · 90466-C0014 · 90466-C0015 |
| 16267B | Clip (for water bypass hose) | 90466-C0014 · 90466-C0031 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-0T031 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90467-15022 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-0Y150 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T010 · 16268-0T060 · 16268-0T070 |
| 16268H | Joint bolts (for water bypass pipe) | 90401-14003 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0T120 · 16281-0T121 · 16281-0Y060 · 16281-0Y120 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0005 · 90466-C0014 · 90466-C0031 · 90466-C0043 · 96137-41701 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-0T040 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-C0005 · 90467-17013 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-0T060 · 16282-0Y010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-C0004 · 90466-C0014 · 96134-41900 · 96136-42501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0Y010 · 16283-47040 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-C0044 · 96136-41501 |
| 16284 | No. 1 turbocharger water hose | 16284-0Y020 · 16284-0Y080 |
| 16284A | Clamp (for No. 1 turbocharger water hose) | 90466-C0014 |
| 16284C | Intercooler water hose No. 1 | 16284-0Y040 · 16284-47010 |
| 16284D | Clamp (for intercooler water hose No. 1) | 90466-C0044 · 96136-41501 |
| 16285 | No. 2 turbocharger water hose | 16285-0Y060 |
| 16285A | Clamp (for No. 2 turbocharger water hose) | 90466-C0014 |
| 16285C | Intercooler No. 2 water hose | 16285-0Y040 · 16285-47010 |
| 16285D | Clamp (for intercooler water hose No. 2) | 90466-C0044 · 96136-41501 |
| 16286 | No. 3 turbocharger water hose | 16286-0Y060 |
| 16286A | Clamp (for No. 3 turbocharger water hose) | 90466-C0014 |
| 16286B | Intercooler No. 3 water hose | 16286-0Y040 · 16286-47010 |
| 16286C | Clamp (for intercooler No. 3 water hose) | 90466-C0044 · 96136-41501 |
| 16287 | No. 4 turbocharger water hose | 16287-0Y020 · 16287-0Y070 |
| 16287A | Clamp (for No. 4 turbocharger water hose) | 90466-C0014 |
| 16291 | water hose connector | 87251-02020 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0Y010 · 16295-47030 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-C0003 · 90467-15022 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0Y010 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-C0004 |
| 16304 | Water outlet sub-assembly | 16304-0Y020 · 16304-0Y021 |
| 16321 | water inlet | 16321-0T020 · 16321-0Y030 · 16321-47040 |
| 16322 | PIPE, WATER INLET | 16322-0Y010 · 16322-47010 |
| 16322A | O-RING, WATER INLET | 90301-C0079 · 96761-35031 |
| 16323 | HOUSING, WATER INLET | 16323-0T110 · 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0T010 · 16325-0Y010 · 16325-36040 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0Y020 · 16326-37020 · 16326-37030 · 16326-47020 |
| 16328 | Inlet pipe gasket | 16328-0Y010 · 16328-47010 |
| 16331 | Water outlet | 16331-0Y020 · 16331-47050 |
| 16331A | thermostat | 90916-03154 · 90916-C3004 · 90916-C3009 |
| 16336A | Water outlet insert | 16336-47010 |
| 16341 | GASKET, WATER OUTLET | 16341-0Y010 · 16341-47030 |
| 16347D | water bypass liner | 16347-0Y010 · 16347-47010 |
| 16361 | Fan | 16361-0T010 · 16361-0T100 · 16361-0T130 |
| 16361B | Fan No. 2 | 16361-0T140 |
| 16361J | Right fan | 16361-0Y270 |
| 16361K | left fan | 16361-0Y260 |
| 16363 | cooling fan motor | 16363-0T030 · 16363-0T070 · 16363-0T160 · 16363-0Y060 |
| 16363A | Cooling fan motor No. 2 | 16363-0T150 · 16363-0Y080 |
| 16400 | Radiator assembly | 16400-0T010 · 16400-0T210 · 16400-0T260 · 16400-0Y270 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0P460 · 16492-21050 |
| 16407A | Radiator drain switch sub-assembly | 16407-64010 |
| 16470 | Radiator reservoir assembly | 16480-0T010 |
| 16470M | gasket | 90480-18010 · 90480-C0007 |
| 16471B | Reservoir tank cover | 16475-28140 · 16475-37010 · 16475-37011 |
| 16475A | Reservoir tank cover | 16475-28140 · 16475-37011 |
| 16523A | Radiator bracket cushion | 16523-0T060 · 16523-0T080 |
| 16533 | Radiator upper bracket | 16534-0T020 |
| 16533D | Radiator right side support | 16533-0T110 |
| 16534A | Radiator left support | 16534-0T020 |
| 16535 | Radiator lower support | 16535-0H090 · 16535-0T060 · 16535-0Y020 |
| 16550 | Intercooler cooling radiator assembly | 16550-0Y060 |
| 16553C | hose clamp | 16581-0Y050 · 16581-47090 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0T050 · 16561-0T120 · 16561-0T130 · 16561-0T140 · 16561-0T150 · 16561-0T230 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-C0008 · 90466-C0009 |
| 16571C | Radiator hose No. 1 | 16571-0T010 · 16571-0T120 · 16571-0Y260 |
| 16571D | No. 1 radiator hose clip | 90466-C0008 · 90466-C0009 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-C0009 |
| 16572D | Radiator hose No. 2 | 16572-0T010 · 16572-0T200 · 16572-0Y220 |
| 16572E | No. 2 radiator hose clip | 90466-C0008 · 90466-C0009 |
| 16573B | Radiator hose No. 3 | 16573-0T060 · 16573-0T090 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-C0008 · 90466-C0009 |
| 16575C | No. 1 water hose clamp bracket | 16575-0T010 · 16575-0Y020 · 16575-47020 |
| 16577C | radiator pipe | 16577-0T040 · 16577-0T060 · 16577-0T061 |
| 16581 | Hose clamp (for water hose) | 16581-0T110 · 16581-21030 · 16581-37090 · 16581-37110 · 16581-47080 |
| 16581B | Hose clamp (for radiator hose) | 16581-0T060 |
| 16611 | Radiator reservoir bracket | 16611-0Y020 |
| 16640 | Intercooler liquid tank assembly | 16640-0Y030 |
| 16671 | water valve | 16671-0Y010 · 16671-47010 |
| 16711 | fan cover | 16711-0T010 · 16711-0T080 · 16711-0T140 · 16711-0Y240 |
| 16712 | No. 2 fan cover | 16712-0T010 · 16712-0T040 · 16712-0T080 · 16712-0Y030 |
| 16716 | fan cover cushion | 16716-37010 |
| 17182A | water orifice | 17182-0Y010 |
| 87208M | Water pipe sub-assembly | 87248-52010 |
