Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 5 PNC and OE references.

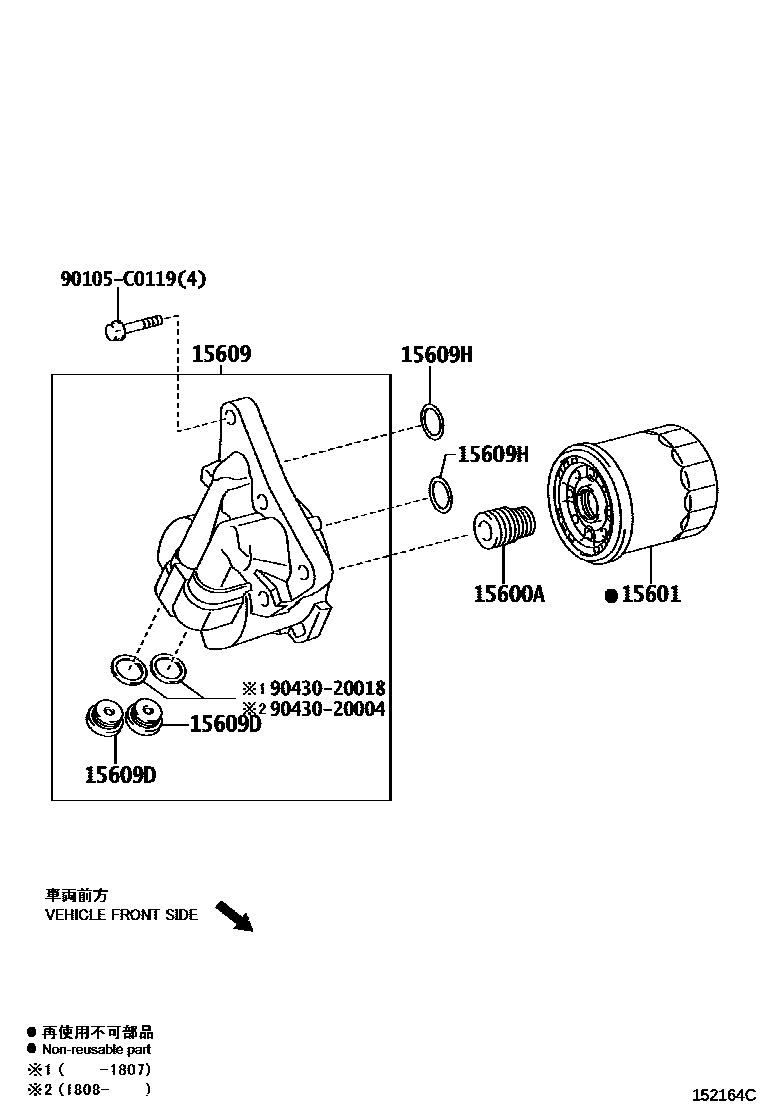

Toyota COROLLA Oil Filter EPC diagram — 152164C
Oil Filter — 152164C (201406 – 999999)

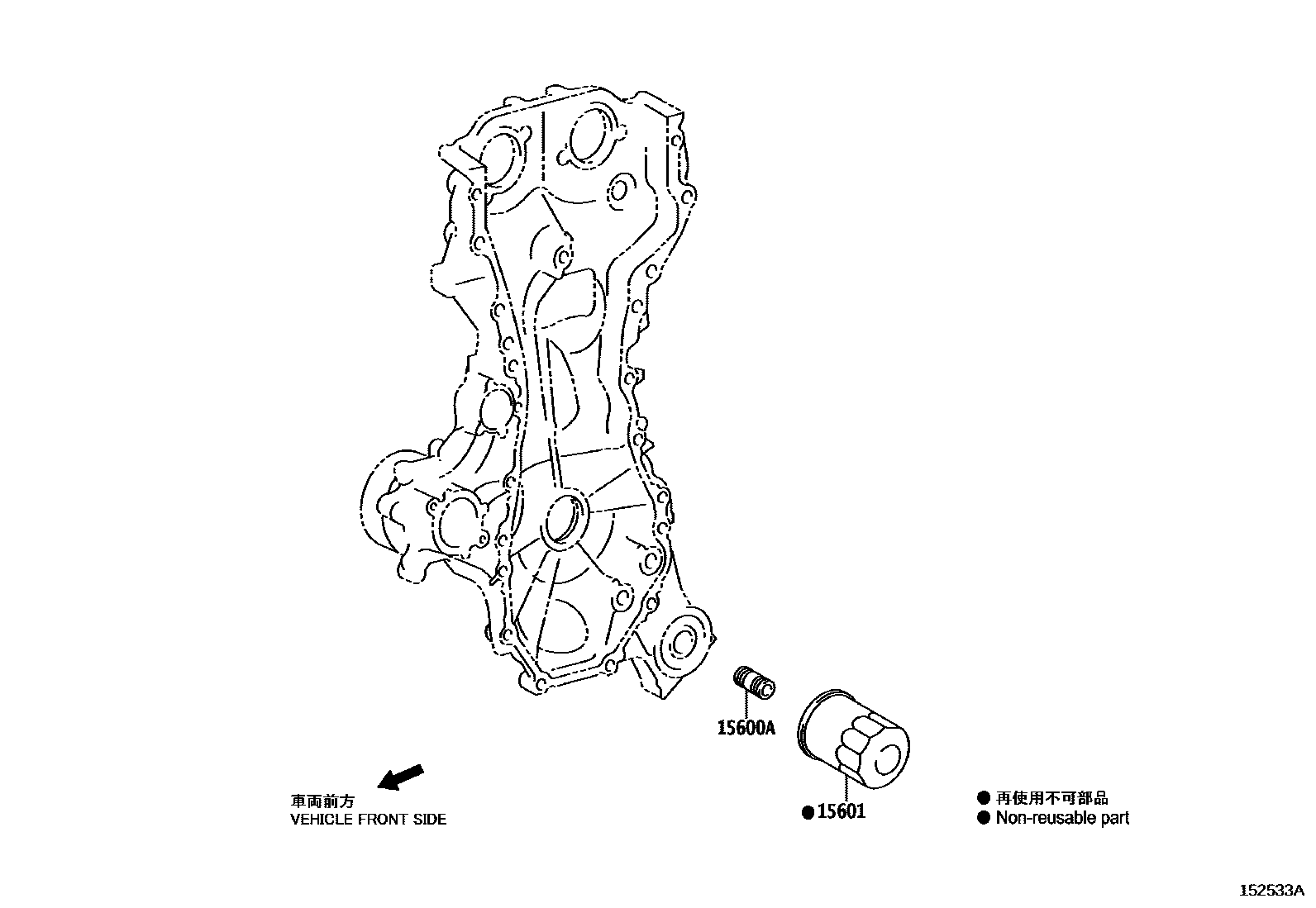

Toyota COROLLA Oil Filter EPC diagram — 152533A
Oil Filter — 152533A (201610 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19011 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-CA003
15609Oil filter bracket sub-assembly15609-0T010 · 15609-0T090
15609DStraight threaded plug with head (for oil filter bracket)90341-20012
15609HO-ring (for oil filter bracket)90301-C0033
