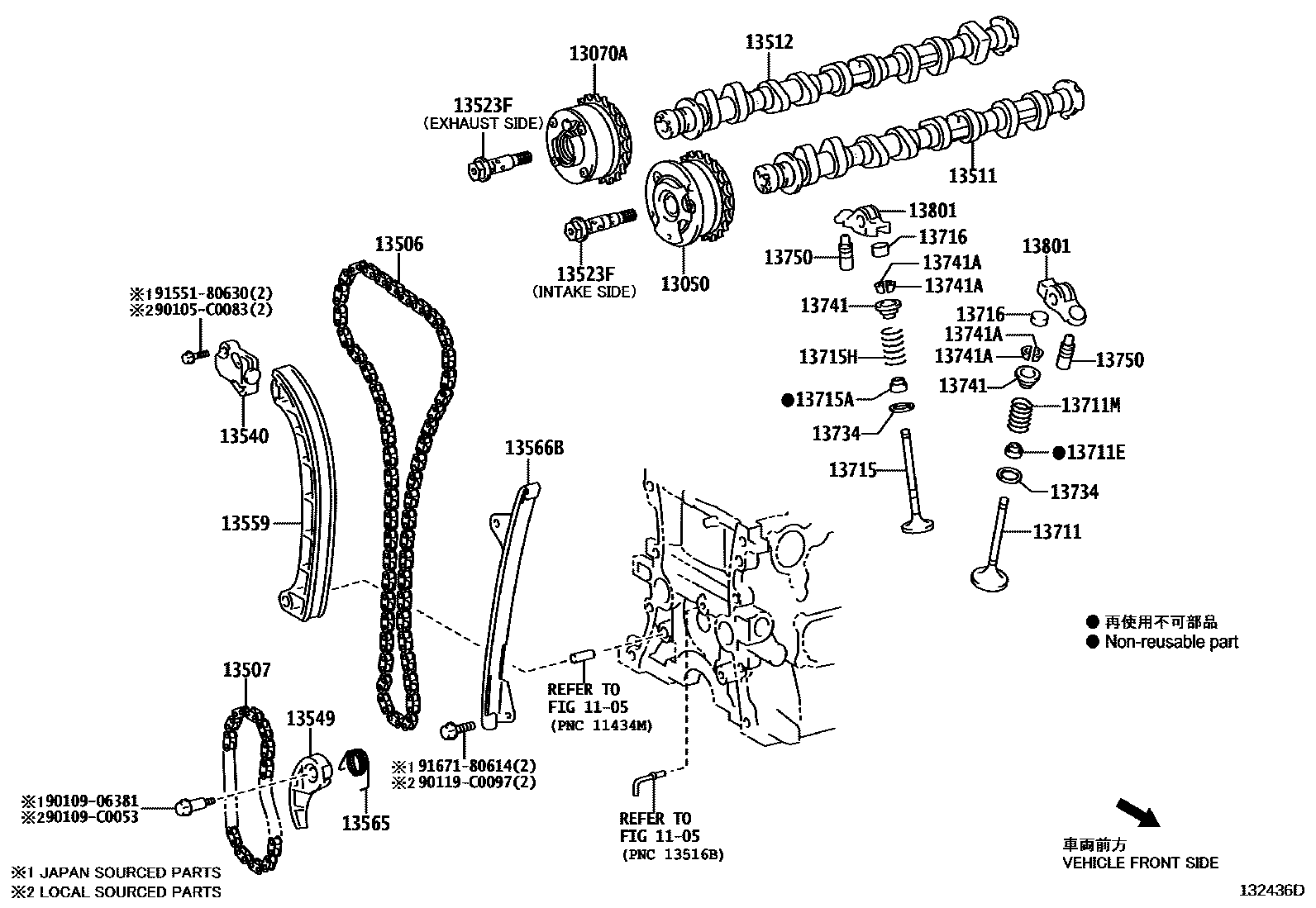

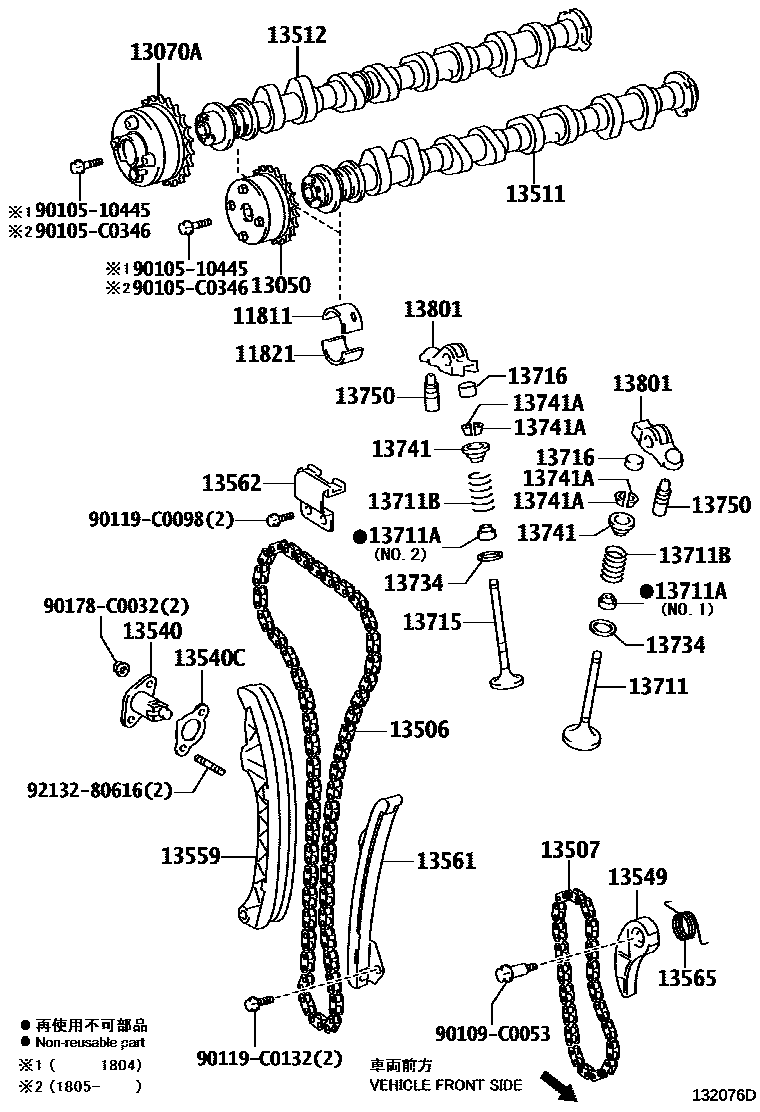

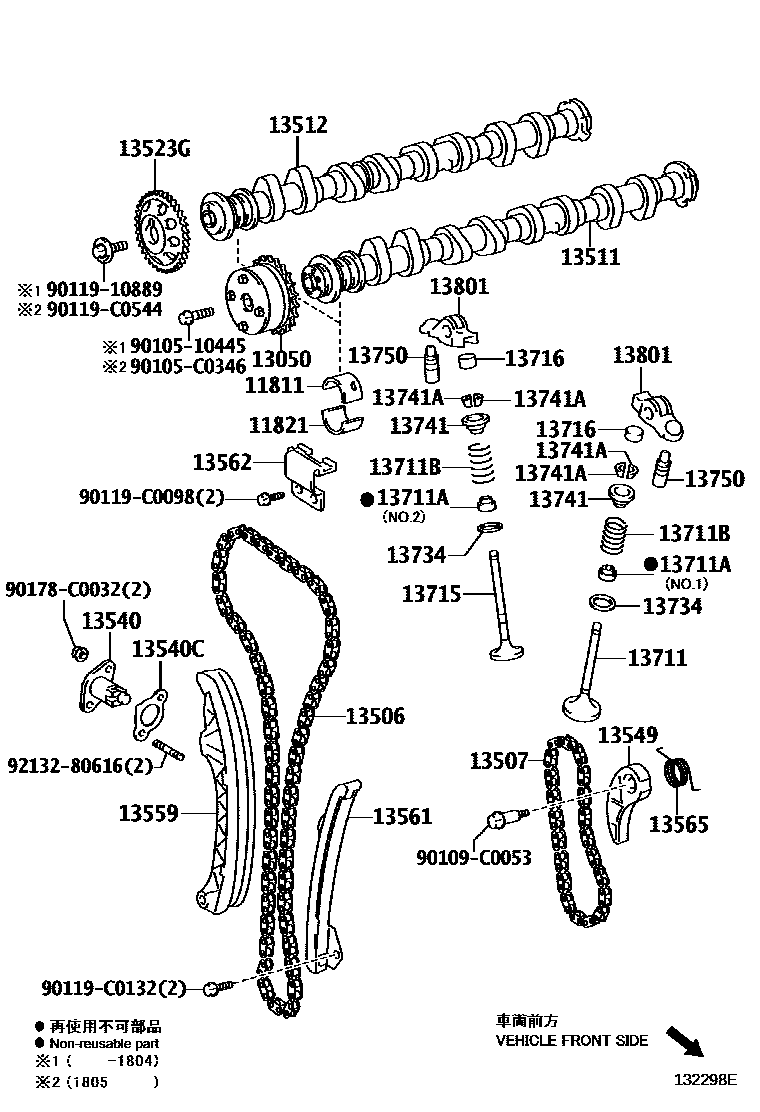

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0T010 |
| 11821 | No. 2 camshaft bearing | 11821-0T010 |
| 13050 | Camshaft timing gear assembly | 13050-0T060 · 13050-0T120 · 13050-0Y040 · 13050-47030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0T050 · 13070-0Y030 · 13070-47030 |
| 13506 | Chain sub-assembly | 13506-0T090 · 13506-0Y050 · 13506-47040 |
| 13507 | No. 2 chain sub-assembly | 13507-0H020 · 13507-0Y010 · 13507-47010 |
| 13511 | camshaft | 13501-0T021 · 13501-0T070 · 13501-0Y110 · 13501-47070 |
| 13512 | Camshaft No. 2 | 13502-0T020 · 13502-0T060 · 13502-0T110 · 13502-0Y090 · 13502-47060 |
| 13523F | Bolt (for camshaft timing gear) | 135A0-0V020 · 135A0-0Y030 · 135A0-36011 · 135A0-47020 |
| 13523G | Camshaft timing sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0T011 · 13540-0Y040 · 13540-47060 |
| 13540C | Pad (for chain tensioner) | 13552-0T010 |
| 13549 | chain tensioner pressure plate | 13549-0T010 · 13549-0Y010 · 13549-47010 |
| 13559 | chain tensioner guide plate | 13559-0T010 · 13559-0Y010 · 13559-0Y020 |
| 13561 | No. 1 chain shock absorber | 13561-0T010 |
| 13562 | No. 2 chain shock absorber | 13562-0T010 |
| 13565 | chain damper spring | 13565-0T010 · 13565-0Y010 · 13565-37010 |
| 13566B | Timing chain guide plate | 13566-0Y030 · 13566-0Y040 |
| 13711 | intake valve | 13711-0T030 · 13711-0Y010 · 13711-47010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-T2001 · 90913-T2003 |
| 13711B | Compression spring (for inner side) | 90501-C0008 · 90501-C0020 |
| 13711E | Intake valve stem oil seal | 90913-02126 · 90913-C2001 |
| 13711M | Compression spring (for intake valve) | 90501-30035 · 90501-C0045 |
| 13715 | exhaust valve | 13715-0T030 · 13715-0Y050 · 13715-47040 |
| 13715A | Exhaust valve stem oil seal | 90913-02127 · 90913-02131 · 90913-C2002 |
| 13715H | Compression spring (for exhaust valve) | 90501-30036 · 90501-C0046 |
| 13716 | valve stem cover | 13716-0T040 · 13716-0Y010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0P020 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0Y020 · 13741-0Y050 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-C3002 |
| 13750 | Valve lash adjuster assembly | 13750-0T021 · 13750-0V030 · 13750-0Y030 · 13750-36020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0P020 · 13801-0V020 · 13801-0Y030 · 13801-36020 |
