Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 5 images and 14 PNC and OE references.

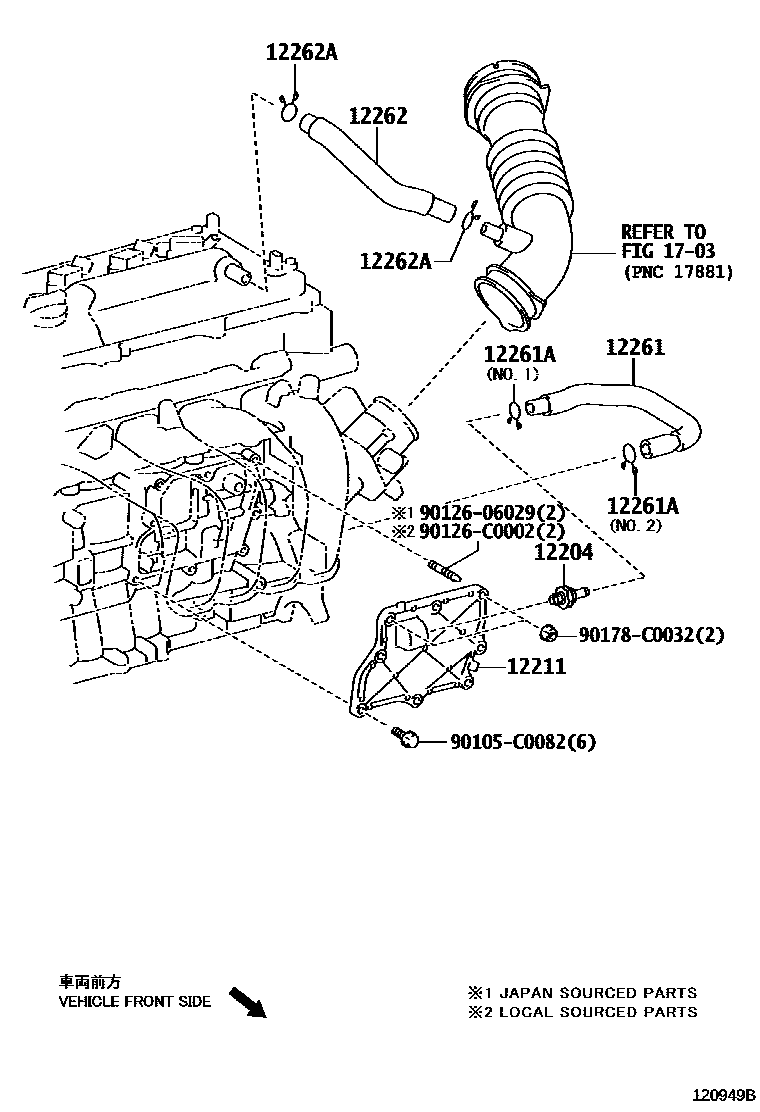

Toyota COROLLA Ventilation Hose EPC diagram — 120949B
Ventilation Hose — 120949B (201406 – 999999)

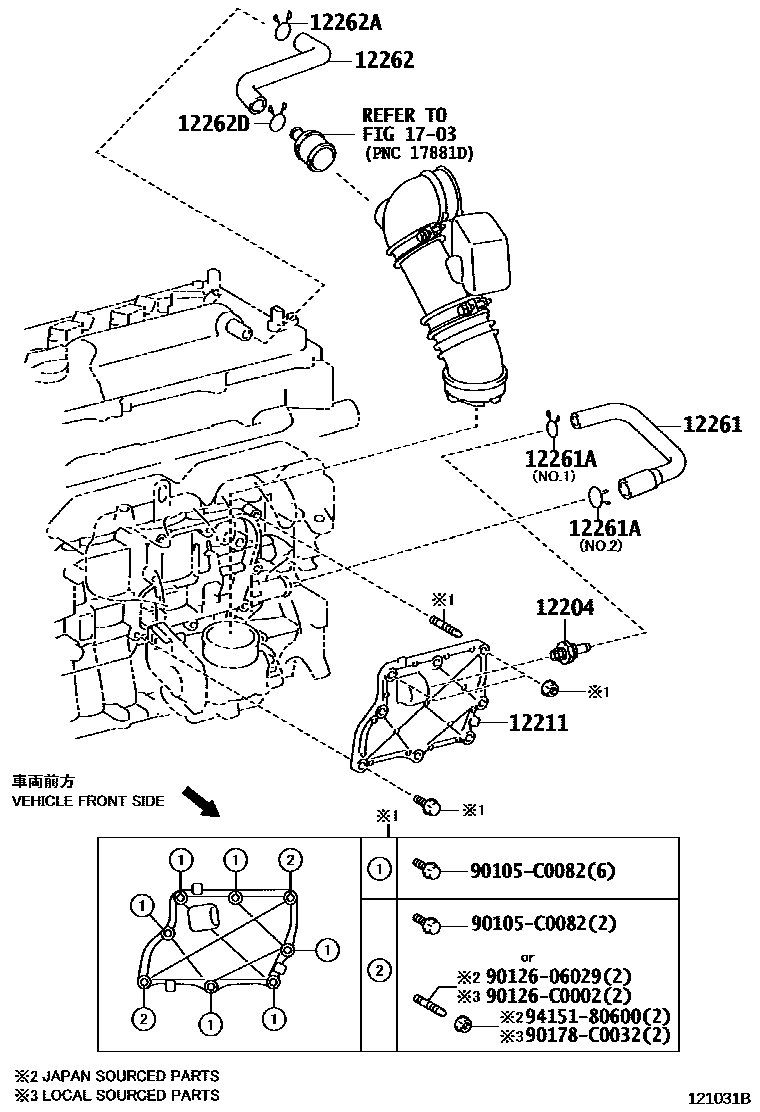

Toyota COROLLA Ventilation Hose EPC diagram — 121031B
Ventilation Hose — 121031B (201512 – 999999)

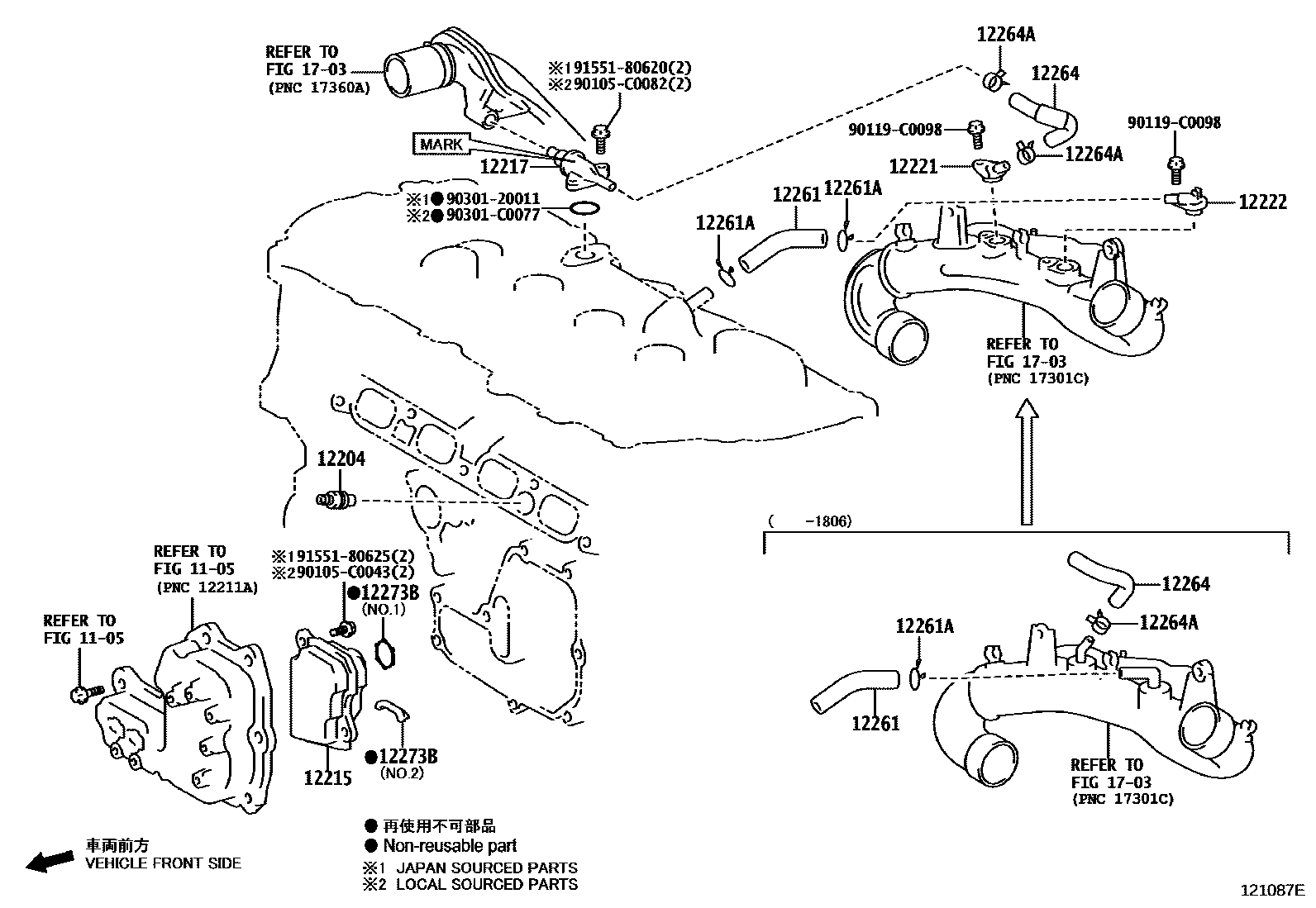

Toyota COROLLA Ventilation Hose EPC diagram — 121087E
Ventilation Hose — 121087E (201610 – 999999)

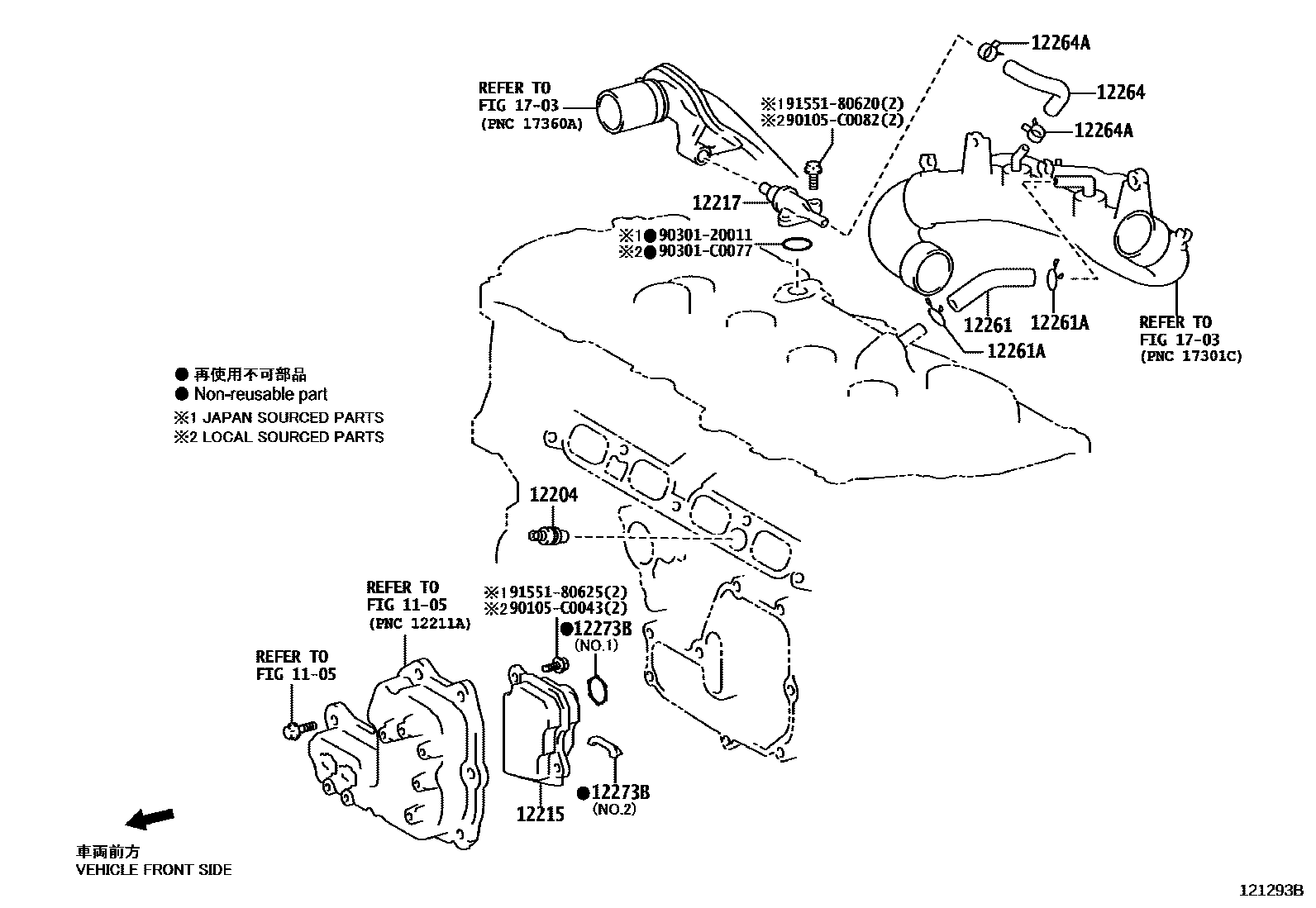

Toyota COROLLA Ventilation Hose EPC diagram — 121293B
Ventilation Hose — 121293B (201610 – 999999)

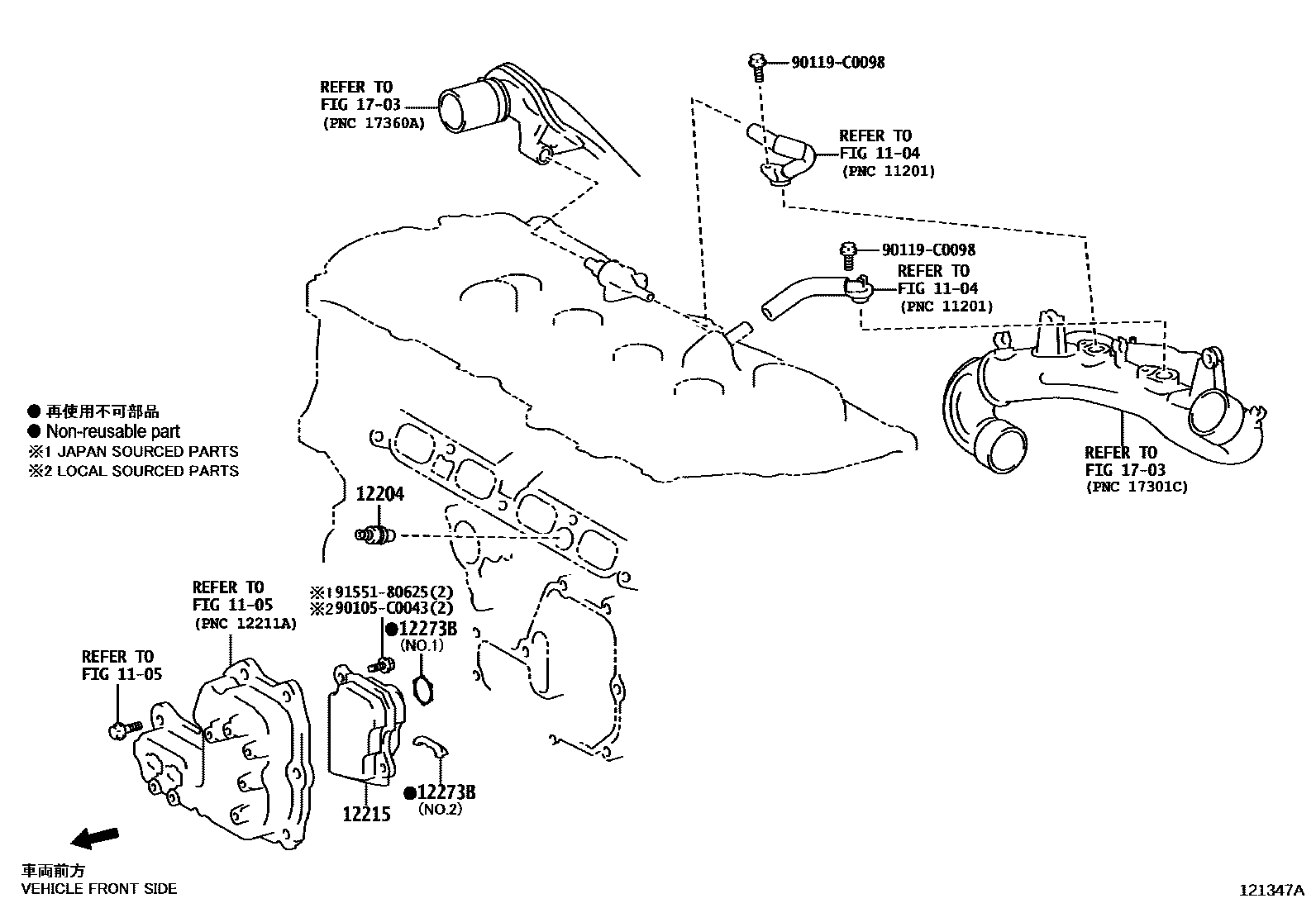

Toyota COROLLA Ventilation Hose EPC diagram — 121347A
Ventilation Hose — 121347A (201810 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0Y030 · 12204-37040 · 12204-47080
12211Ventilation box No. 112211-0T030
12215Ventilation box isolation device12215-0Y010 · 12215-47010
12217ventilation ejector12217-0Y010 · 12217-0Y020 · 12217-47010
12221Ventilation duct No. 112221-0Y010
12222Ventilation duct No. 212222-0Y010
12261Ventilation Hose12261-0T020 · 12261-0T030 · 12261-0T040 · 12261-0Y070 · 12261-0Y110 · 12261-47110
12261AClip or clip (for vent hose)90466-22005 · 90467-15120 · 90467-22010 · 90467-23002
12262Ventilation hose No. 212262-0T020 · 12262-0T030 · 12262-0T060
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12264No. 4 ventilation hose12262-47050 · 12264-0Y010 · 12264-47010
12264AClip (for ventilation hose)90466-C0032 · 96137-41901 · 96137-52501
12273Boil separator gasket12273-0Y010 · 12273-0Y020 · 12273-47010 · 12273-47020
