Toyota COROLLA Engine Mounting — Figure 1107

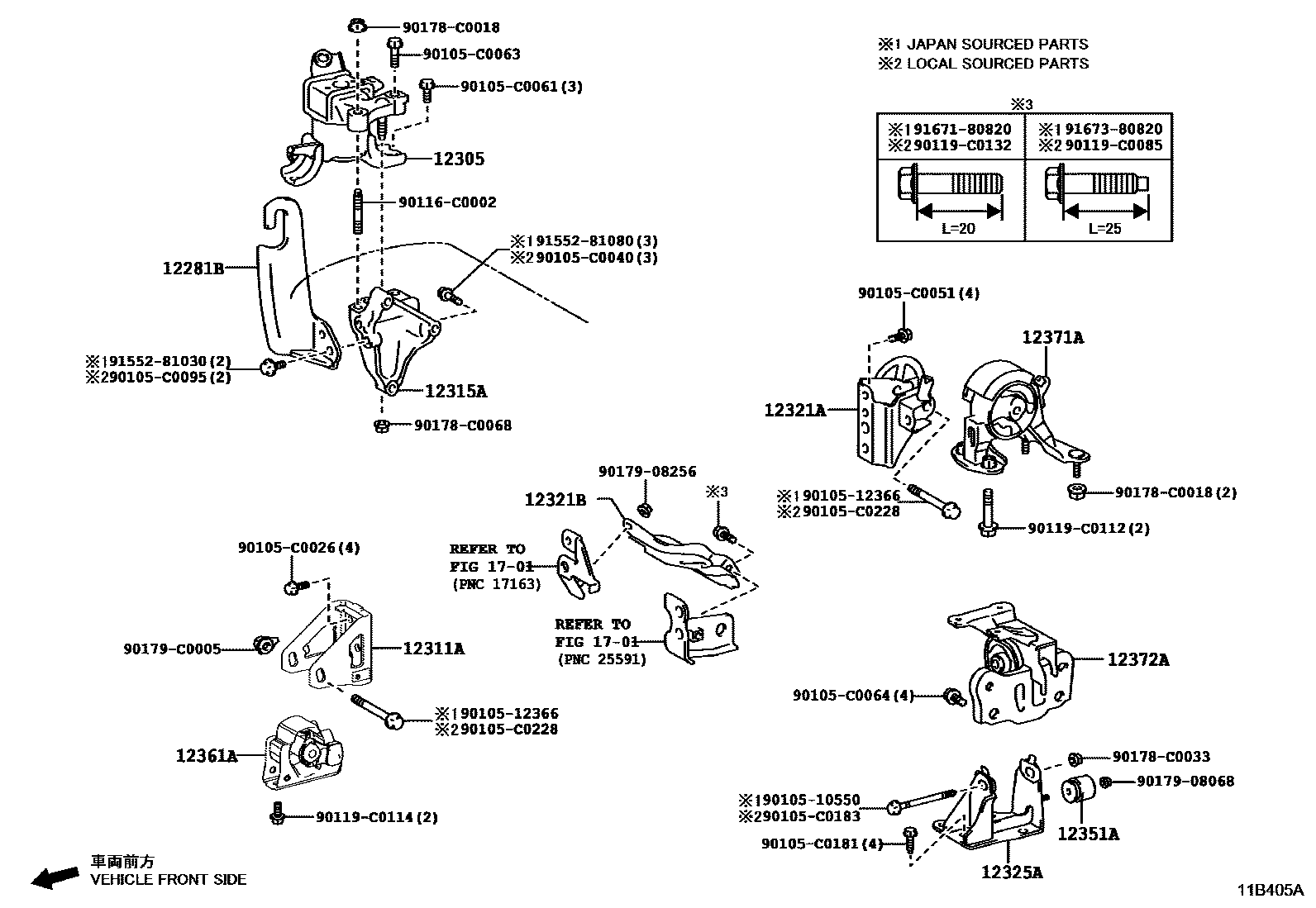

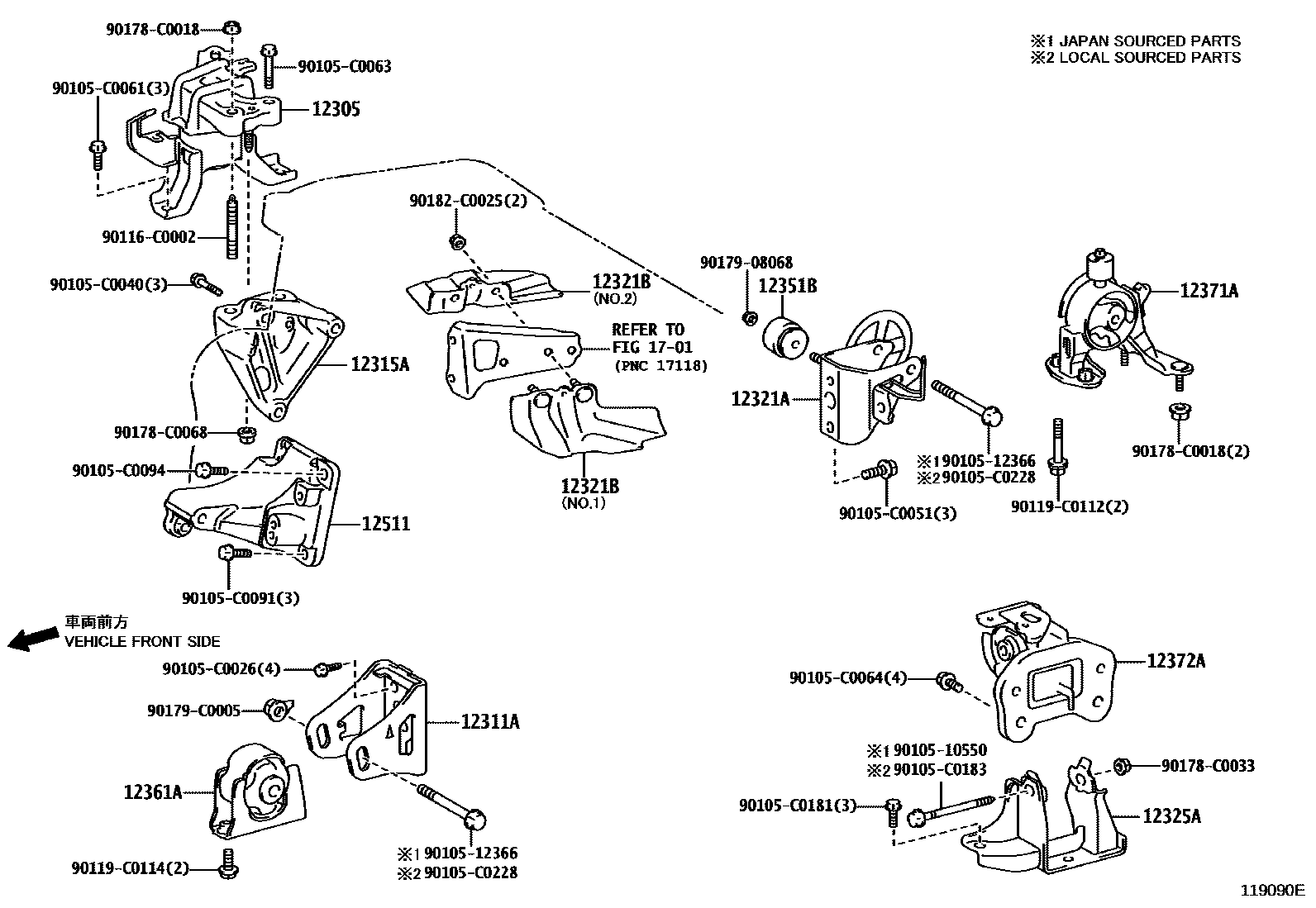

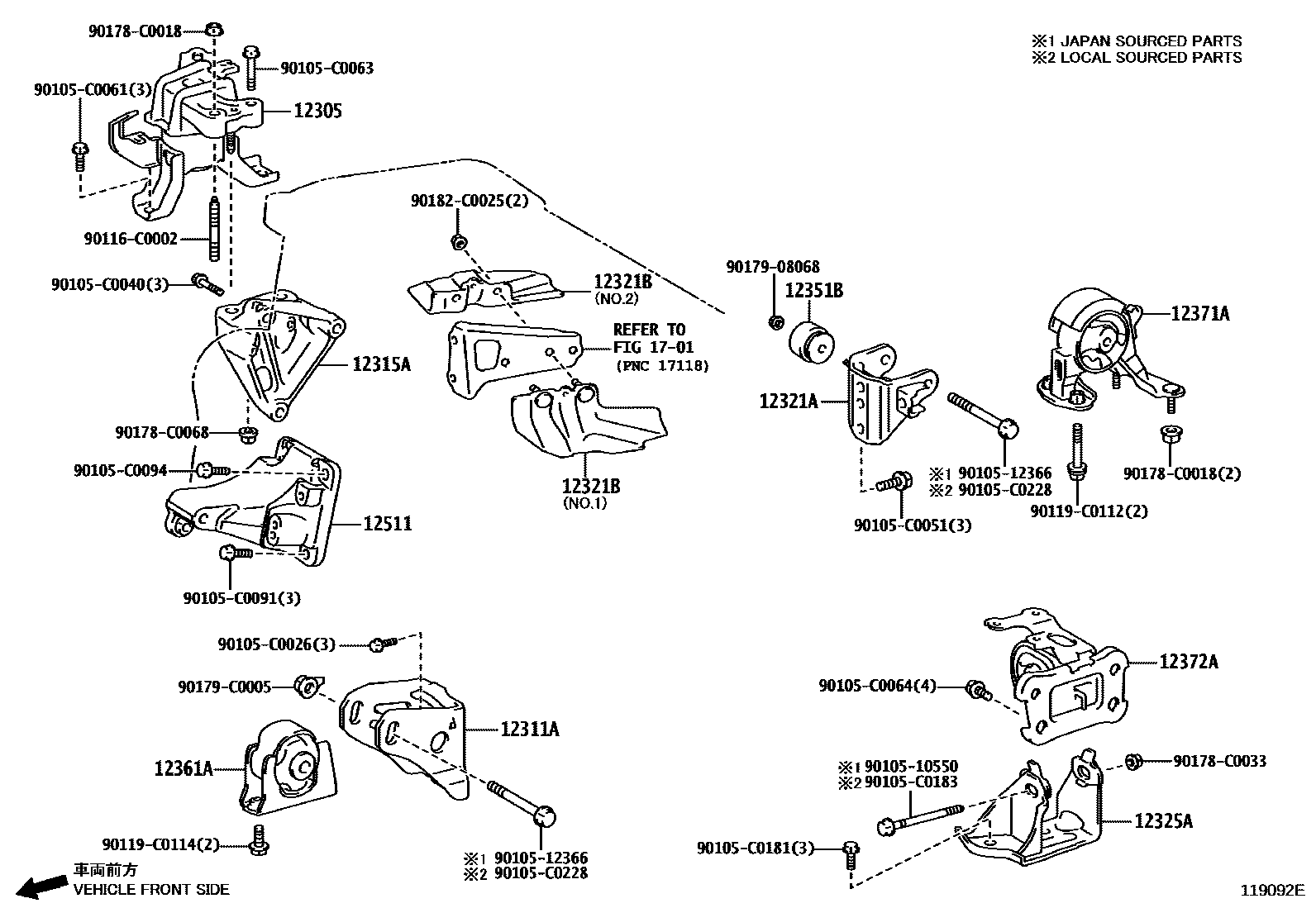

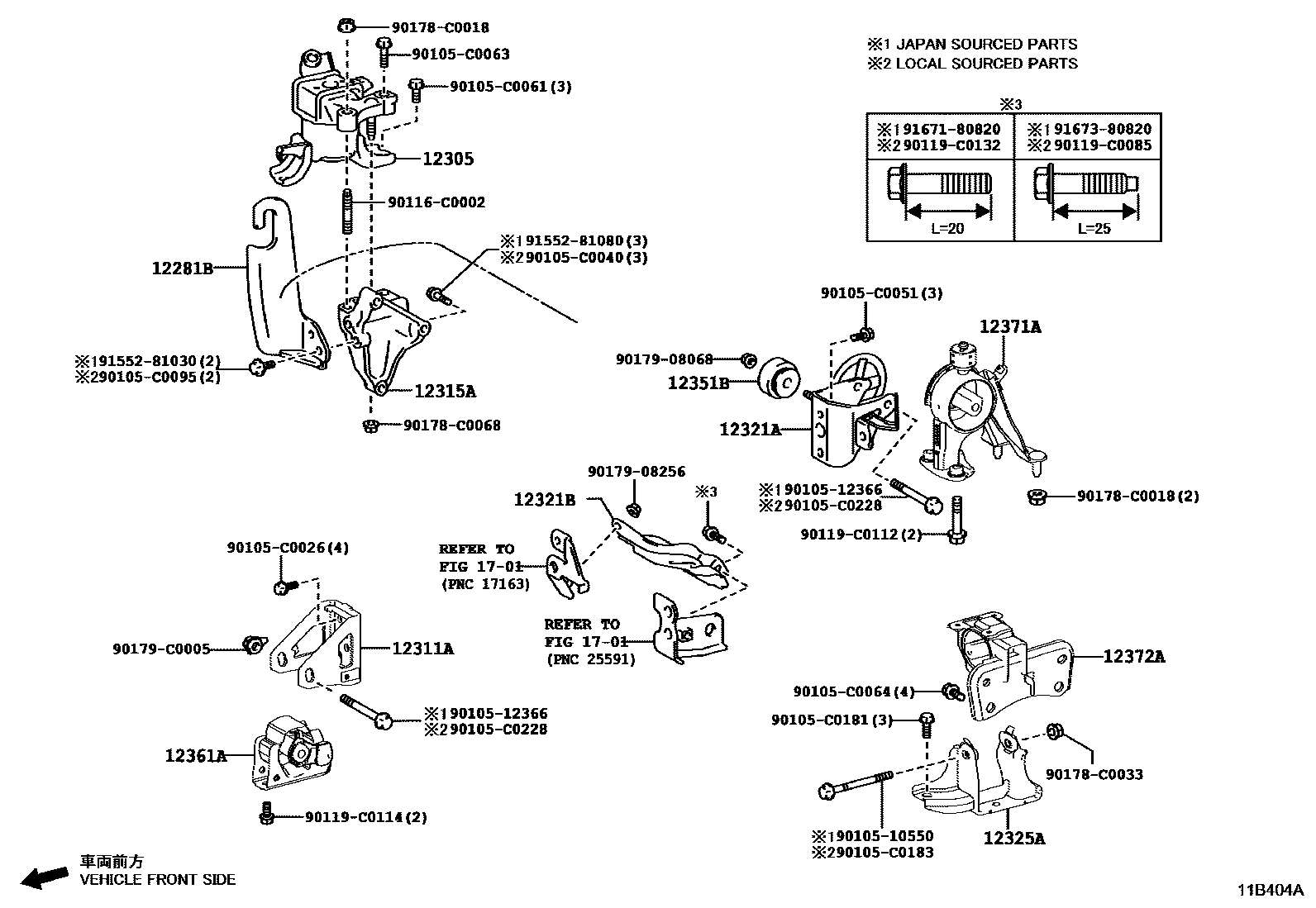

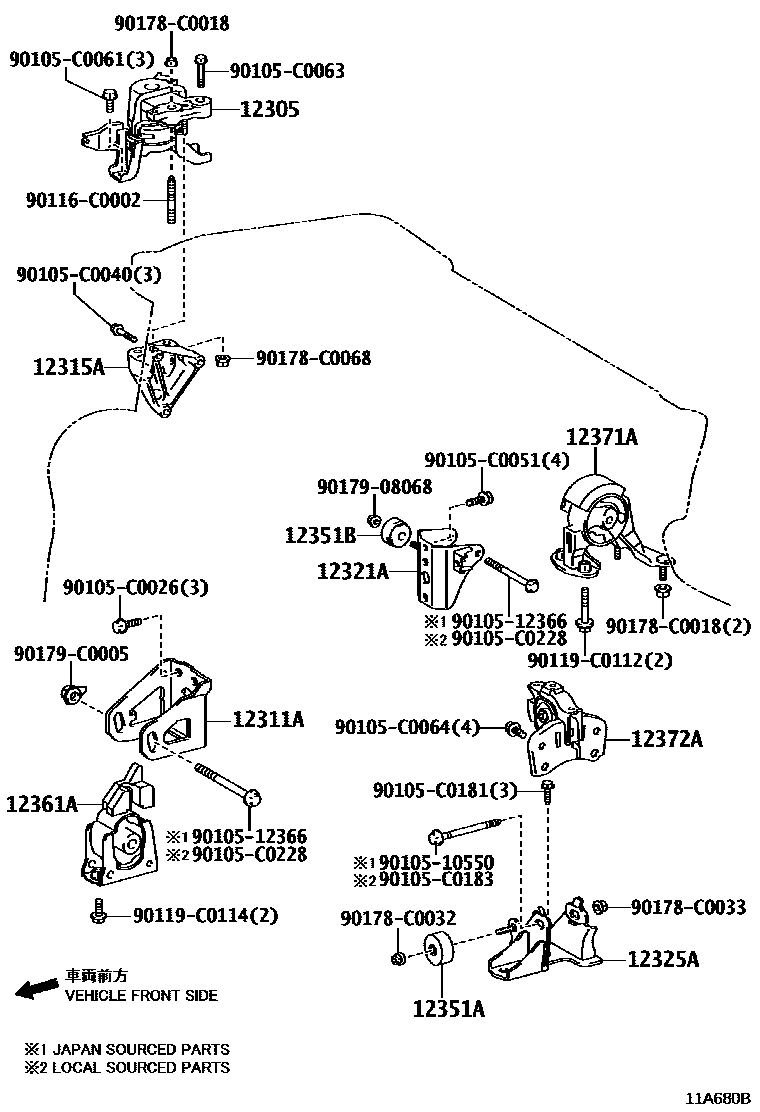

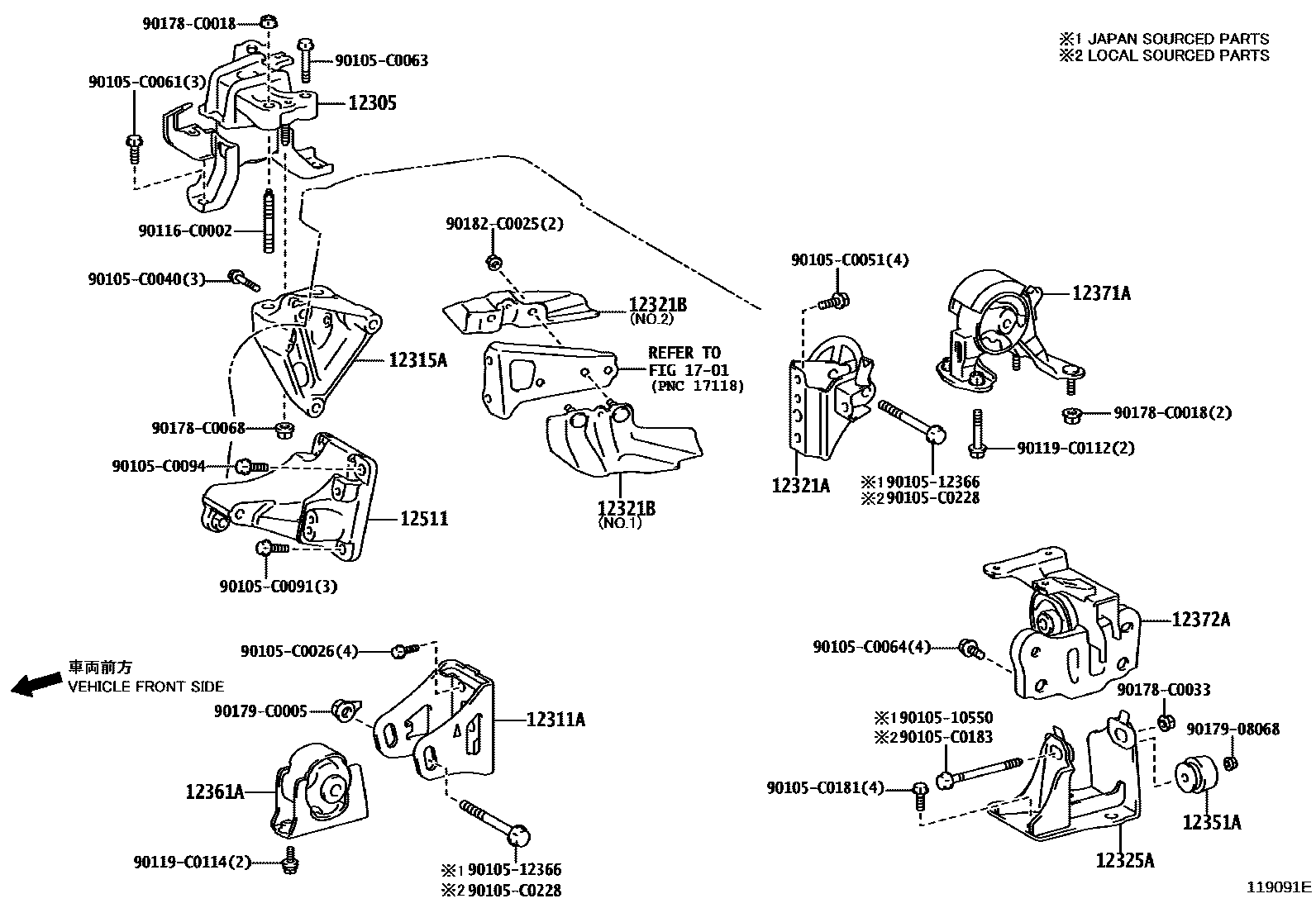

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-0Y090 · 12281-47060 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T190 · 12305-0T300 · 12305-0Y200 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0T470 · 12311-0T480 · 12311-0T510 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0T010 · 12315-0Y080 · 12315-47081 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0T010 · 12321-0T210 · 12321-0T360 · 12321-0T590 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-02061 · 43409-02090 · 43409-12060 · 43498-02111 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T010 · 12325-0T190 · 12325-0T300 · 12325-0T470 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-0T010 · 12351-0T290 |
| 12351B | engine mount shock absorber | 12351-0T010 · 12351-0T020 · 12351-0T280 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0T330 · 12361-0T331 · 12361-0T340 · 12361-0T341 · 12361-0T400 · 12361-0T401 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0T420 · 12371-0T430 · 12371-0T470 · 12371-0T471 · 12371-0Y020 · 12371-0Y030 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T480 · 12372-0T490 · 12372-0T500 · 12372-0T550 · 12372-0Y310 |
| 12511 | No. 1 generator bracket | 12501-0T050 |
