Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

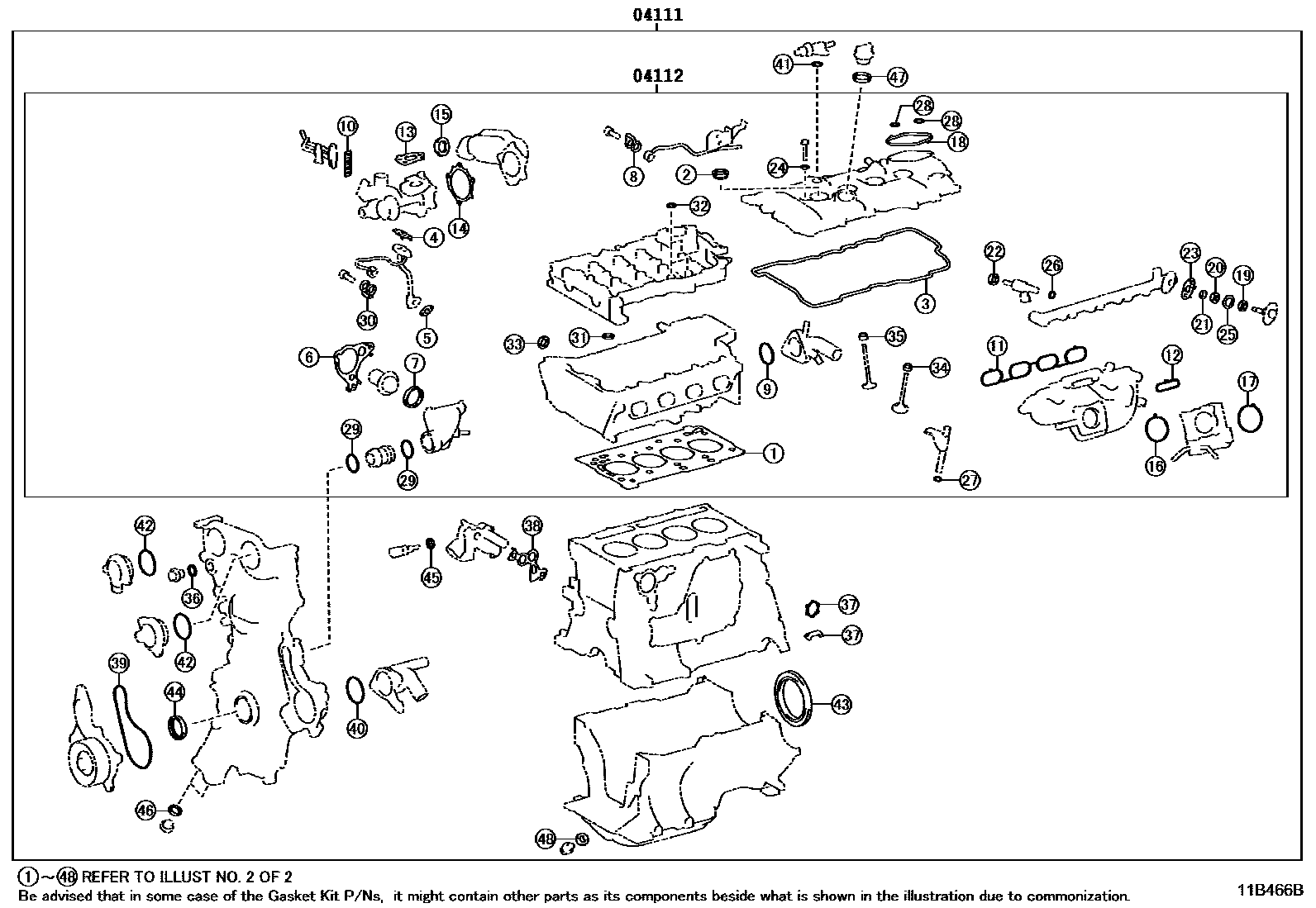

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B466B
Engine Overhaul Gasket Kit — 11B466B (201610 – 999999)

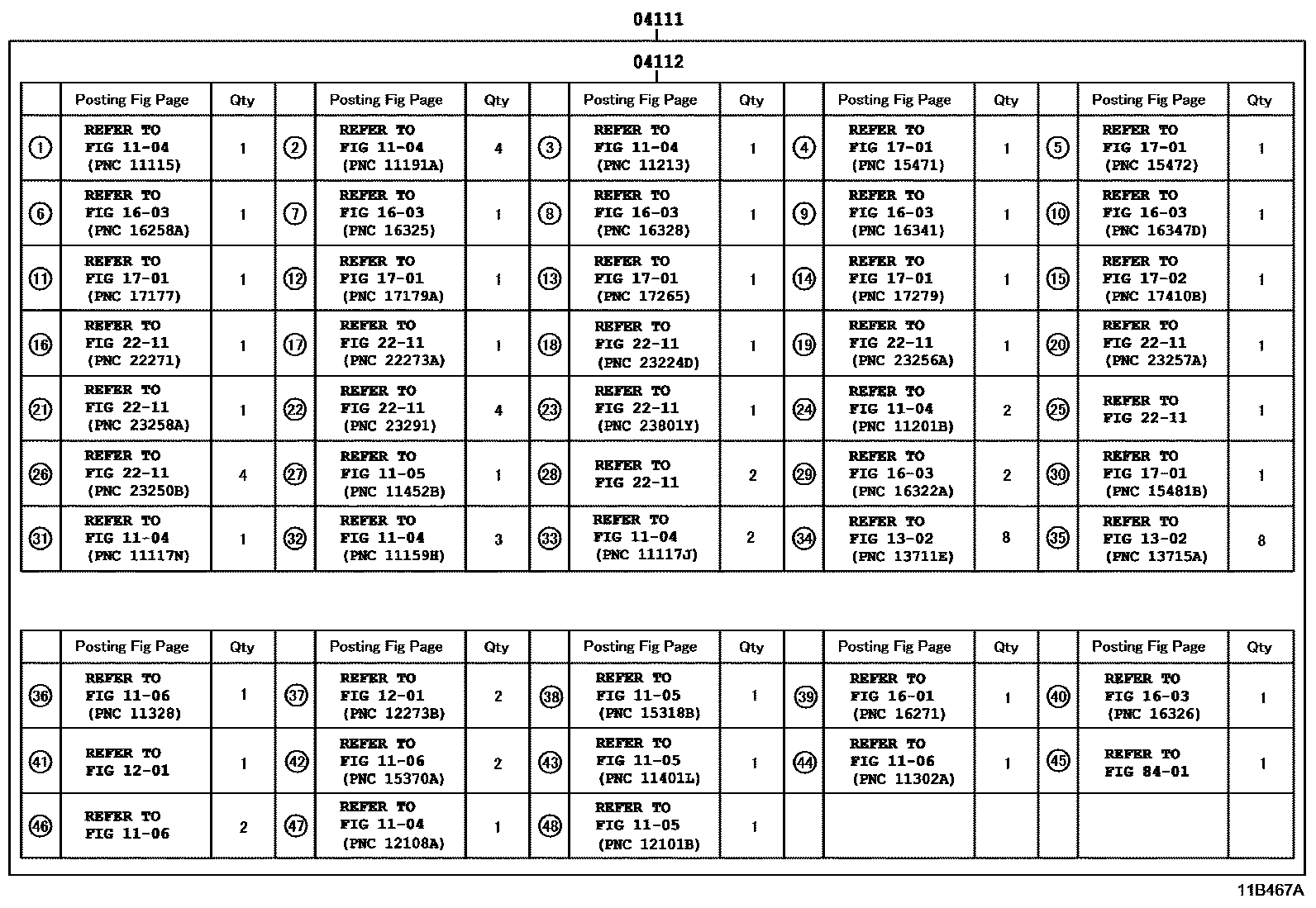

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B467A
Engine Overhaul Gasket Kit — 11B467A (201610 – 999999)

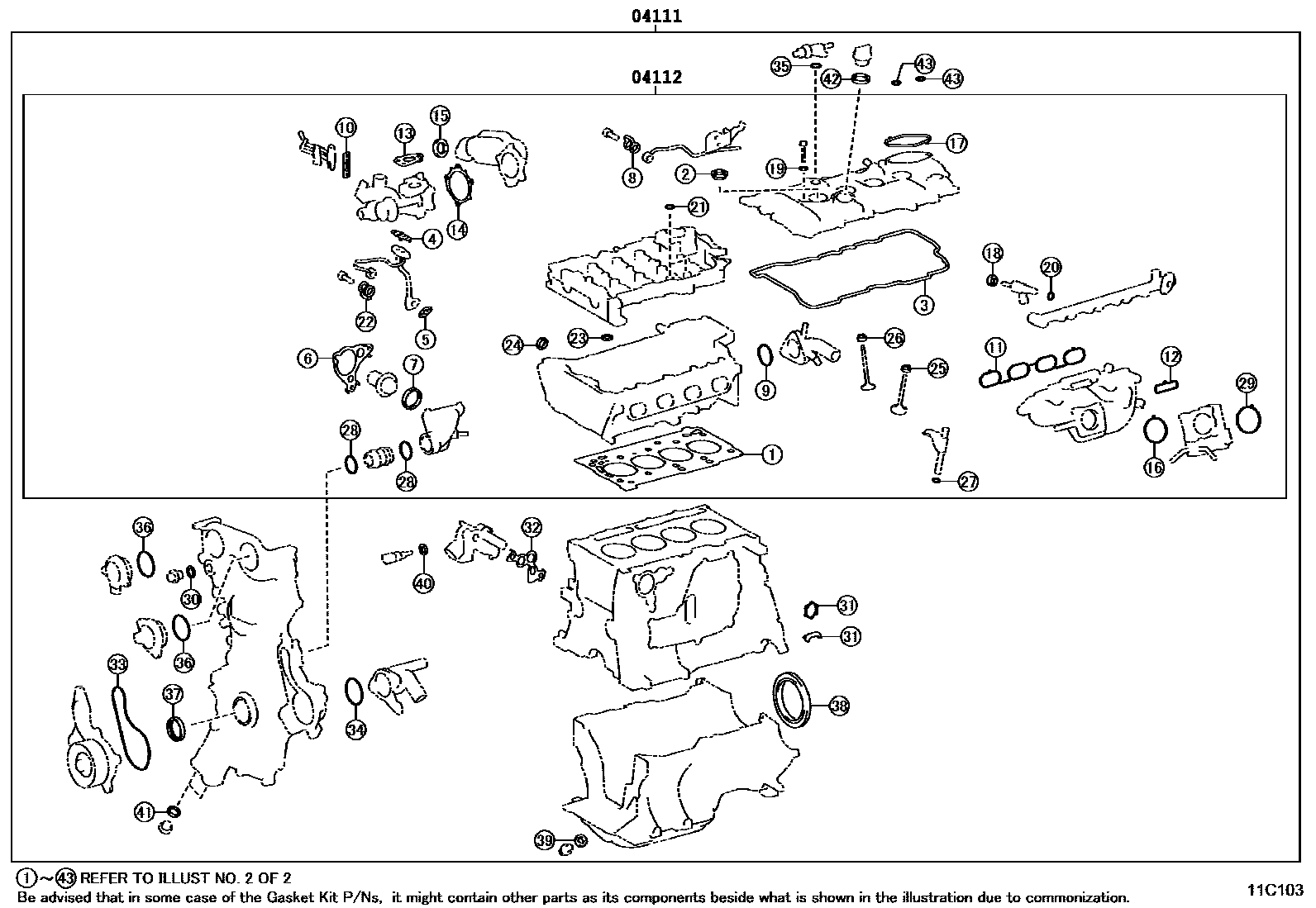

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C103
Engine Overhaul Gasket Kit — 11C103 (201704 – 999999)

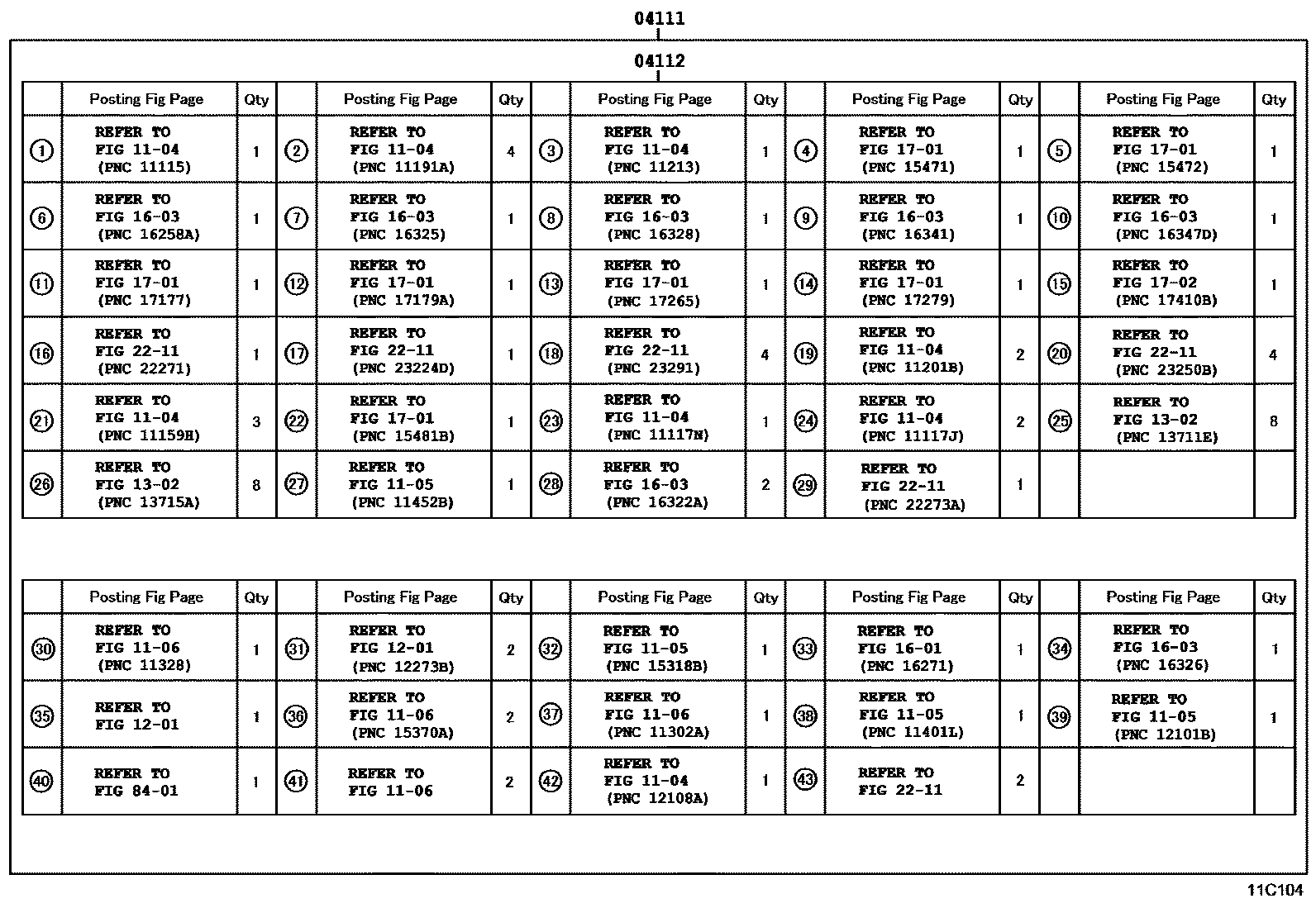

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C104
Engine Overhaul Gasket Kit — 11C104 (201704 – 999999)

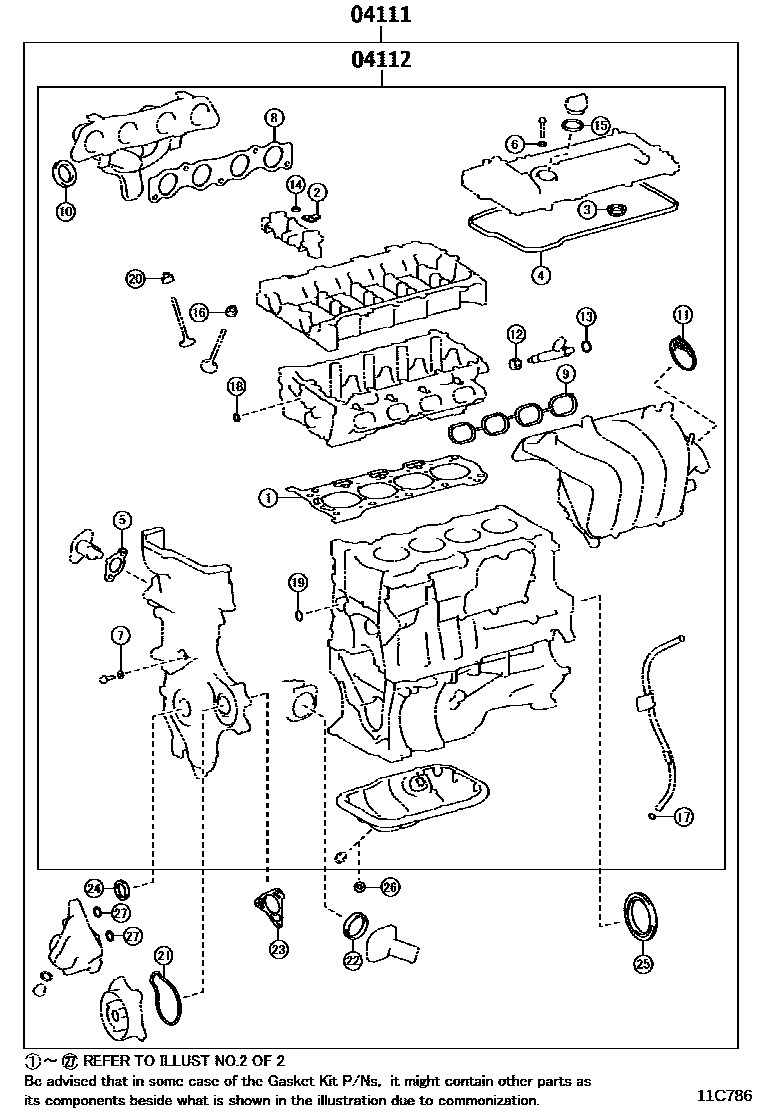

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C786
Engine Overhaul Gasket Kit — 11C786 (201406 – 999999)

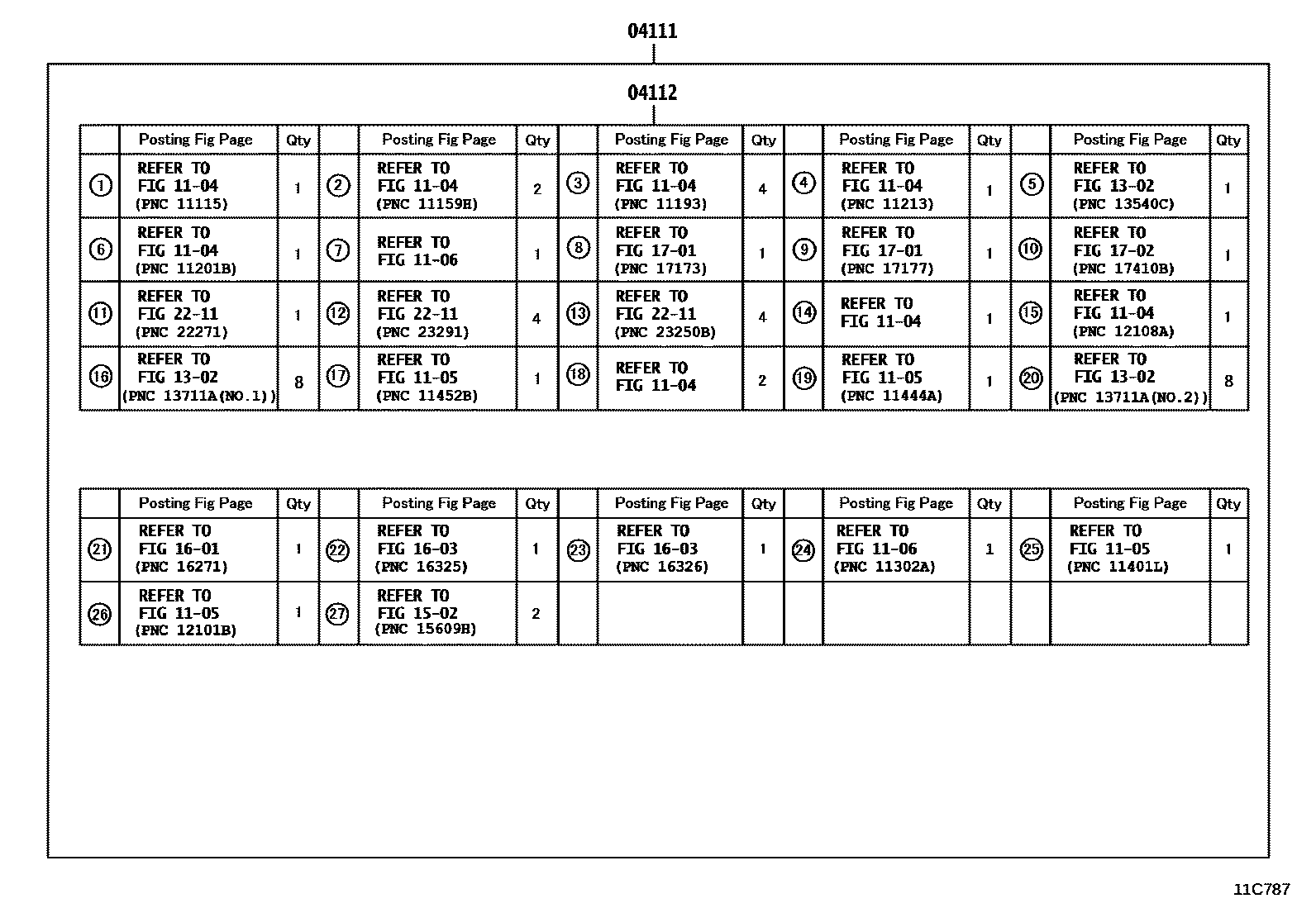

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C787
Engine Overhaul Gasket Kit — 11C787 (201406 – 999999)

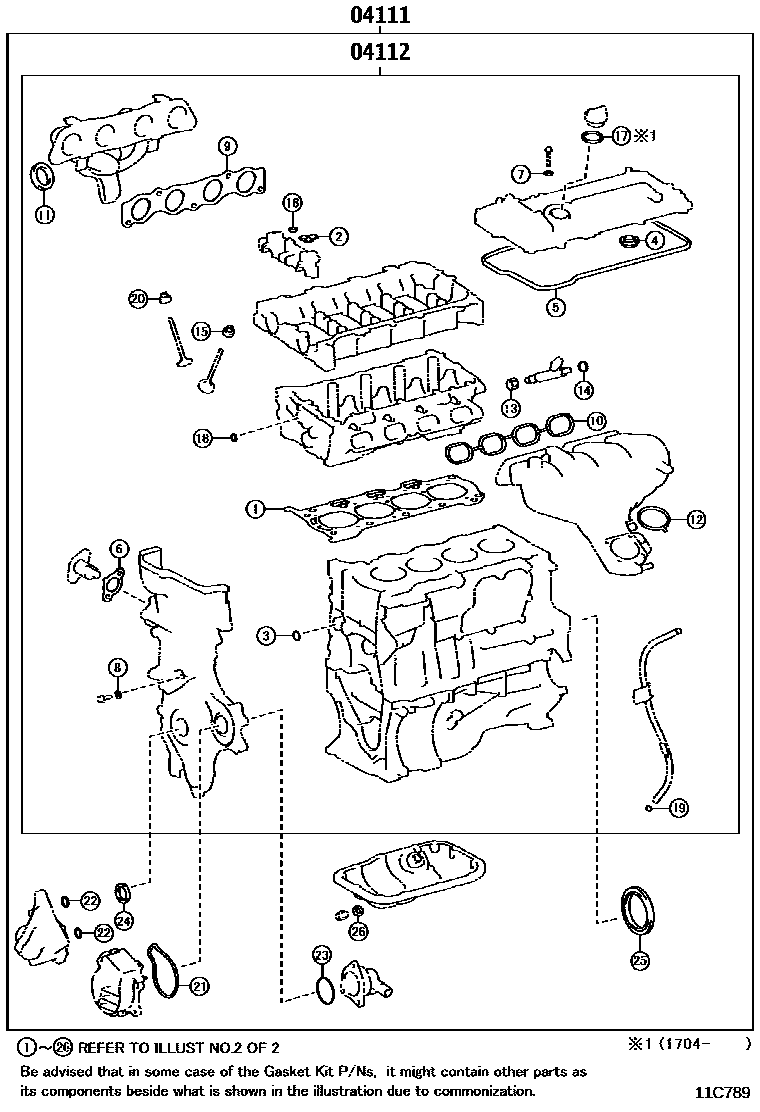

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C789
Engine Overhaul Gasket Kit — 11C789 (201512 – 999999)

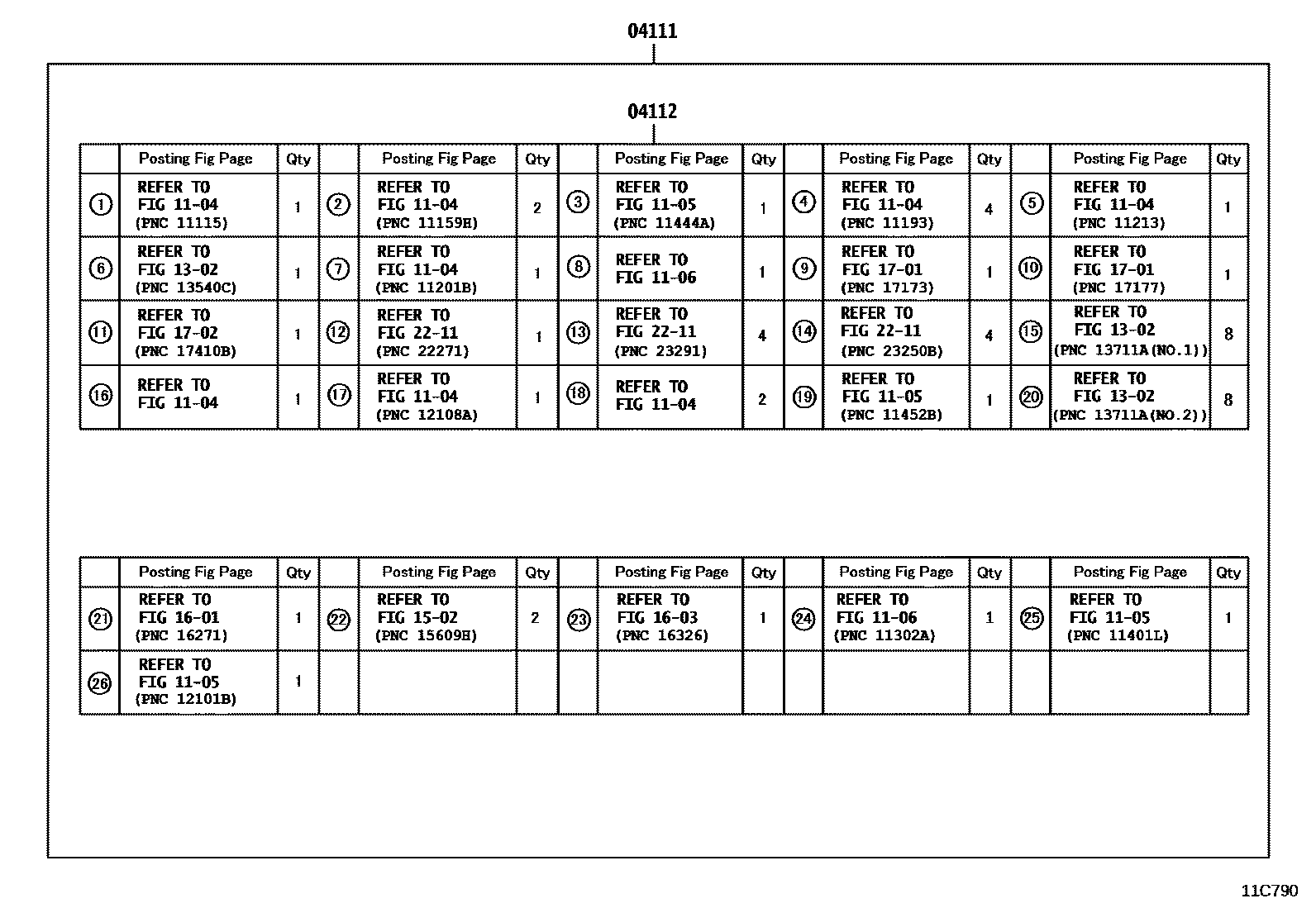

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C790
Engine Overhaul Gasket Kit — 11C790 (201512 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T240 · 04111-0T241 · 04111-0T251 · 04111-0Y120 · 04111-0Y150 · 04111-47271 · 04111-47272
04112Engine valve grinding pad assembly04112-0T023 · 04112-0T024 · 04112-0T220 · 04112-0Y120 · 04112-0Y150 · 04112-47181 · 04112-47182
