Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

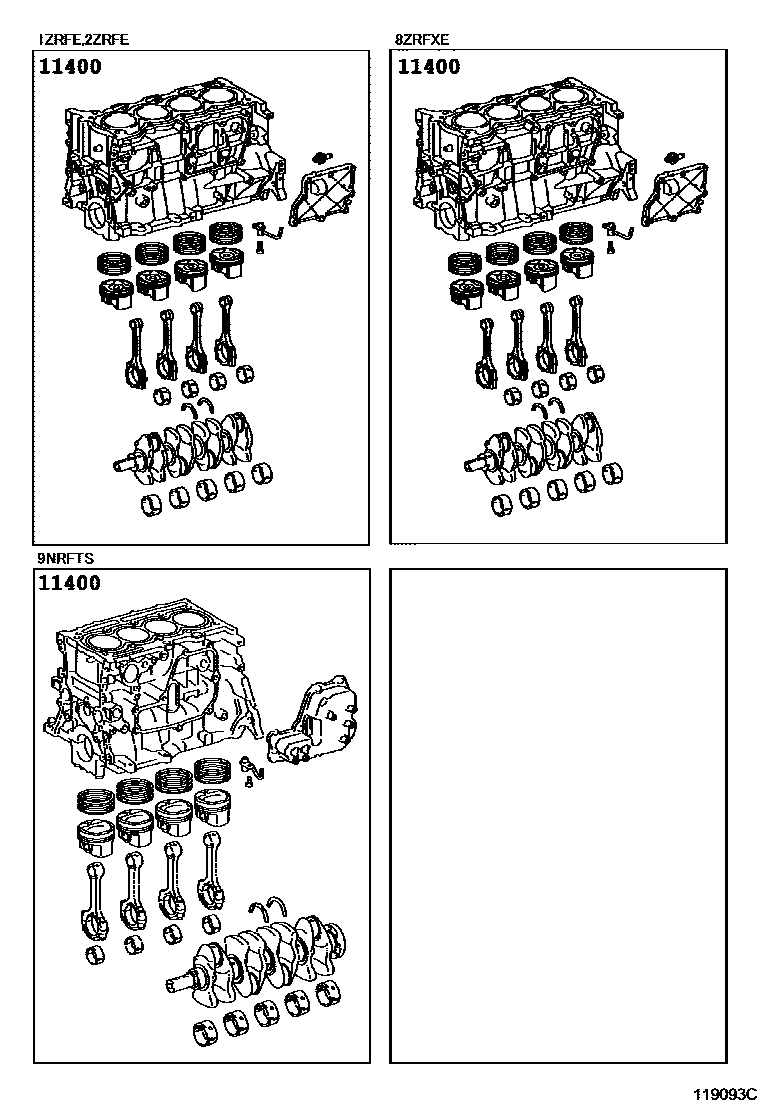

Toyota COROLLA Short Block Assembly EPC diagram — 119093C
Short Block Assembly — 119093C (201406 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0T340 · 11400-0T350 · 11400-0T360 · 11400-0Y230 · 11400-0Y260 · 11400-47200
