Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

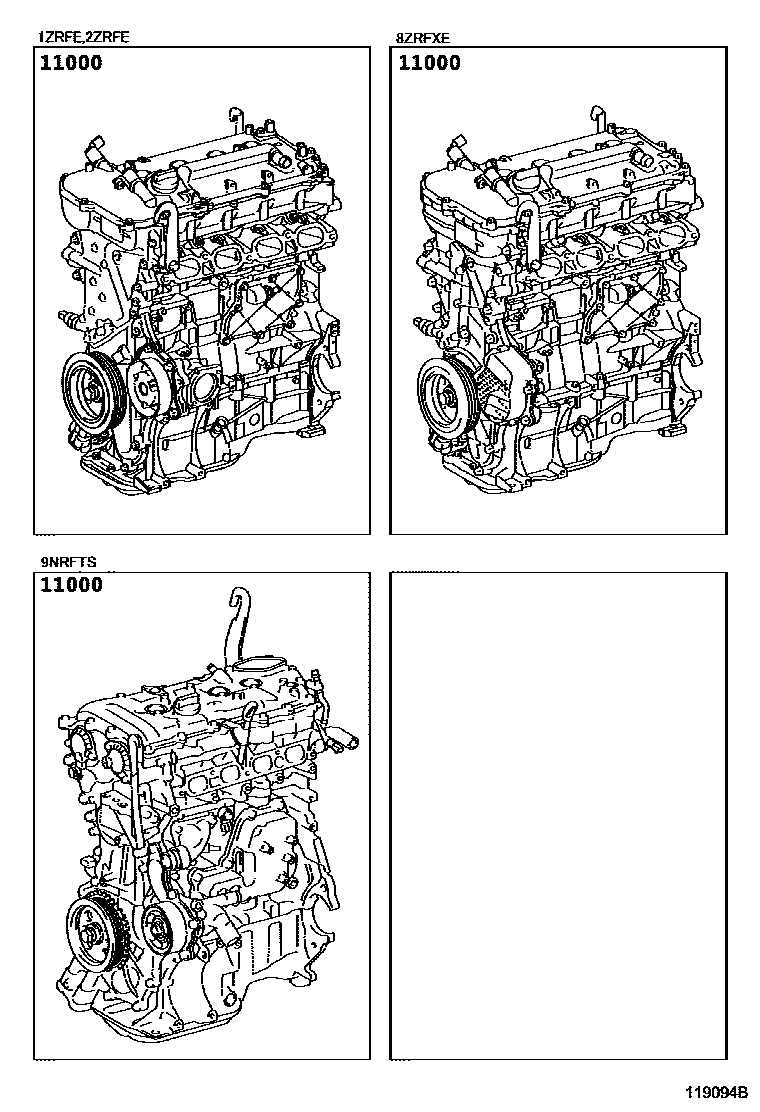

Toyota COROLLA Partial Engine Assembly EPC diagram — 119094B
Partial Engine Assembly — 119094B (201406 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0T440 · 19000-0T441 · 19000-0T450 · 19000-0T451 · 19000-0T461 · 19000-0Y290 · 19000-0Y320 · 19000-47460
