Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

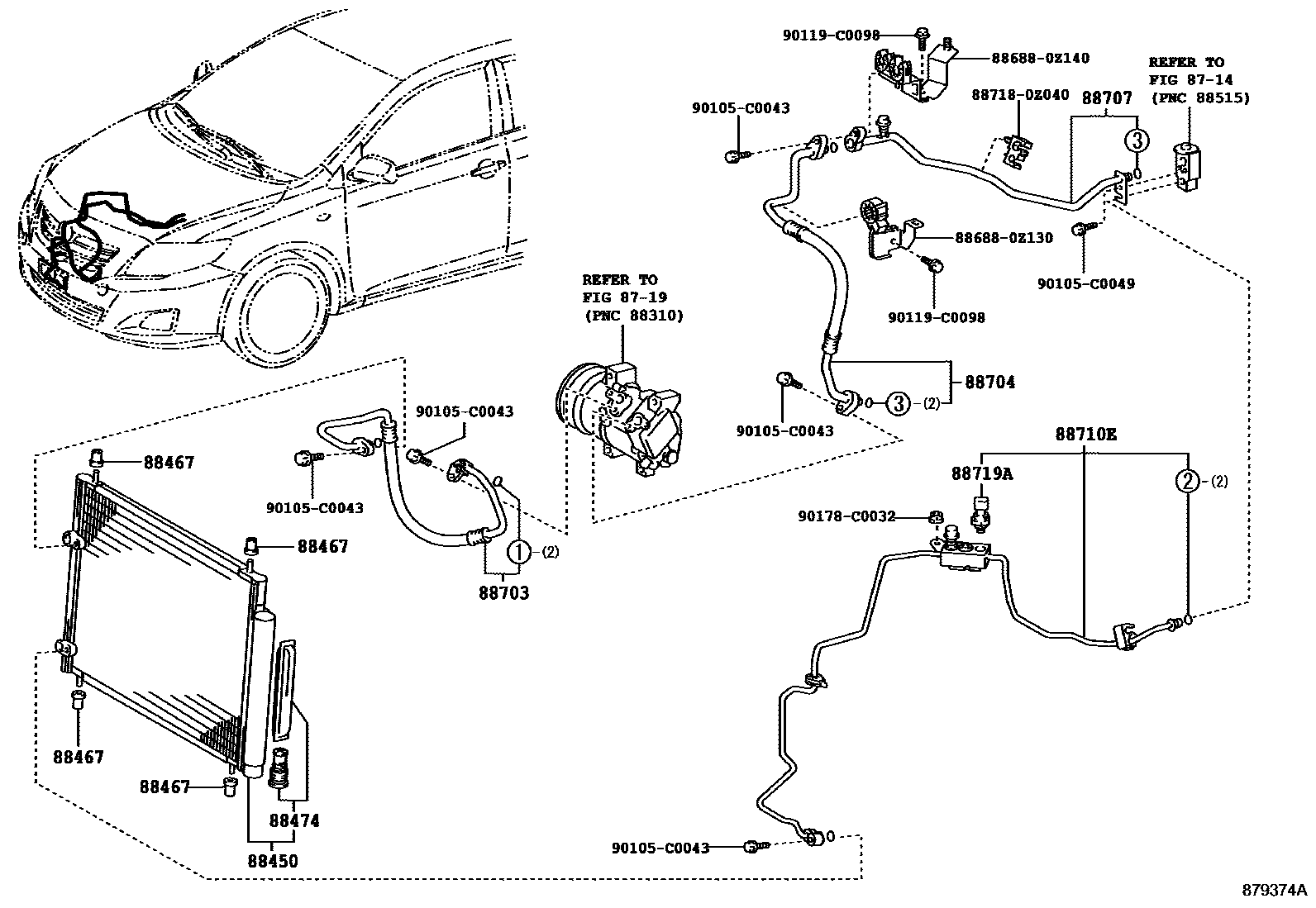

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88450 | Condenser assembly with liquid reservoir | 88450-02320 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 · 88467-02120 |
| 88474 | cooler dryer | 88474-17010 |
| 88703 | Discharge hose sub-assembly | 88703-02450 |
| 88704 | Oil suction hose sub-assembly | 88704-02680 |
| 88707 | Suction pipe sub-assembly | 88707-02050 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0Z010 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
