Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

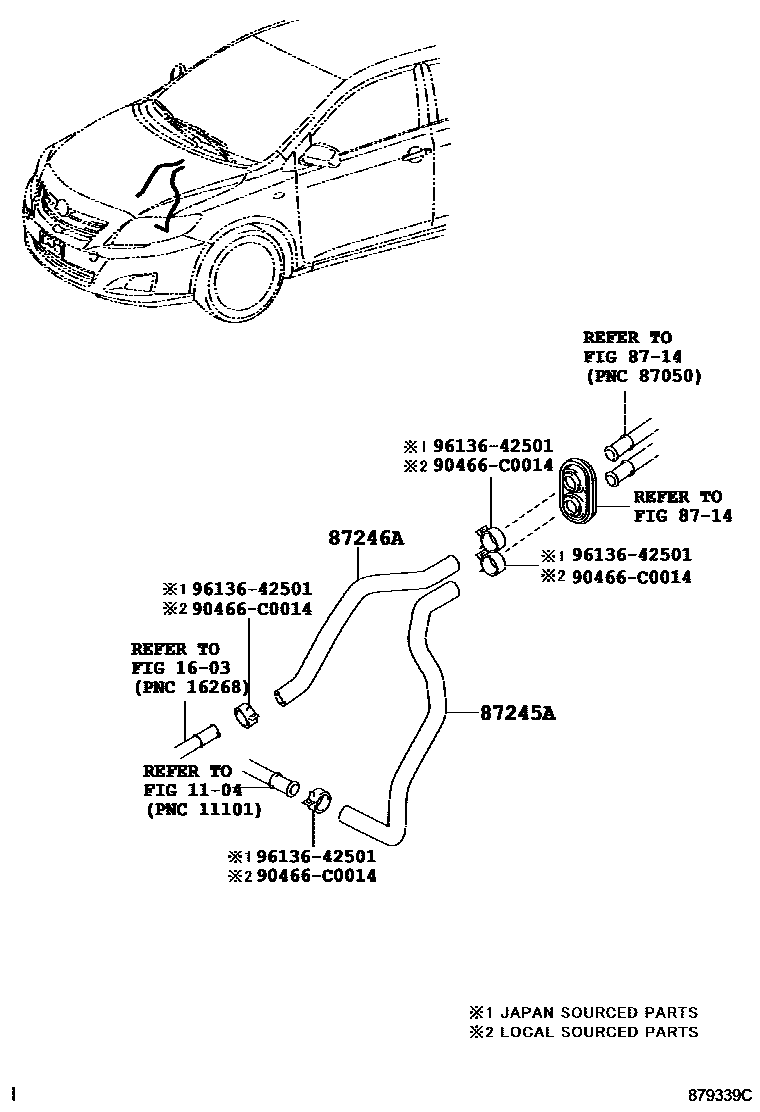

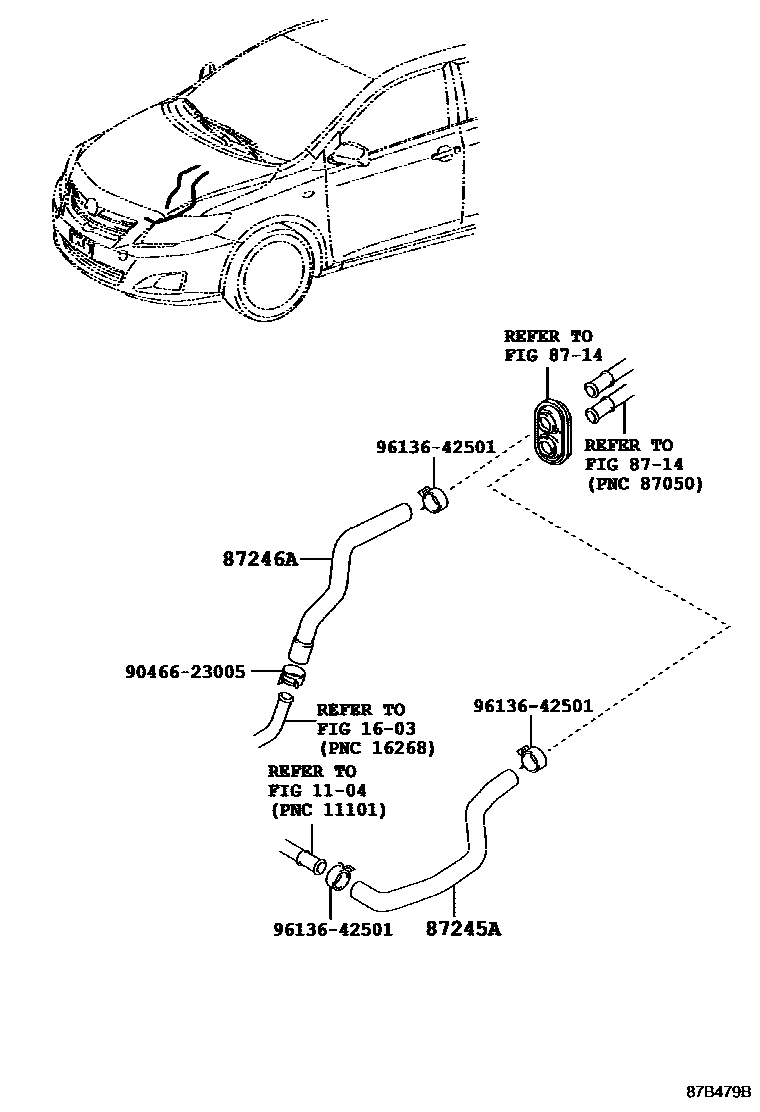

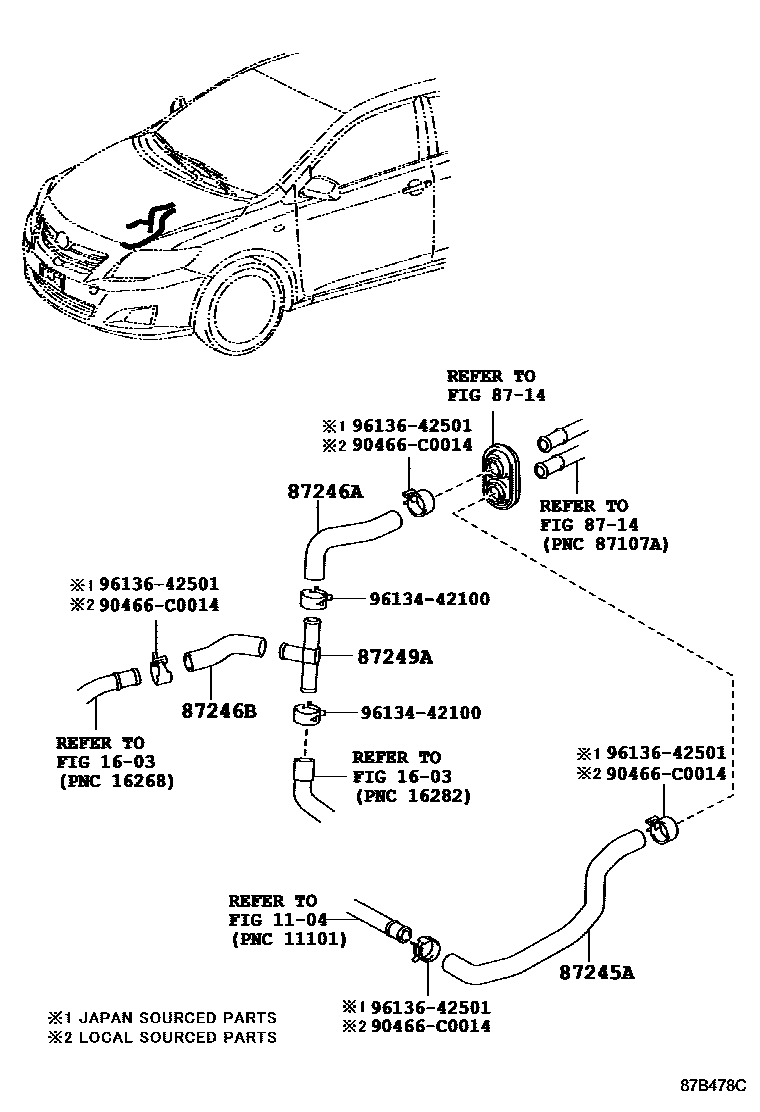

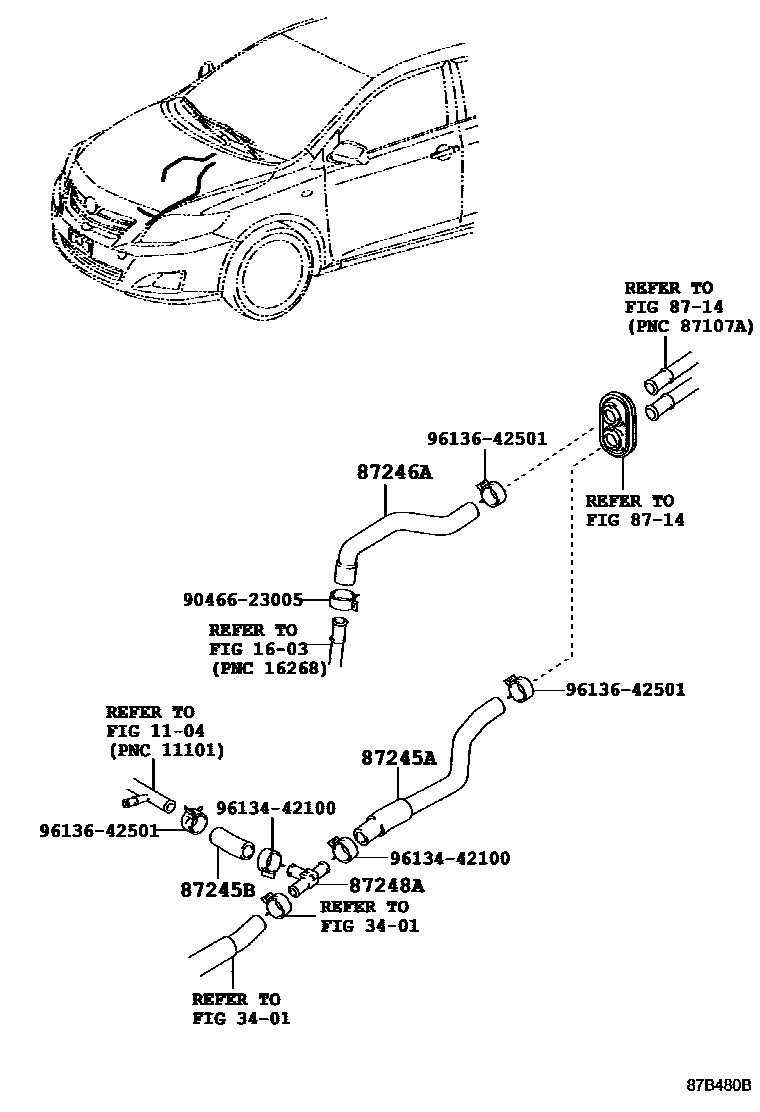

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87245-02C40 · 87245-02G60 · 87245-02K30 |
| 87245B | Heater water inlet hose B | 87245-02K40 |
| 87246A | Heater outlet hose A | 87245-02C50 · 87245-02G50 · 87245-02L00 |
| 87246B | Heater outlet hose B | 87245-02L10 |
| 87248A | Heater water inlet pipe A | 87248-12310 |
| 87249A | Heater outlet pipe A | 87248-12300 |
