Toyota COROLLA 后视镜 — Figure 8701

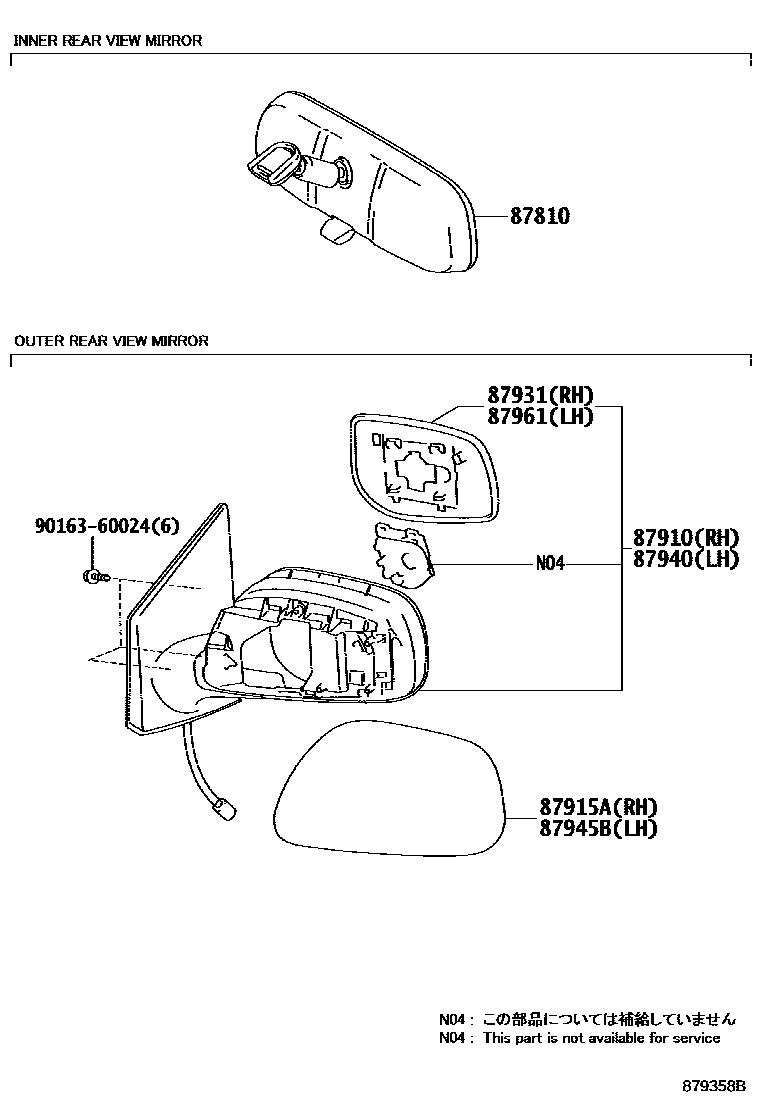

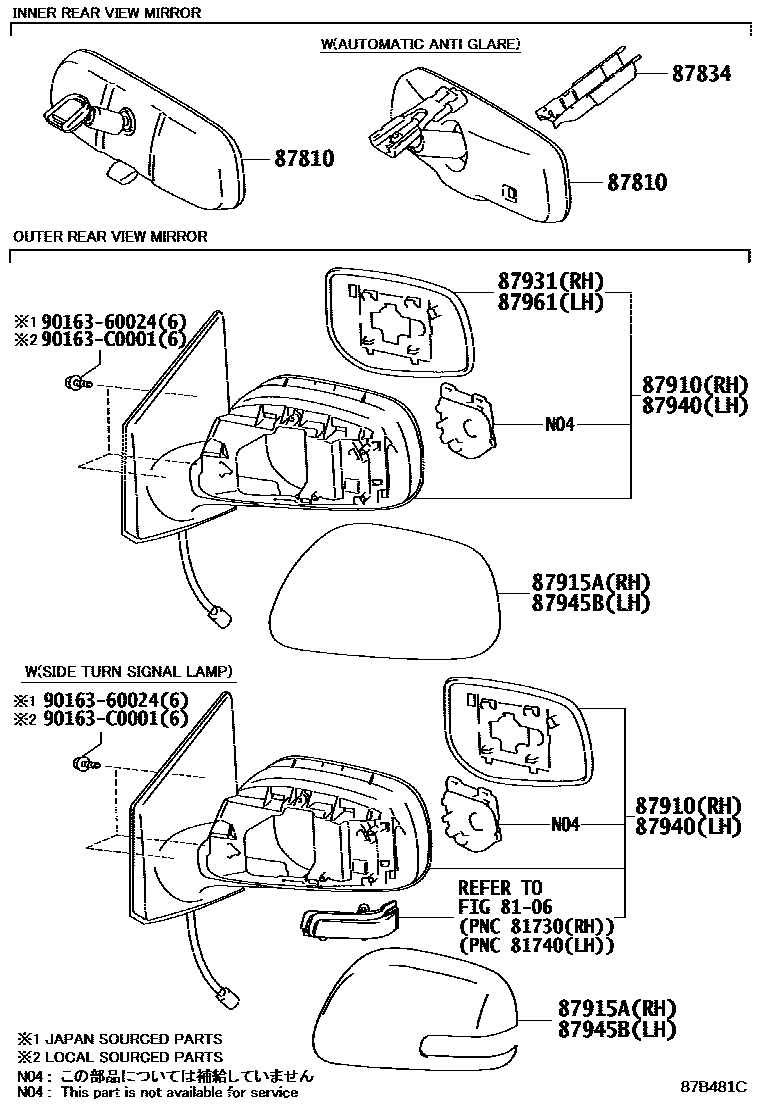

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06061 · 87810-0W640 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-0W060 |
| 87910 | Right exterior rearview mirror assembly | 87910-02830 · 87910-02840 · 87910-02E90 |
| 87915A | Right exterior rearview mirror cover | 87915-02910 · 87915-02923 |
| 87931 | Right exterior rearview mirror | 87931-02830 · 87931-02840 |
| 87940 | Left exterior rearview mirror assembly | 87940-02810 · 87940-02820 · 87940-02E20 |
| 87945B | Left exterior rearview mirror cap | 87945-02910 · 87945-02923 |
| 87961 | Left exterior rearview mirror | 87961-02810 · 87961-02820 |
