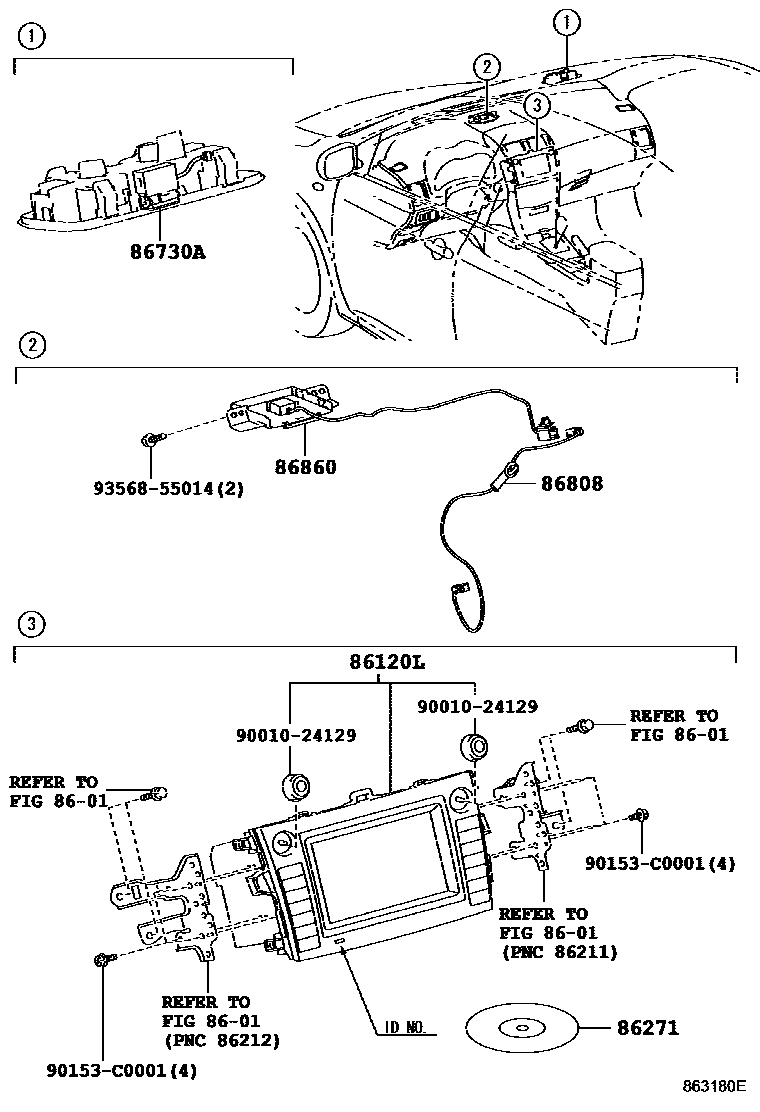

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-02740 · 86120-02C30 |
| 86271 | CD | 86271-0W022 · 86807-0W023 · 86807-0W024 · 86807-0W025 · 86807-0W026 · 86807-0W027 · 86807-0W028 · 86807-0W029 · 86807-0W190 |
| 86730A | Telephone amplifier assembly | 86730-12040 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02040 |
| 86860 | Navigation antenna assembly | 86860-12070 |
