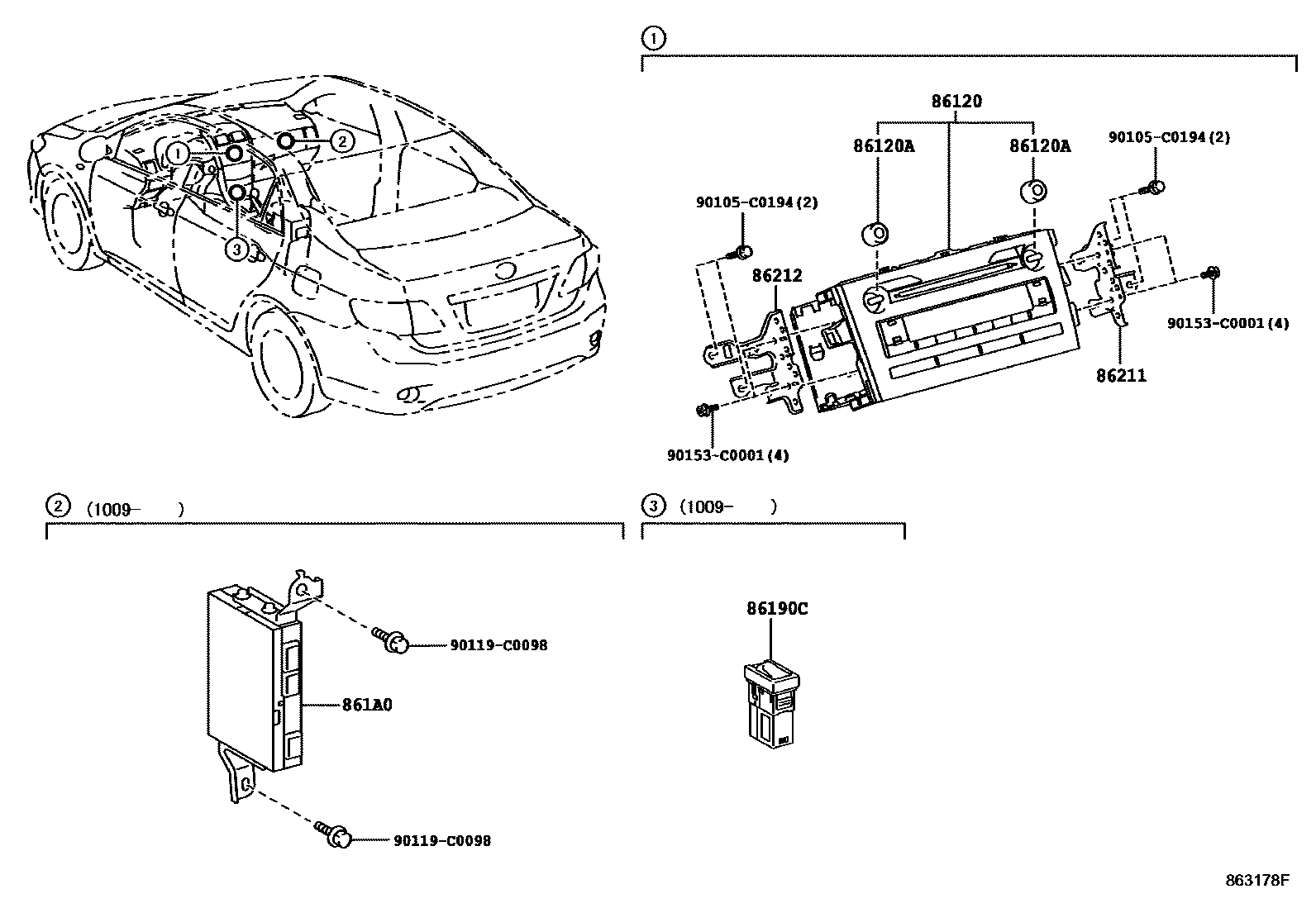

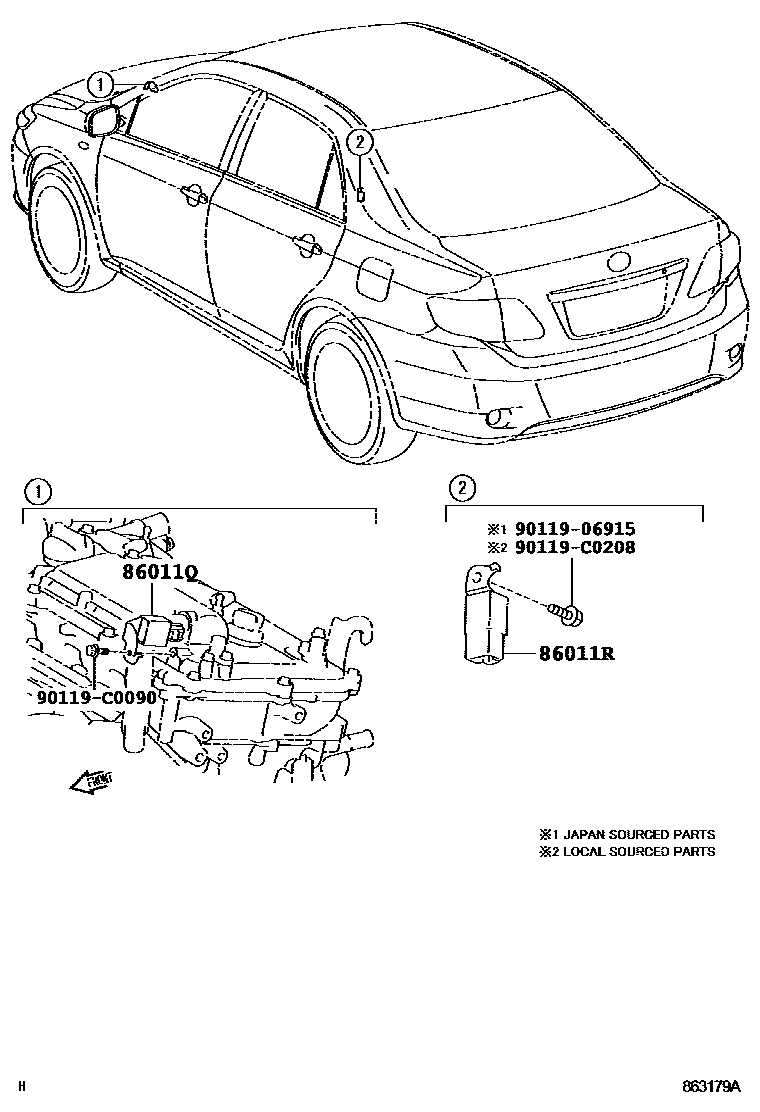

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011Q | radio settings phase modulator | 90980-04194 |
| 86011R | radio settings phase modulator | 90980-04179 |
| 86120 | Radio assembly | 86120-02600 · 86120-02601 · 86120-02610 · 86120-02C10 · 86120-02C20 · 86120-02J50 |
| 86120A | Radio switch knob | 90011-23024 · 90011-25160 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-02030 |
| 861A0 | Multimedia interface ECU assembly | 861A0-02040 |
| 86211 | No. 1 radio bracket | 86211-02180 |
| 86212 | No. 2 radio bracket | 86212-02170 |
