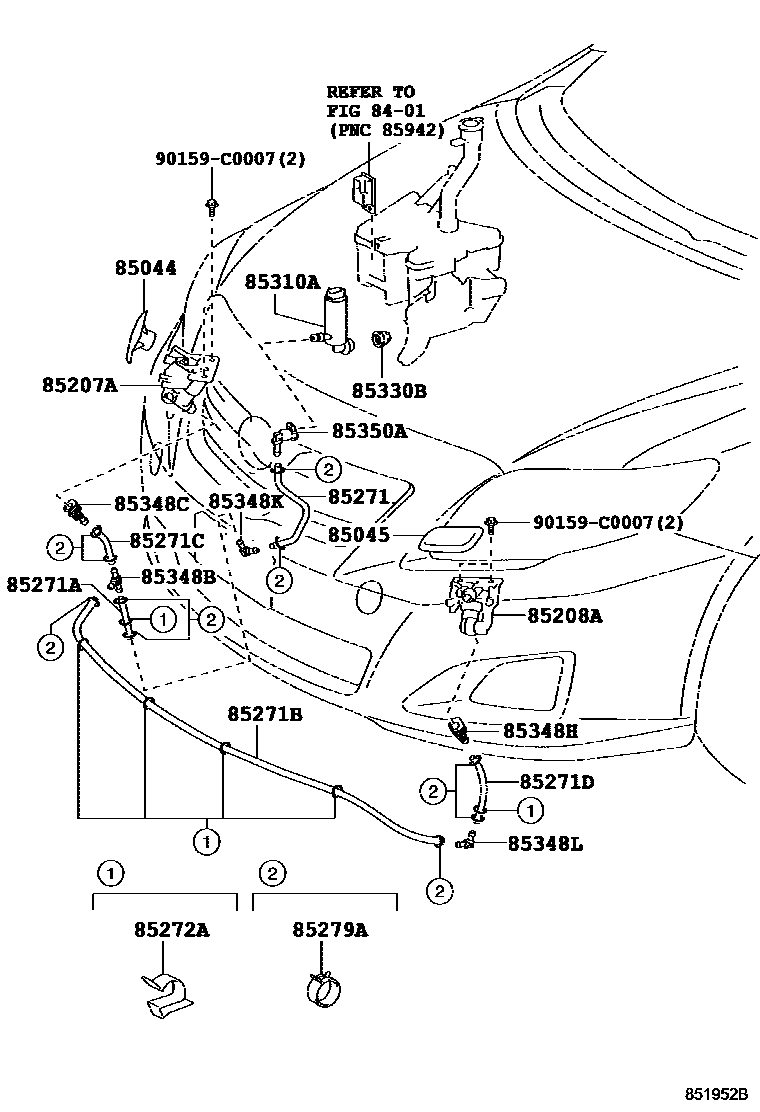

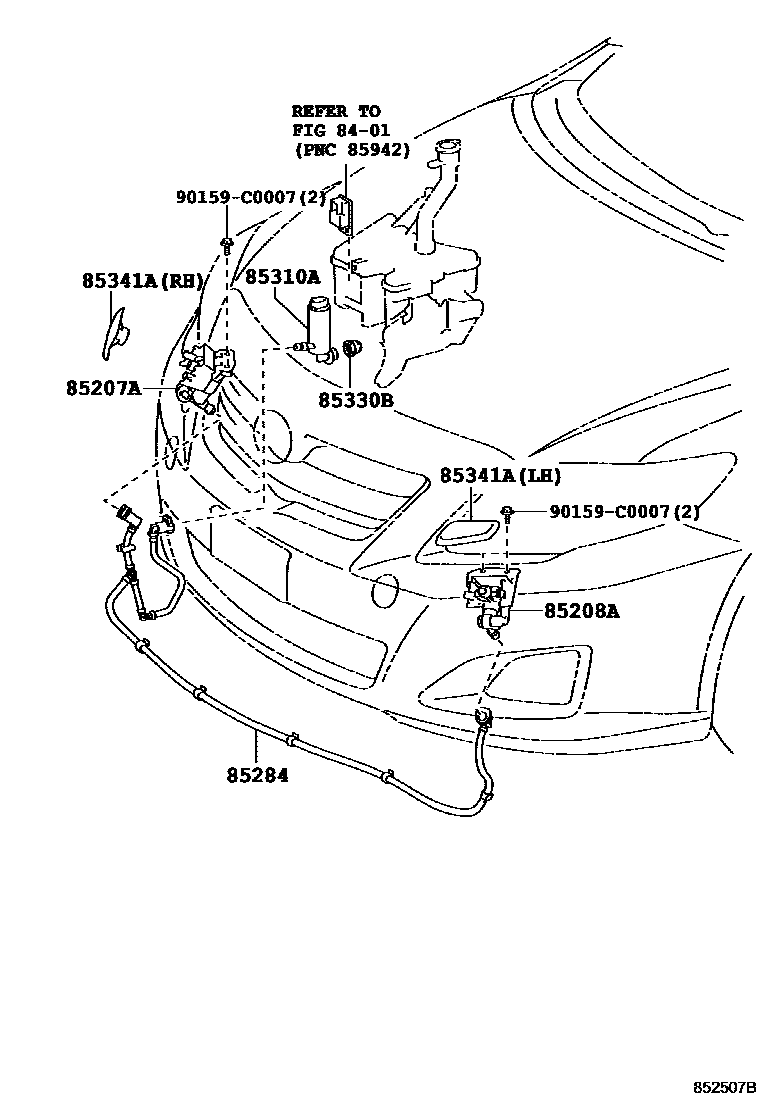

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-02050 · 85207-02080 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-02050 · 85208-02080 |
| 85271 | No. 1 headlight washer hose | 85289-02080 |
| 85271A | No. 2 headlight washer hose | 85278-02080 |
| 85271B | No. 3 headlight washer hose | 85276-02080 |
| 85271C | No. 4 headlight washer hose | 85277-02080 |
| 85271D | No. 5 headlight washer hose | 85275-02080 |
| 85272A | Headlight washer No. 1 clip | 90069-48010 |
| 85279A | Headlight washer hose connector | 85279-05040 |
| 85284 | Headlight washer hose assembly | 85270-02090 |
| 85310A | Headlight washer motor and pump assembly | 85280-02030 · 85280-0W050 |
| 85330B | Headlight washer washer fluid tank bushing | 90069-20005 |
| 85348B | No. 2 headlight washer hose connector | 85279-02080 |
| 85348C | No. 3 headlight washer hose connector | 85285-02080 |
| 85348H | No. 4 headlight washer hose connector | 85285-02080 |
| 85348K | No. 1 headlight washer elbow joint | 85287-02080 |
| 85348L | No. 2 headlight washer elbow joint | 85287-02080 |
| 85350A | No. 3 headlight washer elbow joint | 85286-05040 |
