Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 20 PNC and OE references.

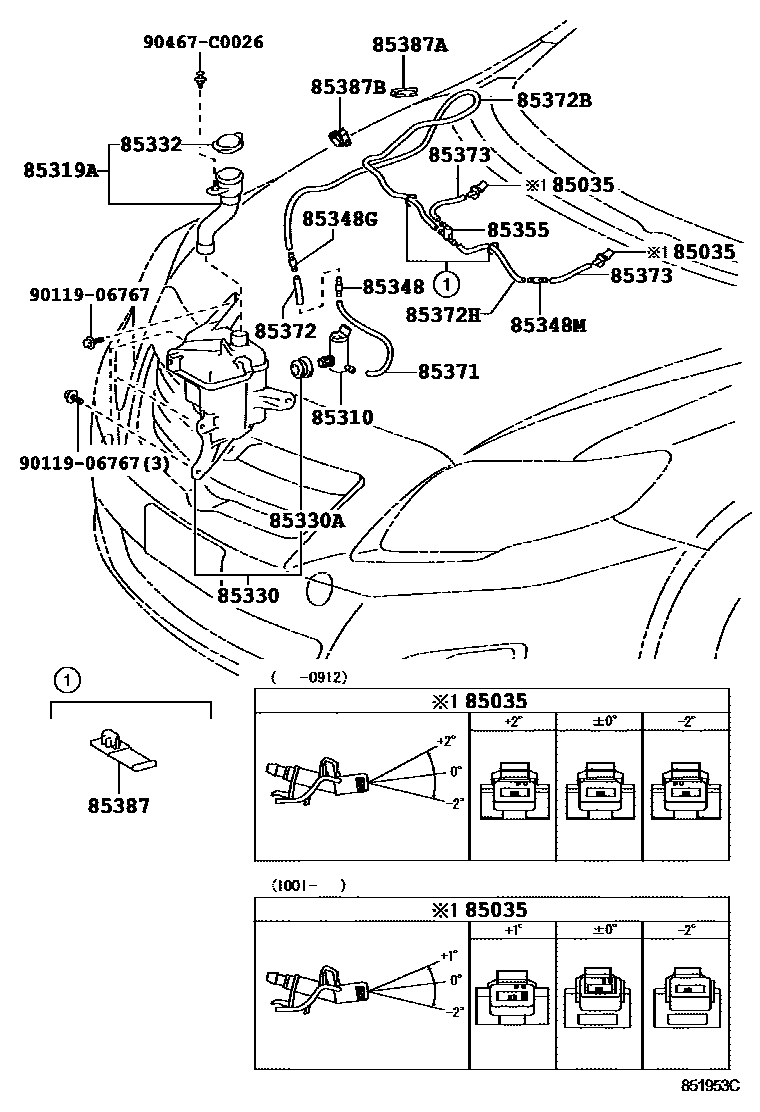

Toyota COROLLA 挡风玻璃清洗器 EPC diagram — 851953C
挡风玻璃清洗器 — 851953C (200705 – 999999)

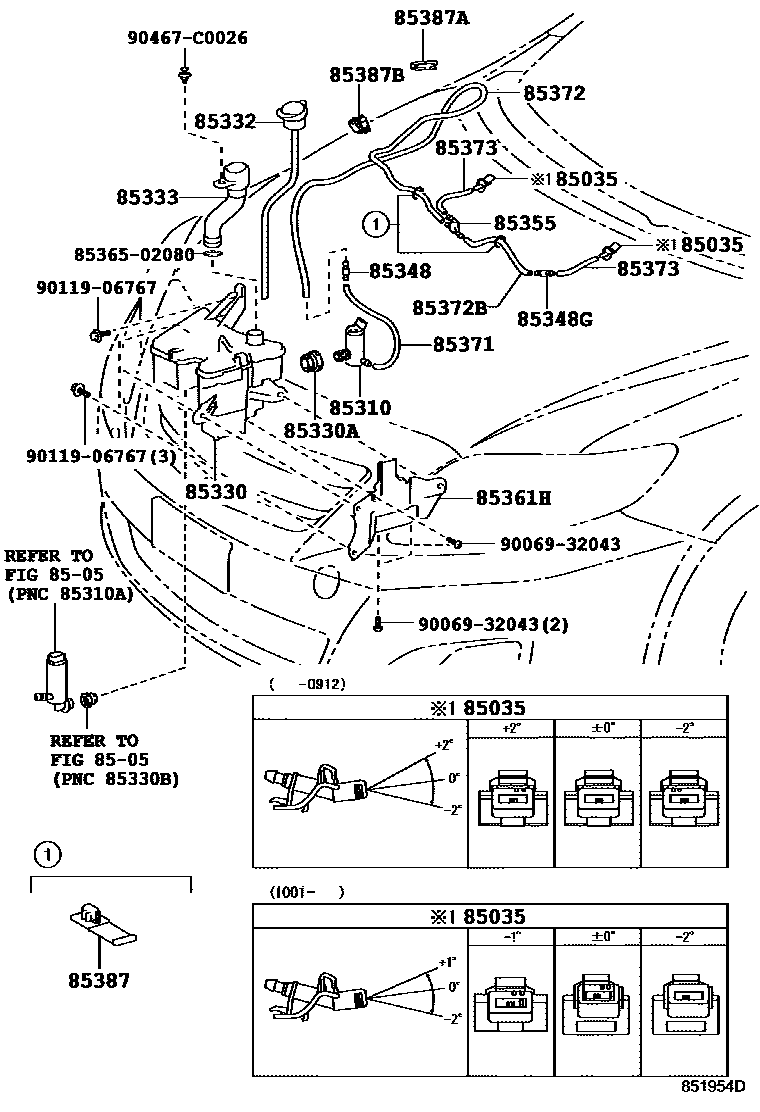

Toyota COROLLA 挡风玻璃清洗器 EPC diagram — 851954D
挡风玻璃清洗器 — 851954D (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
85035Cleaner nozzle sub-assembly85381-12300 · 85381-12310 · 85381-12320 · 85381-12350 · 85381-30110 · 85381-30150
85310Windshield washer motor and pump assembly85330-02020 · 85330-02030
85319Awater inlet hose85319-02290
85330Windshield washer fluid tank assembly85315-02290 · 85355-02080 · 85396-02070
85330AWindshield washer fluid tank bushing90069-20005 · 90099-32089
85332Windshield washer fluid tank cap85316-02200 · 85356-02070 · 85356-02080
85333Windshield washer fluid tank filter85359-02070 · 85359-02080
85348Windshield washer hose connector No. 185375-05050 · 85375-0D030
85348GWindshield washer hose connector No. 285375-0D030
85348MNo. 3 windshield washer hose connector85375-0D030
85355Windshield washer hose valve85321-28020
85361HCleaner stand85366-02140
85371Windshield washer hose (from motor to connector)85374-02220 · 90068-33060
85372Windshield washer hose No. 1 (from connector to connector)90068-33074 · 90068-45003
85372BWindshield washer hose No. 2 (from connector to connector)90068-33061 · 90068-59061
85372HNo. 3 windshield washer hose (from connector to connector)90068-59049
85373Windshield washer hose (from connector to nozzle)90068-33062
85387Clip No. 1 (for windshield washer)82711-3A540 · 85371-12040
85387ACleaner clip No. 285387-02280
85387BNo. 3 cleaner clip82711-1E350
