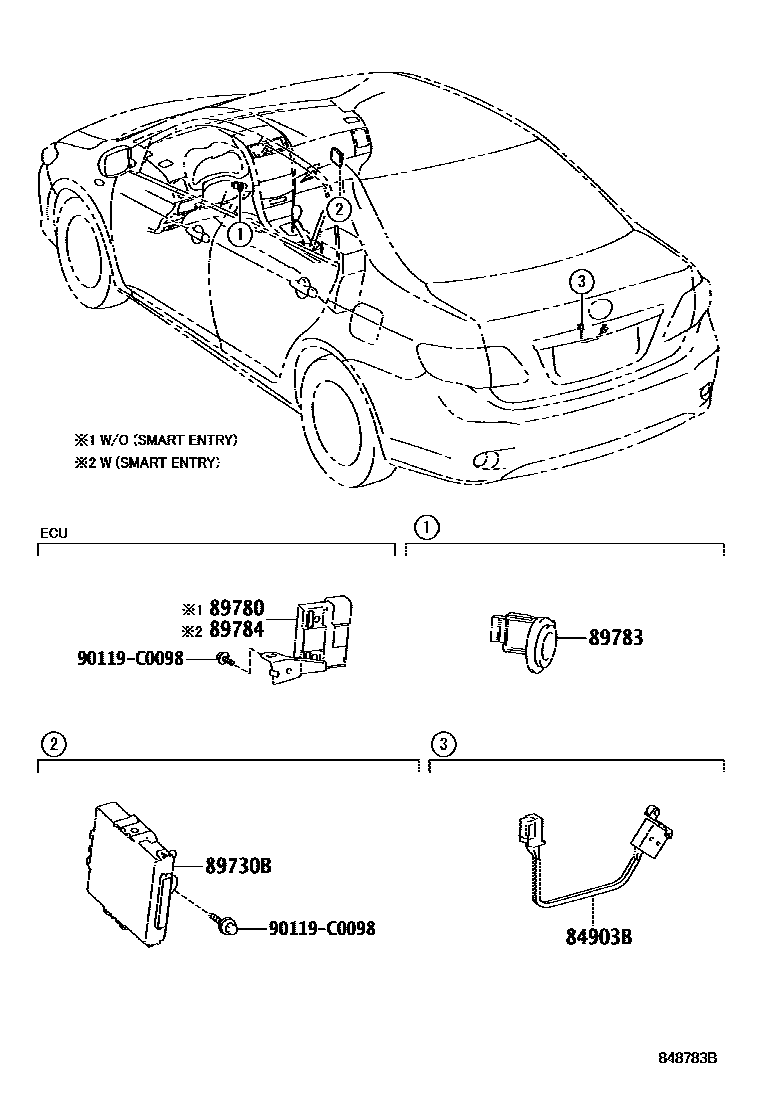

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84903B | Door unlock switch sub-assembly | 84903-12170 |
| 89730B | Anti-theft warning ECU assembly | 89730-02120 · 89730-02140 |
| 89780 | Transceiver key ECU assembly | 89780-02070 · 89780-02190 |
| 89783 | transceiver key amplifier | 89783-02050 · 89783-02100 |
| 89784 | Shutdown code system ECU | 89784-02010 · 89784-02050 |
