Toyota COROLLA 开关和继电器和ECU — Figure 8401

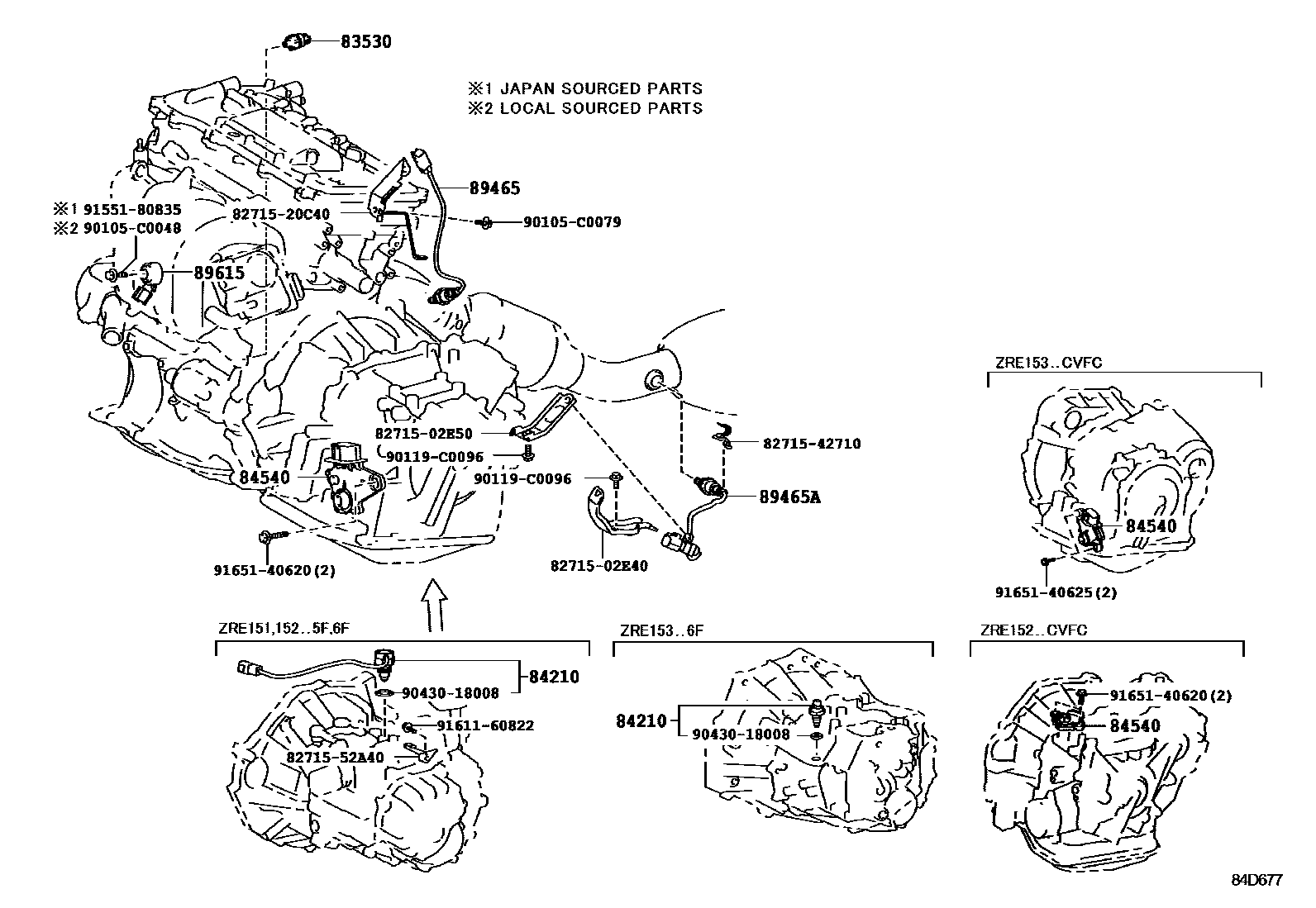

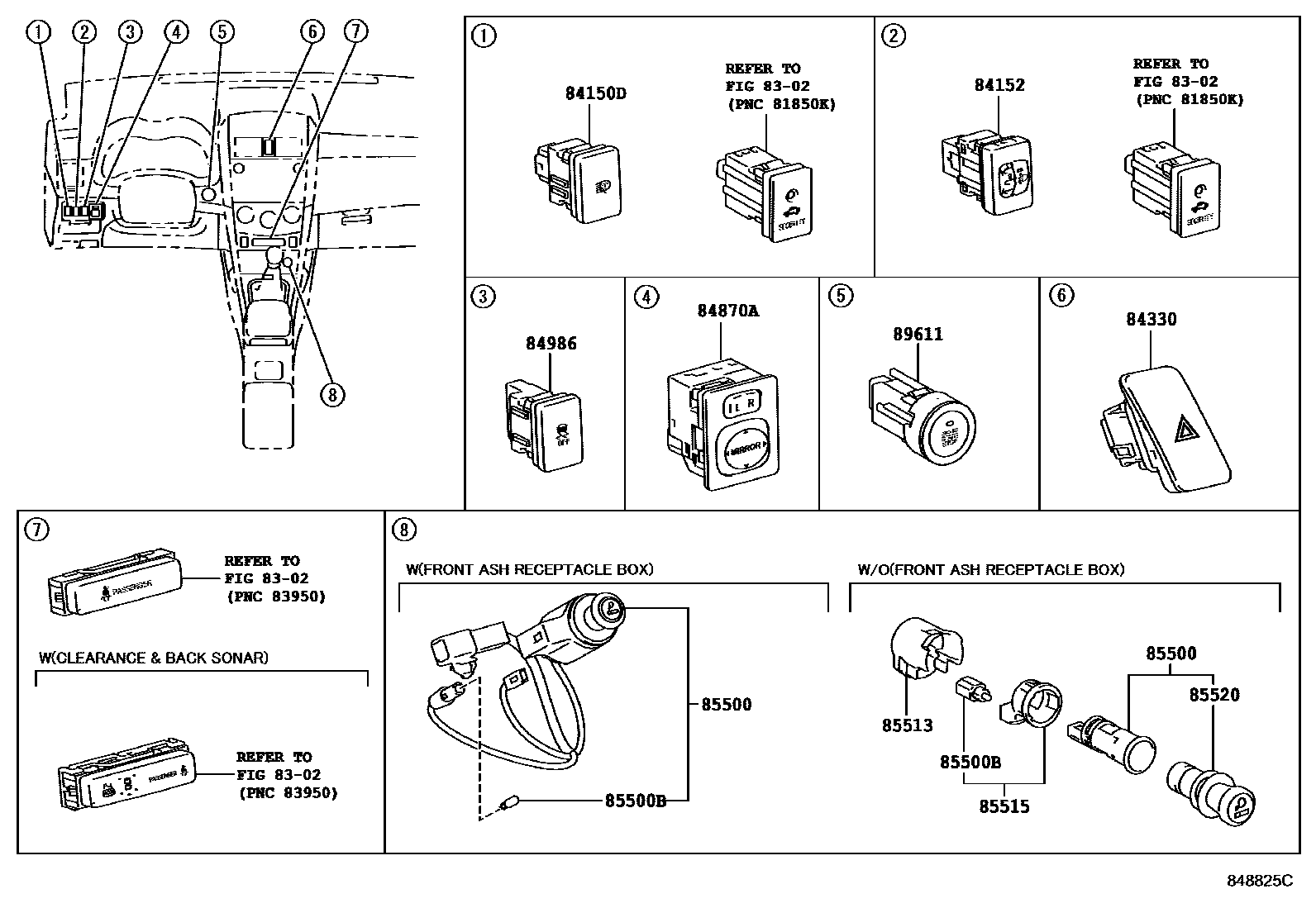

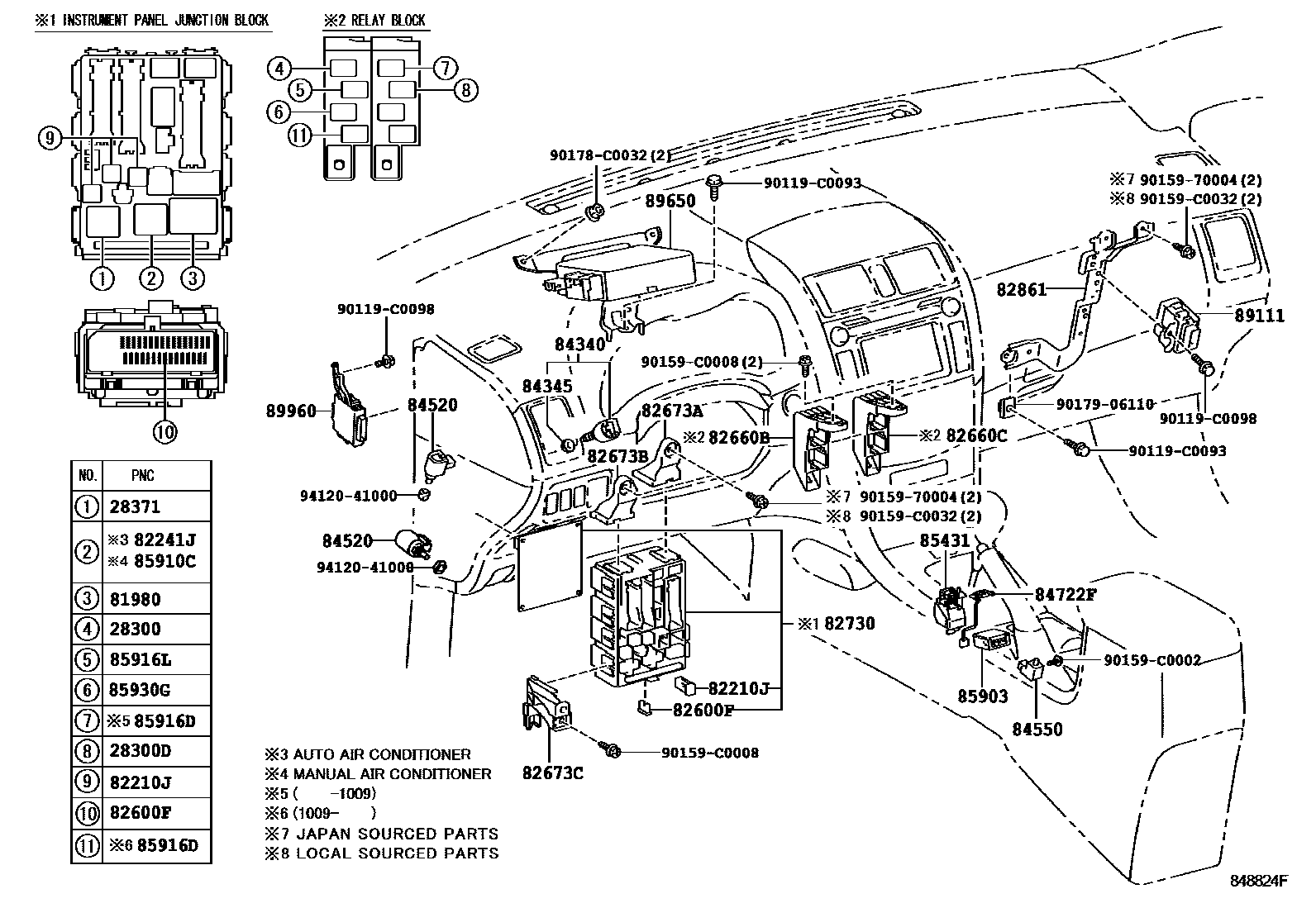

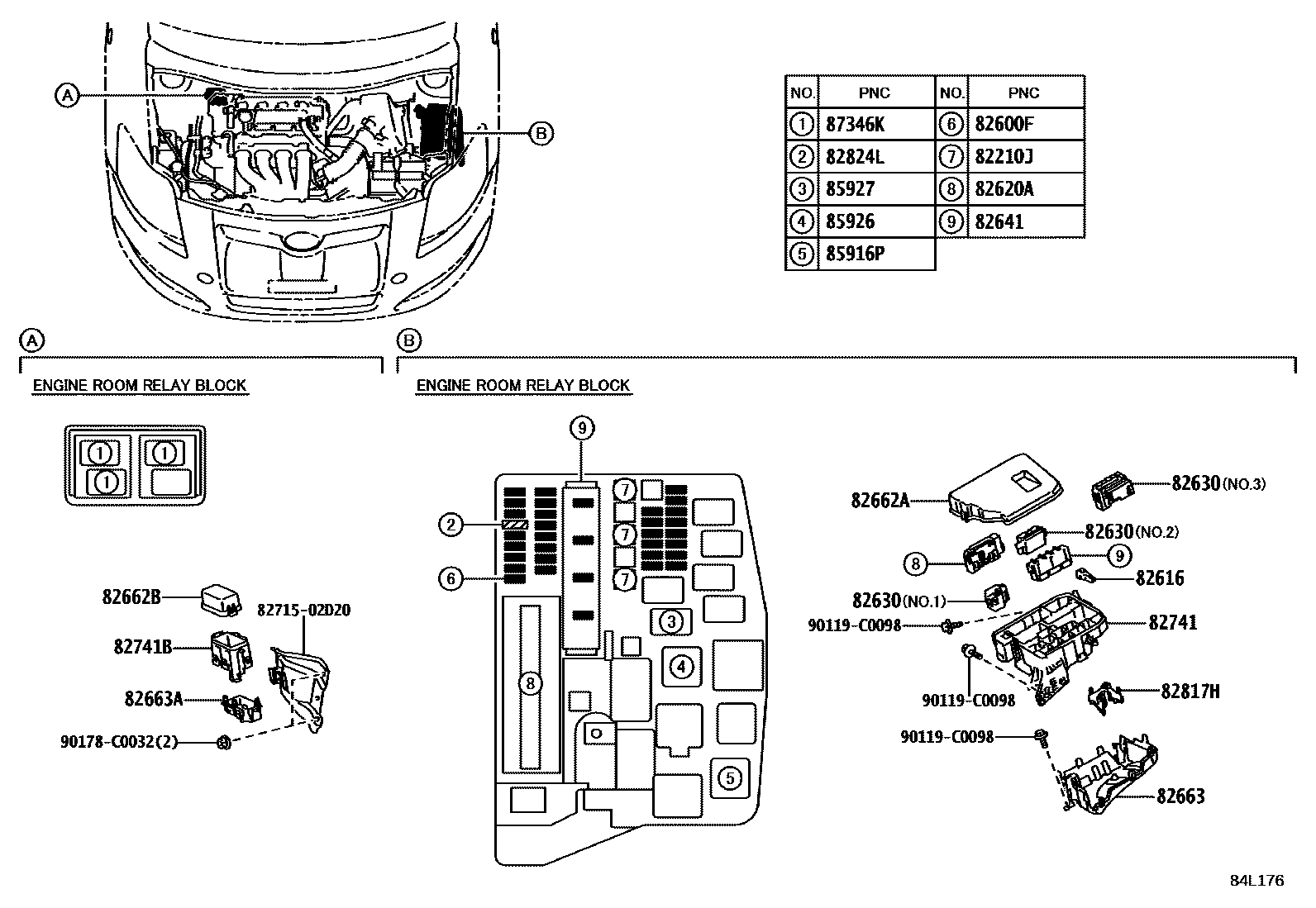

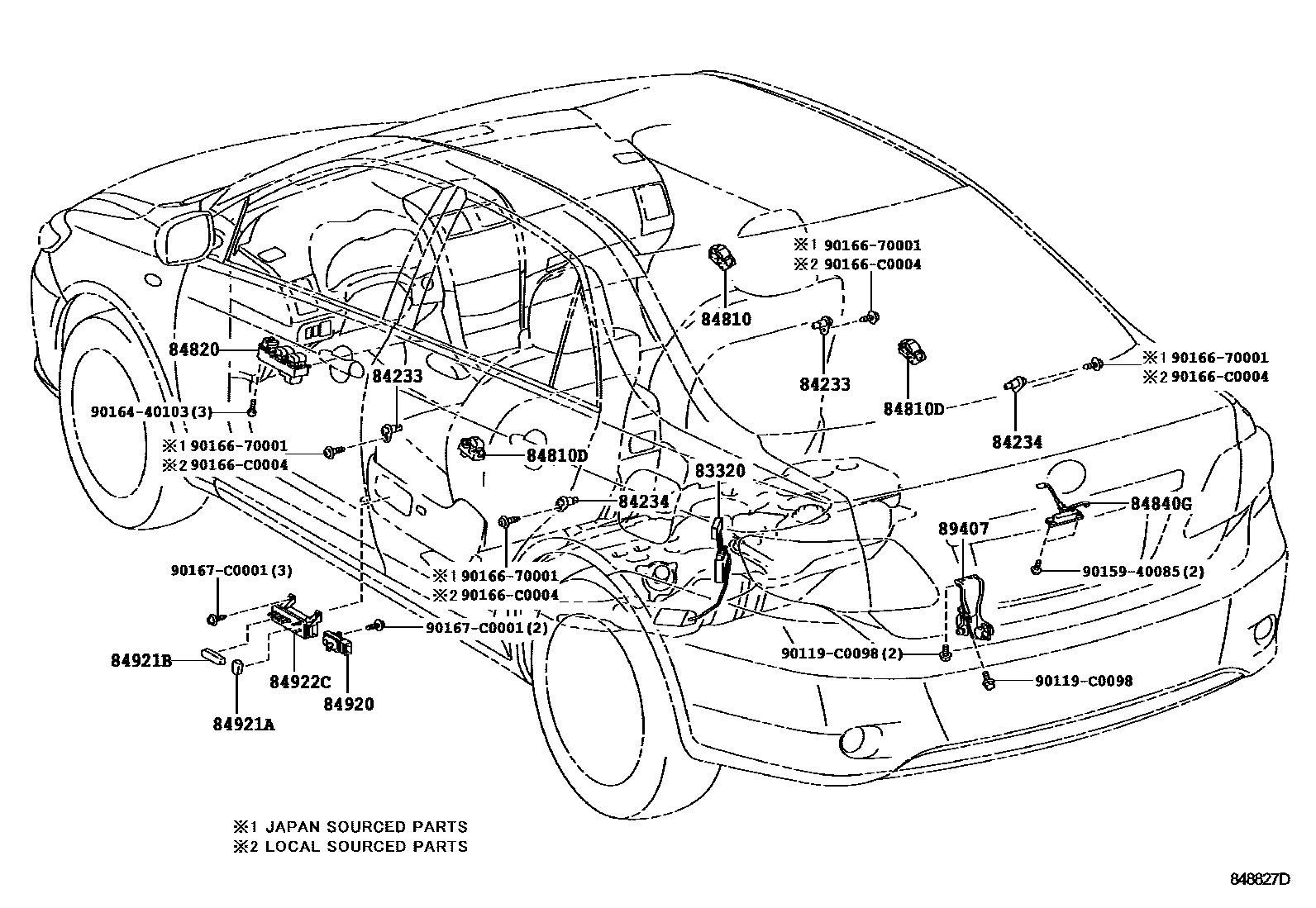

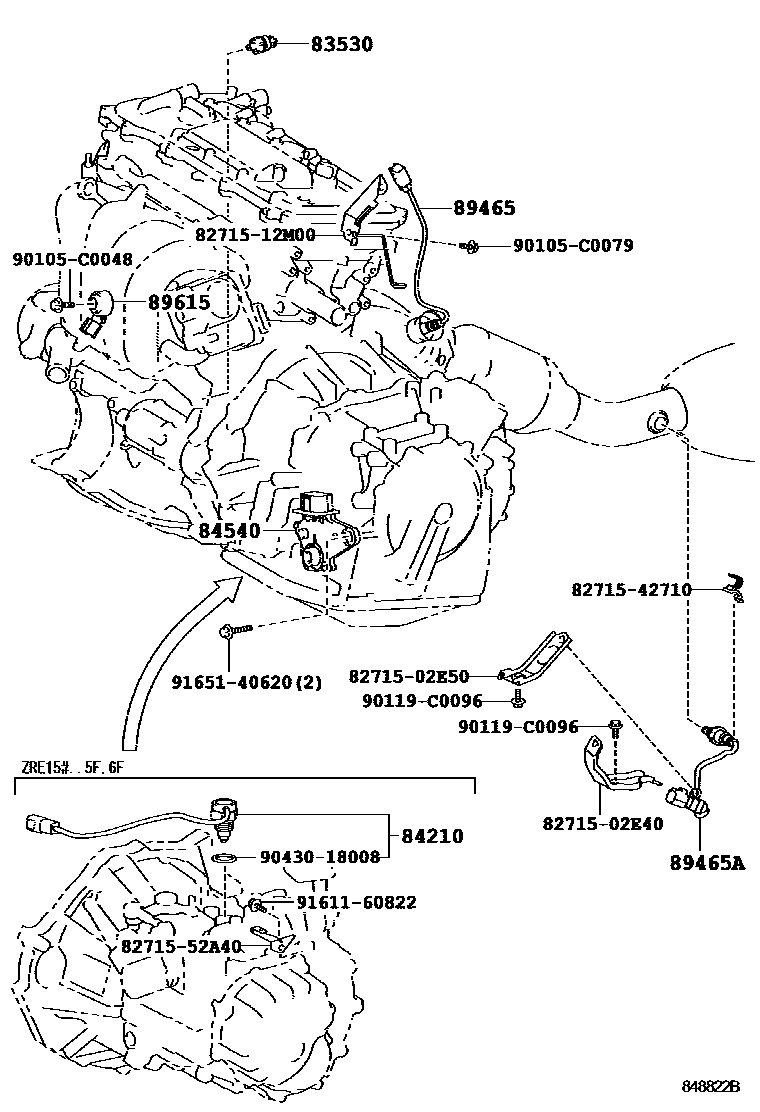

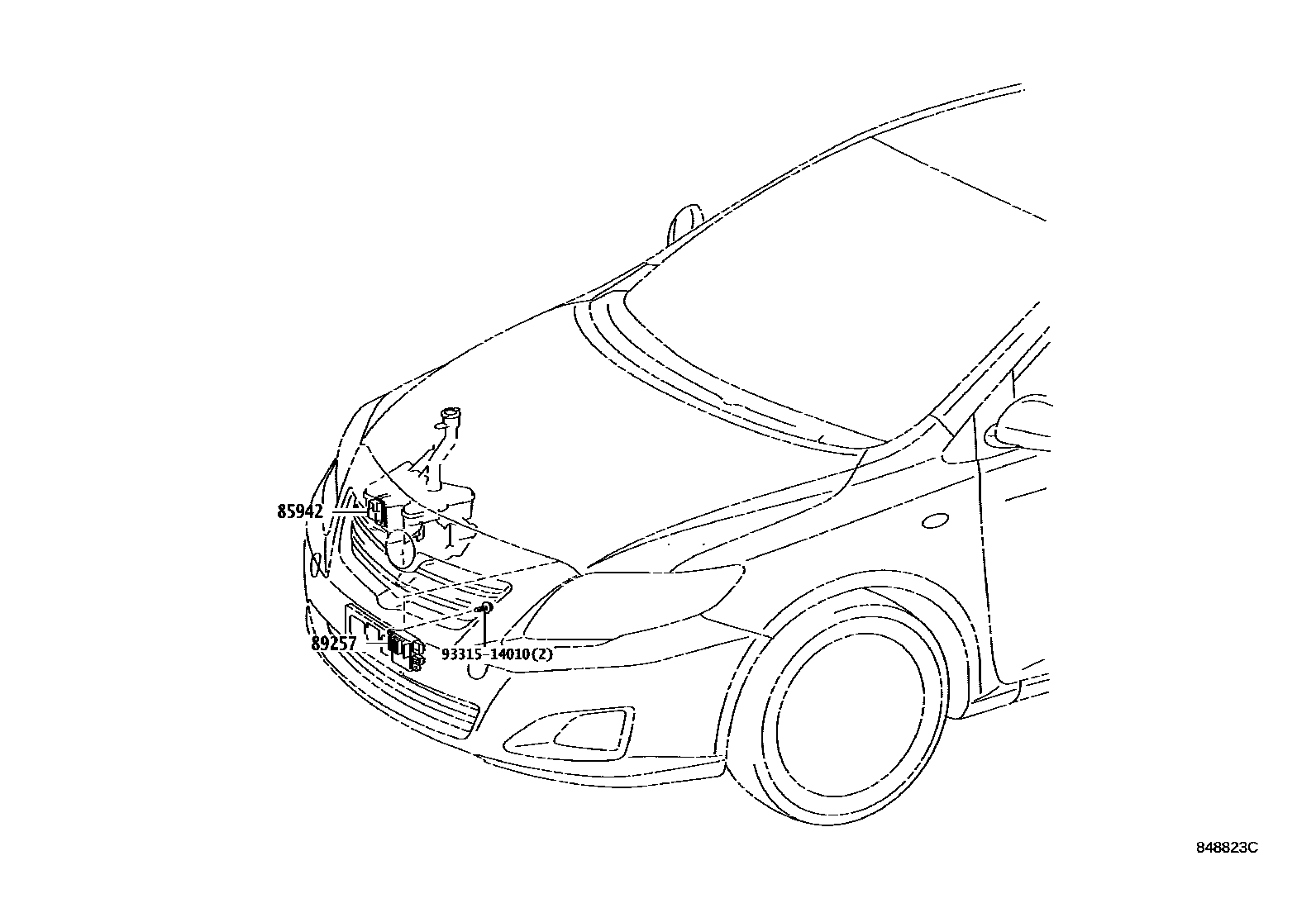

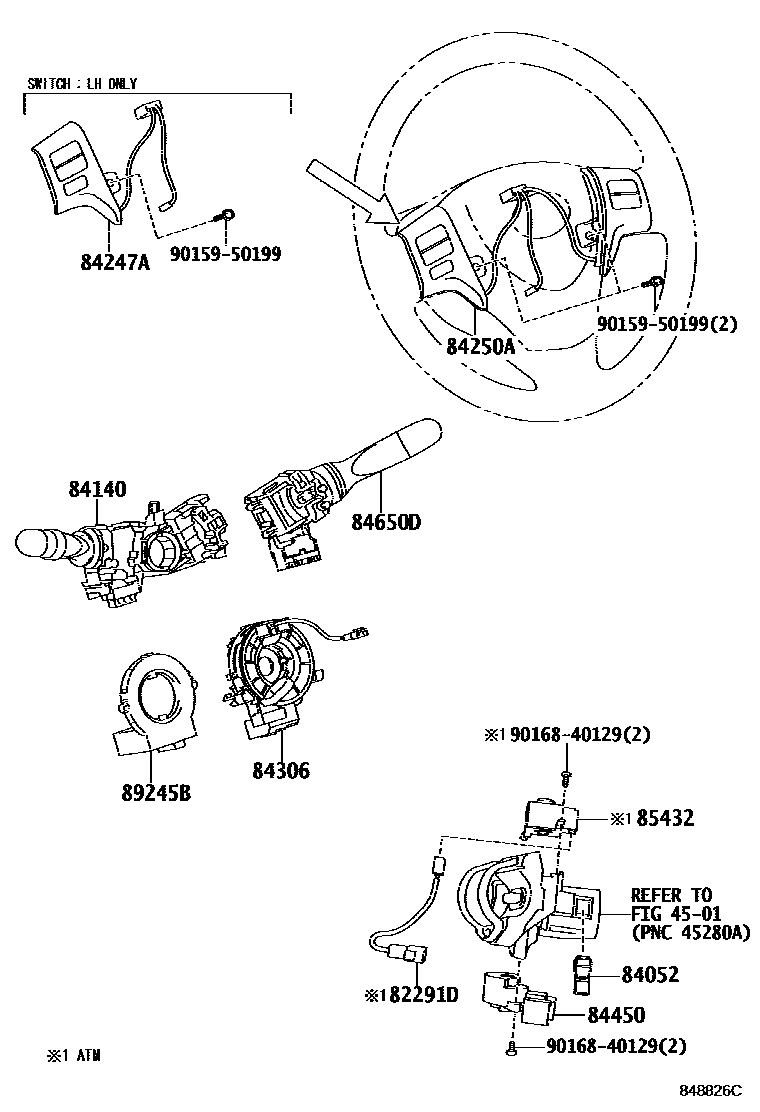

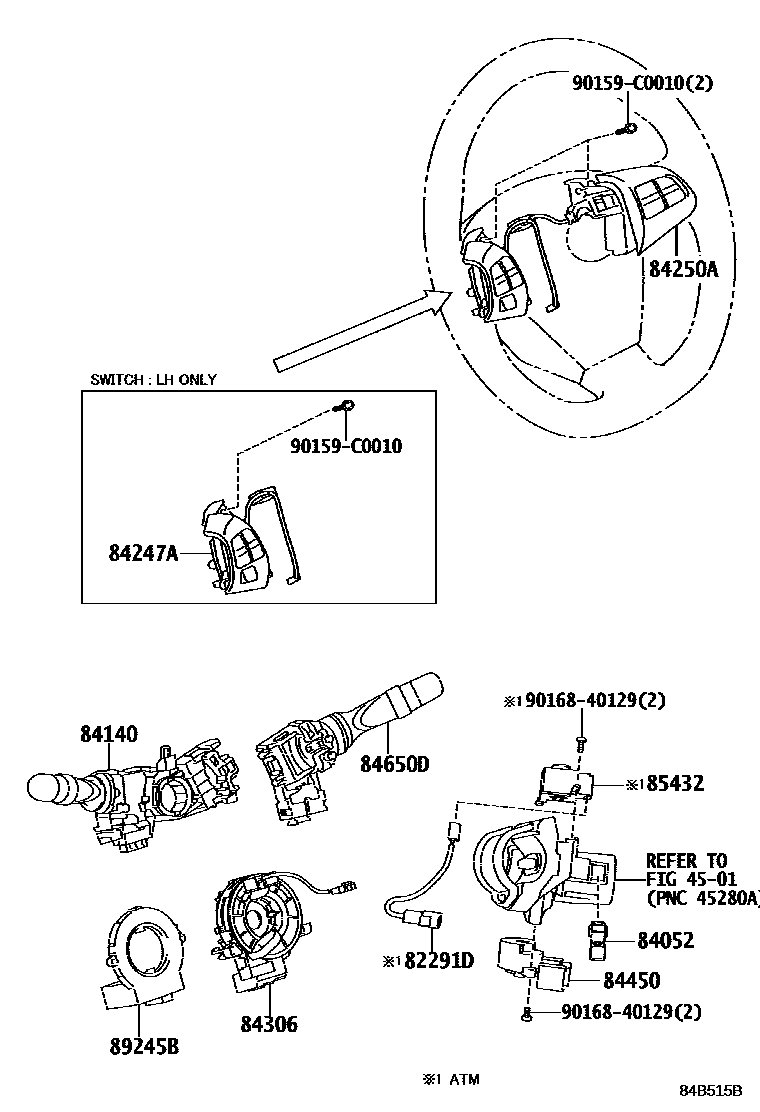

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 9 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-T2005 |
| 28371 | No. 1 ignition relay | 90987-C2001 |
| 81980 | Turn signal flasher relay assembly | 81980-0D030 · 81980-46010 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-02010 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12280 |
| 82630 | Fuse holder assembly | 82631-12010 · 82631-12020 · 82631-12030 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82755-12010 |
| 82660C | Relay assembly | 82755-12020 |
| 82662A | No. 1 relay box upper cover | 82662-12460 · 82662-12470 |
| 82662B | No. 2 relay box upper cover | 82662-12480 |
| 82663 | Relay box lower cover | 82663-12060 |
| 82663A | No. 2 relay box lower cover | 82663-12070 |
| 82673A | Junction box bracket | 82673-12240 |
| 82673B | Junction box bracket | 82673-12250 |
| 82673C | Junction box bracket | 82673-12260 |
| 82730 | Instrument panel junction box assembly | 82730-02850 · 82730-02860 · 82730-02870 · 82730-02S30 · 82730-02S40 · 82730-02S41 · 82730-02S50 · 82730-02S60 |
| 82741 | Engine room relay box | 82741-12070 |
| 82741B | Engine room relay box | 82741-12080 |
| 82817H | Harness protection device | 82817-12A80 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-02030 |
| 83320 | Fuel gauge sensor assembly | 83320-02160 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-02390 · 84140-02391 · 84140-0P010 · 84140-0P011 |
| 84150D | Headlight washer switch assembly | 84150-02050 |
| 84152 | Headlight beam height adjustment switch | 84152-02050 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-02130 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02130 |
| 84247A | Steering wheel decorative cover left switch | 84247-02030 · 84247-02090 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02100 · 84250-02200 |
| 84306 | Spiral cable sub-assembly | 84306-02190 · 84306-02200 |
| 84330 | Hazard warning signal switch assembly | 84332-02140 |
| 84340 | brake light switch assembly | 84340-09140 · 84340-19025 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 · 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02451 · 84652-02452 · 84652-0P011 · 84652-0P012 |
| 84722F | transmission control switch | 84722-02070 |
| 84810 | Electric window lift switch assembly | 84810-02100 · 84810-0D080 |
| 84810D | Rear electric window lift switch assembly | 84810-02100 · 84810-0D080 |
| 84820 | Electric window lift main switch assembly | 84820-02190 |
| 84840G | Back door opener switch assembly | 84840-12050 |
| 84870A | Exterior rearview mirror switch assembly | 84870-02040 |
| 84922C | Front left electric seat switch | 84922-02010 |
| 84986 | vehicle stability control switch | 84986-02020 · 84988-0R040 |
| 85431 | Shift lock solenoid valve | 85431-02030 |
| 85432 | Key interlock solenoid valve | 85432-02010 |
| 85500 | Cigarette lighter assembly | 85500-02070 · 85500-20340 · 85500-28080 |
| 85500B | Cigarette lighter bulb | 90010-01030 · 90010-01163 · 90011-01167 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-02050 · 85520-28010 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06030 |
| 85910C | Relay assembly (for heater blower motor) | 90987-T4002 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85926 | Headlight dimmer relay | 90987-T4002 |
| 85927 | cooling fan relay | 90987-T2005 |
| 85930G | ACC relay | 90987-T2005 |
| 85942 | Headlight washer control relay | 85942-12010 · 85942-12040 |
| 87346K | PTC heater relay | 90987-T2005 |
| 89111 | Network gateway ECU | 89111-12010 |
| 89245B | steering sensor | 89245-02030 |
| 89257 | Cooling fan ECU | 89257-12010 · 89257-12020 |
| 89407 | Right rear height control sensor sub-assembly | 89407-02020 · 89407-12030 |
| 89465 | oxygen sensor | 89465-12880 · 89467-02030 · 89467-52060 |
| 89465A | Oxygen sensor No. 2 | 89465-02300 |
| 89611 | One-button start switch | 89611-02020 · 89611-02021 · 89611-02022 |
| 89615 | knock control sensor | 89615-02020 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-02290 · 89650-02291 · 89650-02340 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12280 · 89960-12380 |
