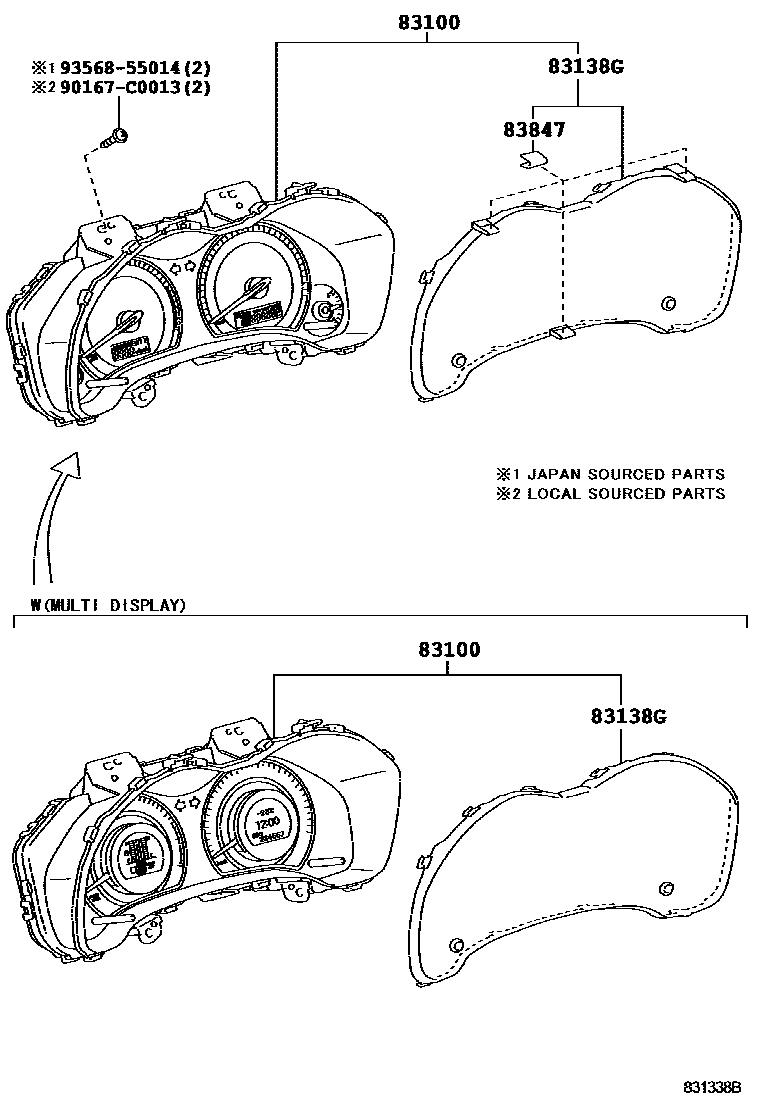

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-02N50 · 83800-02N60 · 83800-02N70 · 83800-02N80 · 83800-0ZJ20 · 83800-0ZJ30 · 83800-0ZJ40 · 83800-0ZJ50 · 83800-0ZJ60 · 83800-0ZJ70 · 83800-0ZN80 · 83800-0ZN90 |
| 83138G | Instrument cluster glass | 83852-02N50 · 83852-02N70 |
| 83847 | No. 1 combination speedometer cushion | 83847-02N50 |
