Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 11 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

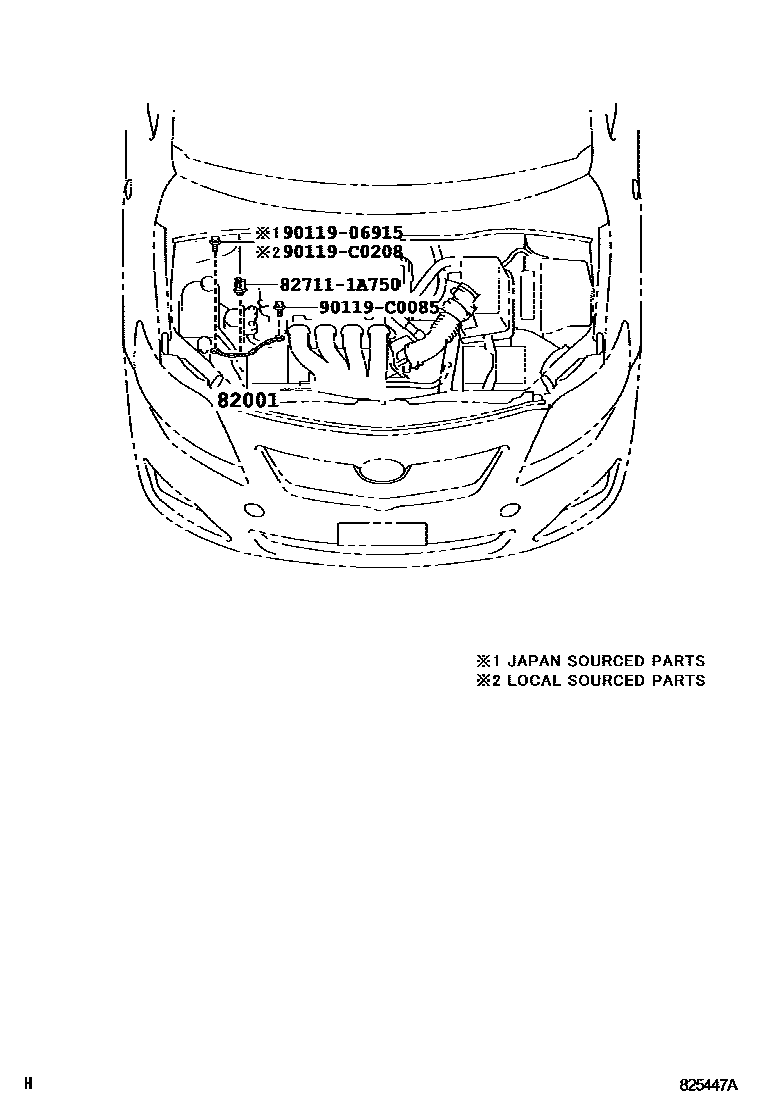

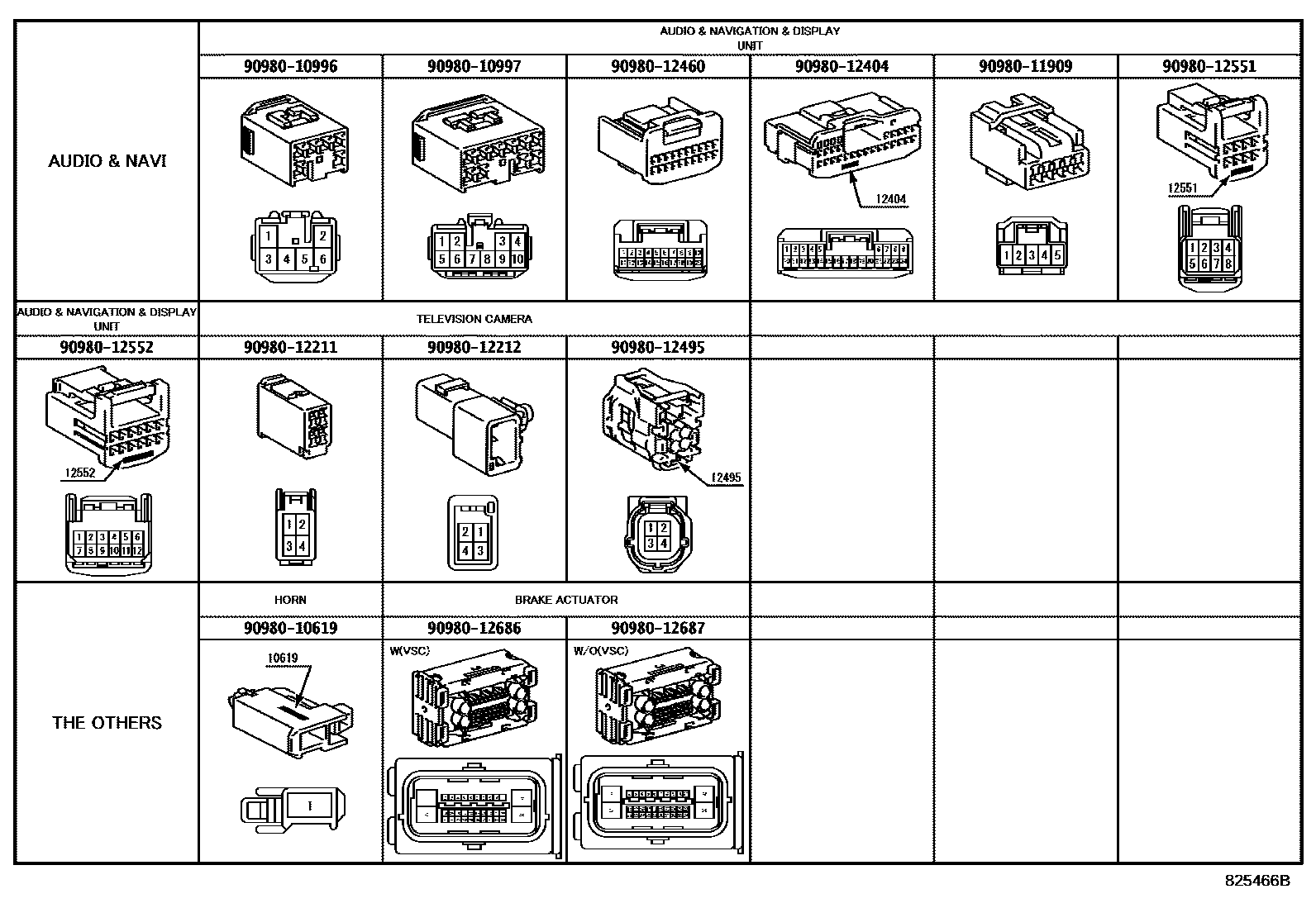

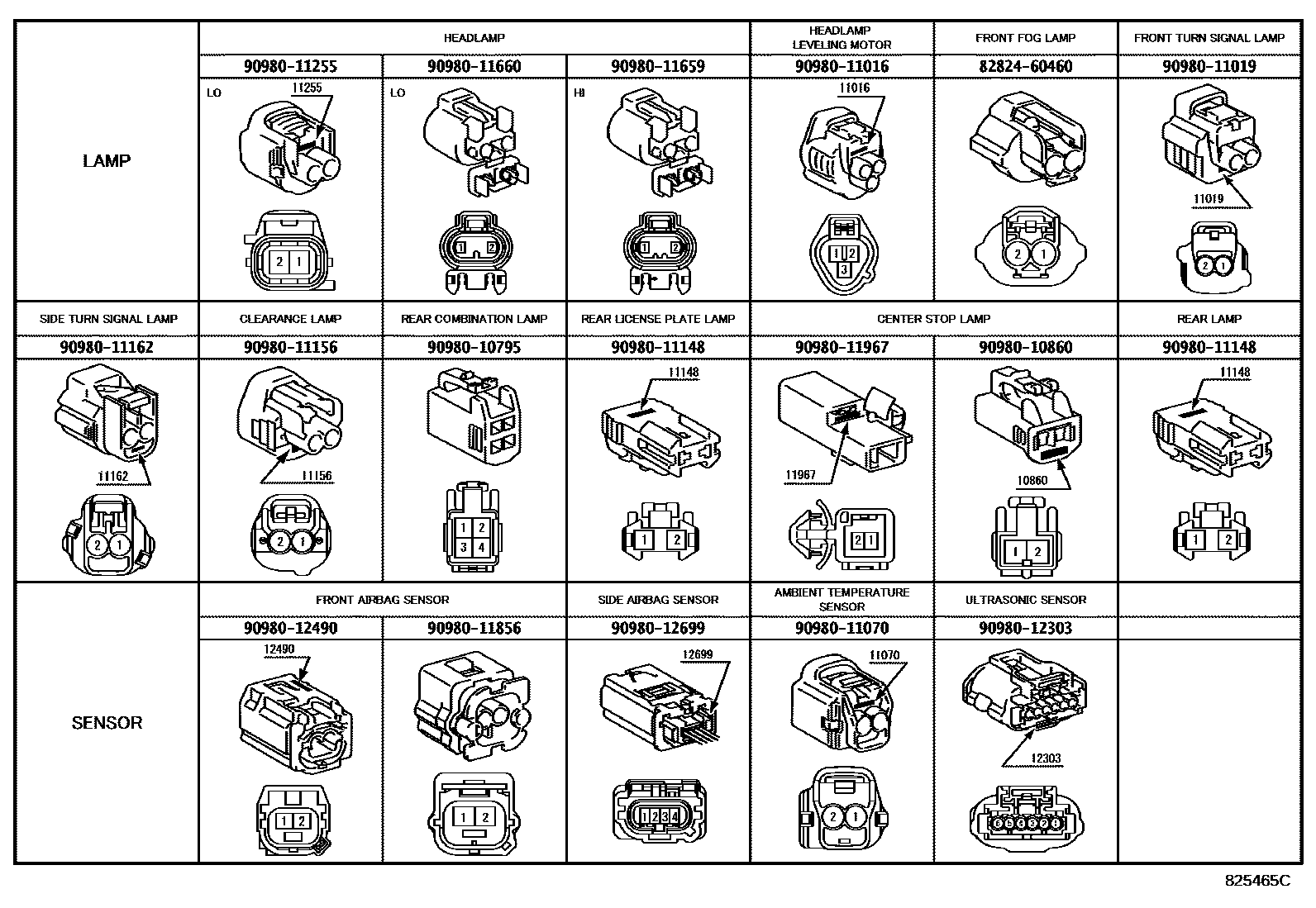

| 82001 | Connection cable No. 1 | 90980-C7001 |

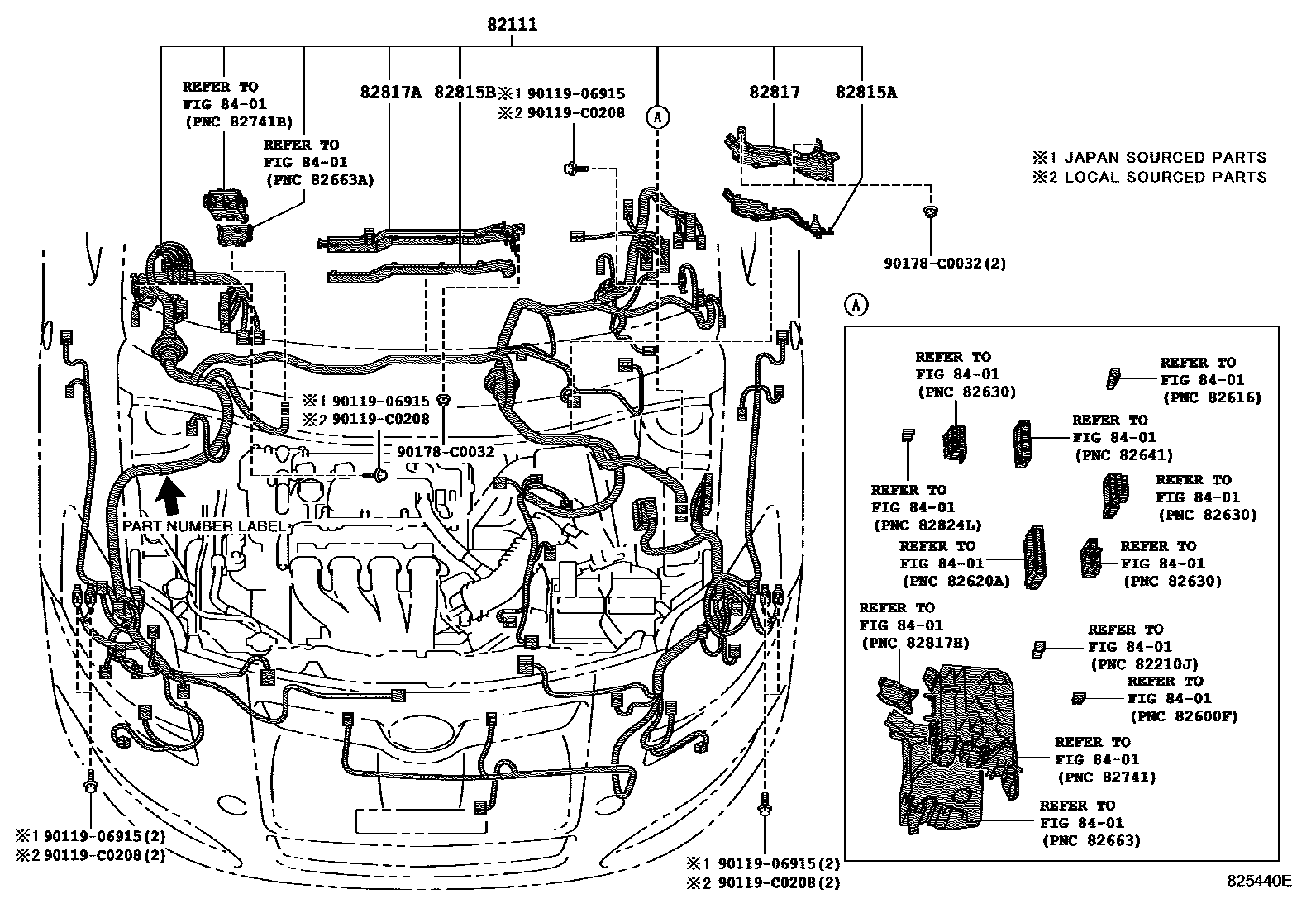

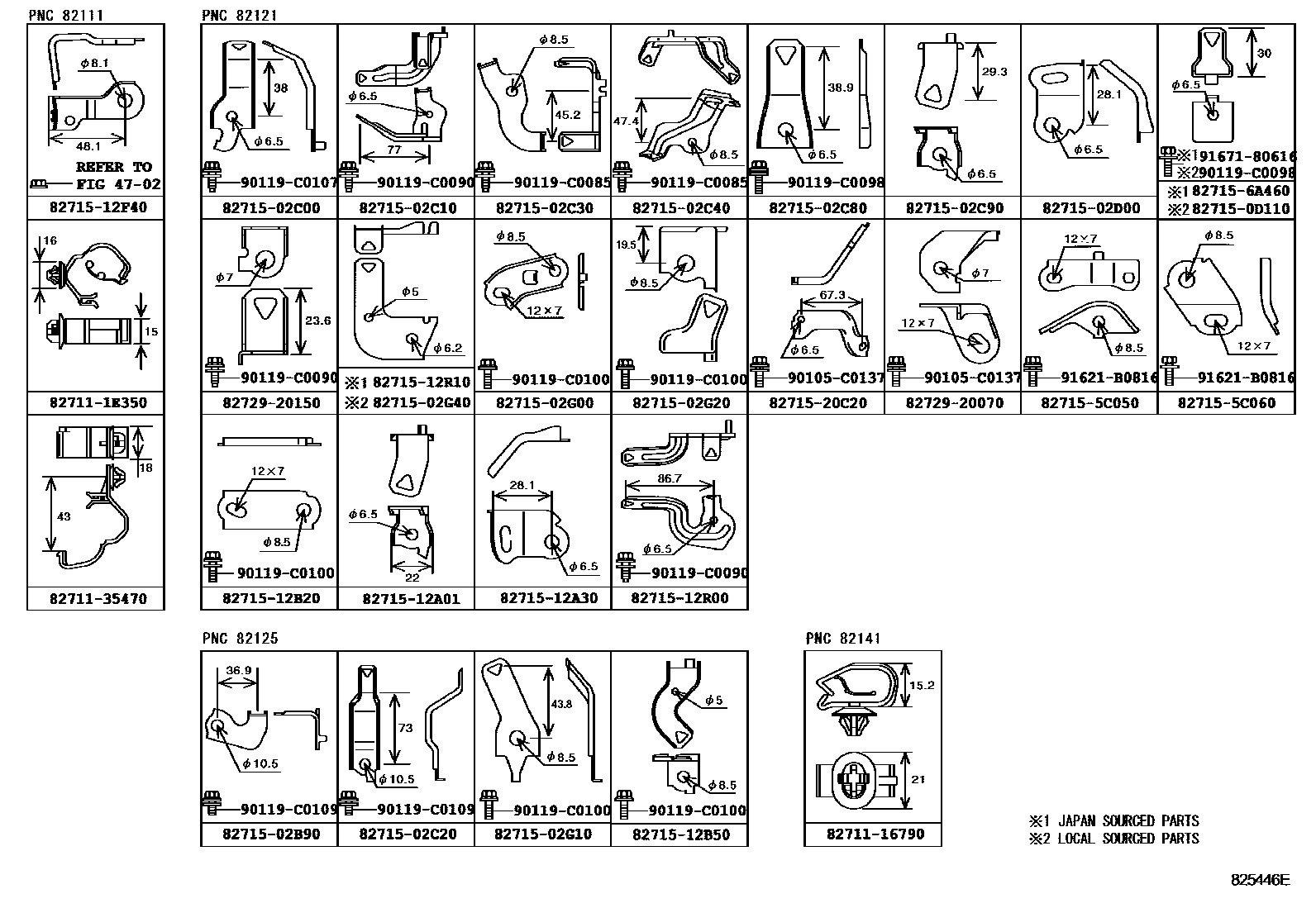

| 82111 | Engine room main wiring harness | 82111-0Z350 · 82111-0Z351 · 82111-0Z750 · 82111-0Z751 · 82115-02U20 · 82115-02U21 · 82115-02U30 · 82115-02U31 · 82115-02U40 · 82115-02U41 · 82115-02U50 · 82115-02U51 · 82115-02U60 · 82115-02U61 · 82115-02U70 · 82115-02U71 · 82116-02E10 · 82116-02E11 · 82116-02E20 · 82116-02E30 · 82116-02E60 · 82116-02E61 · 82116-02E90 · 82116-02F00 · 82116-02F01 · 82116-02F10 · 82116-02F11 · 82116-02S70 · 82116-02S71 · 82116-02S72 · 82116-02S80 · 82116-02S81 · 82116-02S82 |

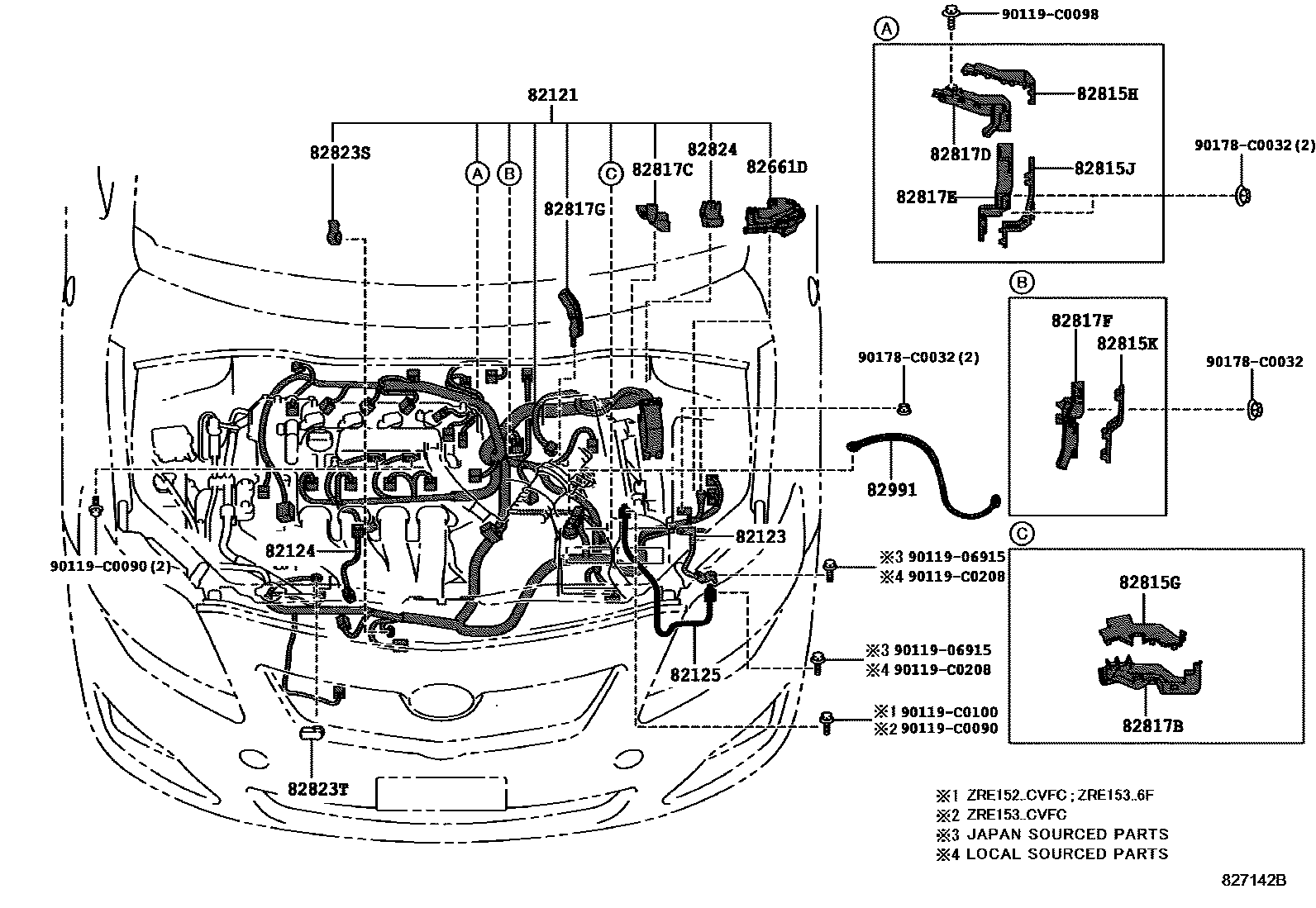

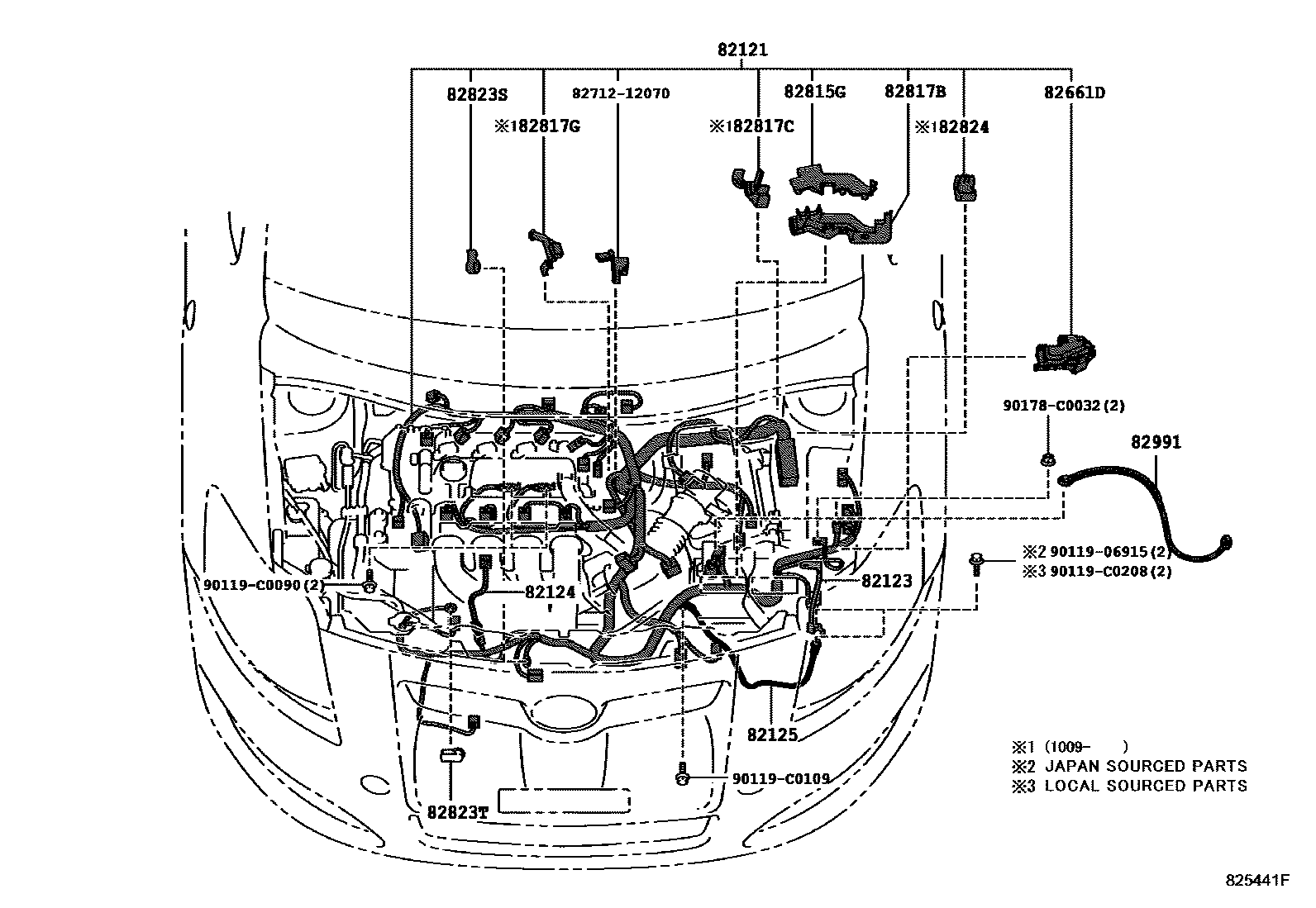

| 82121 | Engine wiring harness | 82121-02K80 · 82121-02K90 · 82121-02L20 · 82121-02L40 · 82121-02W20 · 82121-02W30 · 82121-02W40 · 82121-02W50 · 82121-02W51 · 82121-02W60 · 82121-02W70 |
| 82123 | Engine No. 3 wiring harness | 82123-02310 |
| 82124 | Engine No. 4 wiring harness | 82124-02090 · 82124-02100 · 82124-12160 |
| 82125 | Transmission wiring harness | 82125-02120 · 82125-02130 · 82125-02390 · 82125-02400 · 82125-02410 |

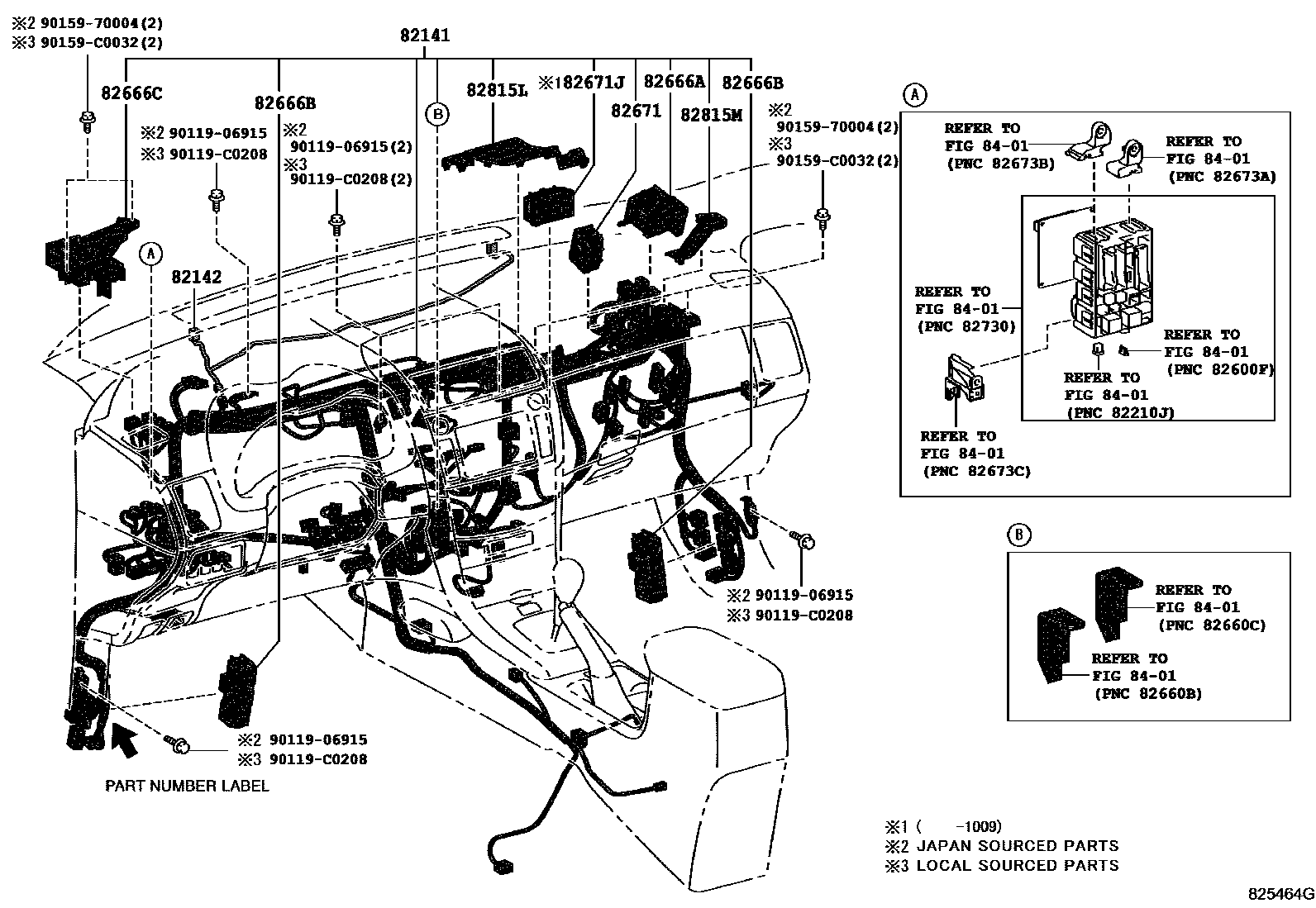

| 82141 | Dashboard wiring harness | 82117-0ZP60 · 82118-0Z290 · 82118-0Z300 · 82118-0Z310 · 82141-0ZS20 · 82141-0ZS30 · 82141-0ZS40 · 82141-0ZS50 · 82141-0ZS60 · 82141-0ZS70 · 82141-0ZS80 · 82141-0ZS90 · 82141-0ZT00 · 82145-0ZF50 · 82145-0ZV50 · 82145-0ZV60 · 82145-0ZV80 · 82145-0ZV90 · 82145-0ZW20 · 82146-0ZN10 · 82146-0ZN11 · 82146-0ZN40 · 82146-0ZN41 · 82146-0ZN60 · 82146-0ZN80 · 82146-0ZP50 · 82146-0ZP70 · 82146-0ZP90 · 82146-0ZQ10 · 82146-0ZS00 · 82146-0ZS20 · 82146-0ZS70 · 82146-0ZS71 · 82146-0ZS90 · 82146-0ZS91 · 82146-0ZT20 · 82146-0ZT40 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-02120 |

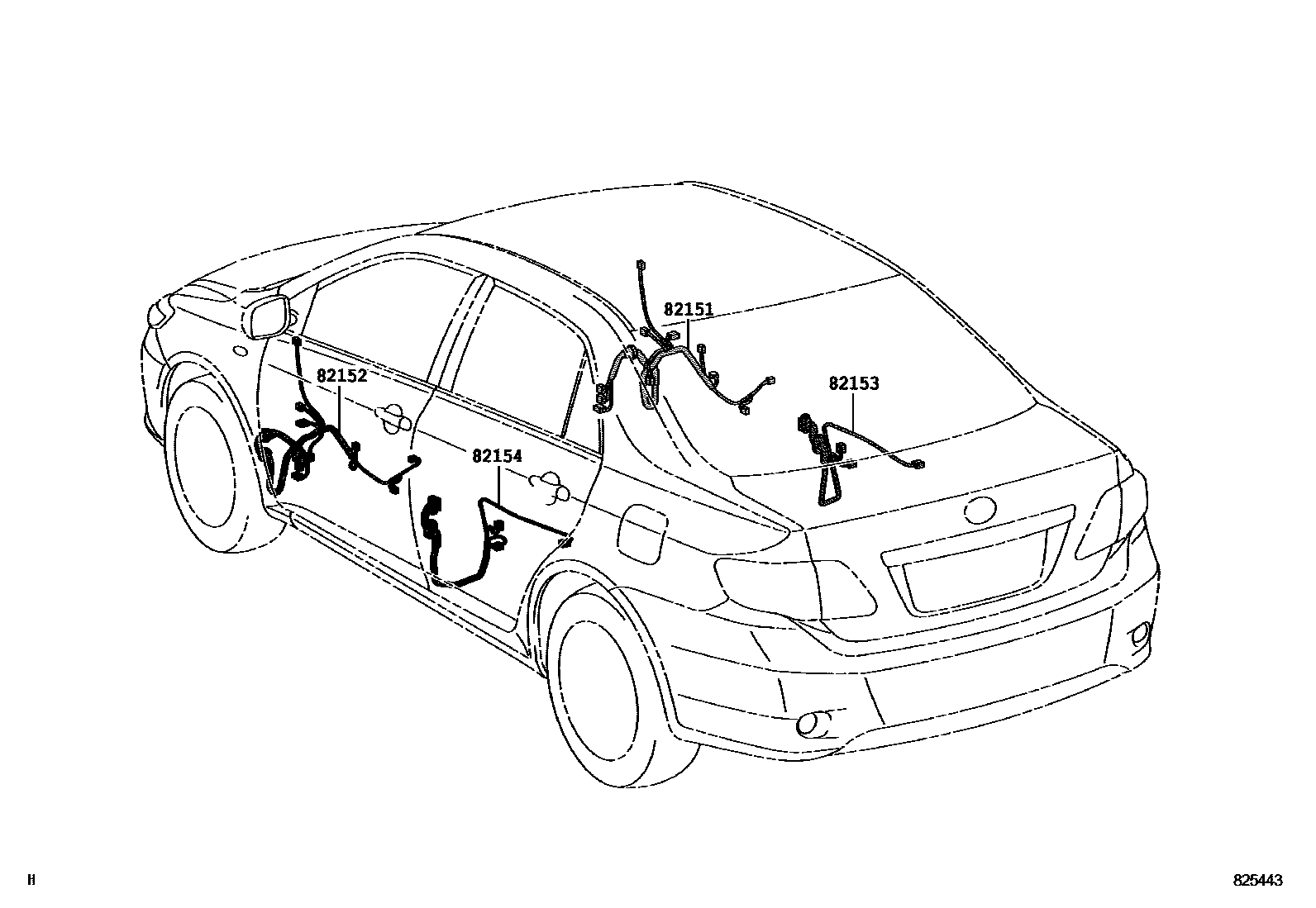

| 82151 | Right front door wiring harness | 82151-02G80 · 82151-02G90 · 82151-02P00 · 82151-02X60 · 82151-02X70 · 82151-02X80 · 82151-02Z60 |
| 82152 | Left front door wiring harness | 82152-02G60 · 82152-02G70 · 82152-02N10 · 82152-02W30 · 82152-02W40 · 82152-02W50 · 82152-02Y80 |
| 82153 | Rear door wiring harness No. 1 | 82153-02540 |
| 82154 | Rear door wiring harness No. 2 | 82154-02380 |

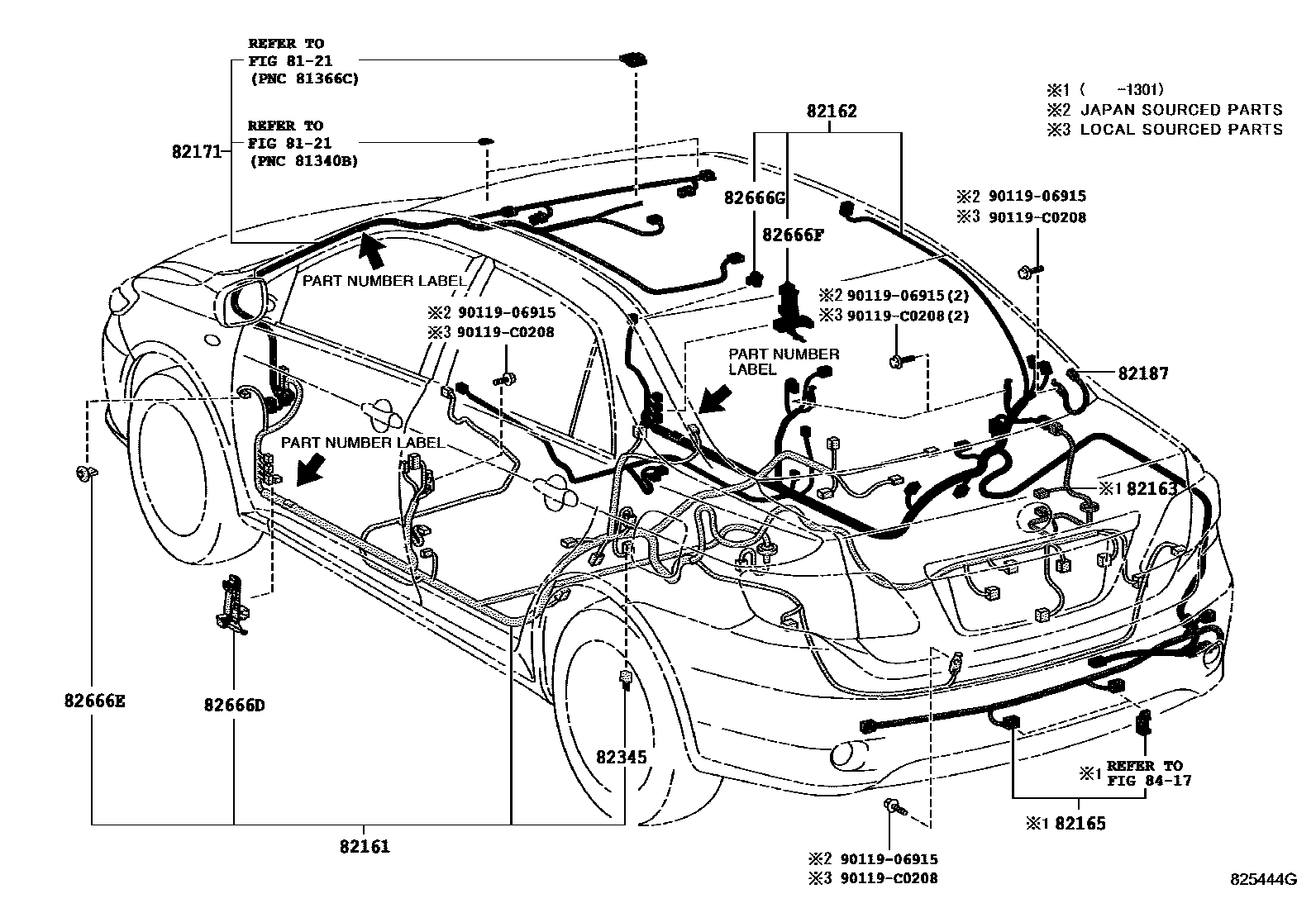

| 82161 | floor wiring harness | 82161-02Q90 · 82161-02Q91 · 82161-02V90 · 82161-02V91 · 82161-02W00 · 82161-02W01 · 82161-0Z800 · 82161-0Z801 · 82161-0Z810 · 82161-0Z811 · 82161-0Z812 · 82161-0Z820 · 82161-0Z821 · 82161-0Z830 · 82161-0ZB00 · 82161-0ZB10 · 82161-0ZB11 · 82161-0ZB12 · 82161-0ZB80 · 82161-0ZB81 · 82161-0ZB90 · 82161-0ZB91 |
| 82162 | Floor wiring harness No. 2 | 82162-02500 · 82162-02510 · 82162-02511 · 82162-02C00 · 82162-02C10 · 82162-02M40 · 82162-02M60 · 82162-02M70 · 82162-02M80 · 82162-02M90 · 82162-02N10 |
| 82163 | Floor wiring harness No. 3 | 82163-02080 · 82163-02100 · 82163-02130 |
| 82165 | No. 2 frame wiring harness | 82165-02010 |

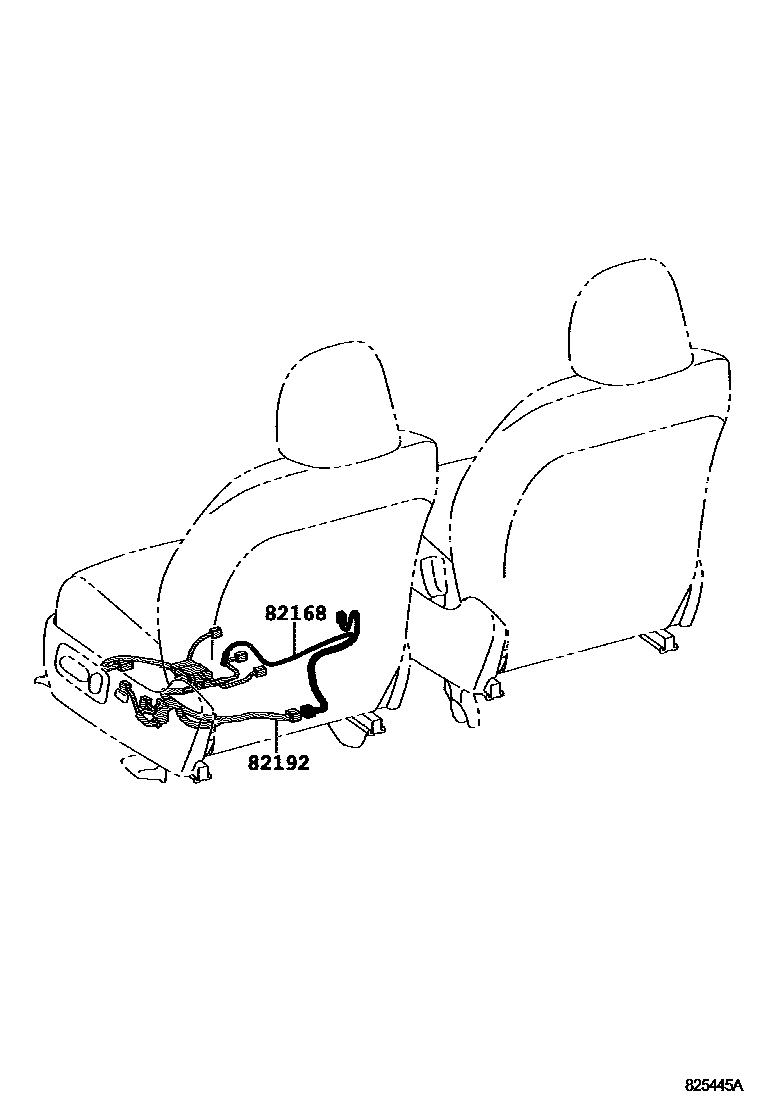

| 82168 | Seat No. 2 wiring harness | 8219B-02010 |
| 82171 | Roof No. 1 wiring harness | 82171-02D50 · 82171-02D60 · 82171-02Q30 · 82171-02S10 · 82171-02S20 · 82171-02T50 · 82171-02T60 |
| 82187 | Rear window wiring harness No. 2 | 82187-02130 |
| 82192 | Front left seat wiring harness | 82192-02030 |
| 82345 | diode | 82345-12050 |
| 82661D | No. 1 relay box side cover | 82661-12280 |
| 82666A | Connector holder No. 2 | 82666-12350 |
| 82666B | No. 3 connector holder | 82666-12360 |
| 82666C | No. 4 connector holder | 82666-12440 |
| 82666D | No. 5 connector holder | 82666-12400 |
| 82666E | No. 6 connector holder | 82666-20280 |
| 82666F | No. 7 connector holder | 82666-12370 |
| 82666G | No. 8 connector holder | 82666-20280 |
| 82671 | junction box | 82671-12260 · 82671-12320 |
| 82671J | No. 2 junction box | 82671-12250 |
| 82815A | Wiring harness protector cover | 82815-12130 |
| 82815B | Wiring harness protector cover | 82815-12140 |
| 82815G | No. 5 wire harness protector cover | 82815-12170 |
| 82815H | No. 6 wire harness protector cover | 82815-12510 |
| 82815J | No. 7 wire harness protector cover | 82815-12520 |
| 82815K | No. 8 wire harness protector cover | 82815-12530 |
| 82815L | No. 9 wire harness protector cover | 82815-12300 |
| 82815M | No. 10 wire harness protector cover | 82815-12340 |
| 82817 | No. 1 wire harness protection device | 82817-12A90 |
| 82817A | No. 2 wire harness protection device | 82817-12B00 |
| 82817B | No. 3 wire harness protection device | 82817-12B90 |
| 82817C | No. 4 wire harness protection device | 82817-12J10 |
| 82817D | No. 5 wire harness protection device | 82817-12K80 |
| 82817E | No. 6 wire harness protection device | 82817-12K90 |
| 82817F | No. 7 wire harness protection device | 82817-12L00 |
| 82817G | No. 8 wire harness protection device | 82817-02710 · 82817-12G60 |
| 82823S | starter terminal cover | 82823-12090 · 82823-12110 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-34100 |
| 82991 | Fuse repair line | 82991-12110 |
