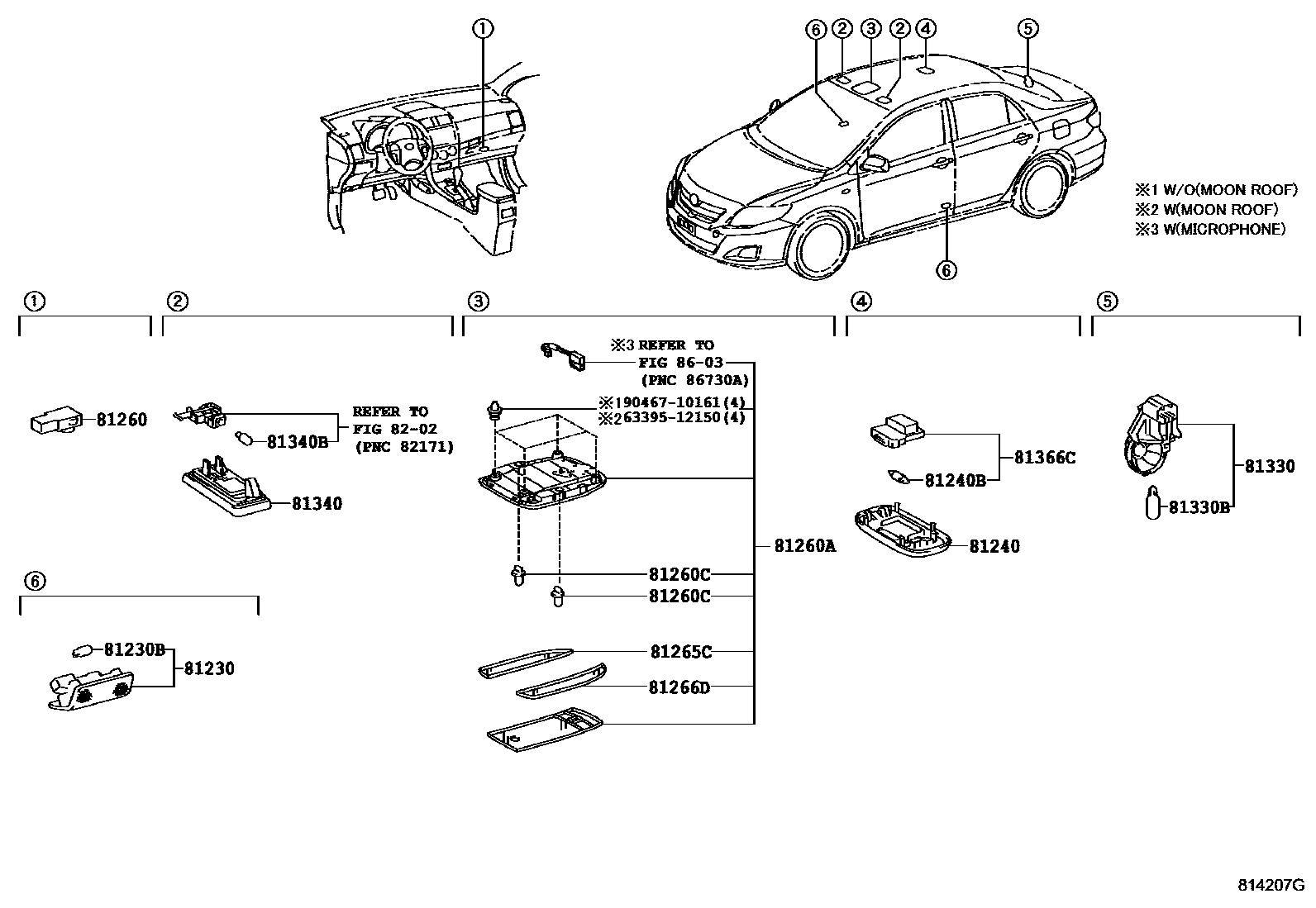

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81230 | Door control light assembly | 81230-02050 · 81230-12010 |
| 81230B | Bulb (for gated lights) | 90981-12010 · 90981-CC001 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81260 | Glove box light assembly | 81080-0N020 · 81080-48010 |
| 81260C | Light bulb (for reading lamp) | 81936-12150 |
| 81265C | No. 1 reading lamp shade | 81265-12160 |
| 81266D | Reading lamp shade No. 2 | 81266-12160 |
| 81330 | No. 1 trunk light assembly | 81330-0D040 · 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340 | Vanity light assembly | 81340-0P010 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81366C | Interior light switch base | 81366-68010 |
