Toyota COROLLA 后组合灯 — Figure 8111

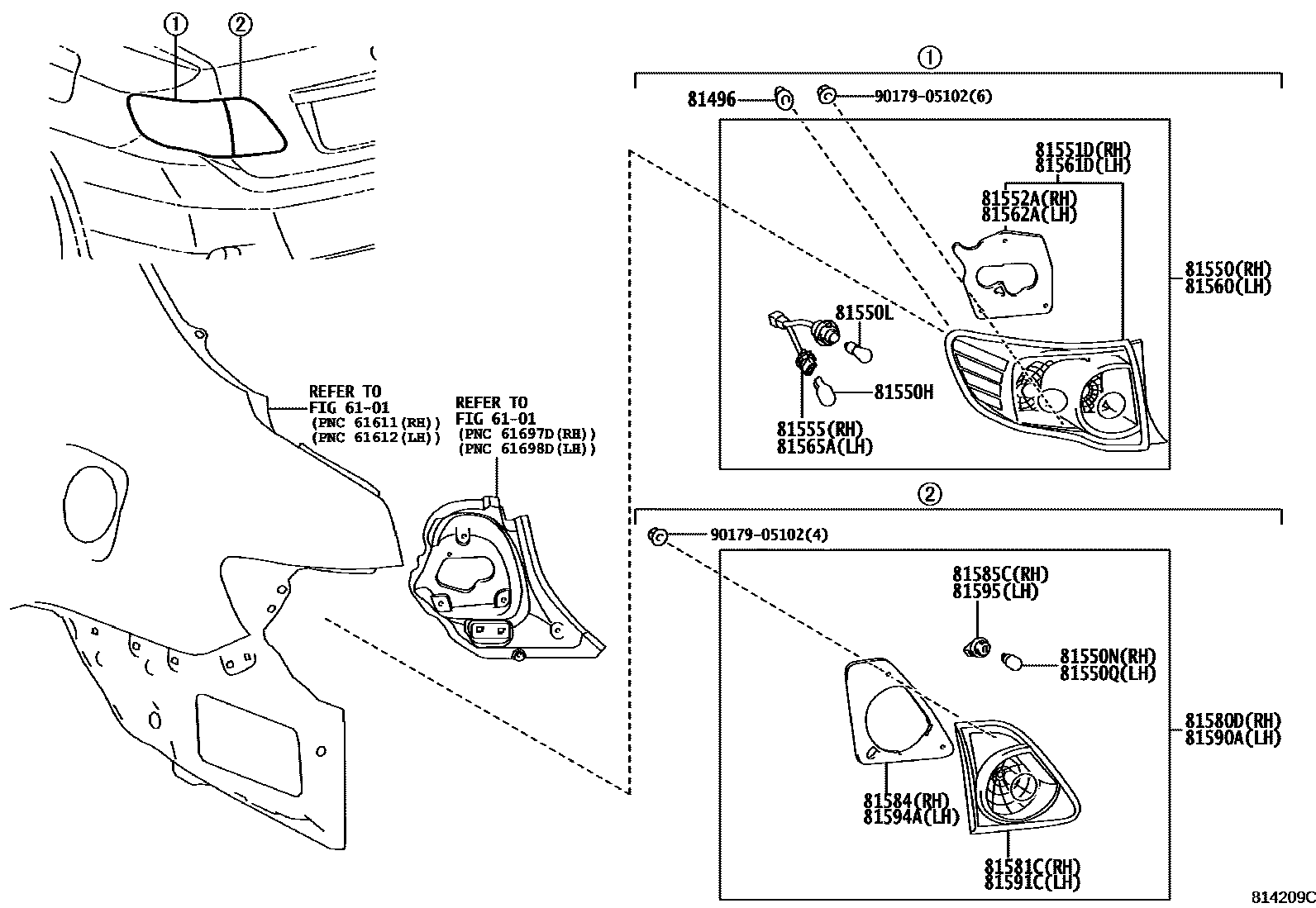

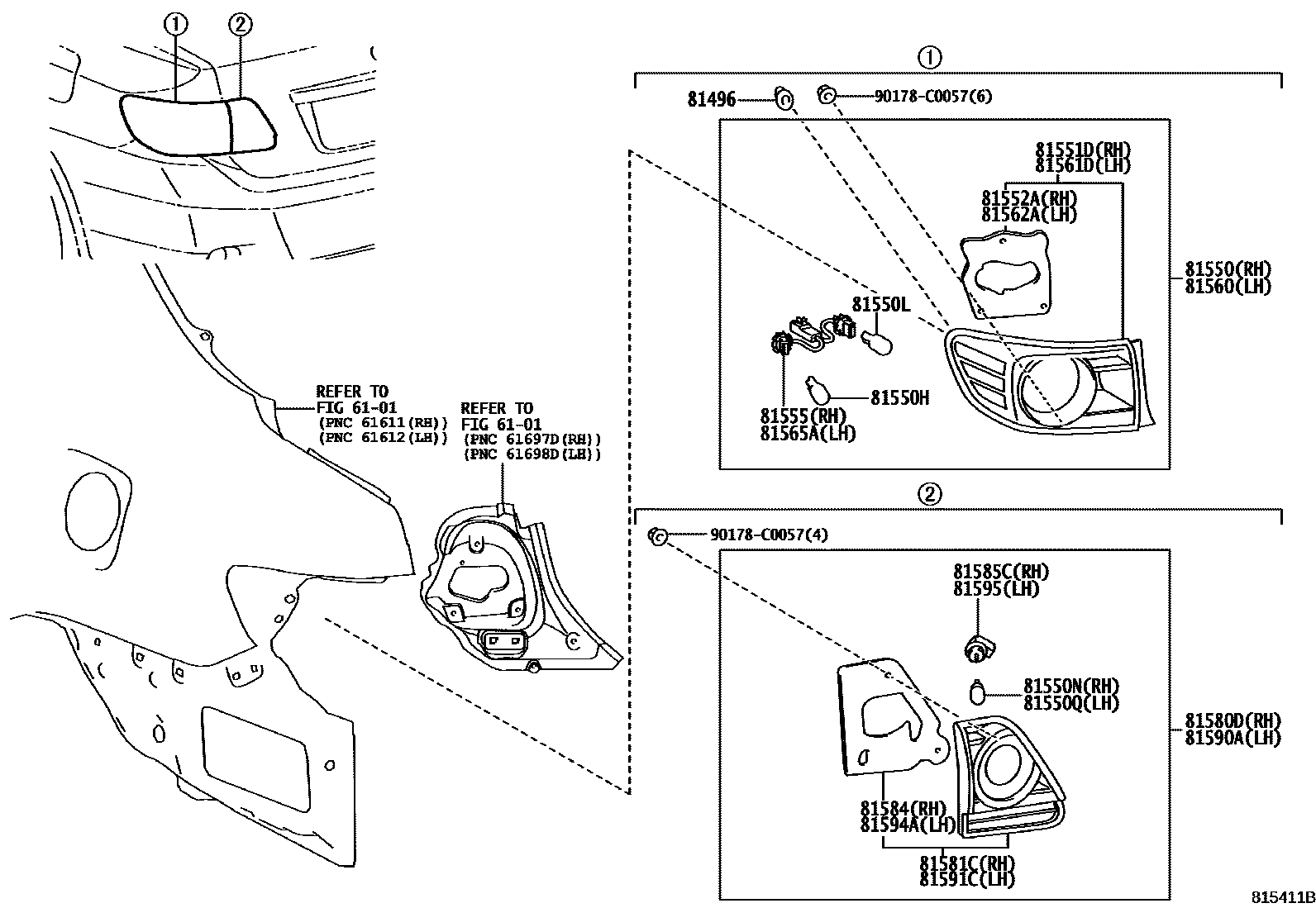

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-02020 |
| 81550 | Right rear combination light assembly | 81550-02420 · 81550-02570 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 · 99132-11210 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02420 · 81551-02570 |
| 81552A | Right rear combination light gasket | 81552-02420 · 81552-02570 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02420 · 81555-02570 |
| 81560 | Left rear combination light assembly | 81560-02420 · 81560-02570 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02420 · 81561-02570 |
| 81562A | Left rear combination light gasket | 81552-02420 · 81552-02570 |
| 81565A | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02420 · 81555-02570 |
| 81580D | Right rear light assembly | 81580-02160 · 81580-02280 |
| 81581C | Right rear light lampshade and lamp body | 81581-02160 · 81581-02280 |
| 81584 | Right rear light seal | 81584-02160 · 81584-02280 |
| 81585C | Right rear light lamp holder and wiring harness | 90075-99005 |
| 81590A | Left rear light assembly | 81590-02160 · 81590-02280 |
| 81591C | Left rear light lampshade | 81591-02160 · 81591-02280 |
| 81594A | Left rear light gasket | 81594-02160 · 81594-02280 |
| 81595 | Left rear light lamp holder and wiring harness | 90075-60042 |
