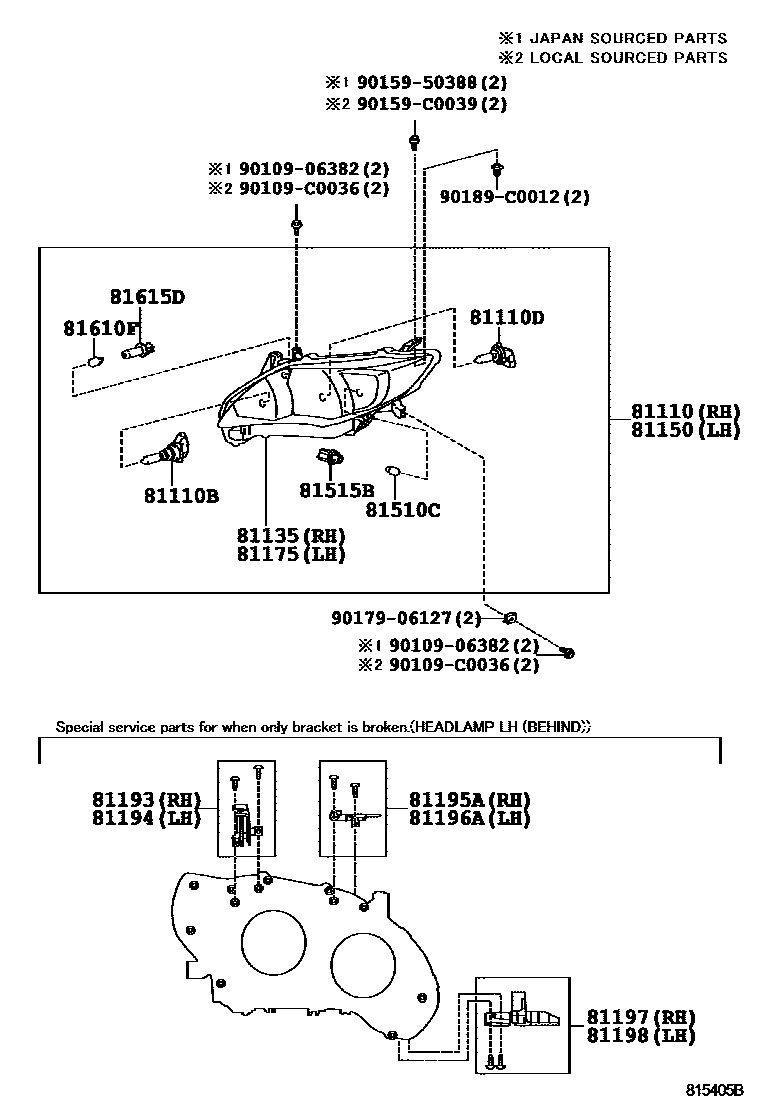

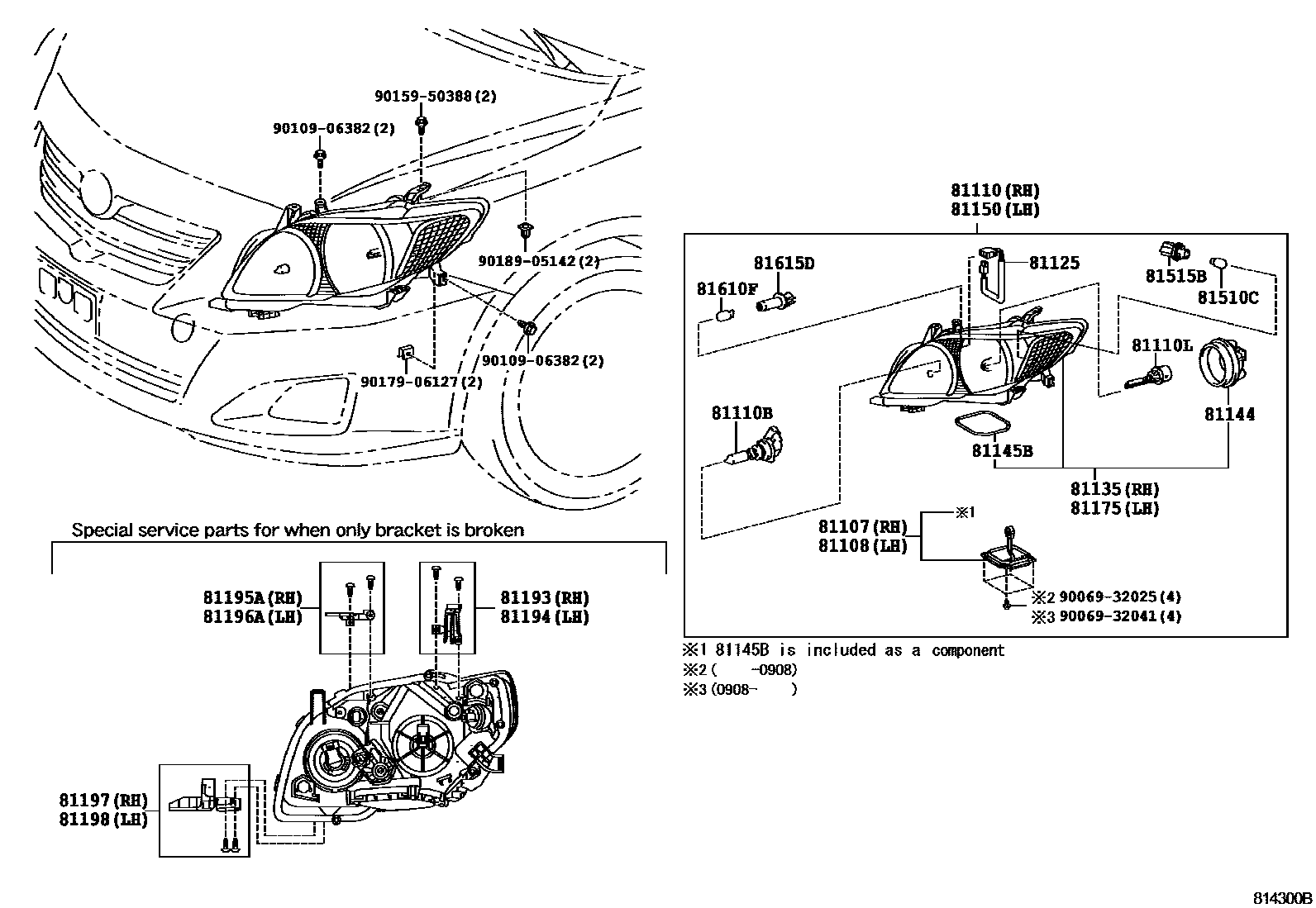

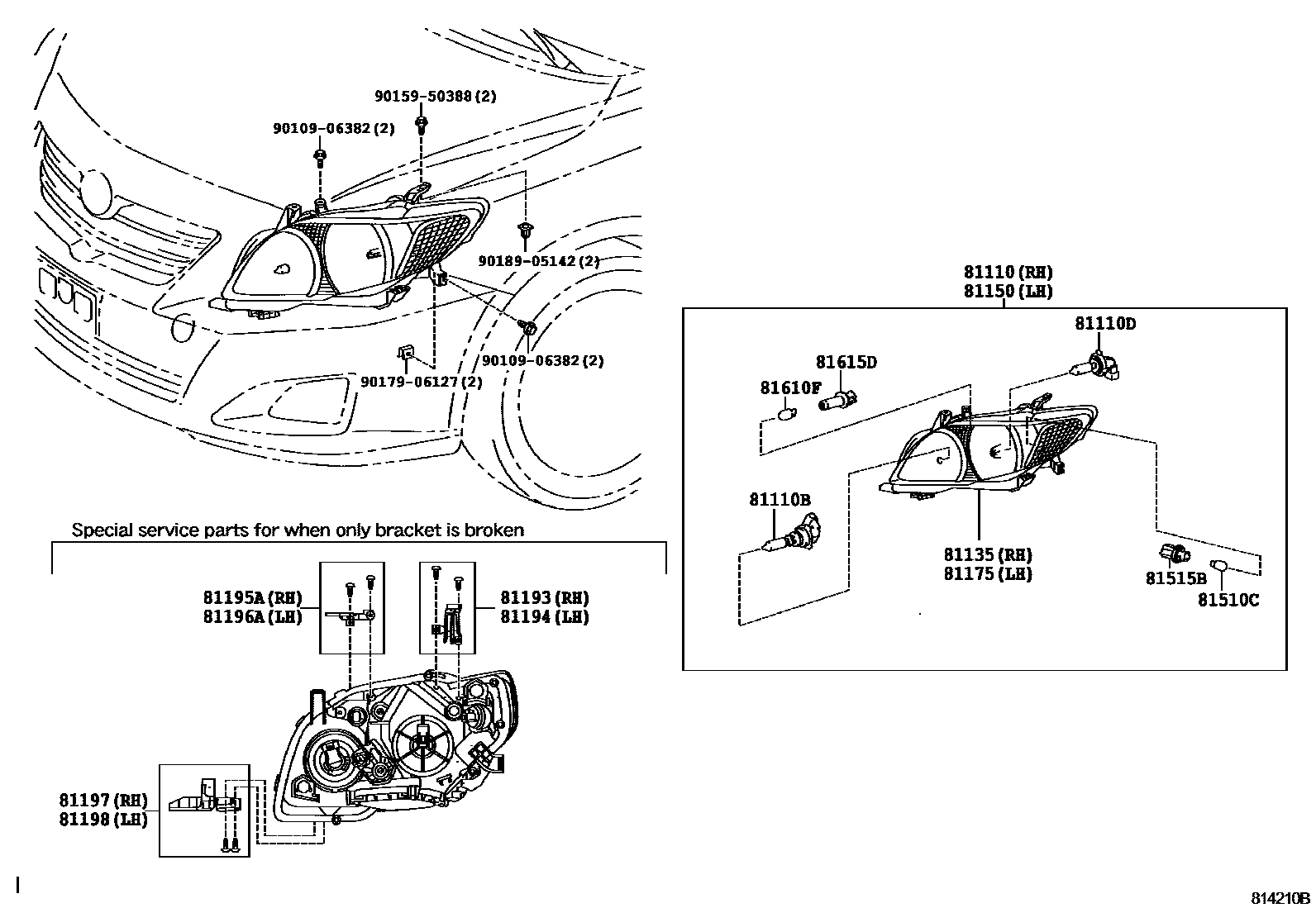

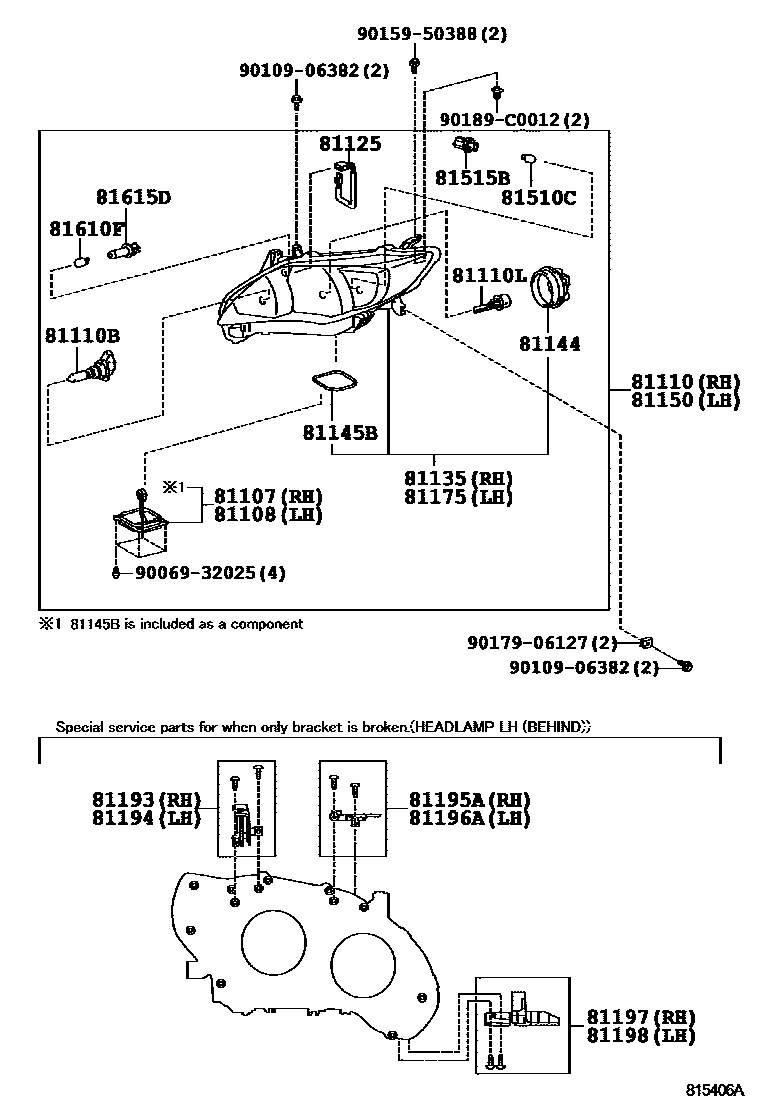

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-02620 · 81107-02621 · 81107-02B40 |
| 81108 | Left headlight control ECU sub-assembly | 81107-02620 · 81107-02621 · 81107-02B40 |
| 81110 | Right headlight assembly | 81110-02610 · 81110-02620 · 81110-02B30 · 81110-02B31 · 81110-02B40 · 81110-02F90 · 81110-02F91 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 |
| 81110L | Discharge headlight bulb | 90981-20015 · 90981-20029 |
| 81125 | headlight wire | 81125-02620 |
| 81135 | Right headlight assembly assembly | 81130-02610 · 81130-02B30 · 81130-02B31 · 81130-02F90 · 81130-02F91 · 81145-02620 · 81145-02B40 |
| 81144 | No. 1 headlight cover | 81135-02620 |
| 81145B | No. 1 headlight cover gasket | 81134-02620 |
| 81150 | Left headlight assembly | 81150-02610 · 81150-02620 · 81150-02B30 · 81150-02B31 · 81150-02B40 · 81150-02F90 · 81150-02F91 |
| 81175 | Left headlight assembly assembly | 81170-02610 · 81170-02B30 · 81170-02B31 · 81170-02F90 · 81170-02F91 · 81185-02620 · 81185-02B40 |
| 81193 | Right headlight upper protective ring | 81193-12050 · 81193-12120 |
| 81194 | Left headlight upper protective ring | 81194-12050 · 81194-12110 |
| 81195A | Right headlight lower protection ring | 81195-12050 · 81195-12140 |
| 81196A | Left headlight lower protection ring | 81196-12050 · 81196-12140 |
| 81197 | Right headlight lower bracket | 81197-12050 · 81197-12100 |
| 81198 | Left headlight lower bracket | 81198-12050 · 81198-12110 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90069-81074 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90069-81075 |
