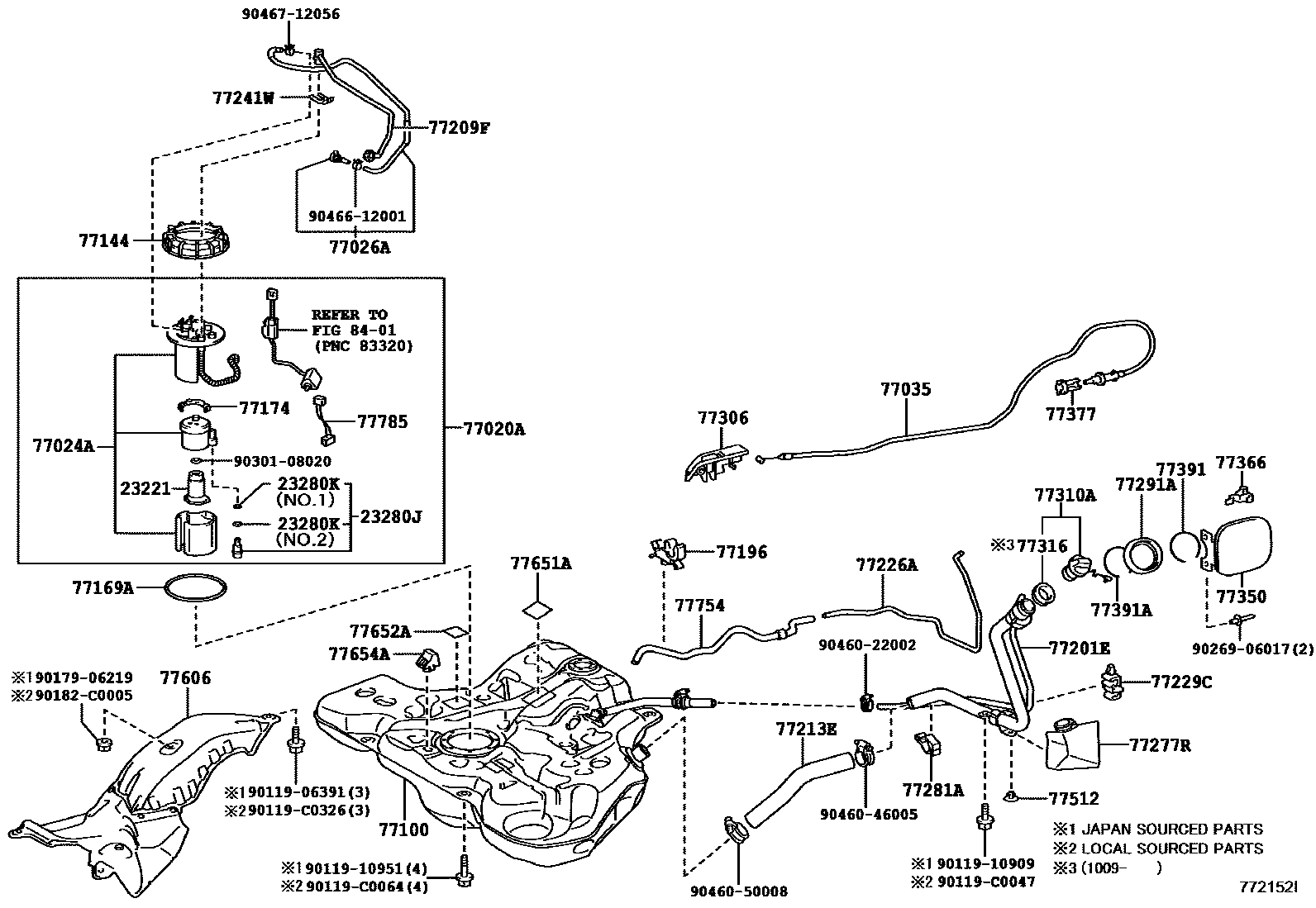

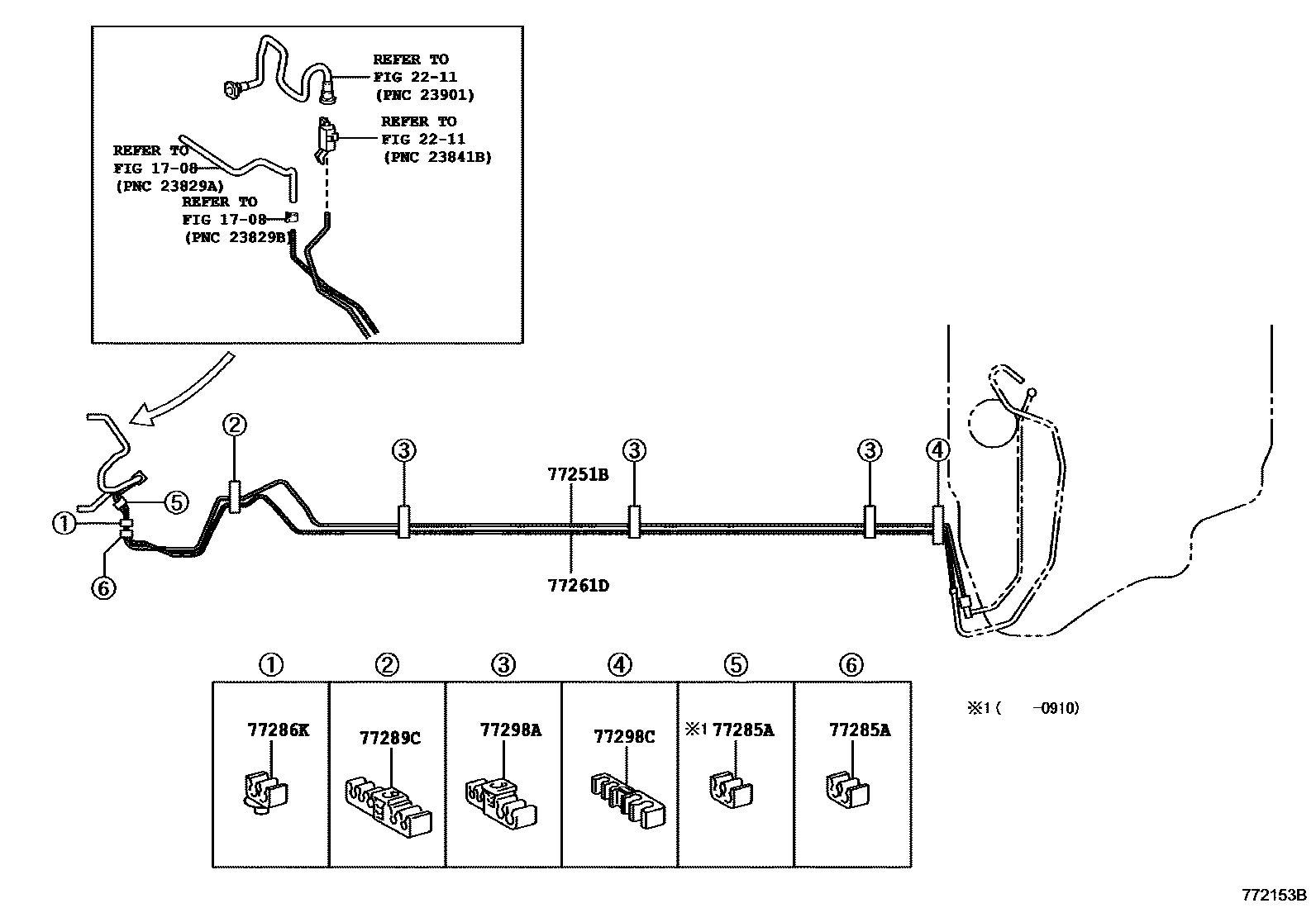

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0T030 · 23220-0T031 · 23220-0T040 · 23220-0T090 · 23220-0T091 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02240 |
| 77024A | Fuel absorber sub-assembly | 77024-02120 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02240 · 77035-02241 |
| 77100 | fuel tank assembly | 77001-02310 |
| 77144 | Fuel pump instrument fixture | 77144-0H010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D030 |
| 77174 | No. 1 oil suction pipe bracket | 77174-02060 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02080 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02220 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02170 |
| 77213E | Fuel tank to filler pipe hose | 77213-02100 |
| 77226A | No. 6 fuel tank breather pipe | 77226-02030 |
| 77229C | Snorkel clamp | 77229-12070 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-02340 · 77251-02570 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02260 · 77261-02390 |
| 77277R | Fuel tank filler pipe protection device | 77277-12180 |
| 77281A | Fuel filler pipe clamp | 77281-12100 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77286K | No. 2 fuel pipe clamp | 77286-12120 · 77286-20190 |
| 77289C | No. 4 fuel pipe clamp | 77298-68010 |
| 77291A | Fuel tank filler pipe cover | 77291-02100 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-12120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-06100 |
| 77310A | Fuel tank cap assembly | 77300-0F010 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-02050 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-06040 |
| 77391 | fuel inlet ring | 77391-0R030 · 77391-12020 |
| 77391A | fuel inlet ring | 77391-53010 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02050 |
| 77651A | No. 1 fuel tank liner | 77651-12070 |
| 77652A | No. 2 fuel tank liner | 77652-45020 |
| 77654A | No. 4 fuel tank liner | 77654-12090 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02060 |
| 77785 | fuel pump wiring harness | 77785-02140 · 77785-12020 |
