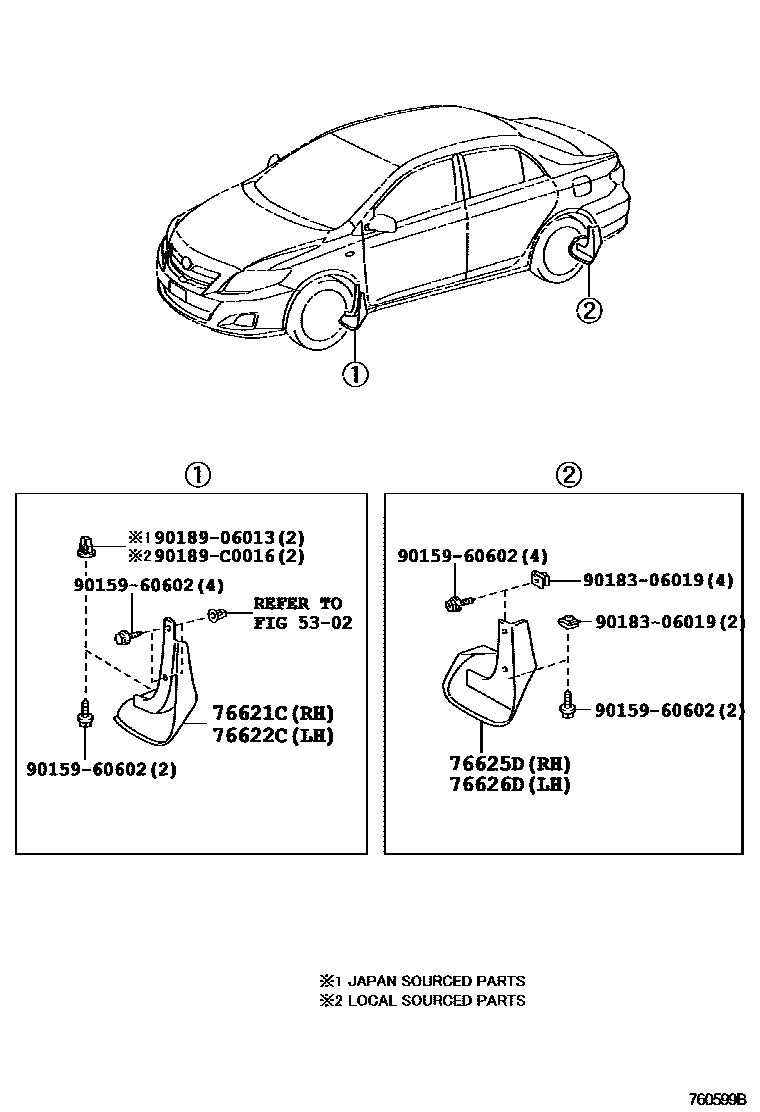

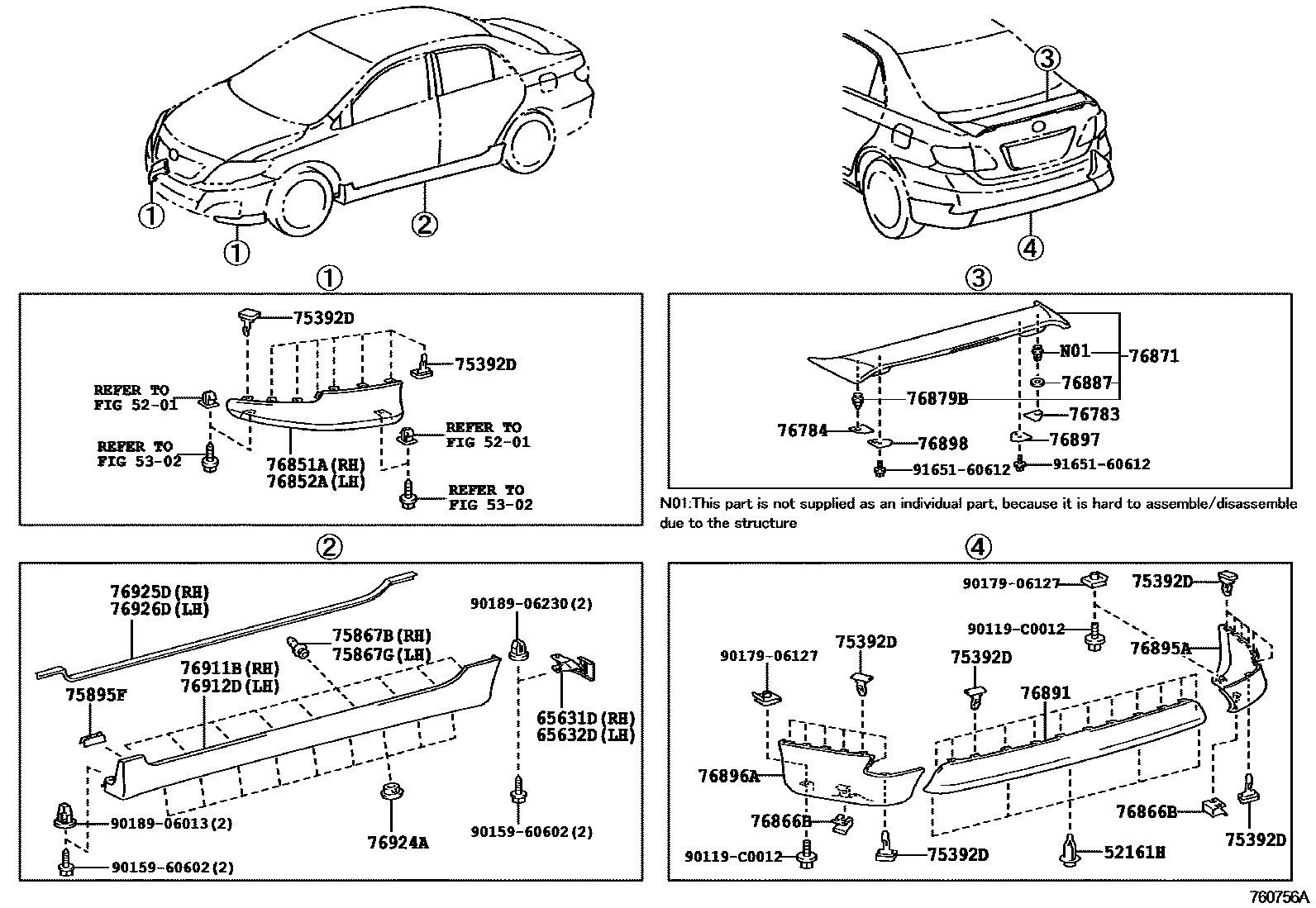

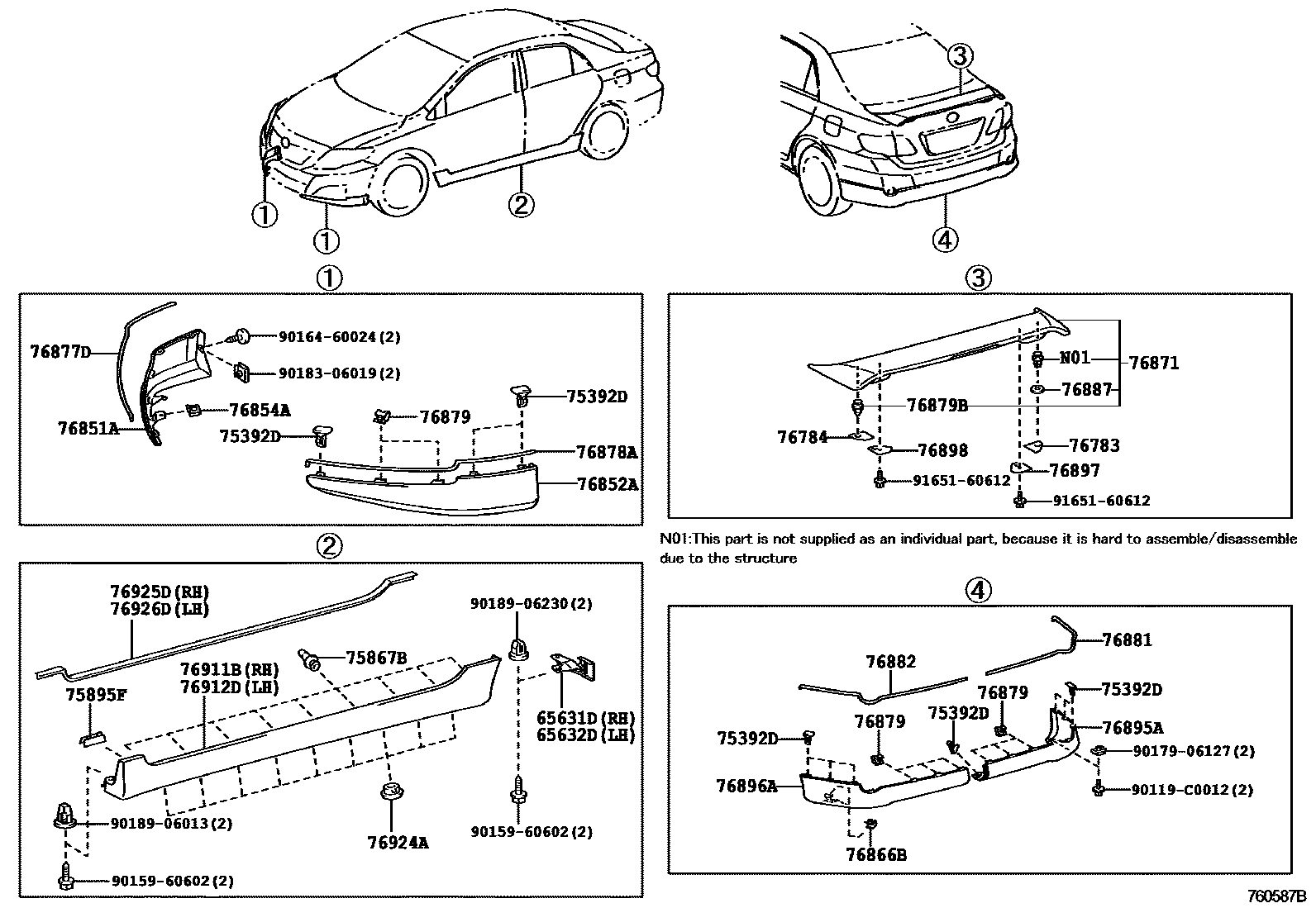

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161H | Rear bumper insert | 52161-02040 |
| 65631D | Right rear wheel house front panel | 65631-02130 |
| 65632D | Left rear wheel house front panel | 65632-02130 |
| 75392D | External protective strip fixings | 75392-35200 · 75392-35220 |
| 75867B | Door sill panel protective strip clip | 75867-33030 |
| 75867G | No. 2 door sill plate protective strip clip | 75867-02020 · 75867-33030 |
| 75895F | No. 1 protective strip tape | 75895-02040 |
| 76783 | Right rear lower spoiler tape | 76783-02040 |
| 76784 | Left rear lower spoiler tape | 76784-02040 |
| 76851A | Right front spoiler cover | 76851-02902 · 76851-02906 |
| 76852A | Left front spoiler cover | 76852-02902 · 76852-02906 |
| 76854A | No. 2 front spoiler fixing piece | 76854-44010 |
| 76866B | No. 2 rear spoiler fixing piece | 76854-44010 |
| 76871 | rear spoiler | 76871-02905 |
| 76879 | No. 1 rear spoiler clip | 76879-44010 |
| 76879B | No. 2 rear spoiler clip | 76879-12060 |
| 76887 | Rear spoiler seal | 76887-12040 |
| 76891 | No. 1 rear spoiler | 76891-02040 |
| 76895A | Right rear bumper spoiler | 76895-02905 · 76895-02911 |
| 76896A | Left rear bumper spoiler | 76896-02903 · 76896-02909 |
| 76897 | Right rear spoiler protection strip | 76897-02040 |
| 76898 | Left rear spoiler protection strip | 76898-02040 |
| 76911B | right fender | 76911-02908 |
| 76912D | left fender | 76912-02908 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
