Toyota COROLLA 后防护条 — Figure 7504

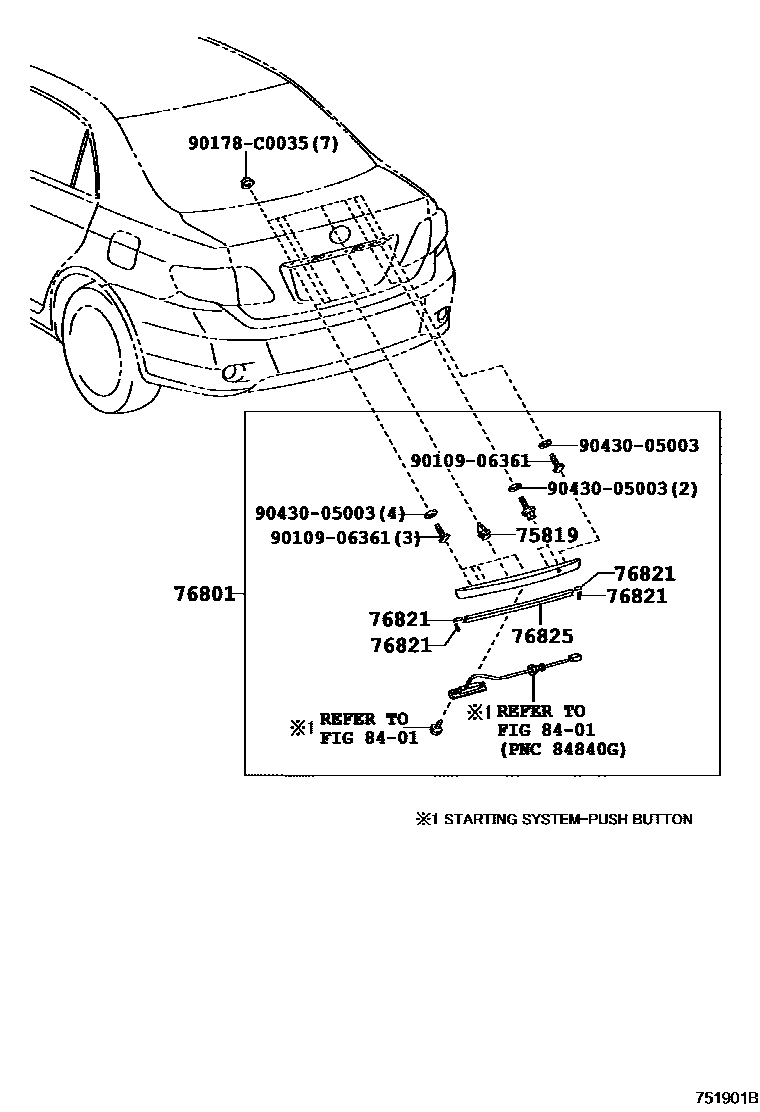

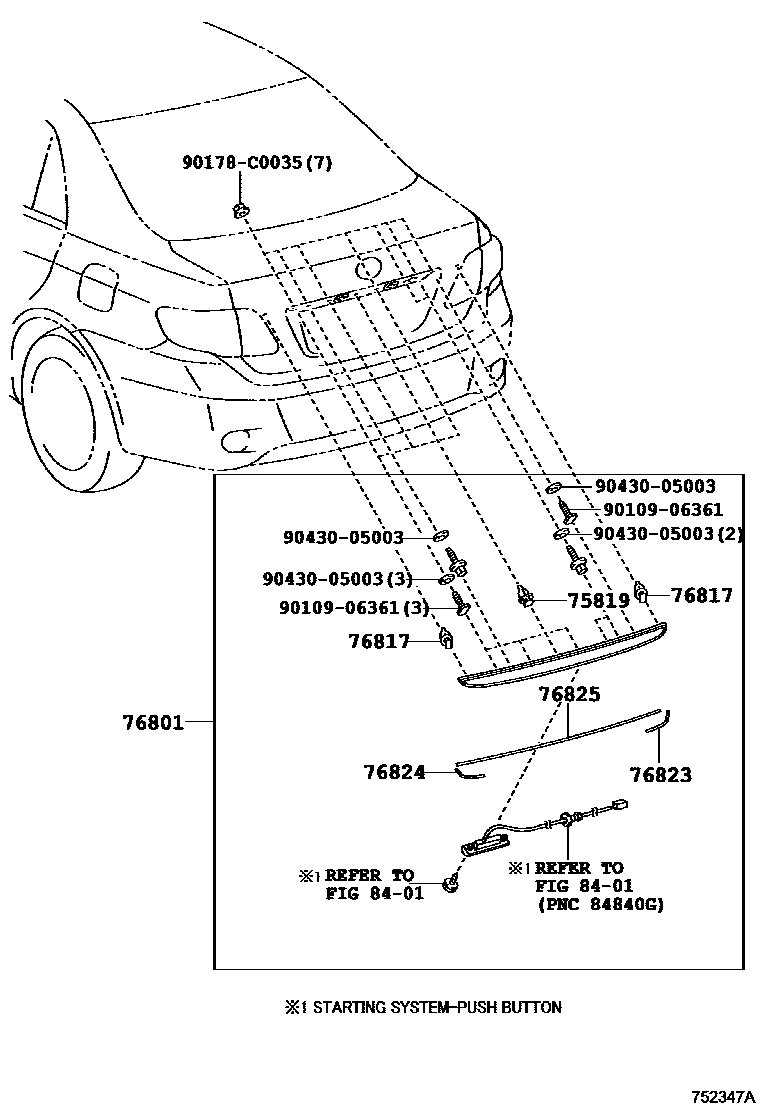

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-02320 · 76801-02370 · 76801-02380 · 76801-02390 · 76801-02670 · 76801-02680 · 76801-02690 · 76801-02840 |
| 76817 | Rear door exterior decorative strip clip | 76817-12100 |
| 76821 | Protective cover for rear door trim strip | 76821-02090 |
| 76823 | Rear door right side decorative strip protective cover | 76823-02030 |
| 76824 | Rear door left side decorative strip protective cover | 76824-02020 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-02050 · 76825-02100 |
