Toyota COROLLA 侧防护条 — Figure 7503

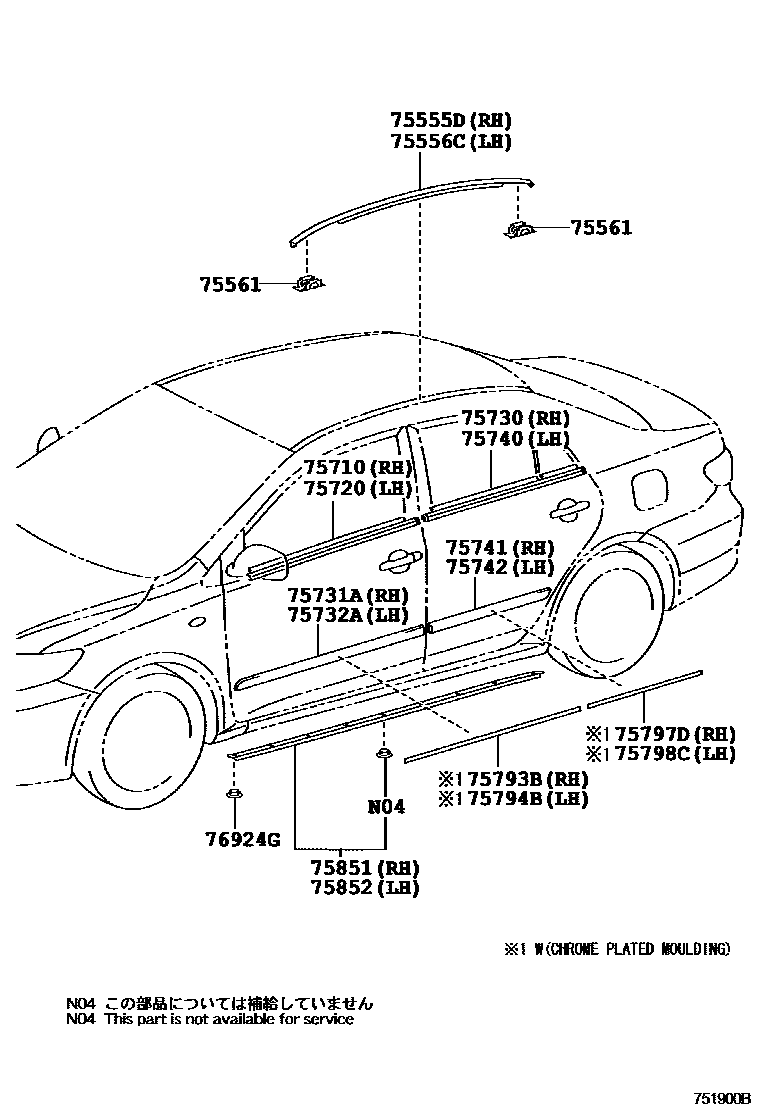

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02110 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02120 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52040 |
| 75710 | Right front door waistline protection strip assembly | 75710-02170 · 75710-02180 |
| 75720 | Left front door waistline protection strip assembly | 75720-02170 · 75720-02180 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02150 · 75730-02160 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02150 · 75740-02160 |
| 75793B | Right front door outer protective strip insert | 75793-02020 |
| 75794B | Left front door outer protective strip insert | 75794-02020 |
| 75797D | Right rear door outer protective strip insert | 75797-02020 |
| 75798C | Left rear door outer protective strip insert | 75798-02020 |
| 75851 | Right side door sill panel protective strip | 75851-02111 |
| 75852 | Left side door sill panel protective strip | 75852-02111 |
| 76924G | Door sill panel protective strip fixings | 76924-02070 · 76924-52021 |
