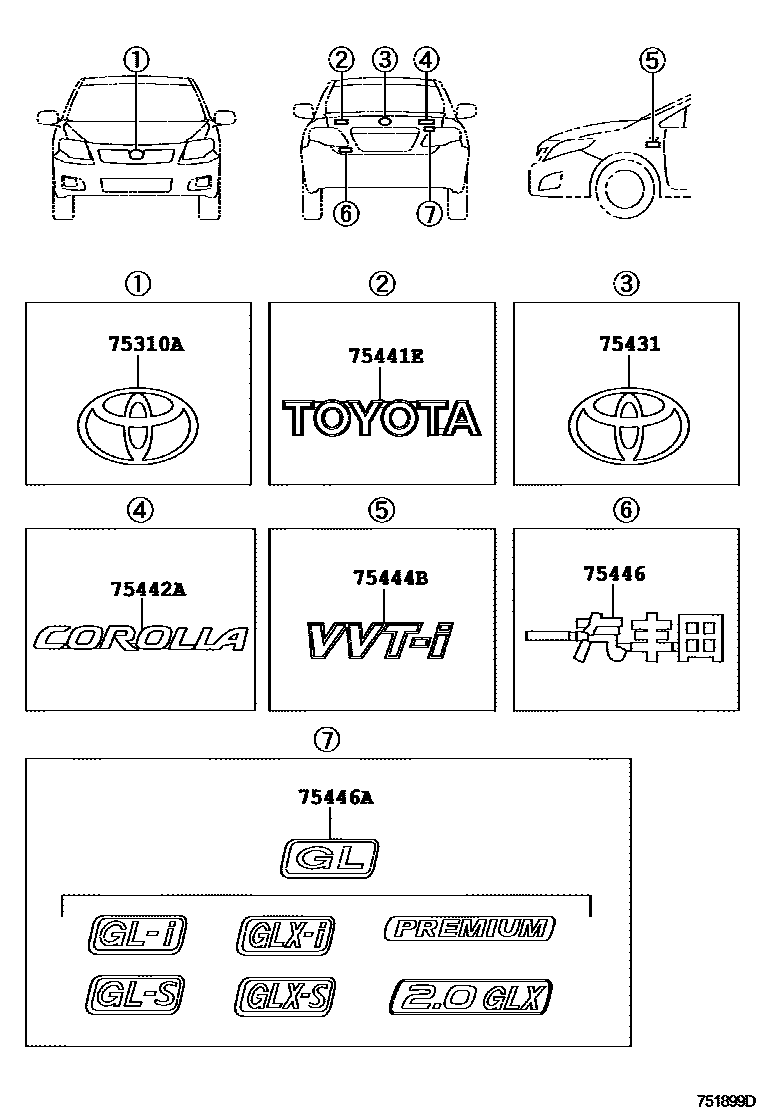

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 75301-02040 |
| 75431 | luggage compartment door sign | 75431-02060 |
| 75441E | Back door No. 1 nameplate | 75441-02130 |
| 75442A | No. 2 nameplate on back door | 75442-02160 |
| 75444B | Front fender nameplate | 75447-02060 |
| 75446 | Trunk door No. 6 nameplate | 75441-02240 |
| 75446A | No. 6 nameplate on back door | 75444-02330 · 75444-02340 · 75444-02350 · 75444-02360 · 75444-02370 · 75444-02380 · 75444-02680 |
