Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

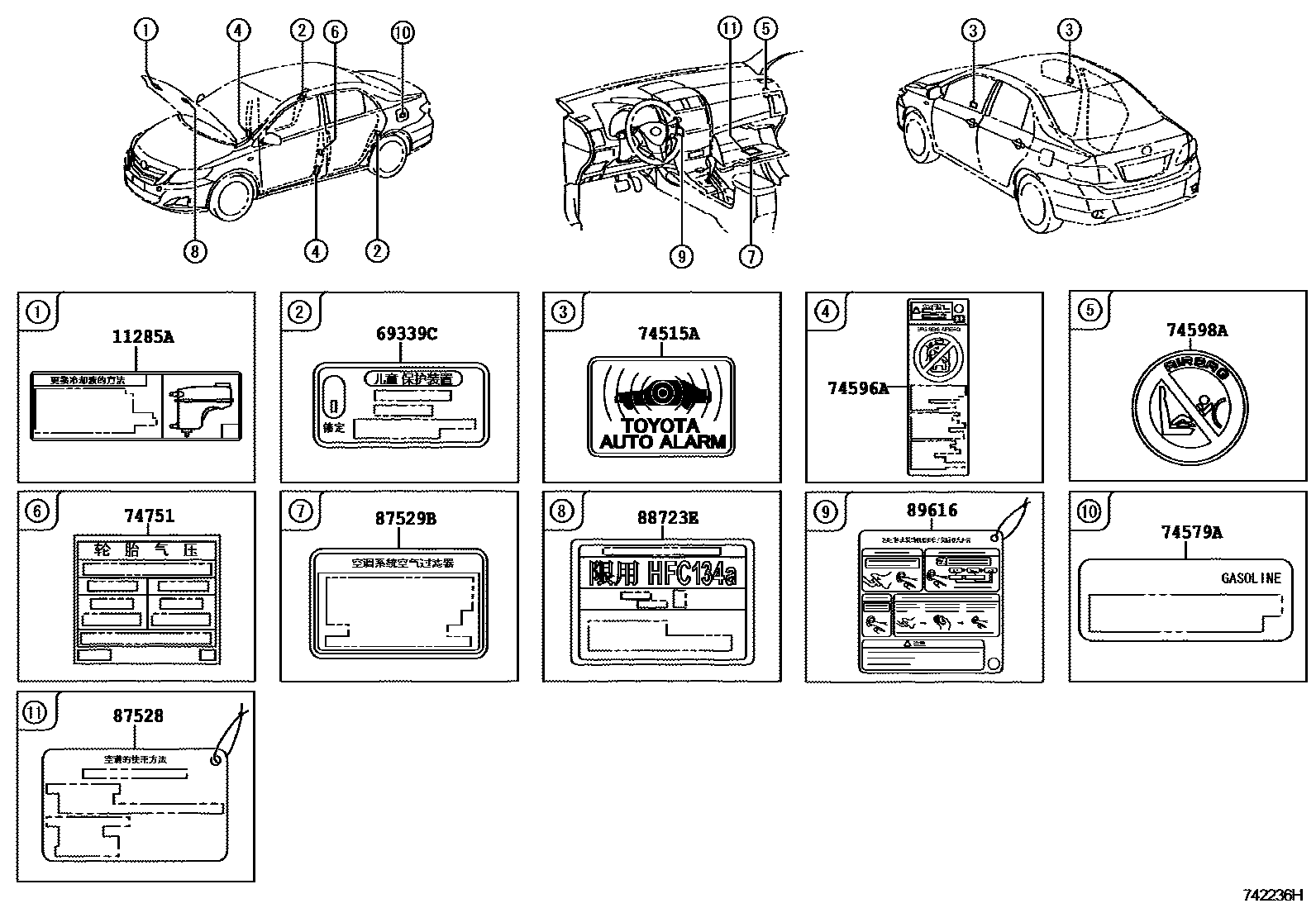

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0T010 |
| 69339C | Child Restraint Information Label | 69339-06030 · 69339-06080 |
| 74515A | Anti-theft warning nameplate | 74515-06020 |
| 74579A | Unleaded Fuel Information Label | 74579-0D010 · 74579-26010 · 74579-26011 |
| 74596A | Side air bag warning label | 74596-30040 · 74596-53020 |
| 74598A | Passenger air bag warning label | 74598-06040 |
| 74751 | tire pressure information label | 42661-02C50 · 42661-02C60 · 42661-12D00 · 42661-12D10 |
| 87528 | Air conditioner information label | 87528-02010 |
| 87529B | Cabin filter information label | 87529-0D020 |
| 88723E | Cooler maintenance warning label | 88723-0D020 |
| 89616 | Launch information labels with one click | 89616-30081 |
