Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

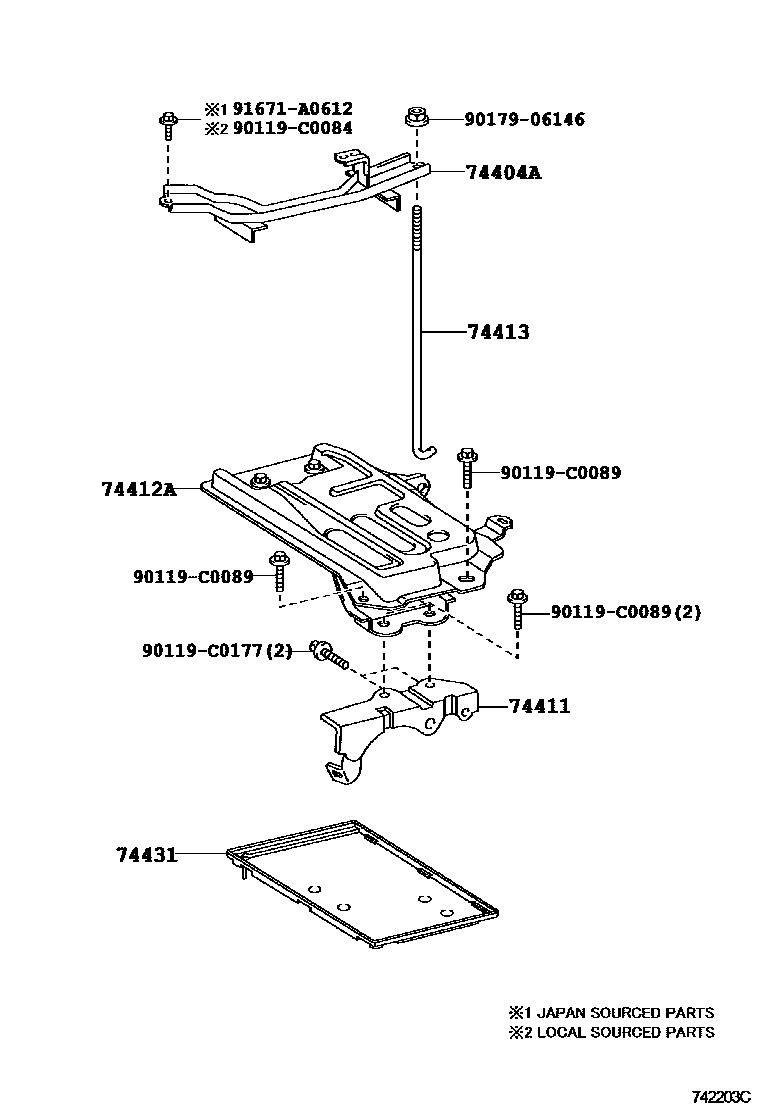

Toyota COROLLA battery holder EPC diagram — 742203C
battery holder — 742203C (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02180
74411battery holder74401-02030
74412ANo. 2 battery holder74410-02070
74413Battery clamp bolt74451-58011
74431battery tray74431-02240
