Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

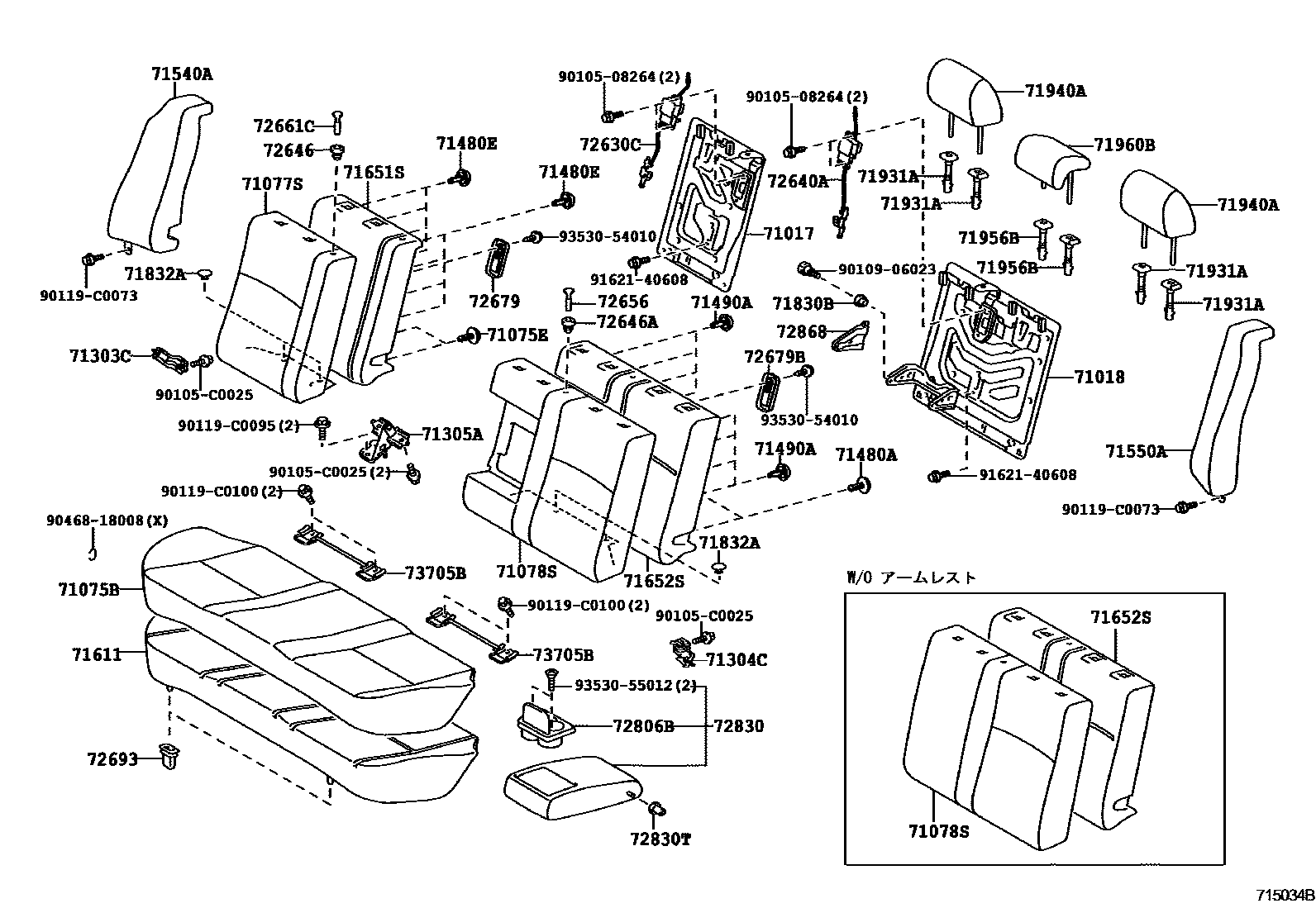

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02280 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02160 · 71018-02170 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02100 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-02100 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02100 |
| 71480E | Rear right seat backrest clip | 90467-05164 |
| 71490A | Rear left seat back clip | 90467-05164 |
| 71611 | Rear seat cushion cushion | 71503-02140 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02280 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02270 · 71652-02290 |
| 71830B | Bushing (for rear seat armrest) | 90386-08077 |
| 72630C | Rear right seat back lock assembly | 72630-12350 |
| 72640A | Rear left seat back lock assembly | 72640-12320 |
| 72693 | Rear seat cushion hook | 72693-02030 |
| 72830T | Bushing (for rear seat center armrest) | 90386-06011 |
| 73705B | Cross anchor bracket sub-assembly | 73705-12070 |
