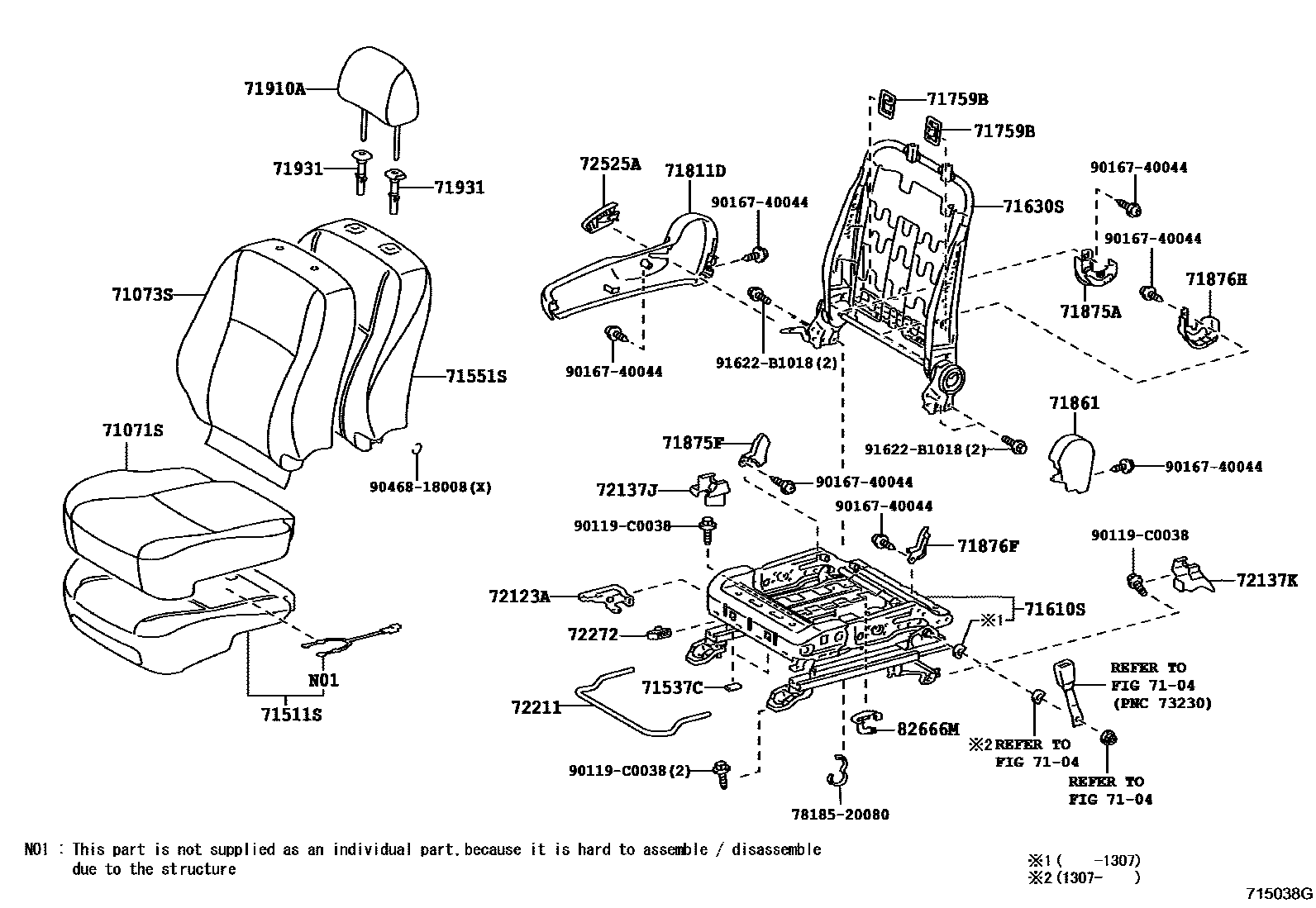

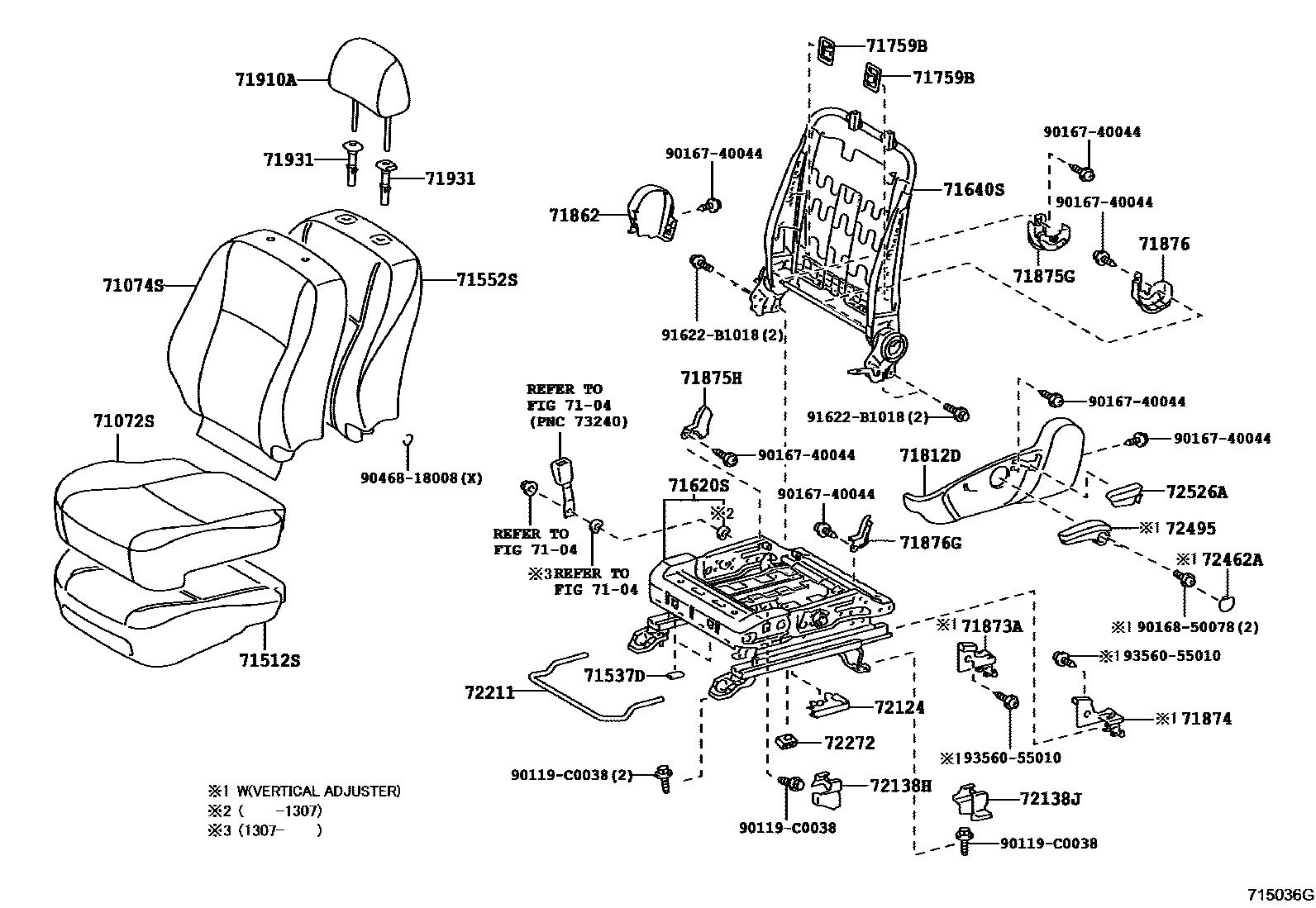

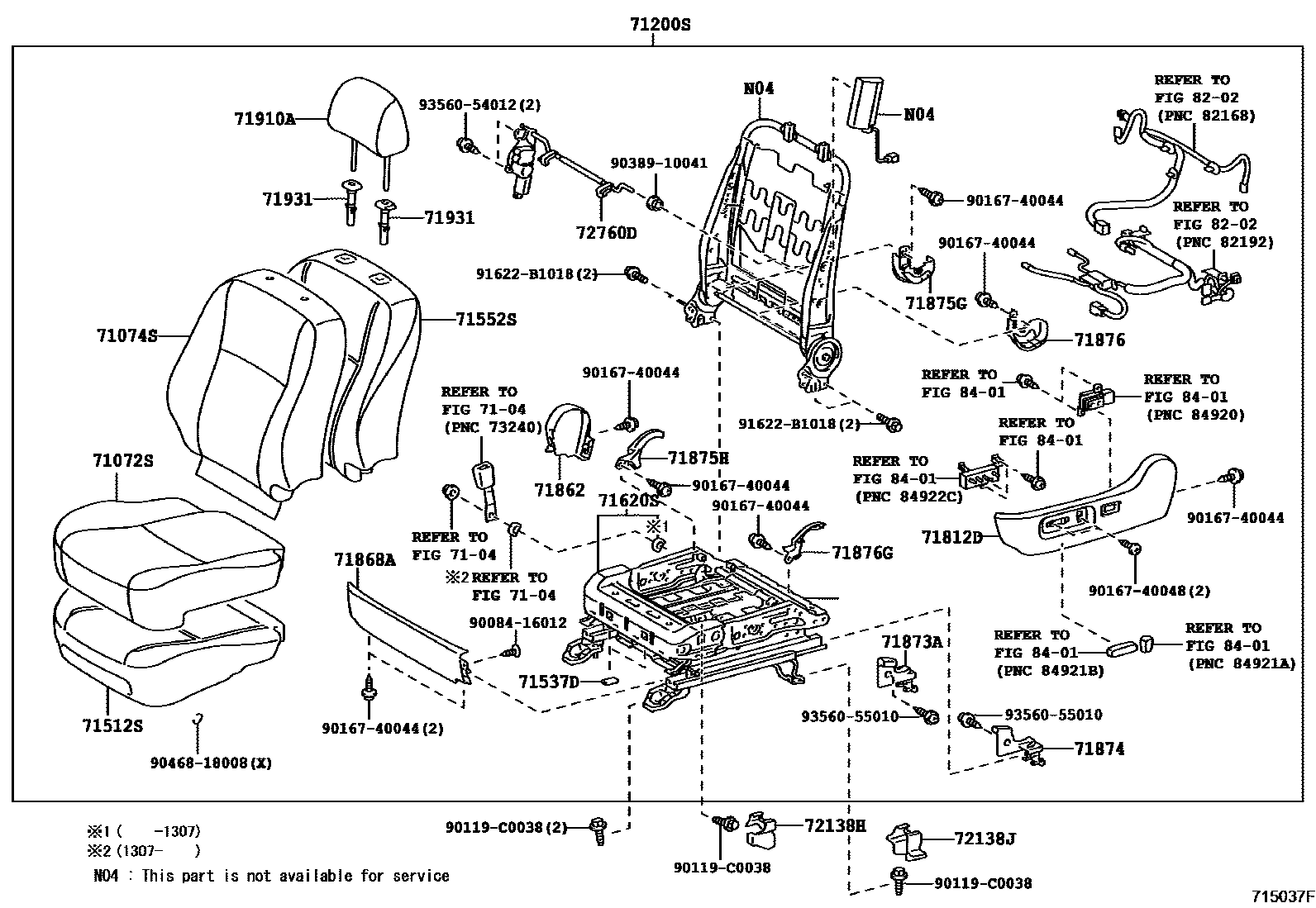

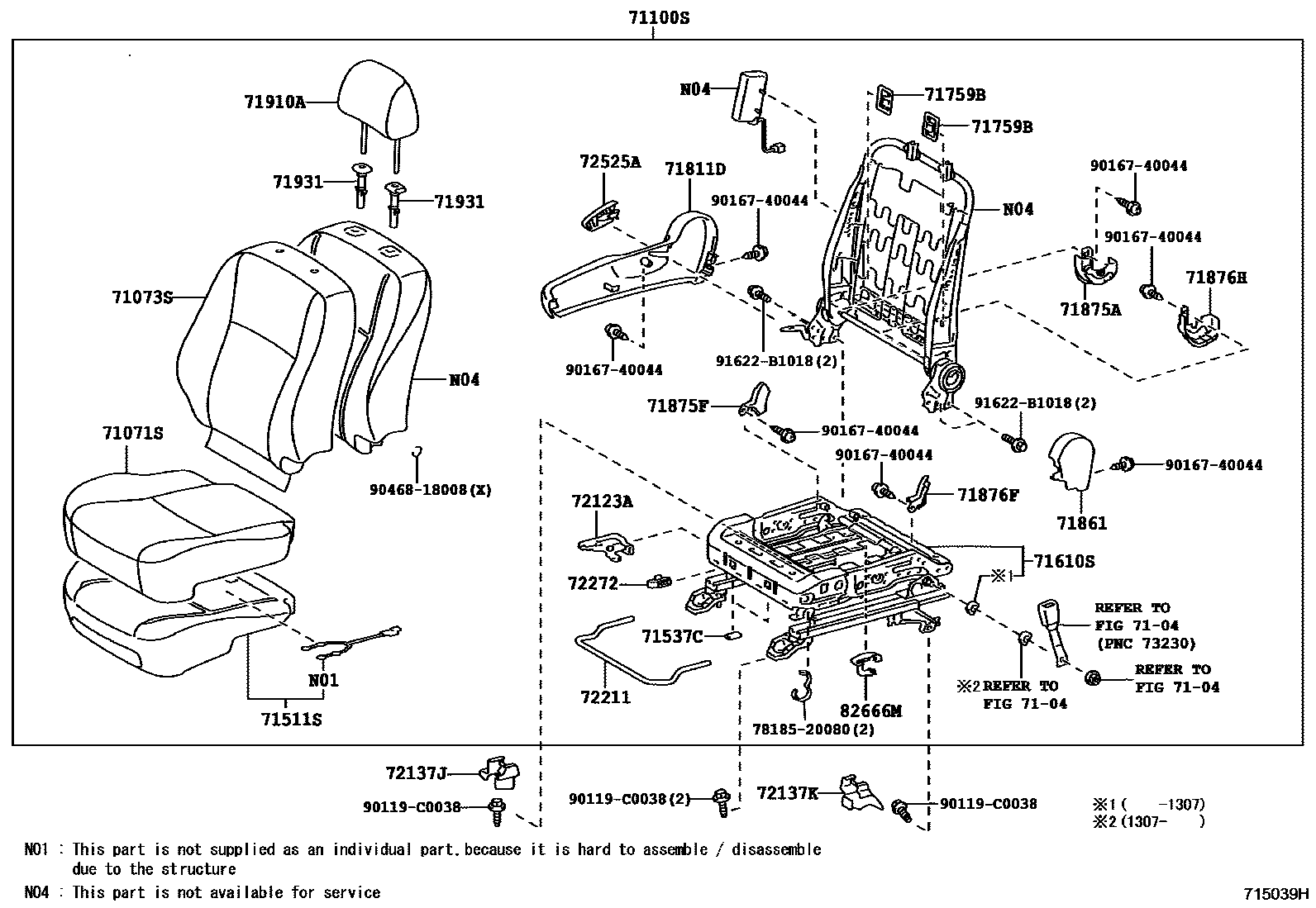

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02160 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02170 · 71512-02220 · 71512-02230 |
| 71537C | Front right seat cushion edge protective cover | 71537-02020 |
| 71537D | Front left seat cushion edge protective cover | 71537-02020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02460 · 71551-02740 · 71551-02750 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02320 · 71552-02580 · 71552-02590 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02020 · 71610-02021 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02030 · 71620-02031 · 71620-02040 · 71620-02041 · 71620-02050 · 71620-02051 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02370 · 71630-02550 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02250 · 71640-02470 |
| 71759B | Front seat back hook | 71759-02010 |
| 71873A | Front seat cushion lower guard | 71873-06280 |
| 71874 | Front left seat cushion lower guard | 71874-06240 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-06340 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06340 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-06230 · 71876-06370 |
| 71876H | Left backrest recliner inner cover (for right seat) | 71876-06370 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02010 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-02010 |
| 72211 | Seat slide adjustment handle | 72211-06040 |
| 72272 | Seat rail control cable clip | 72272-02050 |
| 72760D | Left lumbar support adjuster assembly | 72760-06050 · 72760-06051 |
| 82666M | Connector holder | 82666-12420 |
